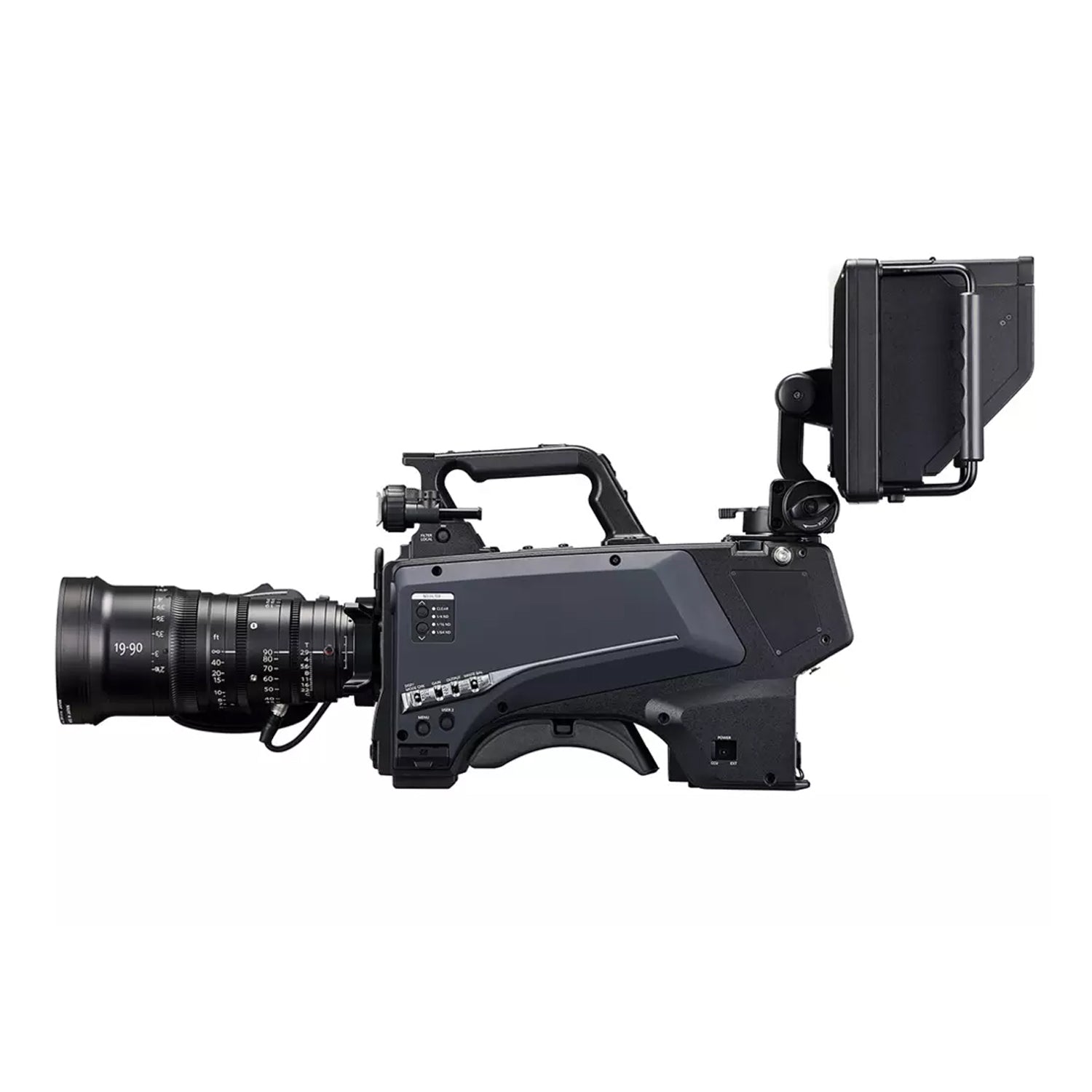

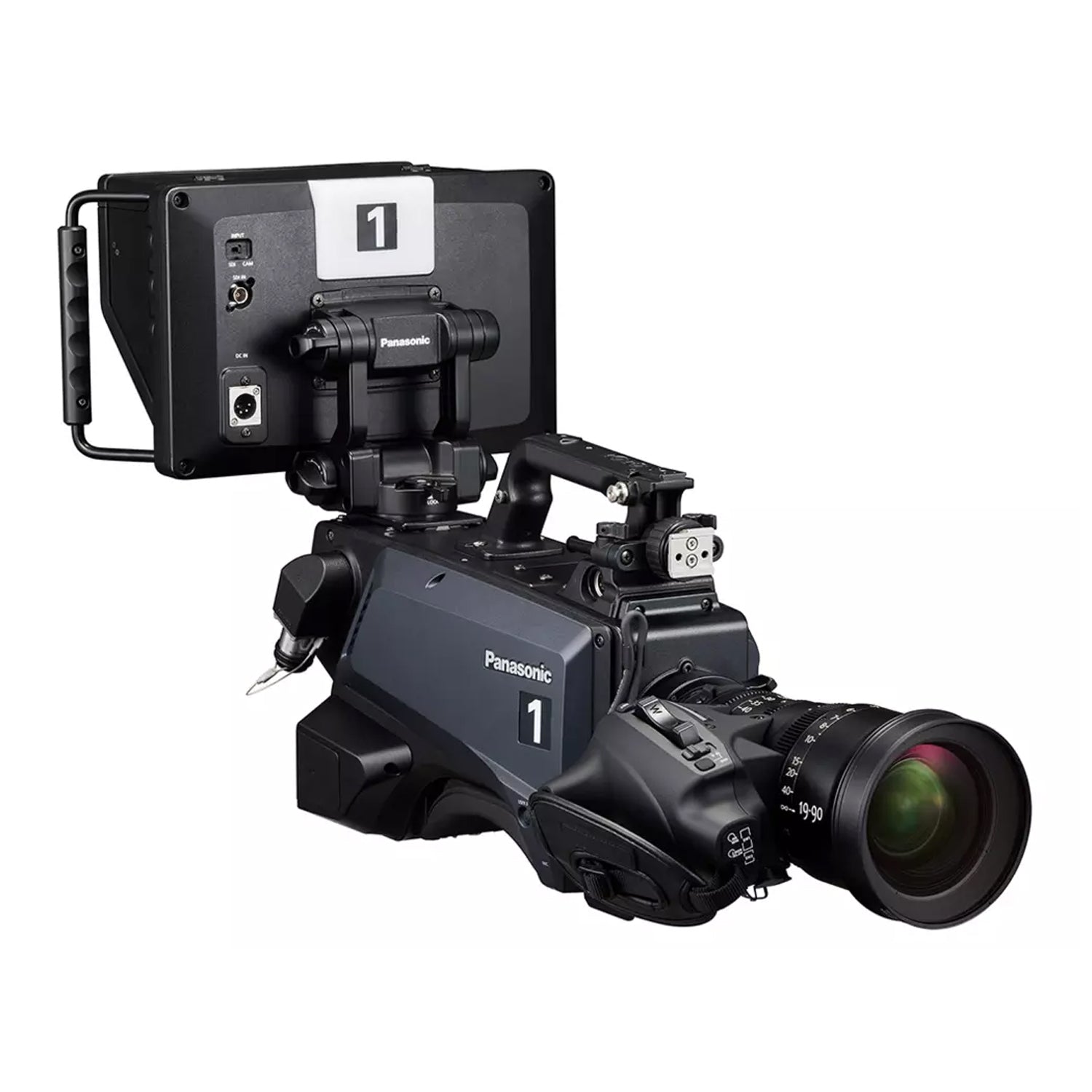

Panasonic AK-PLV100 4K Studio Camera
Features
- Equipped with a large format, 5.7K Super 35mm sensor and PL Lens mount to accommodate cinema lenses for shallow-depth of field
- Capture frame rate is switchable to Cinematic 24p/30p on a 60p system, users can easily switch between a 24p/30p look and a standard broadcast 60p look
- Outputs SMPTE ST2110* video directly from its camera head and merely requires an optical-fiber connection for return input, intercom input/output, PTP synchronization, trunk out, and tally input
- Compatibility with Panasonic's 2/3-inch studio-camera system equipment allows the use of CCUs (UCU600 and HCU250), ROPs (HRP1010 and HRP1015) and other accessories
- V-LOG output* for wide dynamic range and rich color gamut, along with Dual Native ISO* for superb low-light performance
Description
4K PL-mount Studio Camera with Shallow Depth of Field for Live Cinematic Video
As video picture quality continues to be improved, the market is demanding increasingly engaging and captivating coverage of live sports and other events. In response, Panasonic announces an all-new studio camera for live cinematic video—the AK-PLV100GSJ—a 4K PL-mount studio camera equipped with a 5.7K Super 35 mm image sensor for creating diverse video expressions with unprecedented freedom.
For Studio Camera Users
Inspiring cinematic video with shallow depth of field
Panasonic's new PL-mount 4K studio camera with a 5.7K Super 35 mm image sensor is powerfully expressive thanks to its shallow depth of field. It provides the visual beauty of a cinema camera without sacrificing studio-camera operability. What's more, it is fully compatible with Panasonic’ s AK-UCU600/HCU250 Camera Control Unit (CCU). Simply replace the camera head of an existing system with the AK-PLV100GSJ and start creating powerful cinematic live video.
For Cinema Camera Users
Simplified System for Live Cinematic Video
Live production with a cinema camera normally requires the addition of many external devices, resulting in time-consuming preparation and increased risk of operational breakdowns due to system complexity. AK-PLV100GSJ is a super35 image sensor camera with studio camera’ s capabilities which makes the simplest system and requires no accessories, just like a studio camera.In addition to it, AK-PLV100GSJ outputs 12G/3G directly from its camera head to eliminate the need for a CCU. Forget those large systems—simply show up with your AK-PLV100GSJ for cinematic-level live production!
Specifications
- Weight: Approx. 4.2 kg (9.26 lbs.) (body only, excluding the accessories)
- Dimensions (W x H x D): Body only 151 mm x 267 mm x 389 mm (5-31/32 inches x 10-17/32 inches x 15-11/32 inches) (excluding protrusions)
- Operating temperature: -10 °C to 45 °C (14 °F to 113 °F) (Preheating required under a temperature 0°C (32 °F) or below)
- Operating humidity: 85% or less (relative humidity)
- Storage Temperature: -20 °C to 60 °C (-4 °F to 140 °F)
- Power supply: DC 12 V (when using an external power supply) | DC 190 V (when AK-HCU250PSJ/HCU250ESJ is connected) | AC 240 V (when AK-UCU600PSJ/ UCU600ESJ is connected)

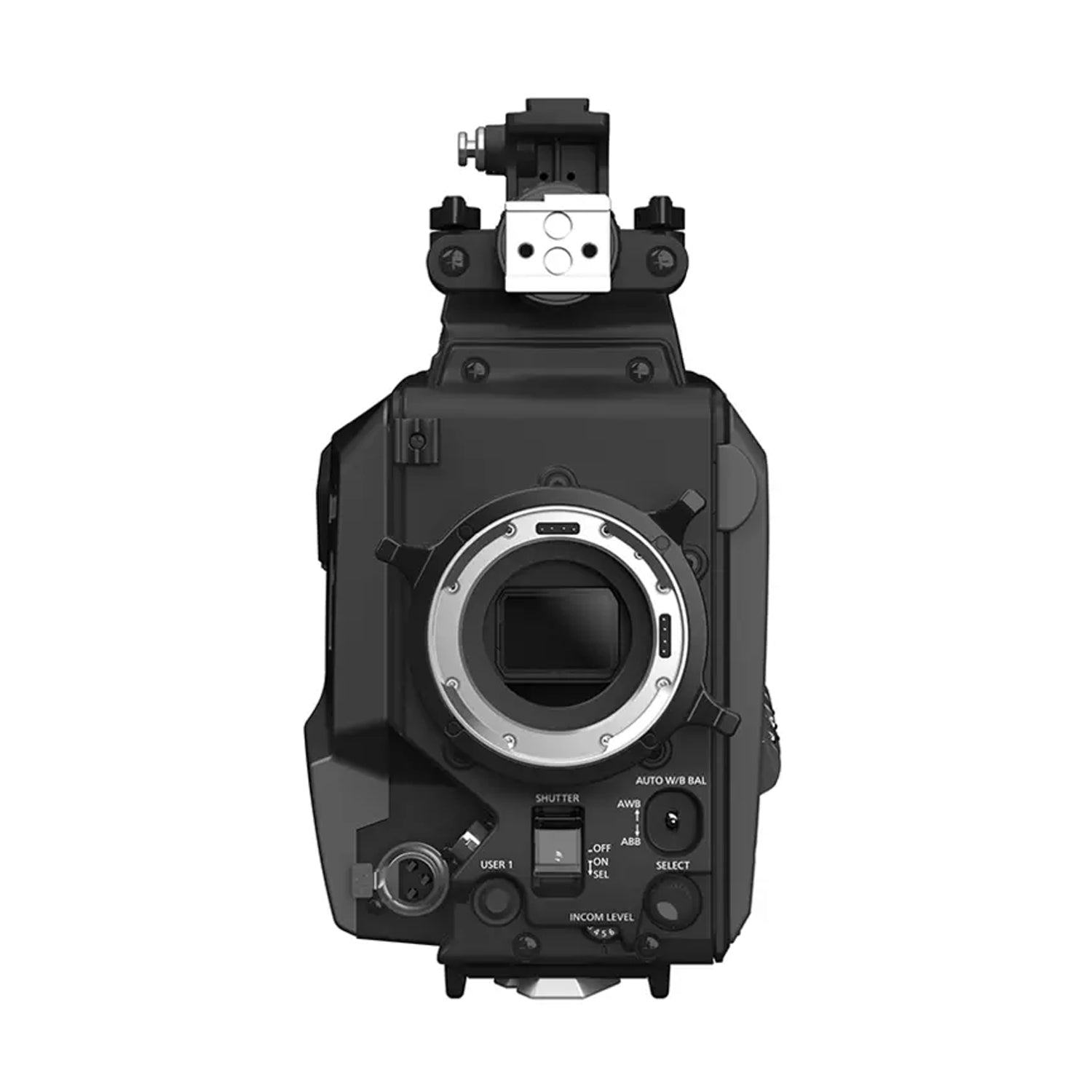

- Lens Mount: 35mm PL Mount
- Horizontal Resolution: 4K: 2000 TV lines (center)
- Optical Filter: ND: Clear, 1/4, 1/16, 1/64
- S/N: 62 dB or above
- Camera Unit: -
- System format: 3840x2160/59.94p/50p/29.97p/25p/23.98p | 1920x1080/59.94p/50p/29.97p/25p/23.98p
- Video input/output: -
- Pickup device: S35mm 17.25 million pixels MOS Sensor
terminal: BNCx1terminal: BNCx112G/6G/3G/1.5G-SDI:0.8 V[p-p], 75 Ωterminal: BNCx13G/1.5G-SDI:0.8 V[p-p], 75 Ω- Intercom: -
- Audio Input/Output: -
- OTHER INPUT/OUTPUT: -

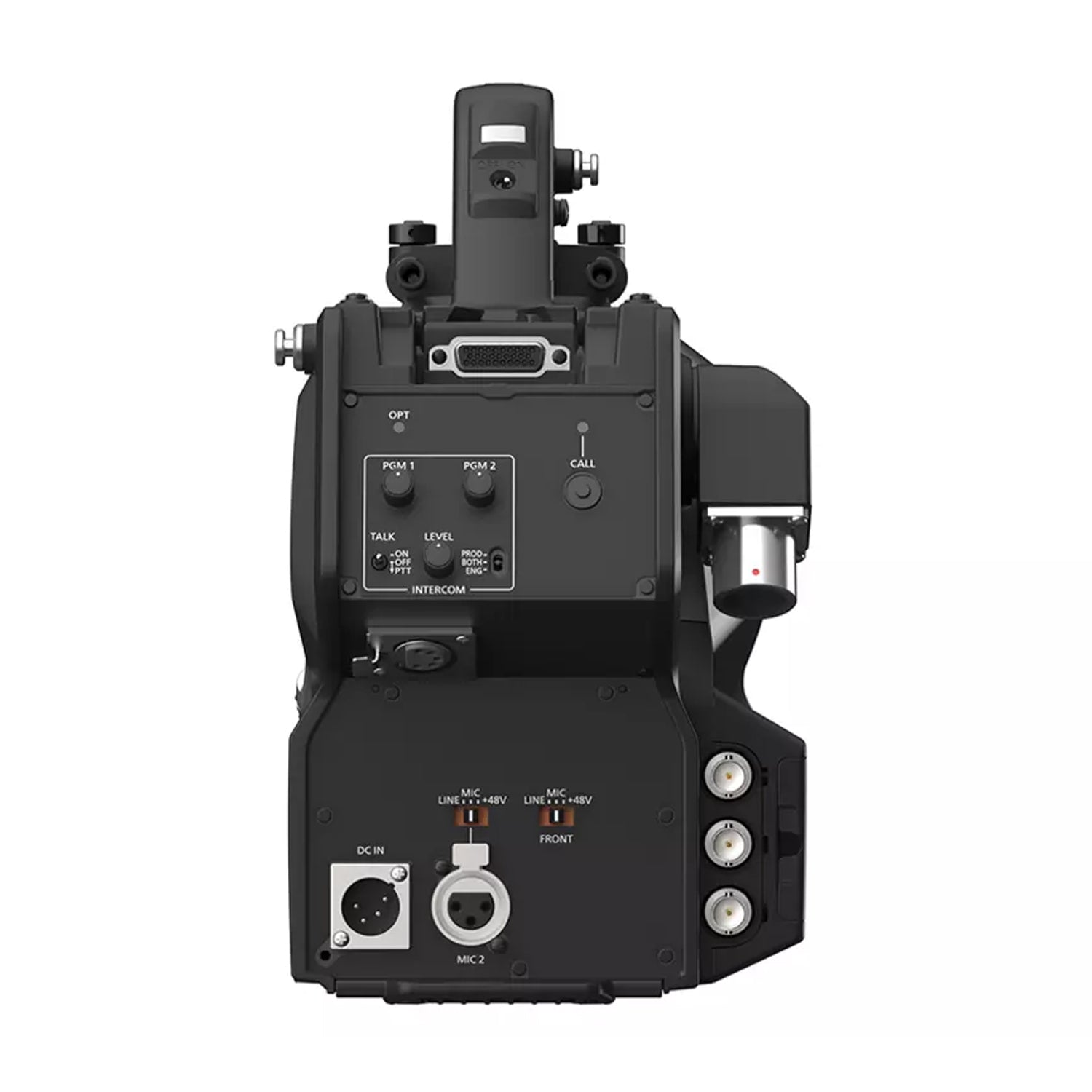

terminal: XLR x 1, 3-pin (female type)[LINE]/[MIC]/[+48V] switchable[LINE]: 0 dBu[MIC]: -60 dBu, -40 dBu, or -20 dBu menu can be selectedterminal (front): XLR x 1, 3-pin (female type)[LINE]/[MIC]/[+48V] switchable[LINE]: 0 dBu[MIC]: -60 dBu, -40 dBu, or -20 dBu menu can be selectedterminal: XLR x 1, 5-pin, female typeterminal: Optical composite connector x 1terminal: 12-pin x 1terminal: 20-pin x 1terminal (rear): 29-pin x 1terminal: XLR x 1, 4-pin, DC 12 Vterminal: RJ-45x1
