Clear-Com FSE-BP50 FreeSpeak Edge 5GHz Wireless Beltpack

FreeSpeak Edge® is a multi-channel, duplex digital wireless intercom system operating in the 5 GHz band and is part of the FreeSpeak® family of products.

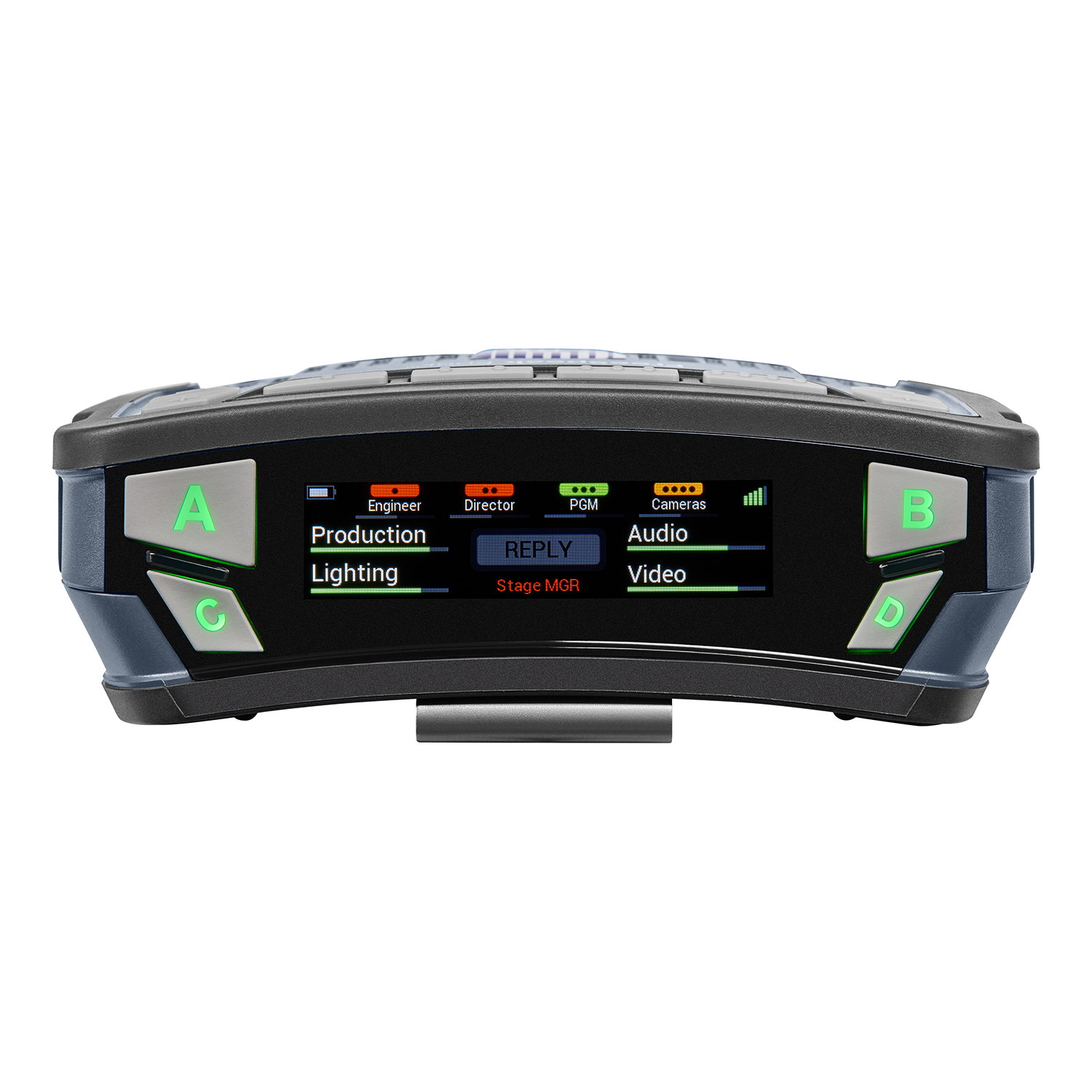

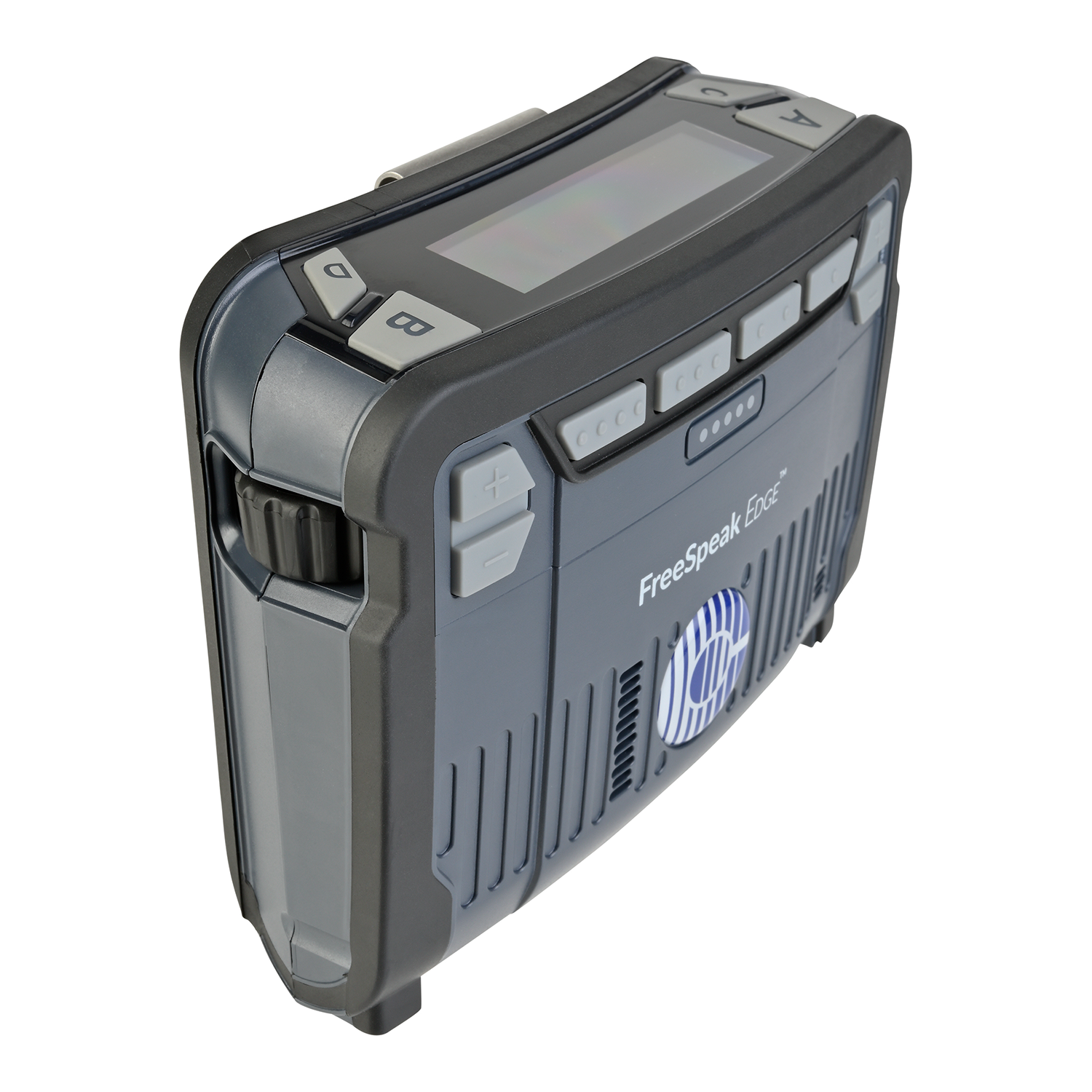

The FSE-BP50 is a rugged, water-resistant multi-channel beltpack that operates in the 5 GHz frequency range, coupled with a dedicated modulation scheme to use signal reflection and multipath to deliver low-latency, best-in-class 12 kHz audio and data for a premier high-density wireless solution. The beltpack has an ergonomic design with nine programmable keys, large color screen, dedicated A & B encoders, individual level controls for C & D, a dedicated master volume control, and a built-in mic and speaker station mode.

Operation

FreeSpeak Edge beltpacks can be supported by a range of options, including the FreeSpeak Edge Base Station, the Arcadia® Central Station, and the Eclipse® HX digital matrix, all of which support the FSE-BP50 via the FSE-TCVR-50-IP transceiver (region specific). FSE-BP50 users can roam seamlessly between FSE-TCVR-50-IP transceivers over wide areas. When configured by an Eclipse matrix, the system can scale up to meet the needs of even the very largest productions.

Increase System Size

The FSE-BP50 can be mixed with FSII-BP19 and FSII-BP24 beltpacks on the same system, increasing the quantity of beltpack users in a single deployment. Eclipse supports 64 FSE-BP50 beltpacks on one E-IPA-HX IP card, however systems utilizing multiple E-IPA cards within a single Eclipse HX frame can support up to 200 beltpacks (see Capacity Chart for details).

Durability

The FSE-BP50 is IP54 rated for wet weather or dusty conditions, making it ideal for outdoor productions. For better grip and protection, the beltpack has a rubberized over-mold to protect from the most rugged environments.

Battery

Using the BAT80 Li-Ion battery, the FSE-BP50 has 12+ hours of battery. Housed within the beltpack is a USB-C charging port (cable included with package) for recharging or for continuous powered transmissions. The BAT80 can be charged within the AC80 battery charger.

Audio

• Audio Bandwidth: 200 - 12kHz
• No. of Full-Duplex Audio Paths: 9
• Mode of Operation: Full-duplex on all routes
• Level/Talk Controls: 9 pushbuttons, 5 level controls (2 rotary and 2 button level controls, with 1 master level control)
• Menu Button: 1

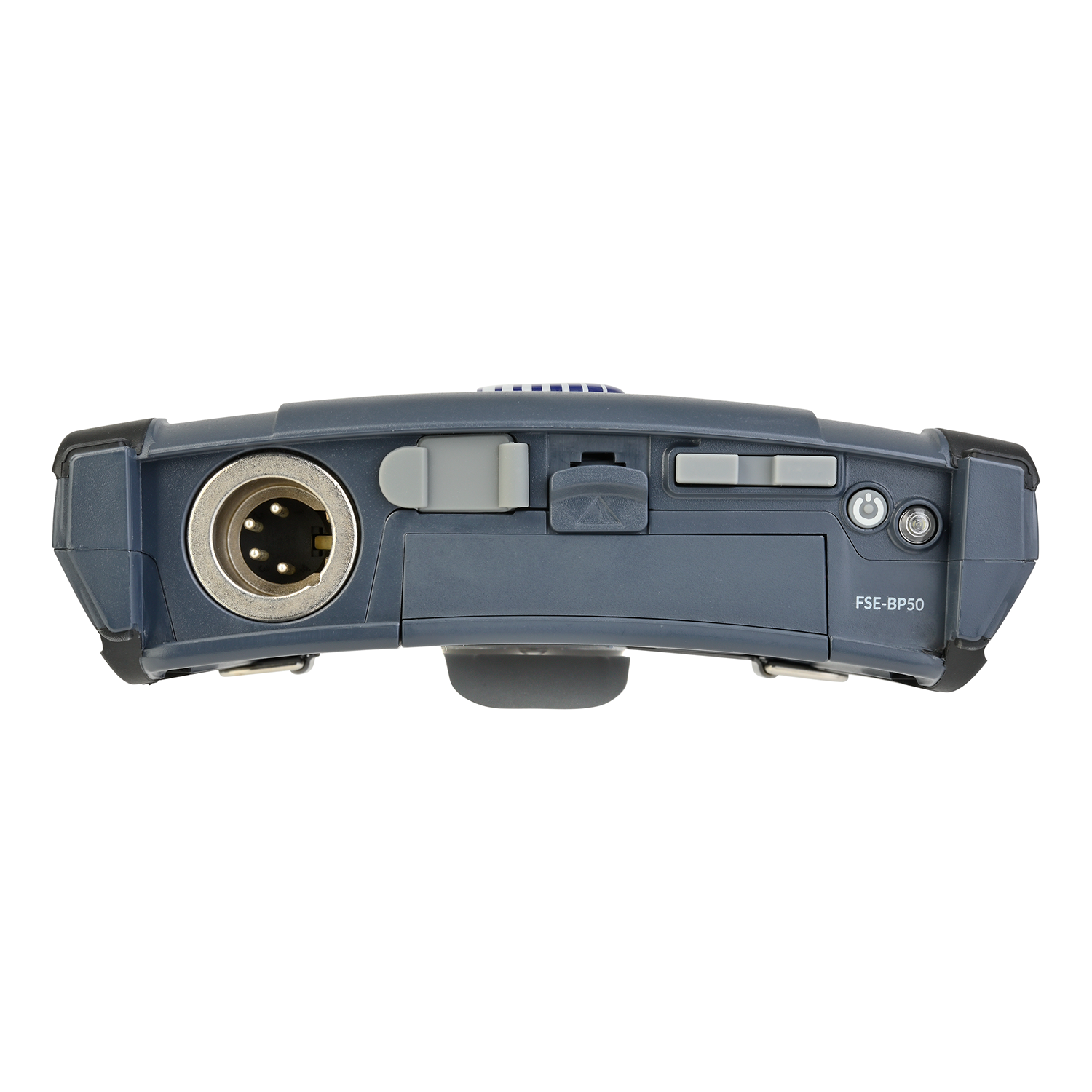

• Headset Connector: 4-pin male, Clear-Com standard, options for 5-pin female and 7-pin male with PTT
• Microphone Type: Electret and Dynamic, selectable in beltpack menu
• Headset Limiter: Selectable from beltpack menu

Radio

• Frequency Spectrum: 5170 - 5875MHz (20MHz channels set by country)
• Output Power: Adjustable from 1 - 24dBm (Maximum output power is determined by selected channel and country)
• Modulation: OFDM
• Range: Typical indoor range 250ft (80m), outdoor range 750ft (230m)

Battery

• Battery: 4400mAh
• Power: 16Wh
• Typical Voltage: 3.6V
• Battery Life: 12 hours

Environmental

• IP54 water and dust resistance
• Operating: 32 to 113°F (0 to 45°C)
• Storage: -22 to 158°F (-30 to 70°C)
• Humidity: 20 - 90%, Non-Condensing

Dimensions (WxHxD)

• 5.31 x 4.07 x 1.92in
• 134.87 x 103.34 x 48.77mm

Weight

• Without Battery: 0.72lbs (0.37kg)
• With Battery: 0.96lbs (0.44kg)
