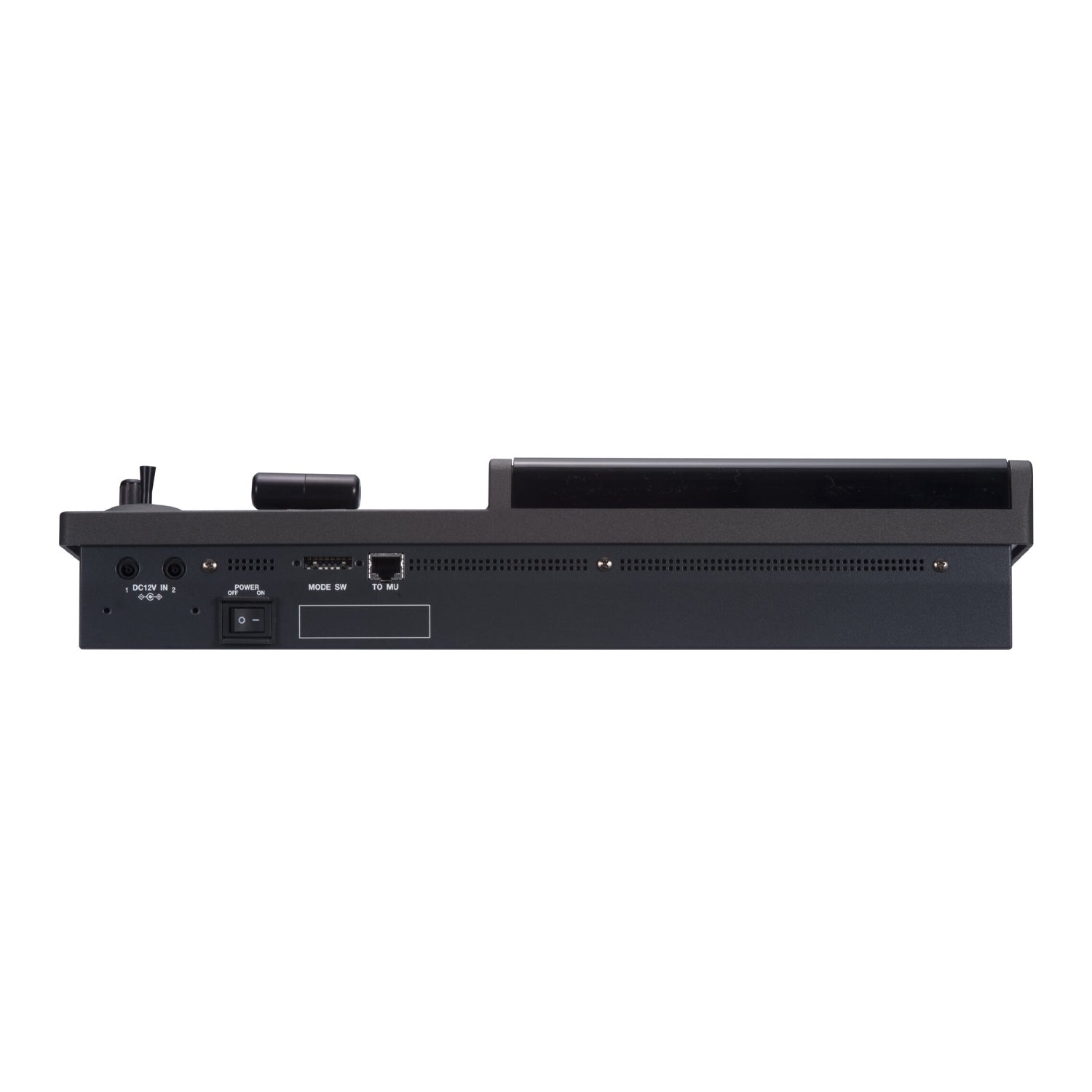

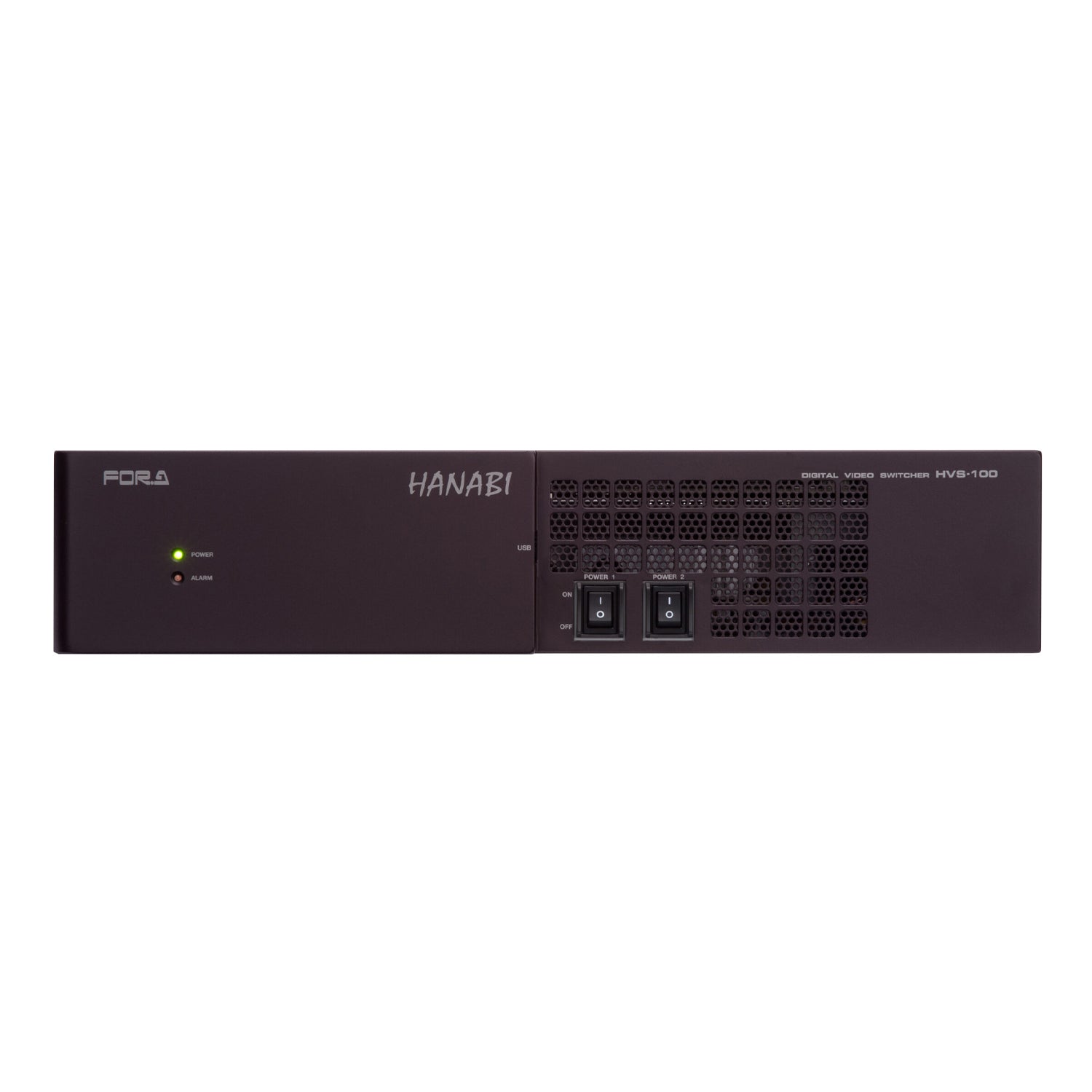

FOR-A HVS-XT100 Portable Video Switcher

• 8 SDI Inputs / 5 Outputs: Standard configuration includes 8 HD/SD-SDI inputs, 4 SDI outputs, and 1 HDMI output, expandable via three slots.
• Built-in Frame Syncs: Every input features a frame synchronizer and Proc Amp, allowing for seamless switching of asynchronous sources.
• 4 Keyers with 2.5D DVE: Includes 2 full Keyers and 2 Downstream Keyers (DSK), all equipped with 2.5D DVE engines for resizing and effects.
• Integrated Multi-viewer: Supports 2 to 16-way split views with built-in tally indicators, titles, and audio level meters.
• Web Browser Control: A built-in web server enables full remote control and configuration from a PC, tablet, or smartphone over a network.

Basic Specifications

• Operating Temperature: 0°C to 40°C
• Operating Humidity: 30% to 90% (non-condensing)
• Power Supply: 100–240 VAC ±10%, 50/60 Hz

Power Consumption

Standard Configuration:

• 106 W (100–120 VAC)
• 97 W (220–240 VAC)

Full Option Configuration:

• 207 W (100–120 VAC)
• 198 W (220–240 VAC)

Physical Specifications

Dimensions:

• 430 (W) × 225 (D) × 88 (H) mm
• 480 mm width (including rack mount brackets)

Weight:

• 5.3 kg (Standard)
• 6.9 kg (Full Option)

Consumables (24/7 Operation)

• Power Supply Unit: Replace every 5 years
• HVS-100PSM: Replace every 5 years
• Cooling Fan: Replace every 4 years

Technical Specifications

Supported Video Formats

• 1080i: 59.94 / 50
• 1080p: 23.98 / 24 / 25 / 29.97
• 1080PsF: 23.98 / 24 / 25 / 29.97
• 720p: 59.94 / 50
• SD: NTSC (525/60), PAL (625/50)
• Optional (HVS-100EXP3G): 1080p/59.94, 50

Video Inputs

Standard Inputs

• 8 × SDI (HD-SDI 1.5 Gbps or SD-SDI 270 Mbps)
• 75Ω BNC connectors

Maximum Inputs

• Up to 14 inputs:
• SDI ×14, or
• SDI ×12 + Analog/RGB ×2

Optional Input Cards (Max 2)

• HVS-100EXP3G: 3G-SDI (Level-A/B), 3 Gbps
• HVS-100DI-A:
• 4 SDI inputs or 2 SDI inputs (BNC)
• HVS-100AI:
• Analog component/composite
• 1.0 Vp-p, 2 × BNC

RGB / Computer Input (HVS-100PCI)

• HDMI (Type A) and VGA (2 inputs, no HDCP)
• Supported resolutions:
• 1080p: XGA to WUXGA
• 1080i: XGA to WUXGA
• 720p: XGA to WXGA
• SD: VGA to XGA

Video Outputs

Standard Outputs

• 4 × SDI (HD/SD-SDI, BNC, AUX1–AUX4 with crossfade)
• 1 × HDMI (HD/SD, Type A, no HDCP)

Maximum Outputs

• Up to 9 outputs:
• SDI ×4, HDMI ×1, plus optional ×4

Optional Output Cards

• 3G-SDI / SDI (2 × BNC outputs)
• Analog component/composite (2 × BNC)
• HDMI / VGA (2 outputs, no HDCP)

Genlock

Input:

• BB (NTSC/PAL) or Tri-level sync
• 75Ω BNC, loop-through

Phase Adjustment:

• Horizontal ±1H

Output:

• BB or Tri-level sync

Signal Processing

• 4:2:2 digital component
• 10-bit processing
• Frame synchronizer & proc amp on each input

Effects & Processing

Transitions & Effects

• 100 wipe patterns (border & softness control)
• 2D DVE with 36 patterns
• Sub-effects: 2 channels (SBEF1, SBEF2)
• Transition control: Fader lever, AUTO, CUT
• Transition types: MIX, WIPE (with DVE)

Keying

• 4 channels total:
• KEY ×2
• DSK ×2
• Types: Luminance, Full, Bus
• KEY: Edge & shadow effects
• DSK: Direct AUX output support

DVE

• 4 channels (2D)
• Available on background, key, and DSK layers

Media & Memory

• Still images: 2 buffers (with backup)
• Clip buffers: 2
• Recording time: ~7.5 seconds each (HD)
• Event memory: 100 events

Multiviewer

• 1 channel
• Layouts: 2 / 4 / 5 / 7 / 9 / 10 / 11 / 16 split
• On-screen info: Title, tally, audio meters, safety area
• Layout presets: Up to 8

Timing & Delay

• Video phase adjust: ±0.5H
• Minimum delay:
• HD: 1H
• SD: 1H
• With processing:
• FS / Resize: +1–2 frames
• +DVE: +2–3 frames
• Full processing: +3–4 frames

Control & Networking

• RJ-45 (for control panel connection) ×1
• LAN (100Base-TX) ×1

GPI / Tally

• 25-pin D-sub (female) ×1
• 24 configurable I/O
• Open collector / contact input

Serial Control

• RS-422 ×2 (9-pin D-sub)
• Supports VTR, router, tally integration

USB

• USB 1.1 Type A ×1 (for flash drives)
