AV Stumpfl Monoblox 64 Screen 16' x 9'

Large scale projection simplified

Monoblox is the mobile projection screen choice of the world’s leading rental & staging companies. Mobile projection screens are featuring easier handling, quicker setup, and higher resolution image quality over fixed display solutions. Ultra high precision development and manufacturing in Austria has brought Monoblox to where it is today: The mobile projection screen reference.

• 16:9 Aspect Ratio
• 16‘ x 9‘ Picture Size
• Front and Rear Projection Surface
• Optional Dress Kit

• Overall Size: 16‘8“ x 9‘8“ (508 cm x 294 cm)
• Picture Size: 16‘ x 9‘ (488 cm x 274 cm)
• Weight: 105.82 lbs. (48 kg)

FRAME

• System: Monoblox 64
• Folding frame with plug-in vertical modules
• Aluminum profile dimension 21/2 “ x 11/4 “  (64 x 32mm)
• Most popular design for large and robust rental projection screens
• Suitable for all screen sizes up to 752 x 569 cm
• Variable aspect ratios when using different vertical plug-in modules

LEGS

• Model: AT 64
• Overall Height: 218" (554cm)
• Min Mounting Height: 4" (9cm)
• Max Mounting Height: 69" (176cm)
• Weight: 24.8 lbs. (6,4kg)
• Compatible with all mobile AV Stumpfl screen systems
• Adjustable in steps of 6" (152,4mm)
• Low transport volume
• Hardened aluminum alloy EN-AW 6063

FRONT SURFACE

• Model: Flex White CI
• Base material: PVC vinyl
• Coating: PVC vinyl
• Projection side: White
• Rear side: Grey
• Thickness: ~ 0,23 mm
• Surface density: ~ 340 g/m²
• Roll width: 210 cm
• Weldability: good
• Tear strength: good
• Washable: yes
• Fire resistance: DIN EN 13501-1:B-s3,d0 and NFPA #701
• Screen type: D (diffuse)
• Application: Front projection
• Colour rendition: Remarkable vivid
• Transmission factor: 100%
• Gain: 0,96
• Recommended viewing angle: +/- 55°
• Seamless optic: yes
• High resolution compatibility: 8K+

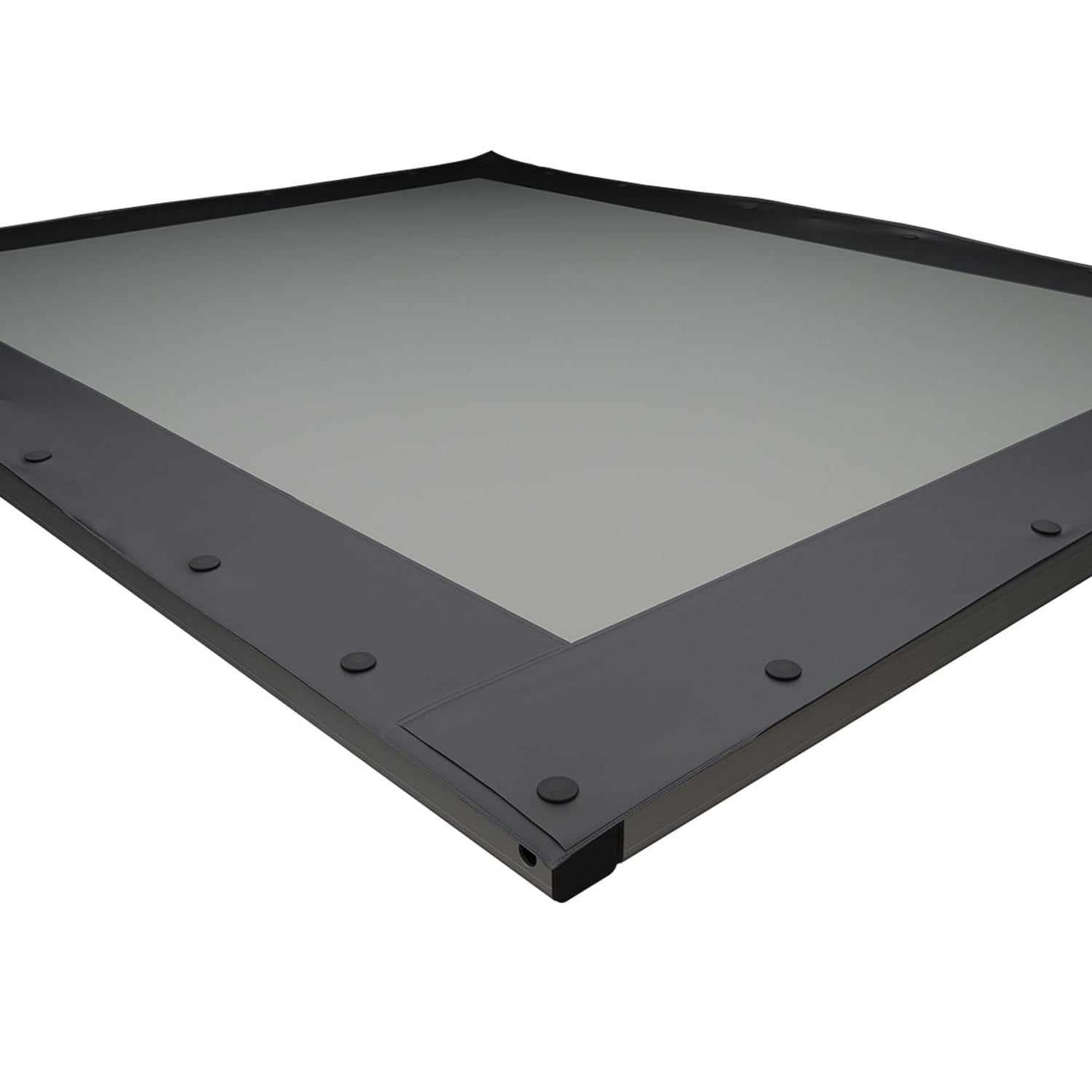

REAR SURFACE

• Model: Flex Rear MO
• Base material: PVC vinyl
• Coating: No
• Projection side: Greyish Green Translucent
• Rear side: Greyish Green Translucent
• Thickness: ~ 0,29 mm
• Surface density: ~ 370 g/m²
• Roll width: 305 cm
• Weldability: good
• Tear strength: good
• Washable: yes
• Fire resistance: DIN EN 13501-1:B-s3,d0 and NFPA #701
• Screen type: R (rear projection diffuse)
• Application: rear projection
• Colour rendition: good
• Transmission factor: 52,55%
• Gain: 2,05
• Recommended viewing angle: +/- 35°
• Seamless optic: yes
• High resolution compatibility: 8K+
