RTS DBP Digital Beltpack

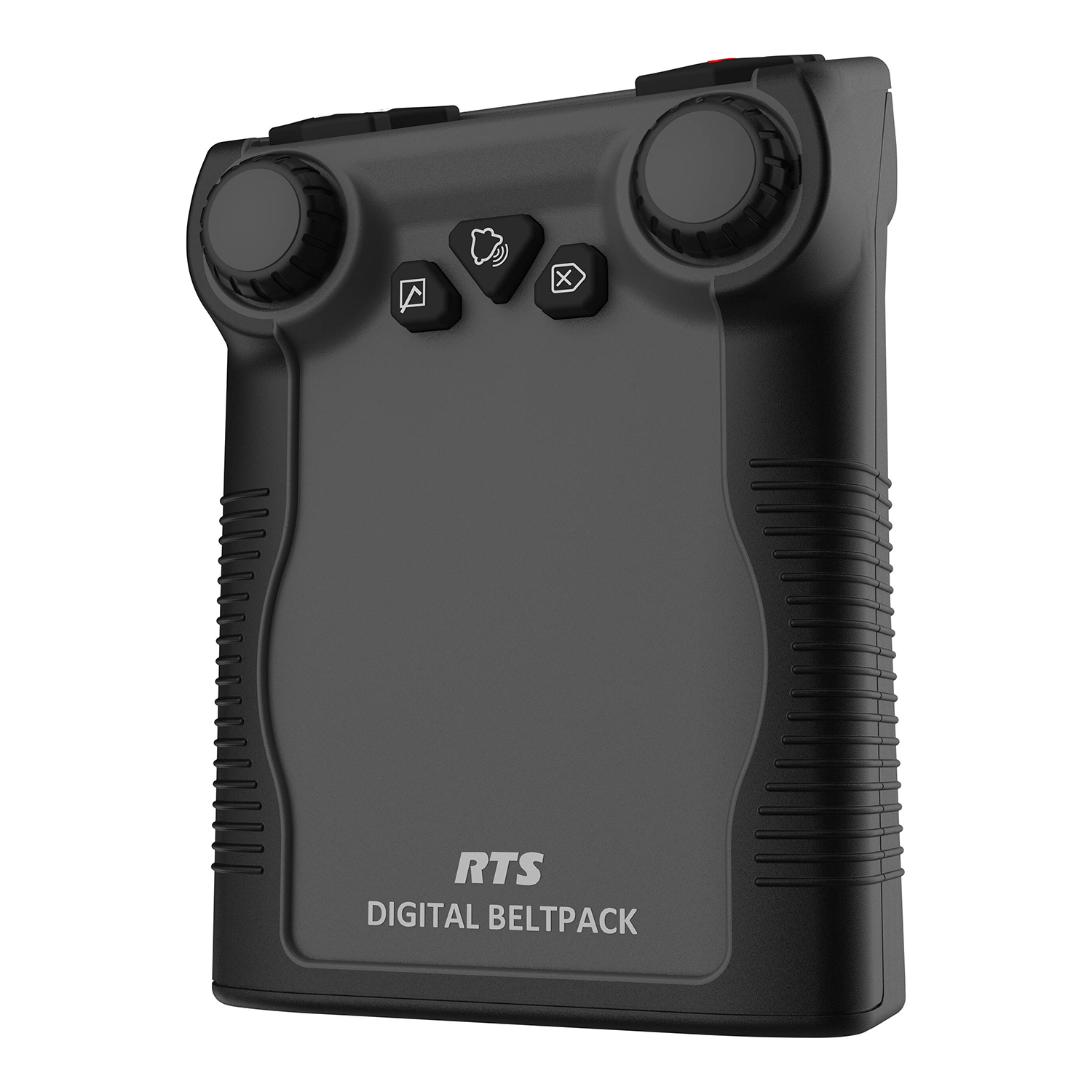

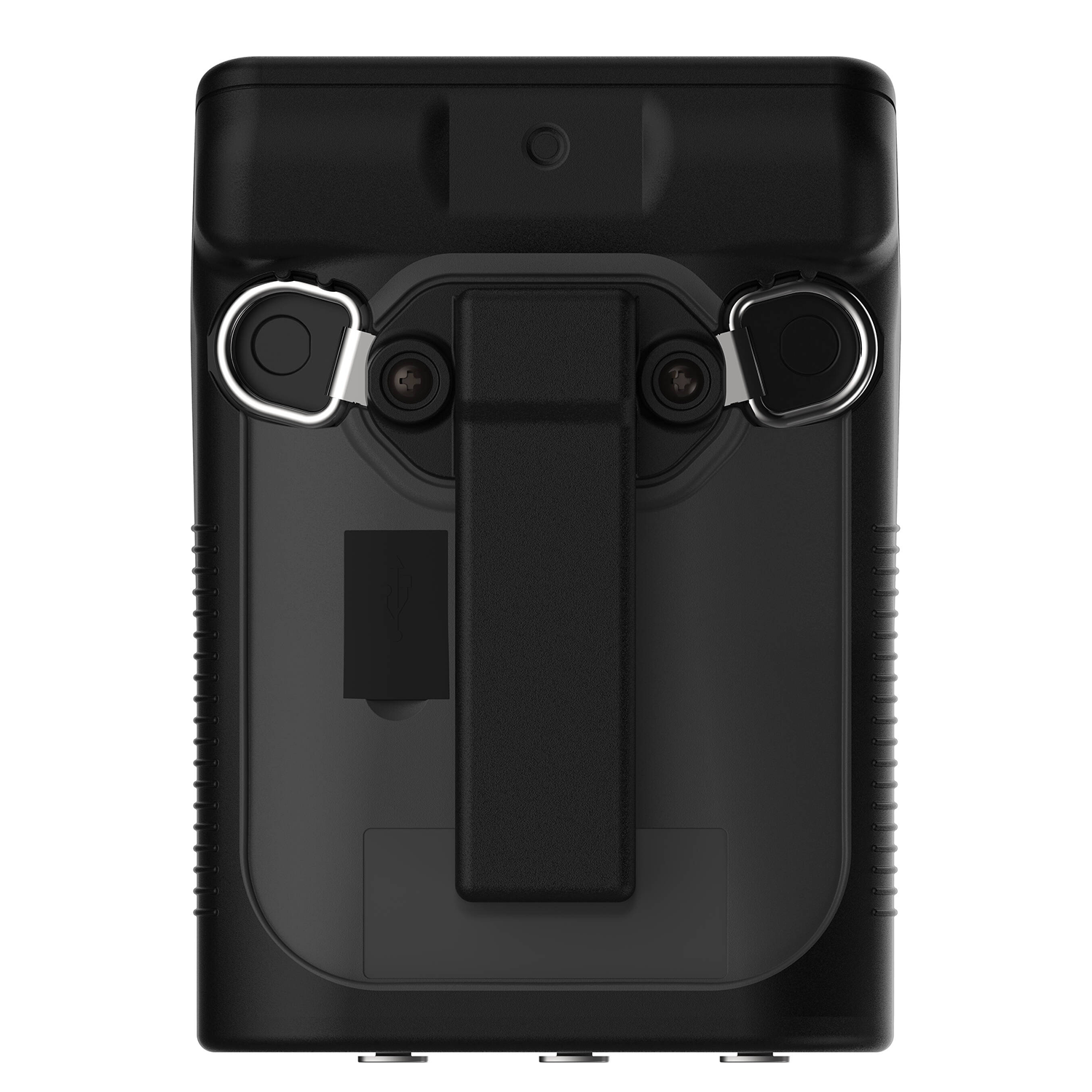

DBP is a four-channel/four-button wired beltpack that runs on PoE+ (Power over Ethernet 802.3af and 802.3at) and connects using OMNEO IP technology. Its unique hybrid design supports both digital partyline and matrix keypanel modes: for use as a digital partyline device, DBP connects to an OMS; for use as a portable keypanel, including functionality like point-to-point communication, DBP can be connected to any RTS digital/IP matrix product using OMNEO – including OMI cards in ADAM/ADAM-M frames or OMNEO ports on ODIN frames. DBP automatically selects the correct mode of operation (digital partyline/OMS or keypanel/matrix) when connected and switched on.

DBP’s PoE-driven design gives it an unmatched level of scalability and makes it easy to add new users. In and Out PoE ports (two etherCON locking RJ45 connectors) allow up to six DBP devices to be daisy-chained together from the same PoE switch port when used in partyline mode. Up to 40 DBPs can be connected to an OMS, allowing for the creation of an extensive digital partyline system – all in addition to the other wired and wireless devices OMS supports. Depending on the matrix model/configuration, up to 64 DBPs can be connected to an OMI card for ADAM matrices, and up to 128 DBPs can be connected to one ODIN.

Power Supply

• DC PoE: 802.3af / 802.3at
• Maximum Power Consumption: 4.0W (PoE DC Input)

Environmental

• Operating Temperature: -4° F – 113° F (-20° C – 45° C) | 5% to 90% relative humidity
• Storage Temperature: -4° F – 158° F (-20° C – 70° C) | 15% to 90% relative humidity

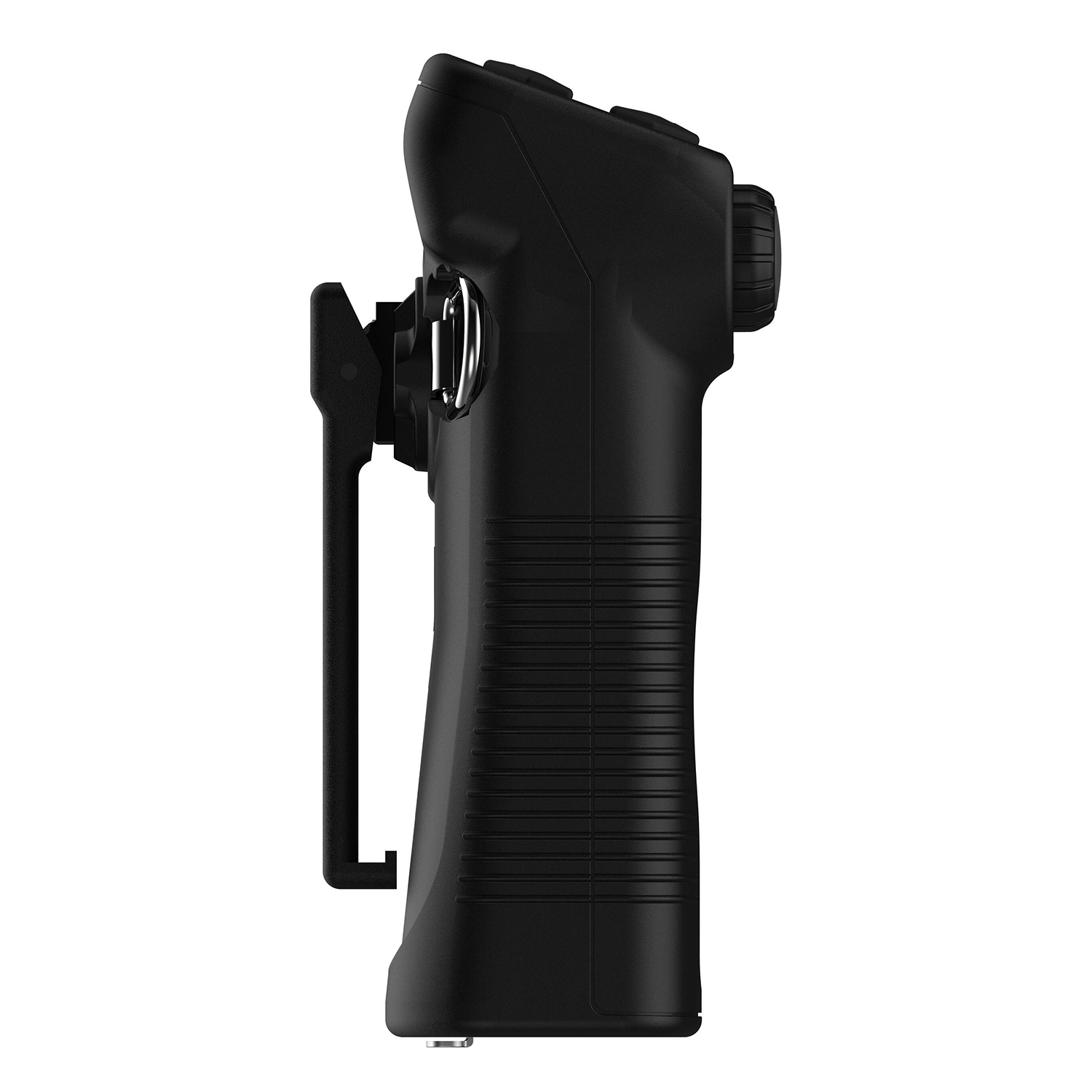

Dimensions / Weight

• Dimensions: 5.51 in. (140mm) L x 3.94 in. (100mm) W x 2.64 in. (67mm) D
• Weight: 0.75 lbs (340 g)

Microphone Pre-Amplifier

XLR Input

• Electret Mic Input: -42.5 dBu Nominal
• Dynamic Mic Input: -50 dBu Nominal
• Frequency Response (LEC disabled): 120 Hz to 20 kHz
• Frequency Response (LEC enabled): 120 Hz to 7.4 kHz

3.5mm Input

• Electret Mic Input: -42.5 dBu Nominal
• Frequency Response (LEC disabled): 120 Hz to 20 kHz
• Frequency Response (LEC enabled): 120 Hz to 7.4 kHz

Bluetooth Input

• Frequency Response: 70 Hz to 3.4 kHz

Headphone Amplifier

• XLR Headphone Response (150 Ohm load): 30 Hz to 19 kHz
• 3.5mm Headphone Response (32 Ohm load): 50 Hz to 19 kHz
• Bluetooth Headphone Response: 30 Hz to 3.4 kHz

Aux In

• Nominal Input: -4.3 dBu
• Frequency Response (600 Ohm load): 50 Hz to 20 kHz

Aux Out

• Nominal Input: 2.2 dBu
• Frequency Response (600 Ohm load): 25 Hz to 20 kHz

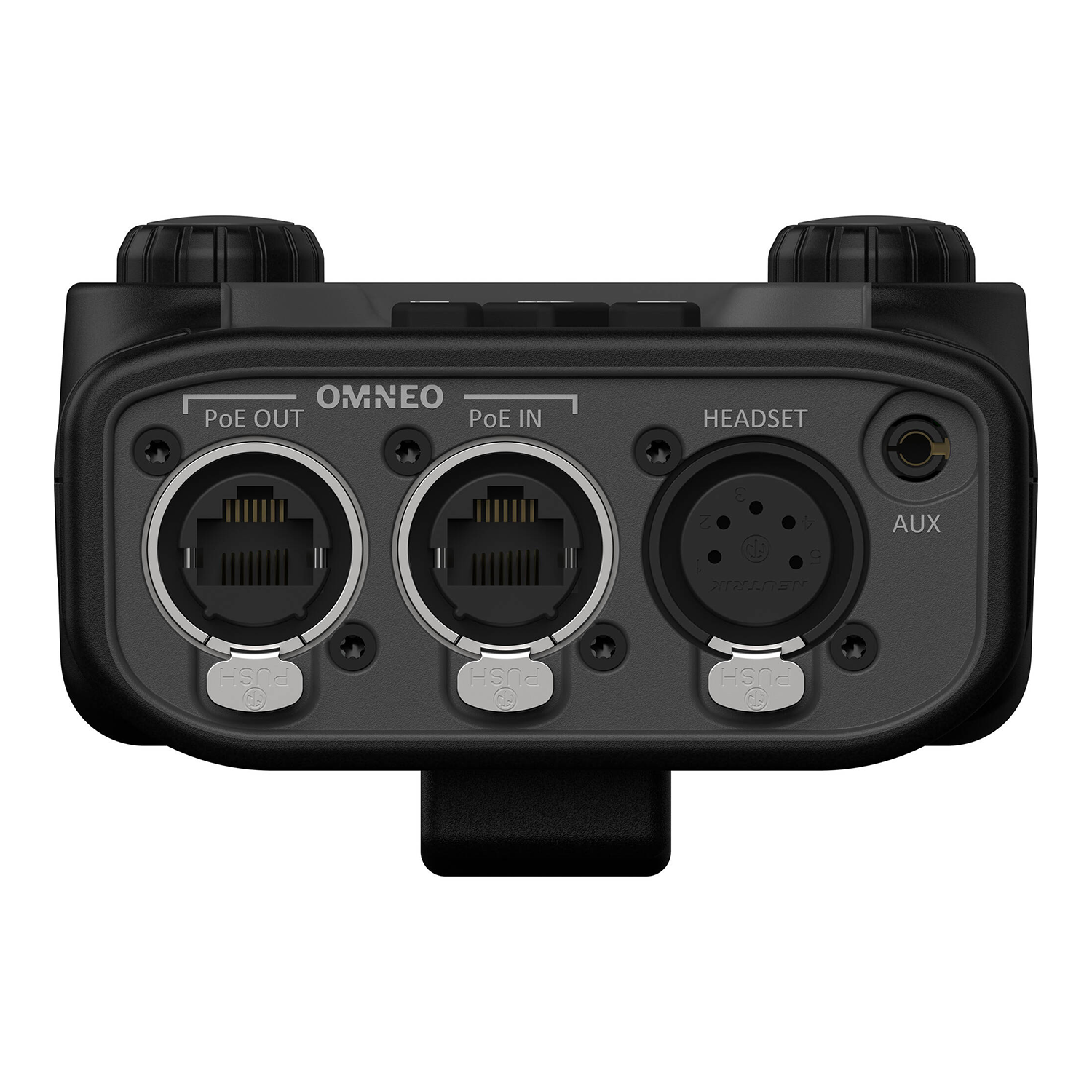

OMNEO Ports (PoE In and PoE Out)

• Maximum Capacity: 2 Full-duplex ports
• Copper Connector Type: RJ-45
• Format: IEEE 802.3 compliant
• Copper Ethernet Speed: 100/1000 Mbps

Bluetooth

• Bluetooth Version: 4.0
• Approved dongles: IO Gear GBU522
• LM Technologies LM506 Range: 15 ft (5 m)
• Audio Codec: SBC

TFT Display

• Active Area: 27.72 mm (wide) x 27.72 mm (high)
• Dot Resolution: 240 x 240 pixels
• Color Resolution: 16-bit (64K) RGB color
• View Angle: 80° (typical, all directions)
• Protective Lens: Anti-Glare / Anti-Reflective
