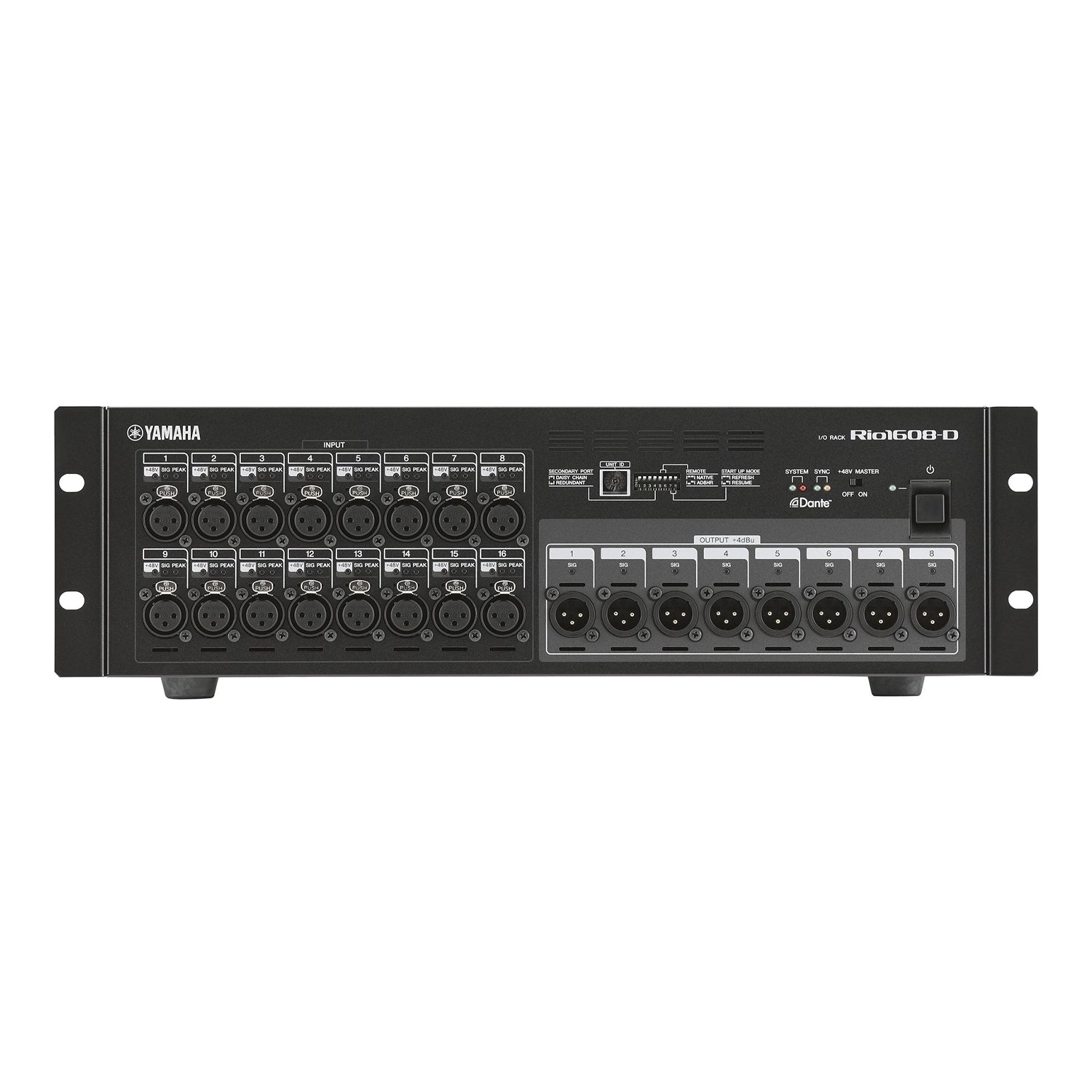

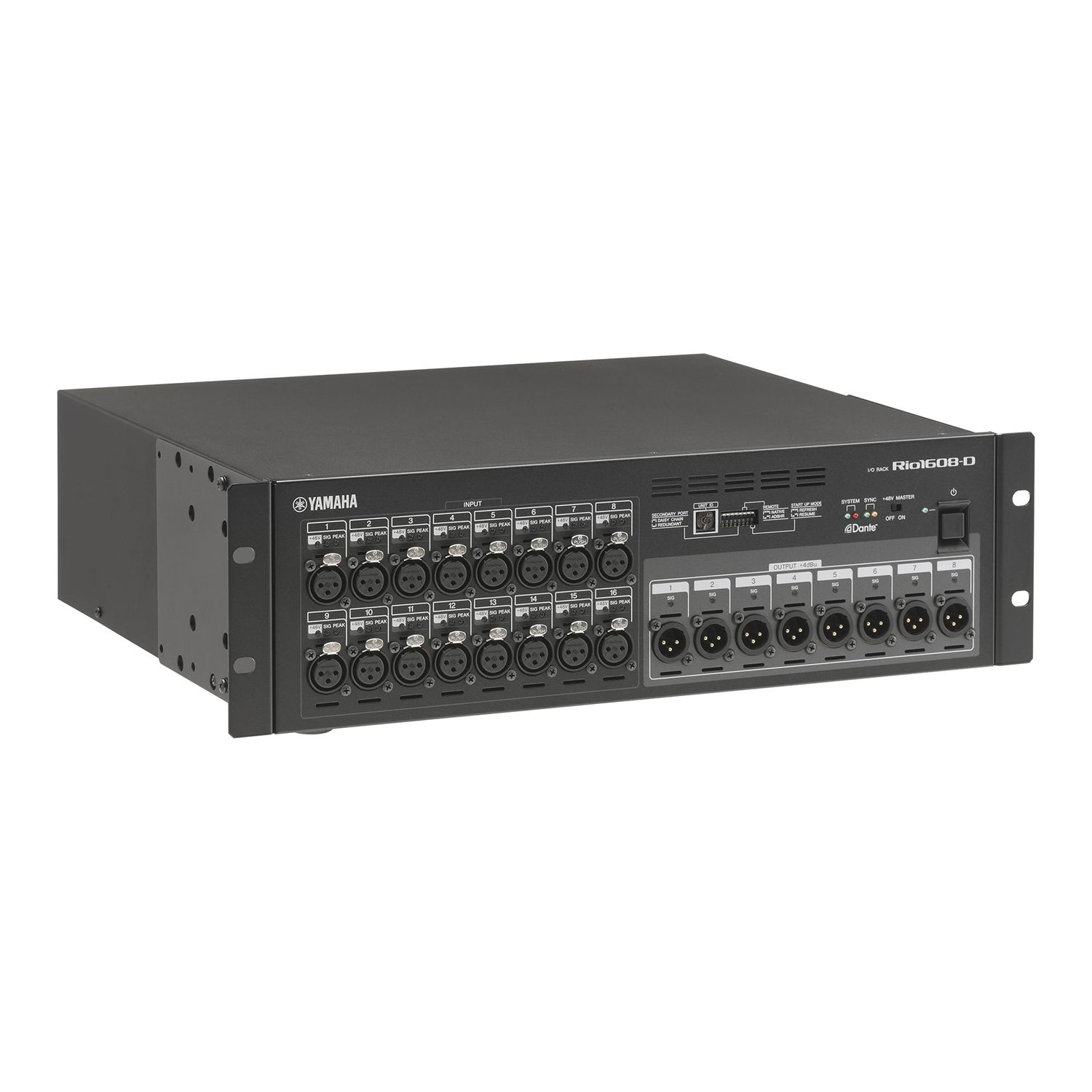

Yamaha Rio1608-D I/O Rack
Features
- 3RU rack with 16 ins and 8 outs
- Sonic performance that brings out the best in any system
- Dante network protocol contributes to greater system scalability and flexibility
- Support for CL series consoles as well as other Dante based systems
- Automatic digital-stage compensation for analog gain changes
Yamaha Rio1608-D I/O Rack
Overview
R Series I/O racks employ Dante network audio protocol for exceptional flexibility and freedom in setup and placement, while delivering natural, musical sound that brings out the full sonic potential of mixing consoles and other system components. They also allow redundancy for the utmost reliability in any application. Four models accommodate a wide range of I/O requirements.
Specs
- Sampling frequency rate | External: 44.1kHz: +4.1667%, +0.1%, -0.1%, -4.0% (±200ppm) / 48kHz: +4.1667%, +0.1%, -0.1%, -4.0% (±200ppm) / 88.2kHz: +4.1667%, +0.1%, -0.1%, -4.0% (±200ppm) / 96kHz: +4.1667%, +0.1%, -0.1%, -4.0%
- Signal delay: Less than 3ms INPUT to OUTPUT, connect with CL5 using Dante, Dante Receive Latency set to 0.25ms (one way), Fs=48kHz
- Total harmonic distortion: Less than 0.05% 20Hz-20kHz@+4dBu into 600Ω, Fs=44.1kHz, 48kHz / Less than 0.05% 20Hz-40kHz@+4dBu into 600Ω, Fs=88.2kHz, 96kHz INPUT to OUTPUT, Input Gain = Min.
- Frequency response: +0.5, -1.5dB 20Hz-20kHz, refer to +4dBu output @1kHz, INPUT to OUTPUT, Fs=44.1kHz, 48kHz / +0.5, -1.5dB 20Hz-40kHz, refer to +4dBu output @1kHz, INPUT to OUTPUT, Fs=88.2kHz, 96kHz
- Dynamic range: 108dB typ., INPUT to OUTPUT, Input Gain = Min
- Hum & noise level | Equivalent input noise: -128dBu typ., Equivalent Input Noise, Input Gain=Max
- Hum & noise level | Residual output noise: -88dBu Residual output noise, ST master off
- Crosstalk: -100dB, adjacent INPUT/OUTPUT channels, Input Gain = Min.
- Power requirements: US/Canada: 120V 60Hz, Japan: 100V 50/60Hz, China: 110-240V 50/60Hz, Korea: 220V 60Hz, Other: 110-240V 50/60Hz
- Power consumption: 70W
- Dimensions (WxHxD): 480mm (18 7/8in) x 144mm (5 3/4in) x 361.5mm (14 1/4in)
- Net weight: 8.8kg (19.4lb)
- Operating temperature range: 0 - 40℃
- Storage temperature range: -20 - 60℃
- Sound Philosophy: Natural Sound Concept
- Grade: Inherit the sublime sound of PM series
- Sampling Rate: 44.1/48/88.2/96kHz
- Indicators: Sig, Peak, +48V
- Gain Compensation: Supported
- HA Control Redundancy from CL/QL consoles: Supported
- Controllability from R Remote software: Supported
- Maximum number of units using HA remotes per system: Up to 8
- AD8HR mode (HA control from M7CL and LS9): Supported
- Analog Inputs: 16
- Analog Input Connector: XLR-3-31 Type
- Analog Outputs: 8
- AES/EBU Outputs: 0
- AC Inlet: V-Lock Type
- Heights: 3U
