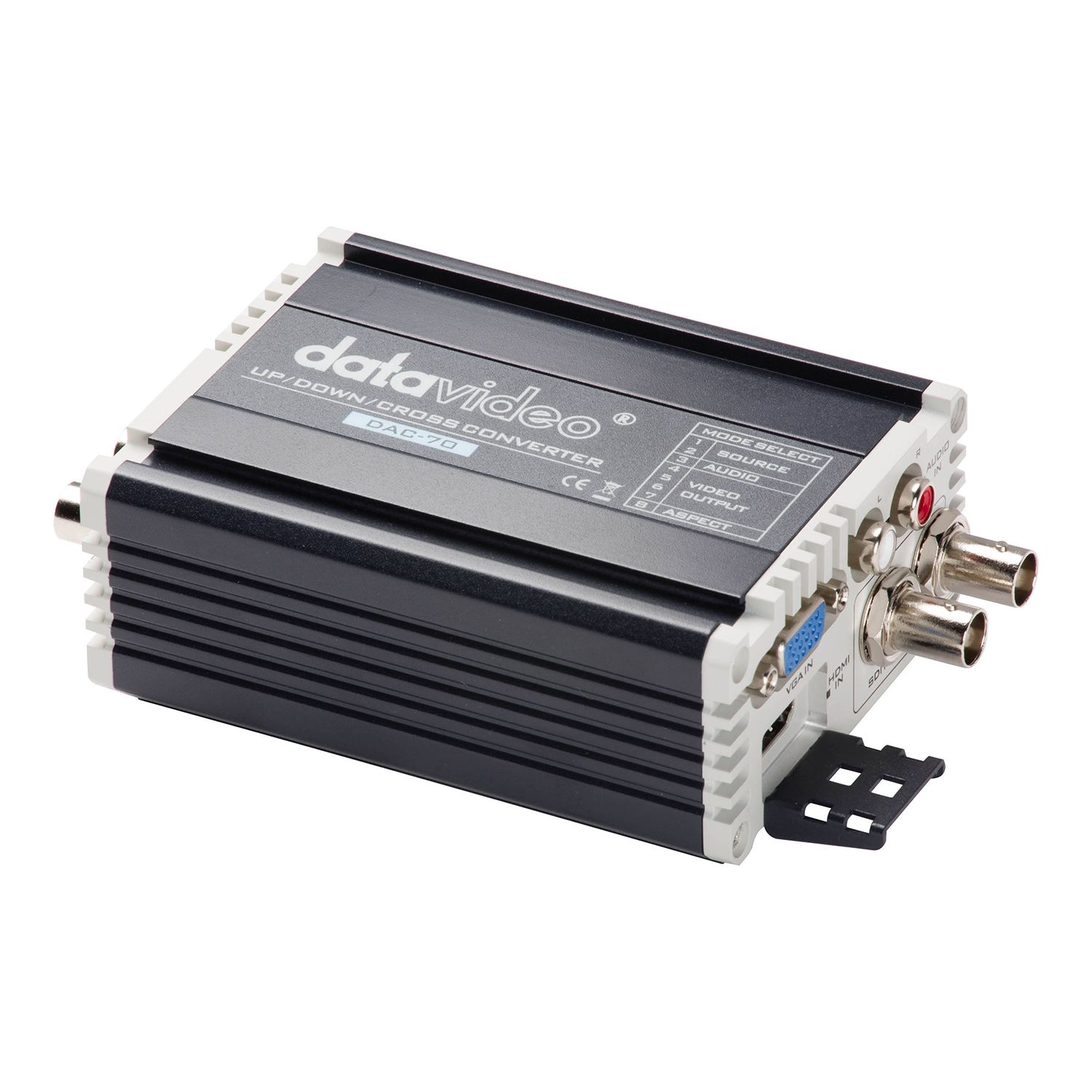

Datavideo DAC-70 Up/Down/Cross Converter
Features
- 3G-SDI technology with full 10 bit processing and low SDI jitter
- DC or AC operation for convenient field or studio use

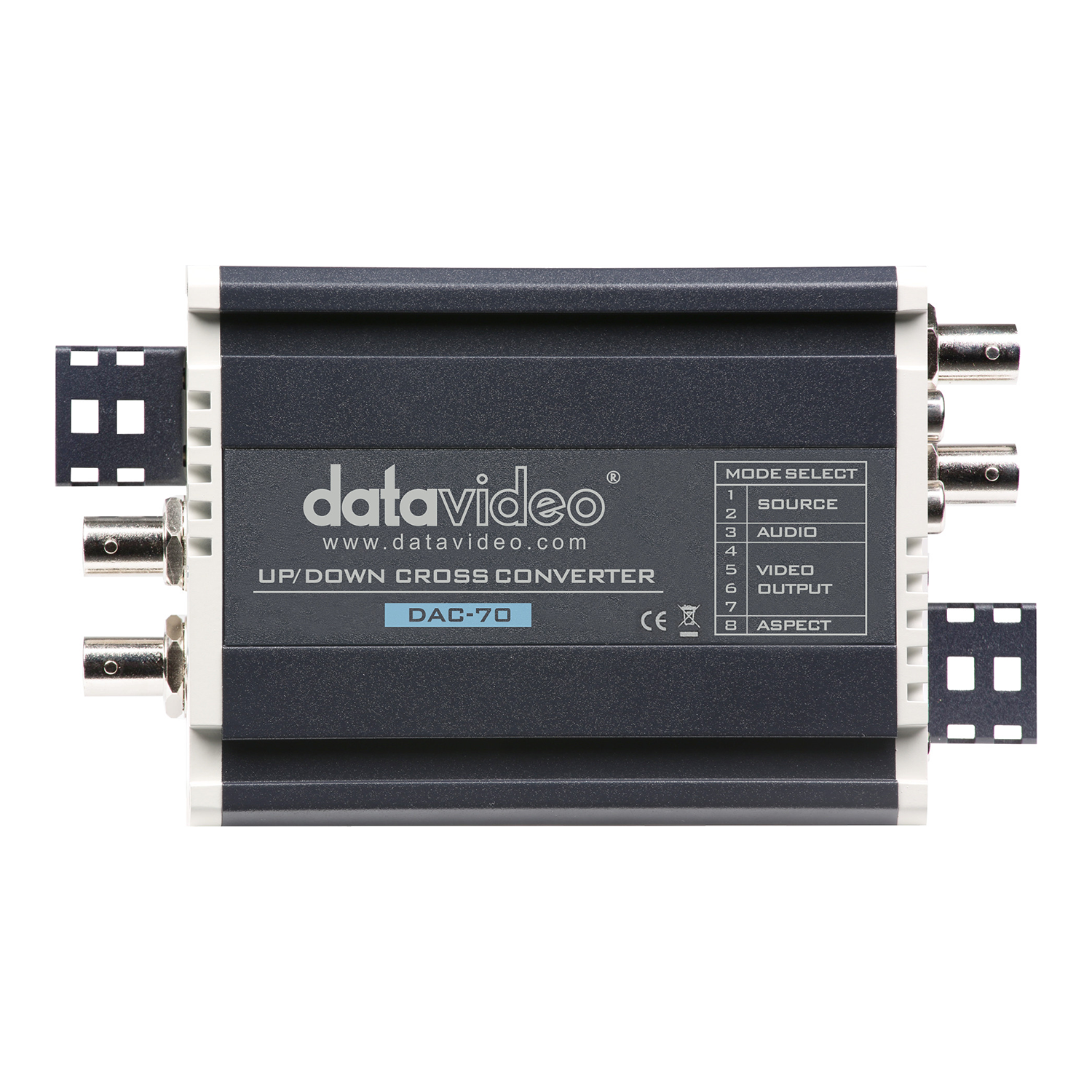

- DIP switch setup

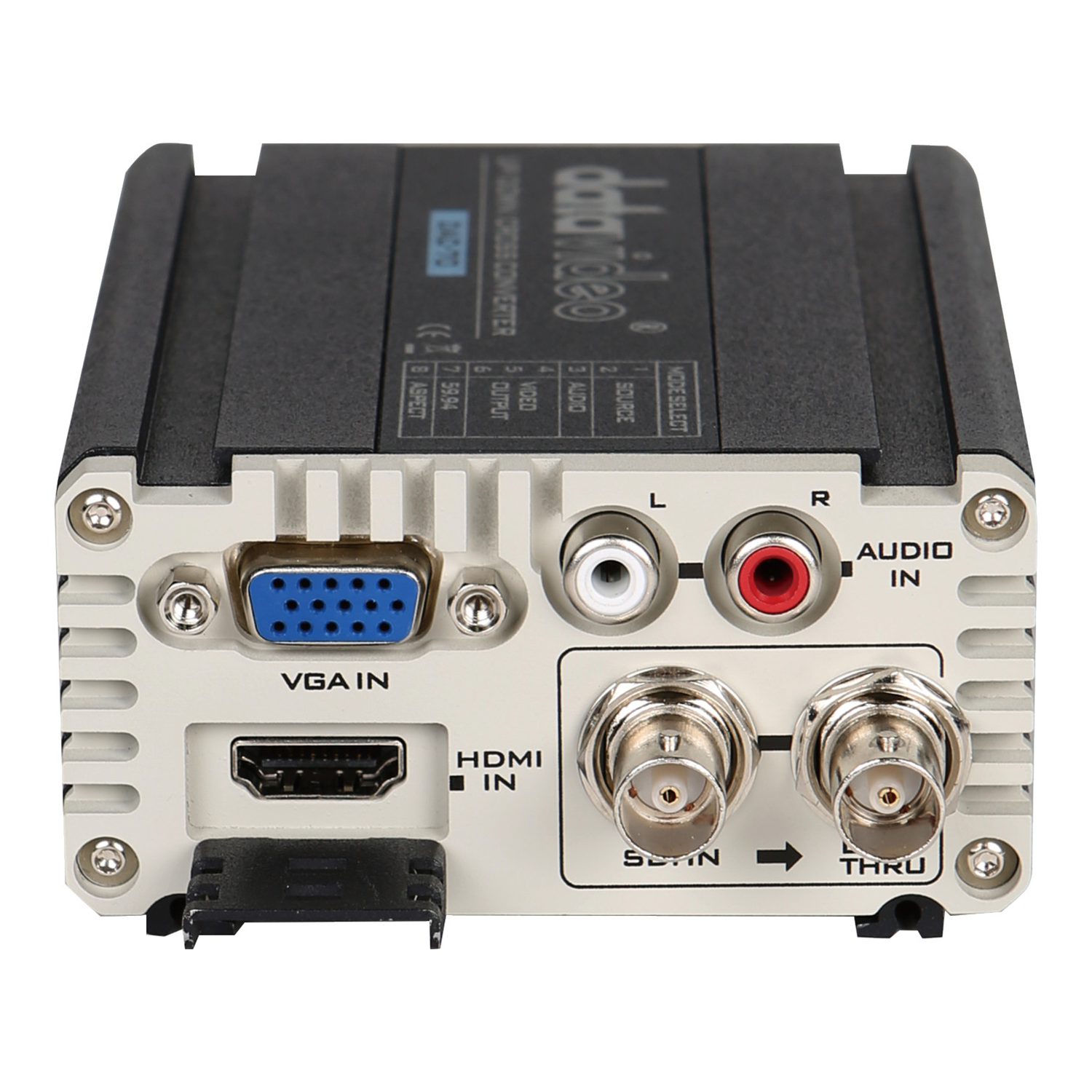

- Video Inputs: HD / SD-SDI [BNC] with active SDI loop through, HDMI, VGA
- Audio Inputs: HDMI / SDI embedded multi-channel audio, Unbalanced RCA Phono sockets [Stereo L&R Channels @ line level]
- Video outputs: Two HD / SD-SDI [BNC] with embedded audio, HDMI with embedded audio, Simultaneous HDMI & SDI outputs regardless of settings
Description
The DAC-70 supports a multitude of video resolutions ranging from SD to Full HD. If you need to connect two otherwise incomptible video devices together, the Swiss Army Knife of converters has you covered.

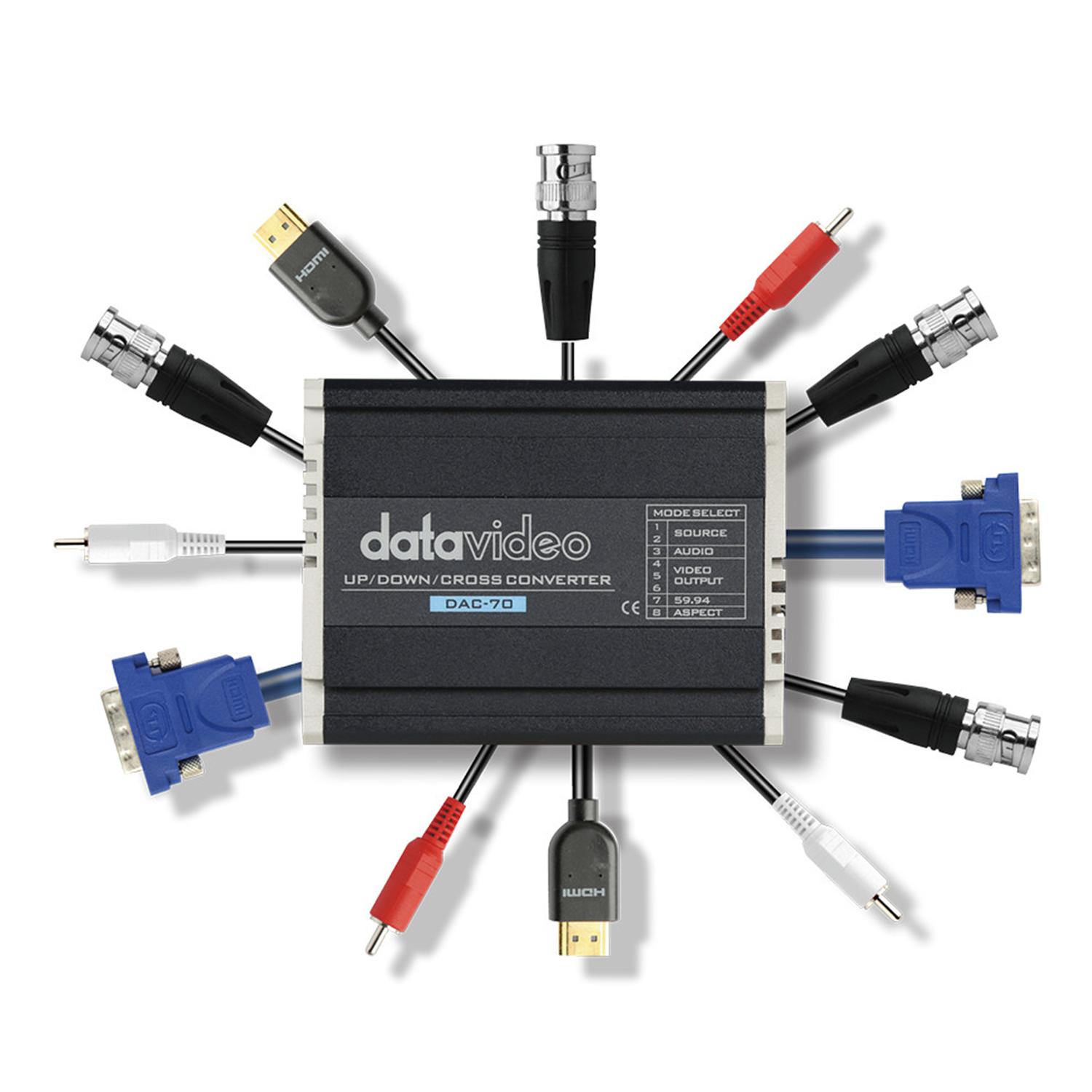

The Datavideo DAC-70 is a broadcast quality up/down/cross converter. The unit allows the user to configure the device using a simple DIP switch or on a USB 2.0 interface utility. The DAC-70 case LEDs indicate the currently selected video source. The DAC-70 gives the user the capability of sharing VGA, HDMI or SDI inputs in an HDMI or SDI environment.
Housed in a metal case, the DAC-70 is tough enough to withstand the knocks of fast-paced live production setups in ENG or any studio. Built to the same dimensions as Datavideo’s range of converters, the DAC-70 can also be mounted into a standard 19” RMK-2 rack with a mix of other units.
Specifications
Conversion
- VGA/HDMI/SDI to HDMI/SDI
- Multi-format Up/Down/Cross
Video Inputs
- 1x VGA, 1x HDMI,
- 1x 3G/HD/SD-SDI (support Level A and Level B)
Loop Through
- Yes
Video Outputs
- 2x 3G/HD/SD-SDI with embedded Audio (support Level A and Level B)
- 1x HDMI
Audio Inputs
- 2x RCA (Stereo Pair), 2x SDI/HDMI Audio embedded
Audio Outputs
- SDI embedded audio up to 8CH, 48KHz, PCM audio
- HDMI embedded audio up to 8CH, 48KHz, PCM audio
Supported Video Input Formats
- 1080p(23.98/24/25/29.97/30/50/59.94/60Hz)
- 1080psf(23.98/24/25/29.97/30Hz)
- 1080i (50/59.94/60Hz)
- 720p (50/59.94/60Hz)
- 625i, 576p, 576i, 525i, 480p, 480i, 1920x1080(60Hz), 1280x720(60Hz), 1600x1200(60Hz), 1400x1050(60Hz), 1366x768(60Hz), 1280x1024(60Hz), 1024x768(60Hz), 800x600 (60Hz)
Output Resolutions
- 1080p(23.98/24/25/29.97/30/50/59.94/60Hz), 1080i (50/59.94/60Hz), 720p (50/59.94/60Hz),
- 625i, 525i
Equalizer
- Yes
Reclock
- Yes
SDI Cable Drive
- Yes
Updates and Configuration
- Mini USB x 1
Dimension (LxWxH)
- 112 x 85 x 45 mm
Weight
- 0.4 kg
Operating Temperature Range
- 0~40 °C
Power
- DC 12V, 6W
