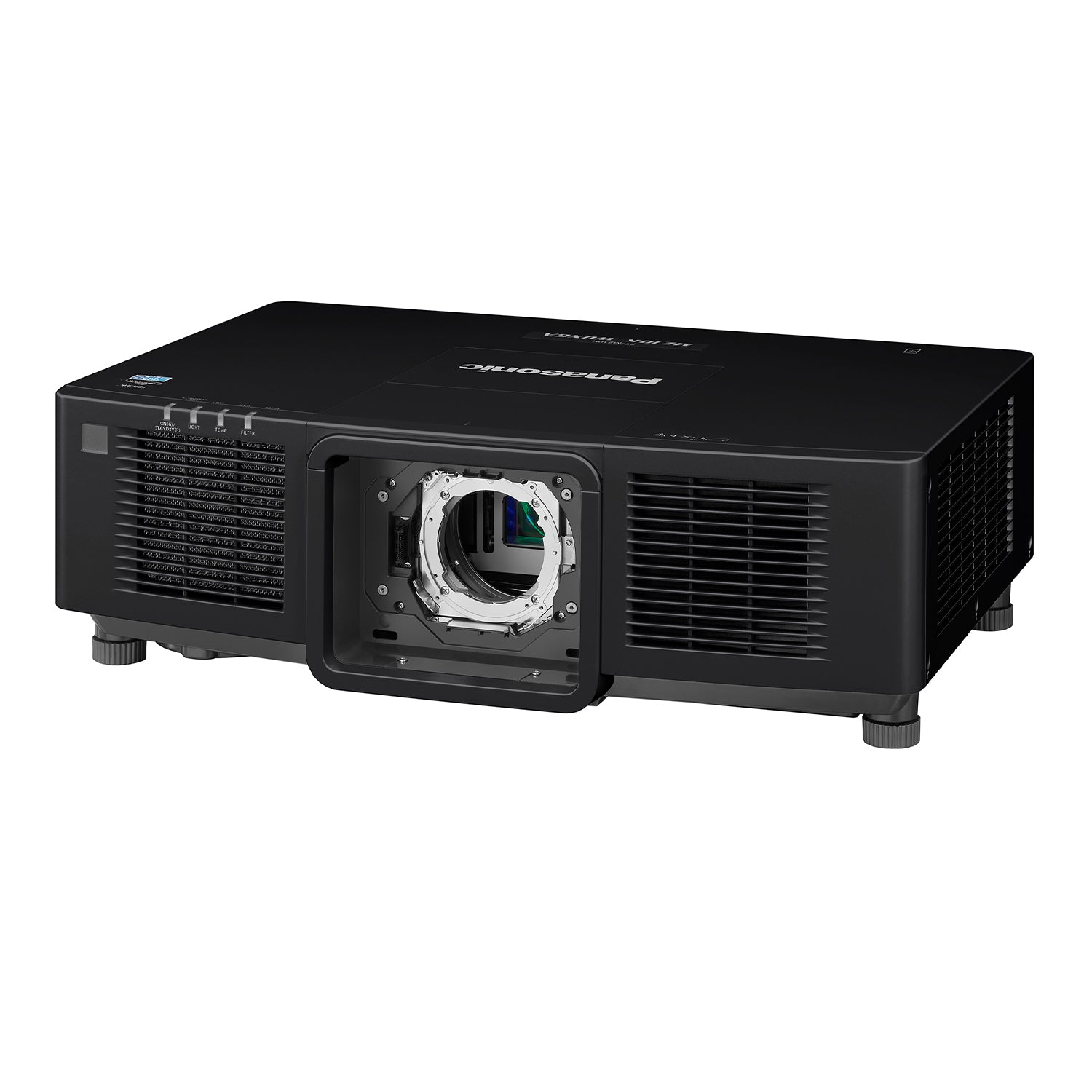

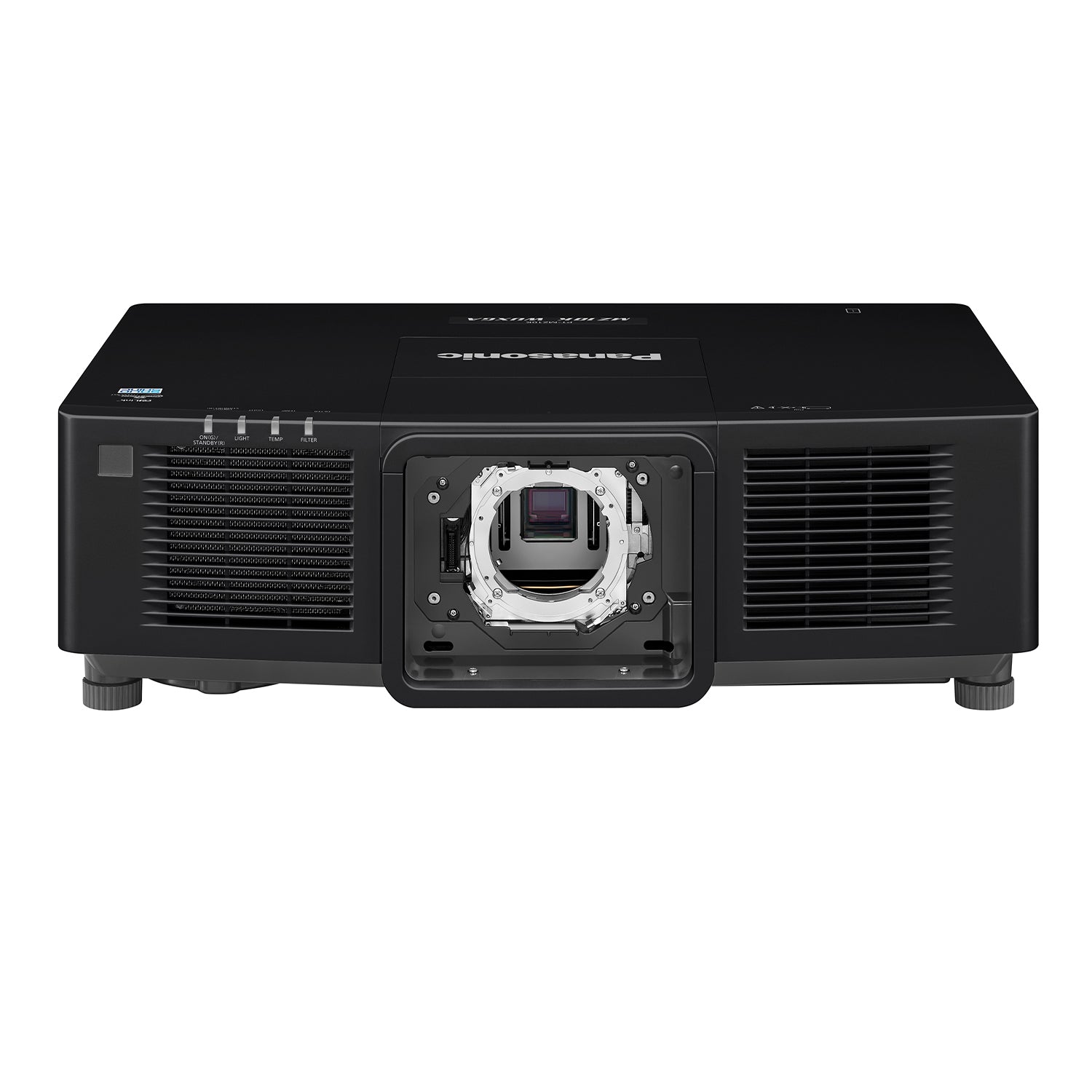

Panasonic PT-MZ10K 10,000 Lumen 3LCD Projector

• Maintenance-free laser light source rated for up to 20,000 hours.
• Dynamic Contrast technology improves black levels and image depth.
• Geometry adjustment and lens shift simplify installation in challenging spaces.
• Quiet operation suitable for classrooms, conference rooms, and museums.
• Compatible with Panasonic monitoring and management software for remote administration.

General Specifications

Model

• PT-MZ10KL

Projection System

• 3LCD (Transparent LCD Panels ×3, R/G/B)

Panel Size

• 25.4 mm (1.0 in.), 16:10 Aspect Ratio

Native Resolution

• 1920 × 1200 (WUXGA)

Pixels

• 2,304,000 (1920 × 1200) × 3

Light Source

• Laser Diode

Brightness

• 10,000 Lumens

Light Source Life

• Up to 20,000 Hours (Normal/Quiet Mode)

Contrast Ratio

• 3,000,000:1 (Dynamic Contrast 3)

Screen Size

• 2.03–12.7 m (80–500 in.) Diagonal

Center-to-Corner Uniformity

• 85%

Power Specifications

Power Supply

• AC 100–240 V
• 50/60 Hz

Power Consumption

• 640 W (6.5 A / 650 VA)

Operating Power

• Normal Mode: 570 W
• Quiet Mode: 420 W
• Shutter Mode: 85 W

Standby Power

• 8 W (Normal Standby)
• 0.5 W (Eco Standby)

Maximum Heat Dissipation

• 1,945 BTU/hr

Lens Specifications

Lens Compatibility

• Optional Powered Zoom/Focus Lenses
• Optional Fixed-Focus Lens

Optical Lens Shift

• Vertical: ±60%
• Horizontal: ±20%

Installation Orientation

• Front
• Rear
• Ceiling
• Floor

Supported Signal Formats

RGB Input

• 640 × 480 to 1920 × 1200
• Dot Clock up to 162 MHz
• Panasonic Intelligent Auto Scanning (PIAS)

YCbCr / YPbPr

• 480p/576p to 1920 × 1080
• Dot Clock up to 148.5 MHz

DVI-D

• Video: 480p/576p to 1920 × 1080
• Still Images: 640 × 480 to 1920 × 1200
• Dot Clock: 25–162 MHz

HDMI

• Video: 480p/576p to 4096 × 2160
• Still Images: 640 × 480 to 1920 × 1200
• Dot Clock: 25–594 MHz

DIGITAL LINK

• Video: 480p/576p to 4096 × 2160
• Still Images: 640 × 480 to 1920 × 1200
• Dot Clock: 25–297 MHz

SDI

• HD-SDI
• 3G-SDI

Geometry Correction

Vertical Keystone

• Up to ±40° (lens dependent)

Horizontal Keystone

• Up to ±40° (with optional ET-UK20 Upgrade Kit)

Curved Screen Correction

• Supported

Geometry Correction

• Keystone
• Curved Correction
• Geometry Adjustment (lens dependent)

Connectivity

HDMI Input

• 1 × HDMI Type-A
• HDCP 2.2
• Deep Color
• 4K/60p Compatible

DVI-D Input

• 24-pin
• HDCP Compatible

RGB Input

• 15-pin D-Sub (RGB/YPbPr)

SDI Input

• 1 × BNC
• HD-SDI (SMPTE ST 292)
• 3G-SDI (SMPTE ST 424/425-2)

DIGITAL LINK

• RJ-45
• HDBaseT™ Compatible
• Video, Audio, Network & Serial Control
• HDCP 2.2
• Deep Color
• 4K/60p Compatible
• Art-Net Compatible
• PJLink Class 2

LAN

• RJ-45
• 10/100Base-TX
• Art-Net Compatible
• PJLink Class 2

USB

• USB Type-A
• 5V DC, 2A Power Output

RS-232

• D-Sub 9-pin

Projector Sync

• Sync In
• Sync Out

Remote Control

• Remote 1 In
• Remote 2 In
• Remote 2 Out

Physical Specifications

Dimensions

• 650 × 211 × 440 mm
• (25.6 × 8.3 × 17.3 in.)

Weight

• 22.3 kg (49.2 lb)
• Without Lens

Cabinet Material

• Molded Plastic

Power Cord Length

• 3.0 m (9 ft. 10 in.)

Operating Specifications

Operating Noise

• 35 dB (Normal)
• 30 dB (Quiet)

Operating Temperature

• 0°C to 45°C (32°F to 113°F)

Operating Humidity

• 10–80% RH (Non-condensing)

Laser Safety

Laser Classification

• USA & Canada: Class 3R (IEC60825-1:2007)
• Other Regions: Class 1 (IEC/EN 60825-1:2014)

Risk Group

• Risk Group 2 (Most Compatible Lenses)
• Risk Group 2 or 3 (ET-EMT800 Lens)

Remote Control Specifications

Power

• 3 VDC
• 2 × AAA Batteries

Operating Range

• Approximately 30 m (98.5 ft.)

Dimensions

• 48 × 145 × 27 mm

Weight

• Approximately 102 g (Including Batteries)
