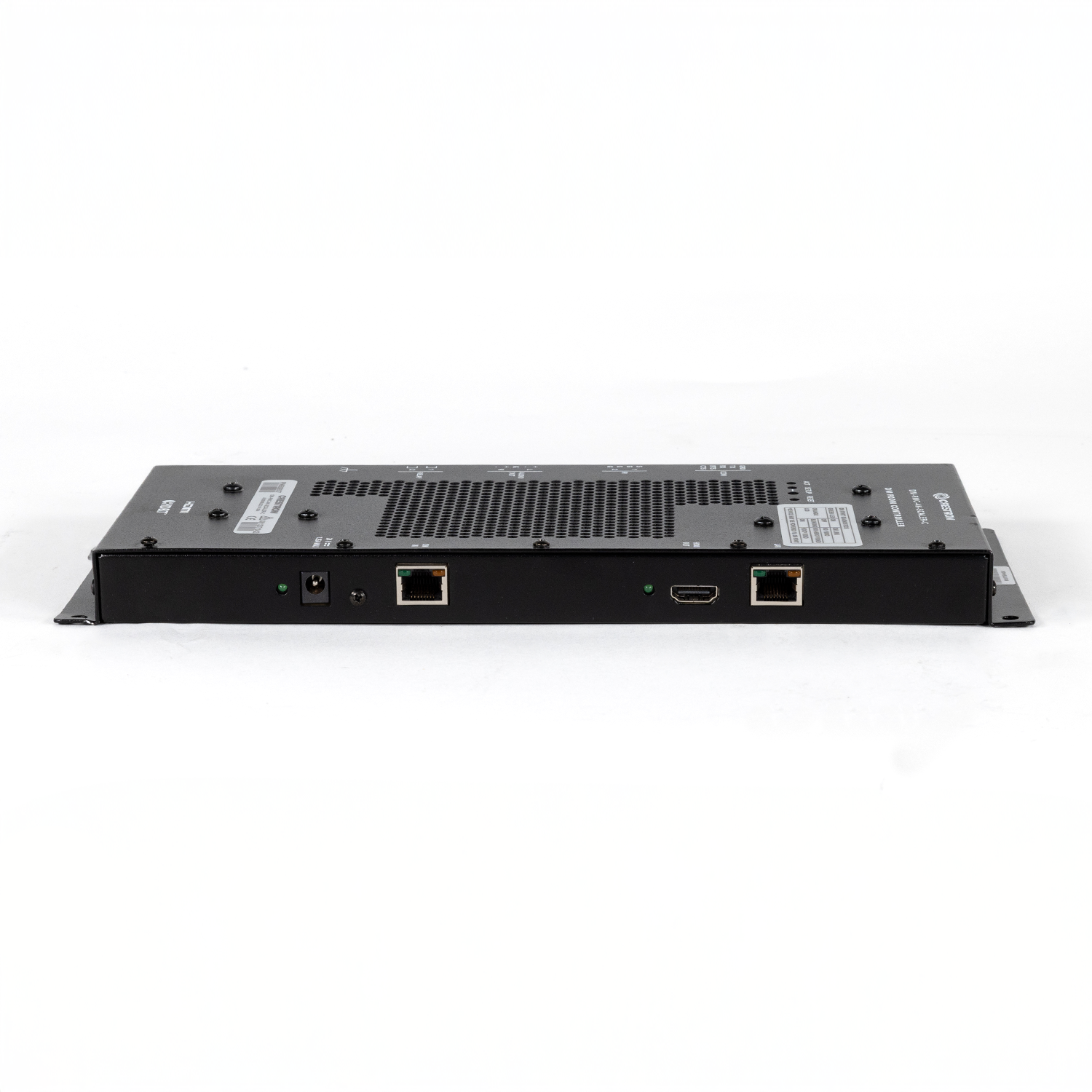

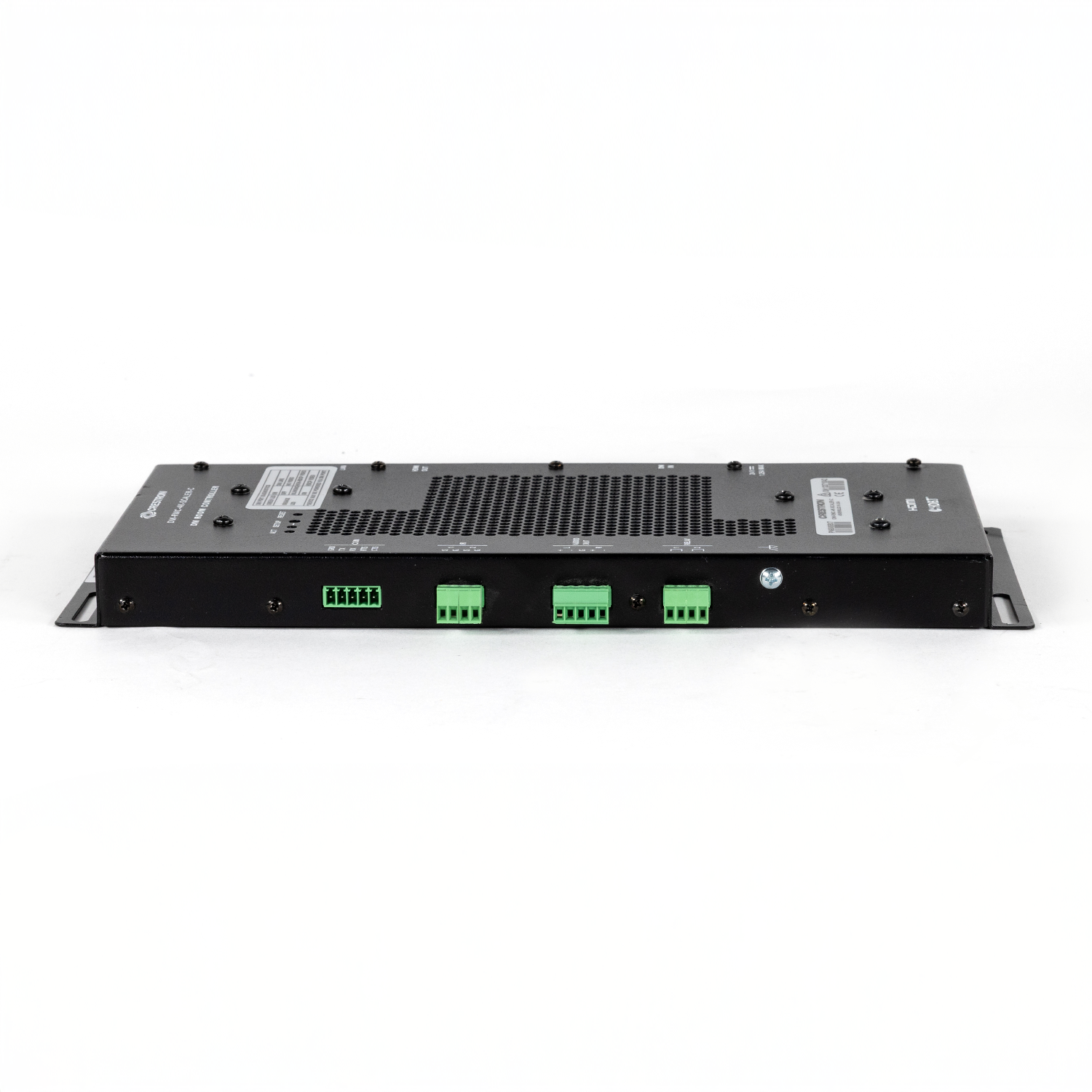

Crestron DM-RMC-4K-SCALER-C 4K DigitalMedia 8G+® Receiver & Room Controller w/Scaler

The DM-RMC-4K-SCALER-C provides an advanced one-box interface solution for a single display device as part of a complete Crestron® DigitalMedia™ system. It functions as a DM 8G+® receiver, 4K/60 video scaler, and control interface, providing a single HDMI® output along with an analog audio output, plus Ethernet, RS-232, IR, and relay control ports. In addition to DM 8G+, it is also compatible with HDBaseT®, allowing it to be connected directly to an HDBaseT certified source. Built-in scaling enables the connected display to handle virtually any video signal — including 4K and Ultra HD!

Its compact, low-profile design allows the DM-RMC-4K-SCALER-C to be installed discreetly behind a flat panel display or above a ceiling mounted projector. It connects to the head end or source location using a single CAT type twisted pair cable.

• DigitalMedia 8G+® receiver, 4K/60 scaler, audio extractor, and display controller
• Connects to a DM® switcher or transmitter over a single CAT type twisted pair cable
• HDBaseT® Certified — Enables direct connection to other HDBaseT certified equipment
• Provides one HDMI® or DVI display output
• Upscales the input signal to match the native resolution of any screen — including 4K and Ultra HD displays!
• Downscales 4K, UHD, and ultra high-resolution computer signals to enable viewing on 1080p and other lower-resolution displays
• Handles any input resolution from standard NTSC 480i or PAL 576i, to UHD and 4K
• Provides intelligent frame rate conversion
• Includes content-adaptive noise reduction
• Includes motion-adaptive de-interlacing
• Allows adjustable overscan or underscan up to 7.5%
• Automatically passes 3D video without scaling to 3D capable displays
• Supports up to 8x8 video wall processing
• Handles Dolby® TrueHD, Dolby Atmos®, DTS-HD®, and uncompressed 7.1 linear PCM audio
• Provides a balanced stereo analog line-level audio output with volume control
• Allows de-embedding of stereo 2-channel audio signals
• HDCP 2.2 compliant
• Supports cable lengths up to 330 ft (100 m) for all resolutions up to UHD and 4K using DM Ultra cable
• Supports cable lengths up to 330 ft (100 m) for 1080p, WUXGA, and 2K using DM 8G® cable or CAT5e
• Supports cable lengths up to 230 ft (70 m) for UHD and 4K using DM 8G cable, or 165 ft (50 m) using CAT5e
• Provides a 10/100 Ethernet LAN connection
• Compatible with Crestron USB over Ethernet Extenders
• Enables device control via CEC, IR, RS-232, and Ethernet
• Provides two low-voltage relay control ports
• Allows quick, easy setup and diagnostics
• Powered via the DM connection or local power pack (included)
• Low-profile surface mount design
