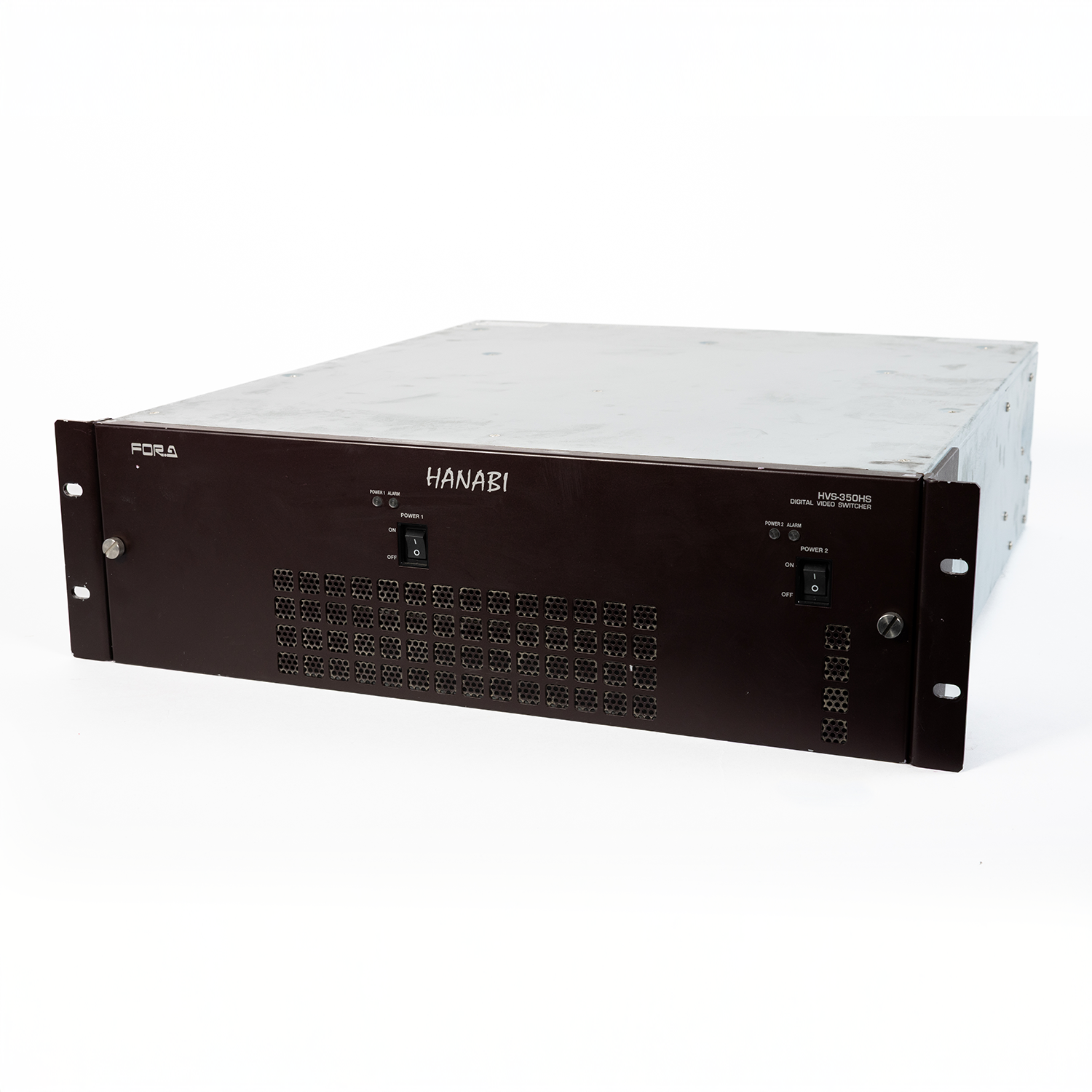

FOR-A HVS-350HS 1.5 M/E Switcher and Frame

The HVS-350HS is the video switcher pushing functionality and operability to new heights. Like the HVS-300HS, it offers a full range of functionality, including mixed HD/SD input, frame synchronizer, 2D and 3D wipe effects, DVE, keyer with chroma key (2 channels), DSK (4 channels), still stores (4 channels), picture in picture (2 channels) and 16-split multiviewer (2 channels). It retains the unique specifications that allow selection of operation style and can be used on all types of locations for almost anything (live, events, news, outside broadcasting vans, sports, editing, presentations, etc.). The HVS-350HS offers new innovations to the video switcher genre.

• 1.5 M/E switcher with compact 3U frame
• Expandable I/O up to 24 inputs / 12 outputs
• Built-in frame synchronizers on all inputs
• Resizing engine on 4 inputs for format flexibility
• Over 100 2D/3D transitions and effects
• Dual multi-viewer with up to 16 splits per output
• 4 still stores for graphics and images
• 2 chroma keyers and 4 downstream keyers
• Flexible control via Ethernet, RS-422, GPI, and ARCNET
• Compatible with multiple control panel options

Video Formats

• HD: 1080i / 720p (59.94/60/50Hz)
• SD: NTSC / PAL

Inputs / Outputs

• Standard: 8 HD/SD-SDI inputs, 8 HD/SD-SDI outputs
• Expandable: Up to 24 inputs and 12 outputs
• Optional: Analog and PC input/output cards

Multiviewer

• 2 channels
• Up to 16 windows per channel

Control Interfaces

• RS-422
• GPI: 10 in / 20 out
• ARCNET
• Ethernet

Still Stores

• 4 channels

Effects & Keyers

• 2 picture-in-picture channels
• 4 DSKs with chroma key support
• Over 100 transitions
