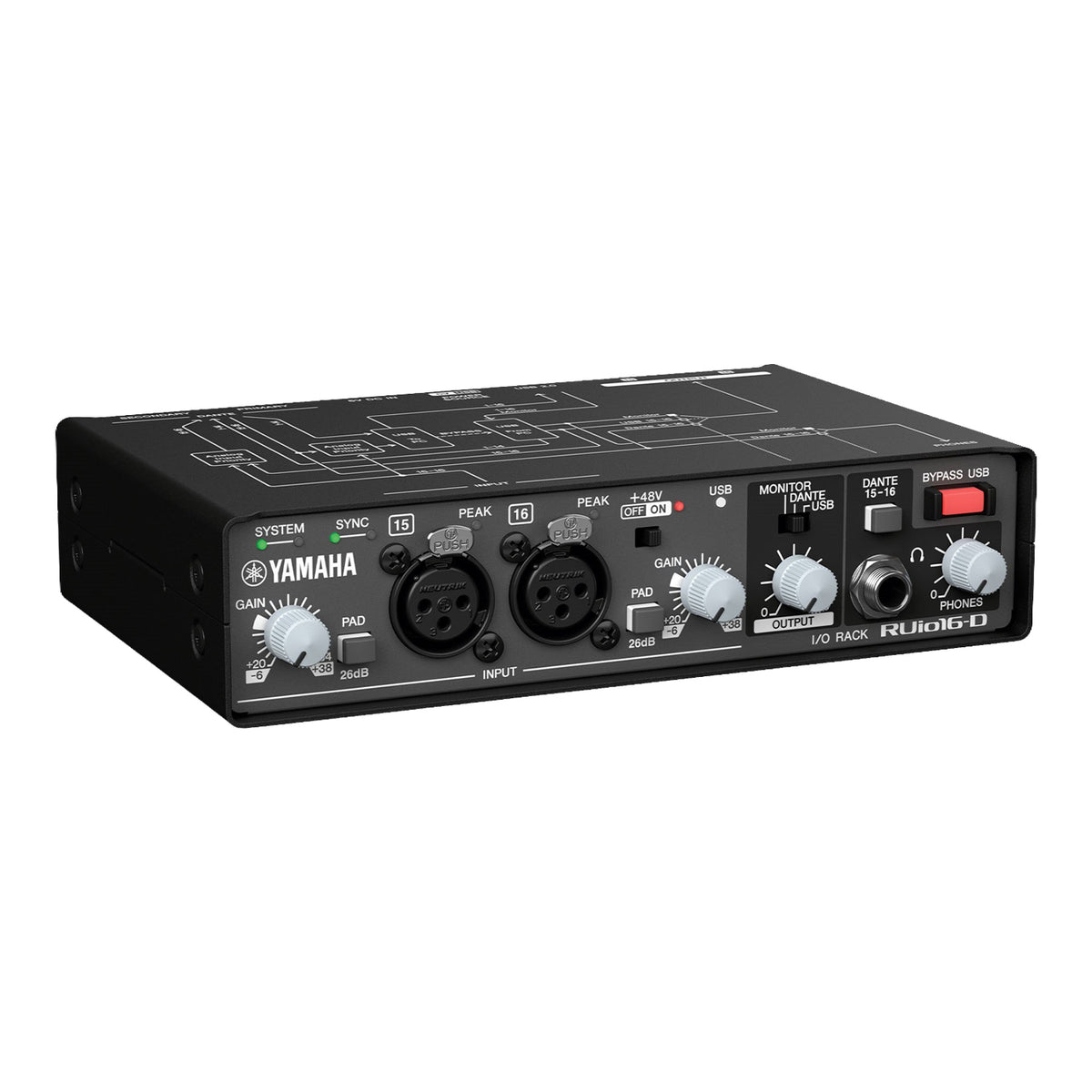

Yamaha RUio16-D Dante/USB Audio Interface

The RUio16-D is a revolutionary audio interface that features a compact form while still being rugged enough to withstand the needs of touring, serving as a bridge between Dante, analog, and USB signals. Combining this product with the bundled VST Rack Pro plug-in host software creates a plug-in environment that gives users a great deal of freedom and makes it easy to integrate the VST plug-ins you like into your system. This unit features a variety of input/output jacks, and is useful in a broad range of situations such as outputting computer-processed audio to a mixer via Dante, acoustic measurement, and much more.

This unit also offers a high level of stability in case a problem occurs with your computer, as the unit bypasses the audio processing on the plug-in side to prevent any trouble that might stop the sound on the entire system. We’re bringing a new kind of plug-in solution to our users that lets them freely use the VST plug-ins they like in a flexible and safe way.

• Analog: 2 inputs, and 2 outputs
• Dante: 16 inputs, and 16 outputs
• USB: 18 inputs, and 16 outputs
• High-quality microphone preamp
• Bypass switch for preventing unexpected issues
• Rack-mountable
• VST Rack Pro software

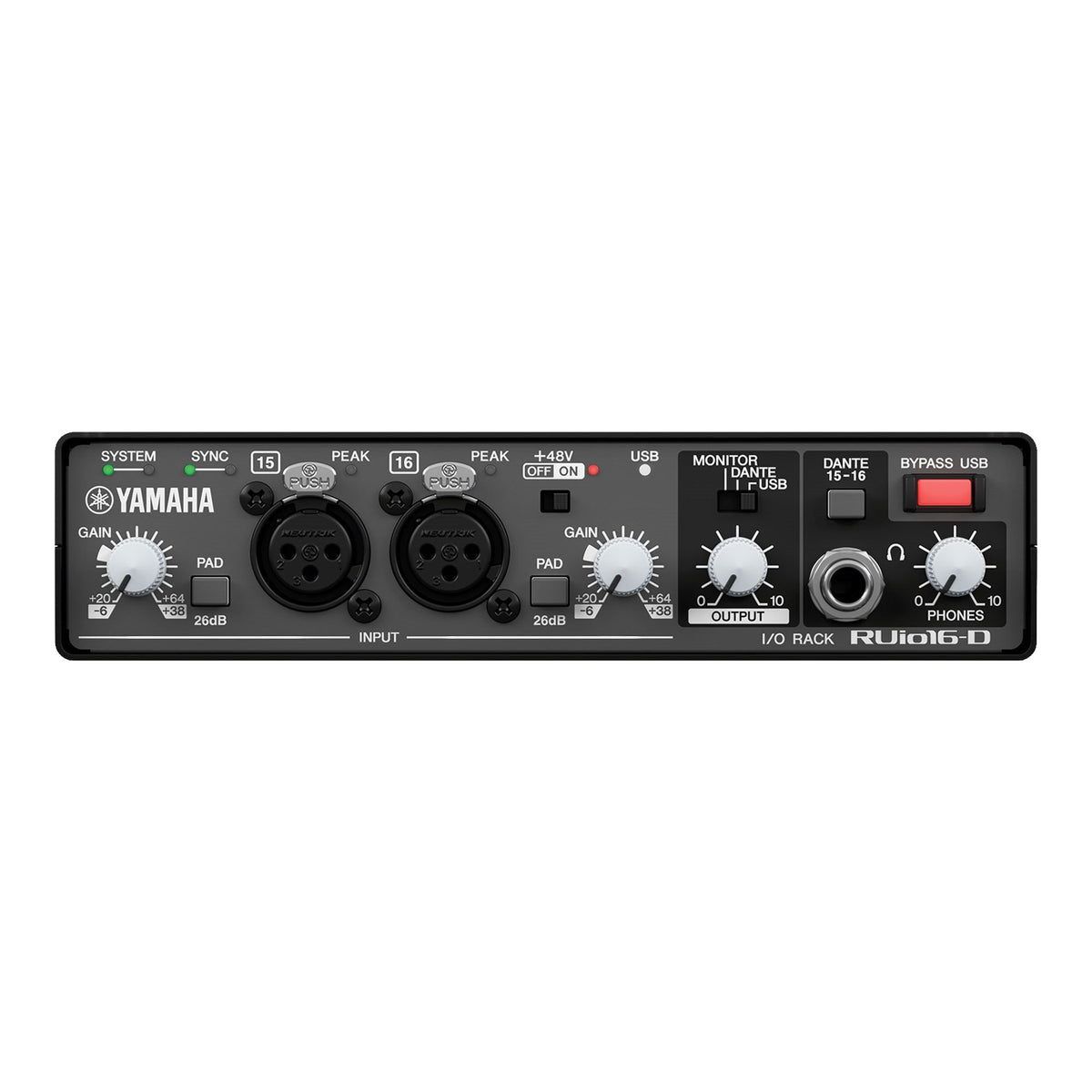

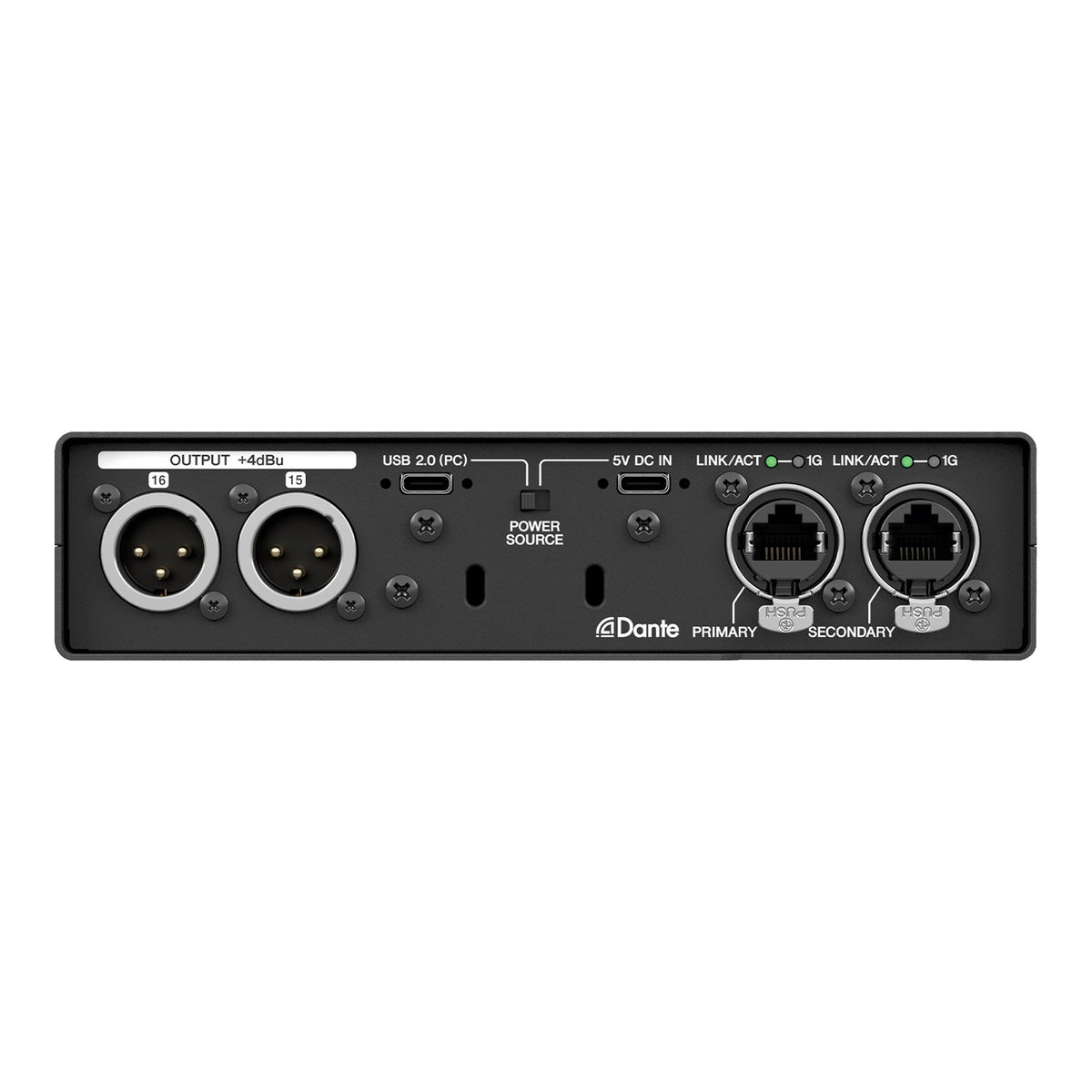

Local Connectors

• Analog Inputs: 2 Mic / Line (XLR)
• Analog Outputs: 2 (XLR)
• Phones Output: 1 (TRS Phone)
• Dante I/O: 2 (etherCON: Primary / Secondary)
• USB 2.0 (PC): 1 (USB Type-C)
• DC Power Input: 1 (USB Type-C)

Sampling Frequency

• 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz

Signal Delay

• Less than 250 μs, Analog INPUT to Analog OUTPUT @Fs = 96 kHz Bypass USB mode

Power Requirements

• 5 V / 1.5 A

Power Consumption

• 7.5 W

Dimensions (W x H x D without rubber feet)

• 180 mm x 42 mm x 121 mm
• 7.1" x 1.7" x 4.8"

Weight

• 1.0 kg
• 2.2 lbs

Operating Temperature Range

• 0 – 40°C

Storage Temperature Range

• -20 – 60°C
