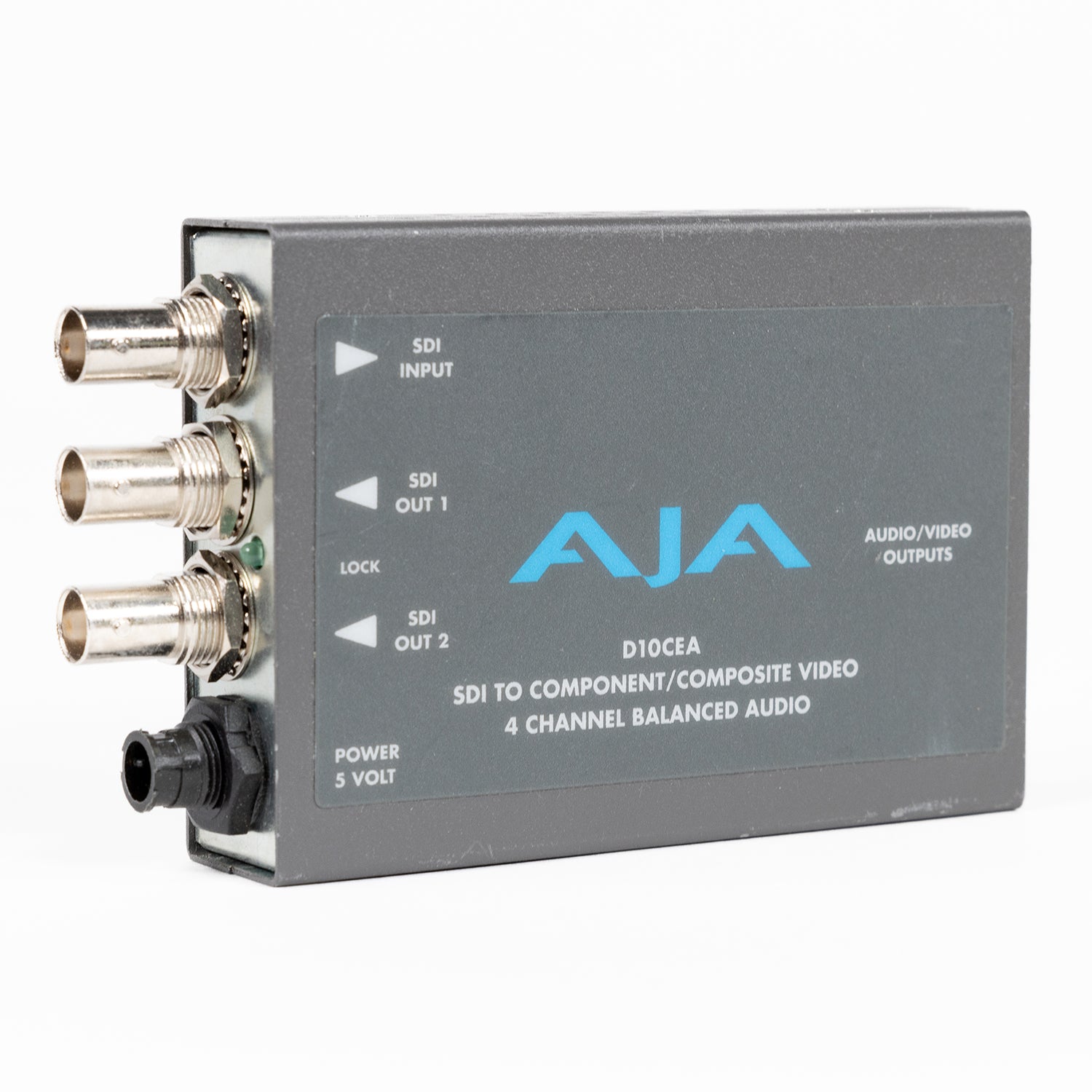

AJA D10CEA SD-SDI to Analog Audio/Video Converter

The AJA D10CEA converts SD-SDI video with embedded audio to 10-bit component or composite analog video and 4 channel balanced analog audio. The video outputs can be configured as YPbPr (Betacam or SMPTE/EBU N10), RGB, 1 composite or 1 Y/C (S-Video).

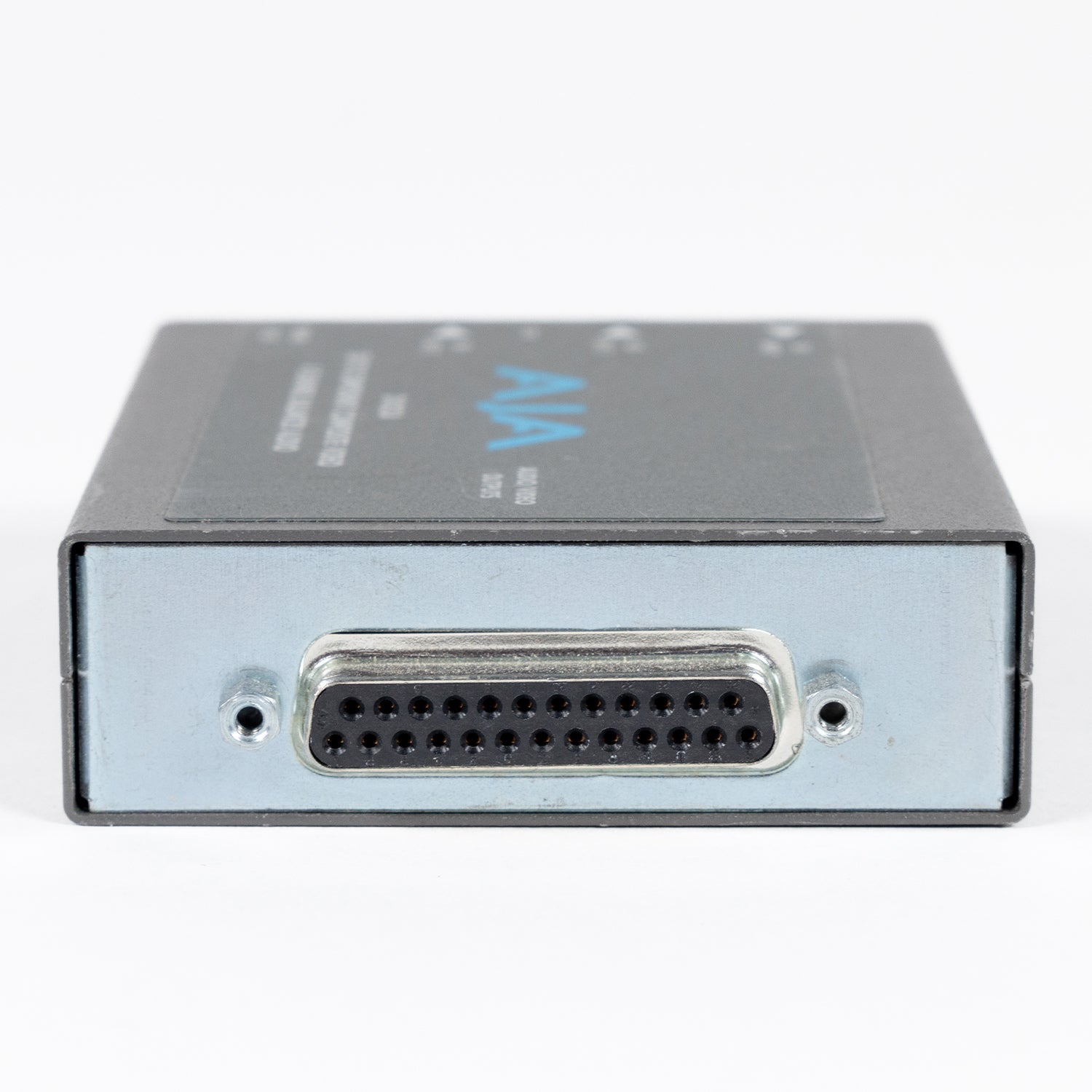

The 4 channel analog audio outputs can be wired in a balanced or unbalanced configuration. The 4 audio output channels can be selected as group 1-4 from SMPTE embedded audio. Audio level has 4 settings. Audio and video output connections are available on a 25 pin "D" subminiature connector – a breakout cable is supplied. All video/audio configuration is done by external dipswitch selection. This versatile, lowcost, miniature monitoring solution also outputs two re-clocked loop-thru SDI outputs.

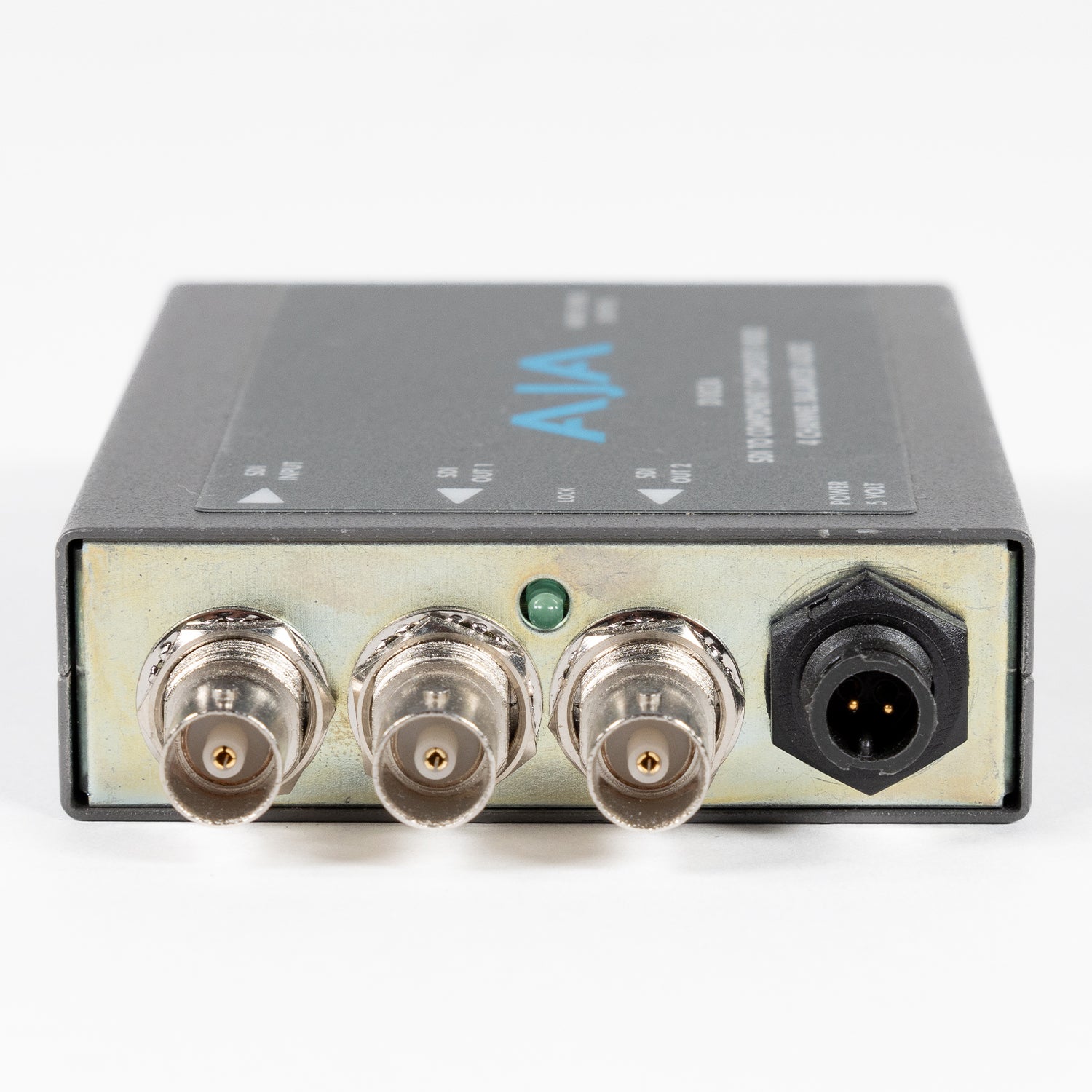

• SDI Video with Embedded Audio Input
• 2x Loop-Through SDI Outputs
• Component/Composite Video BNC Output
• 4x XLR Analog Audio Output

Inputs

•  Pedestal
• H&V blanking
• SD-SDI (SMPTE 259M) w/embedded audio
• 1 x BNC

Outputs

Video

• YPbPr - SMPTE
• Betacam
• RGB
• NTSC
• PAL
• YC (S-Video)
• 10-bits

Audio

• 4 Channel Balanced/Unbalanced, Video/Audio outputs on 25-pin D connector 2 SDI Reclocked loop through, 2 x BNC
• Video, +/-.25db to 5.5 mHz Y
• Audio, +/-.5db to 20 kHz

User Controls

• External Dipswitch
• Video Format
• Audio group 1,2,3,4
• Audio Level, adjustable via switch selection: +24, +18, +15, +12 dBu
• Full Scale Digital

Power

• +5-18VDC, 4 watts, power supply

Dimensions

• 5.8 x 3.1 x 1" (147 x 79 x 25 mm)
