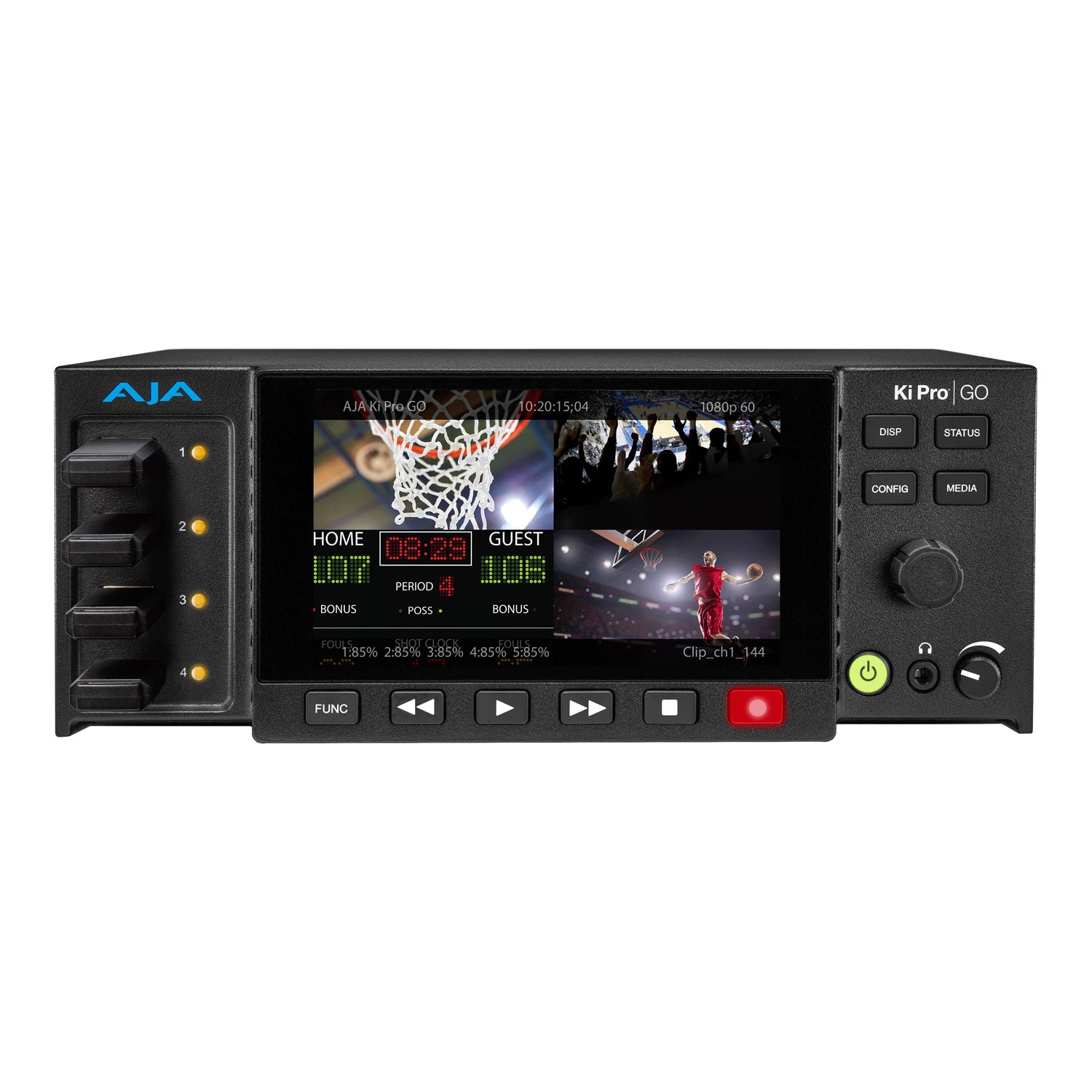

AJA Ki Pro GO Multi-Channel H.264 Recorder

Ki Pro GO is a portable multi-channel H.264 recorder offering up to 4-channels of simultaneous HD and SD recording to off the shelf USB drives and/or network storage with redundant recording capabilities.

4x 3G-SDI and 4x HDMI digital video inputs with flexible channel assignments provides connections to the latest video sources, including cameras and DSLRs. Incoming video sources do not have to be genlocked due to Ki Pro GO's input frame syncs. Ki Pro GO also features AJA's high quality de-interlacers on each input so progressive recordings can be made from interlaced inputs. High quality 2-channel embedded audio or balanced XLR analog audio can be assigned to any recording channel. Multi-Channel Matrix Monitoring enables multiple video channels to be viewed on any single HDMI or SDI display, and Enhanced Super Out offers timecode, media status and audio meter overlays over the SDI and HDMI monitor outputs.

Designed to be either portable or rackmountable with half rack wide, 2RU high dimensions, Ki Pro GO is well suited for use in any environment.

Video Formats

• (HD) 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
• (HD) 1080i 50, 59.94, 60*
• (HD) 1080PsF 23.98, 24, 25, 29.97, 30*,**
• (HD) 720p 50, 59.94, 60
• (SD) 525i 59.94*
• (SD) 625i 50*

* Recording will be converted to progressive
** PsF input support only

Note: Multi-channel recording requires the same frame rate and resolution for all input sources.

Video Codec Support

• Supports H.264/MPEG-4
• up to 25 Mbps recorded output

Audio Codec Support

• 4x audio compression codecs
• 2-channel audio support for each
• up to 320 kbps
• MPEG-4 AAC-LC

Codec Container

• .MP4

Removable Storage

• 5x USB 3.2 Gen 1 (5 Gbps) ports
• All ports are also compatible with the following standards:
• 5V 1A max current per port

*Also referred to as SuperSpeed USB

Removable Storage File System Support

• FAT file systems
• In-system formatting support for exFAT only

Network Storage

• SMB support via GigE port*

*GigE network connectivity to storage is required, with 150Mb/s of bandwidth permanently available for media storage.

SMB Protocols Supported

• SMB 3.1.1
• SMB 3.0.2
• SMB 3.02
• SMB 2.1
• SMB 2.0
• SMB 1.0

Video Input

• 4x 3G-SDI BNC, SMPTE-259/292/424, 4:2:2 10-bit
• 4x HDMI standard Type A connector
• HDMI v1.4a

Video Output

• 5x 3G-SDI BNC, SMPTE-259/292/424, 4:2:2 10-bit
• 1x HDMI standard Type A connector
• HDMI v1.4a

Audio Input

• 4x SDI Audio
• 4x HDMI Audio
• 2x XLR input

Audio Output

• 5x SDI embedded
• 1x HDMI embedded
• Stereo unbalanced headphone jack (1x 3.5mm jack) with volume control
• 2-channel unbalanced 2x RCA connectors

Video Conversion

• Deinterlacing for recording
• Interlacing for playback (optional)
• PsF to progressive

Timecode

• SDI RP188/SMPTE 12M via SDI BNC
• LTC input (via Analog Audio XLR in R)
• TC Super Out

Reference Input

• External, 2x BNC
• Looping, nonterminating
• Input reference formats:

Network Interface

• 1x LAN connector (RJ-45 connector, 10/100/1000)
• Embedded web server for remote control
• Configuration and Transport Control via WEB Interface
• Clip download via Web Interface
• Remote control via REST

User Interface

• Rotary Selector knob
• Dedicated backlit transport controls and menu buttons
• Large 1280 x 720 TFT LCD display with Video Monitor and Menu/Status Overlays

Size (w x d x h)

• 8.64" x 10.59" x 3.31" (219.46 x 268.60 x 84.08 mm)

Weight

• 5.1 lbs (2.3 kg)

Power

• External power supply required

Environment

• Safe Operating Temperature: 0 to 40 C (32 to 104 F)
• Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
• Operating Relative Humidity: 10-90% noncondensing
• Operating Altitude: <3,000 meters (<10,000 feet)
