AJA KLBox Breakout Box

The AJA KL-Box-LH from AJA is a RoHS compliant 1RU External Breakout Box for KONA LHe Plus, LHe, and Lse. This Breakout Box provides rack mounting and flexible easy I/O (KL-box cabling is included with the KL-box). When ordering, specify a KL-box for the KONA LH since it uses a unique cable; the KONA LH also can be used with the KL-Box but uses a different cable.

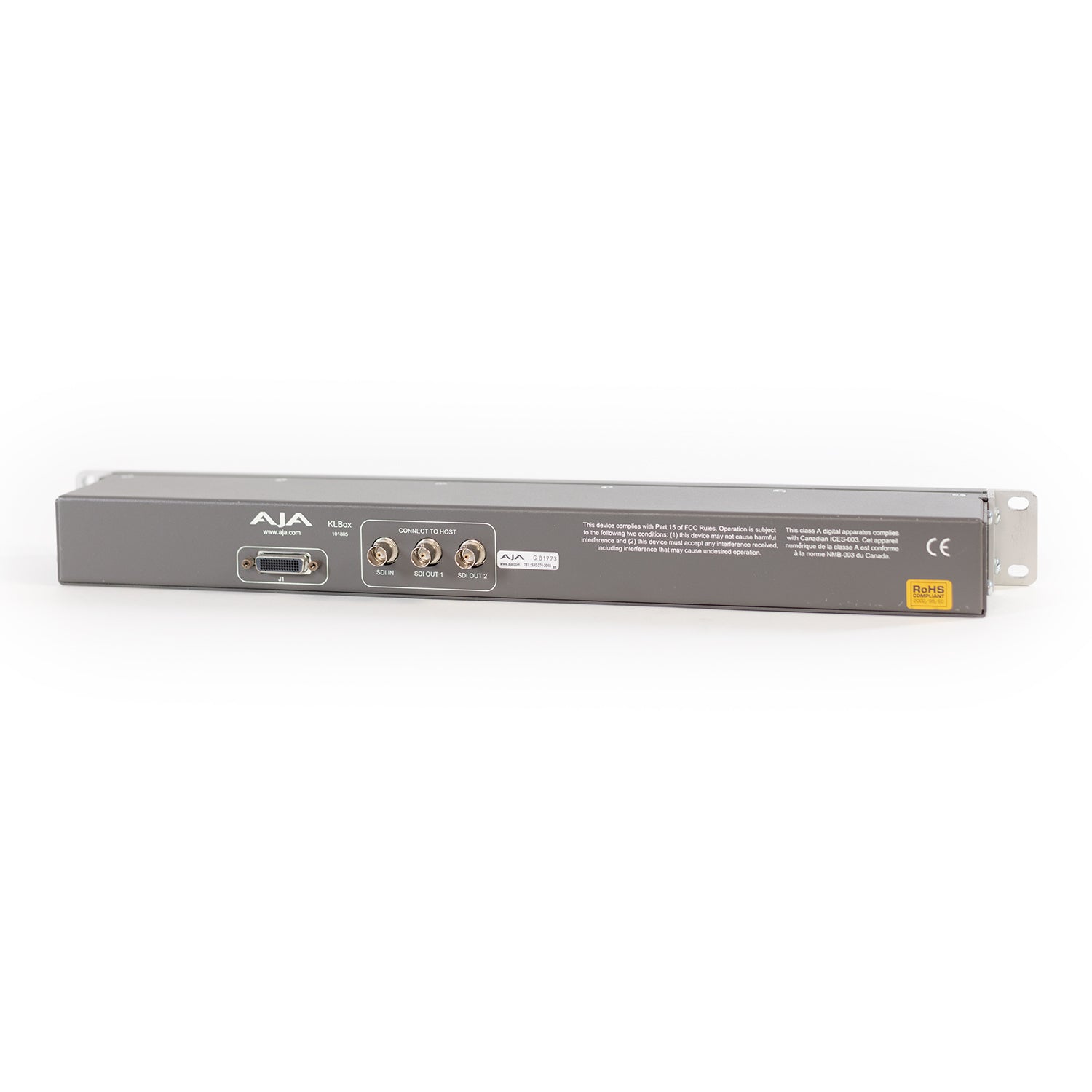

The KL-Box attaches to the KONA LH card via cables that attach to the back of the KL-box. These cables are supplied with the KL-Box (one 60-pin to 60-pin, and one 3-BNC to 3-BNC). When you purchase the optional KL-Box, you get two-channel unbalanced audio output (2 RCA Jacks), not available with the standard cable.

Compatible with

• Kona-LH, Kona-LHe and Kona-LSe

Host Connection

• 2 Cables (60-pin connector & RS422)

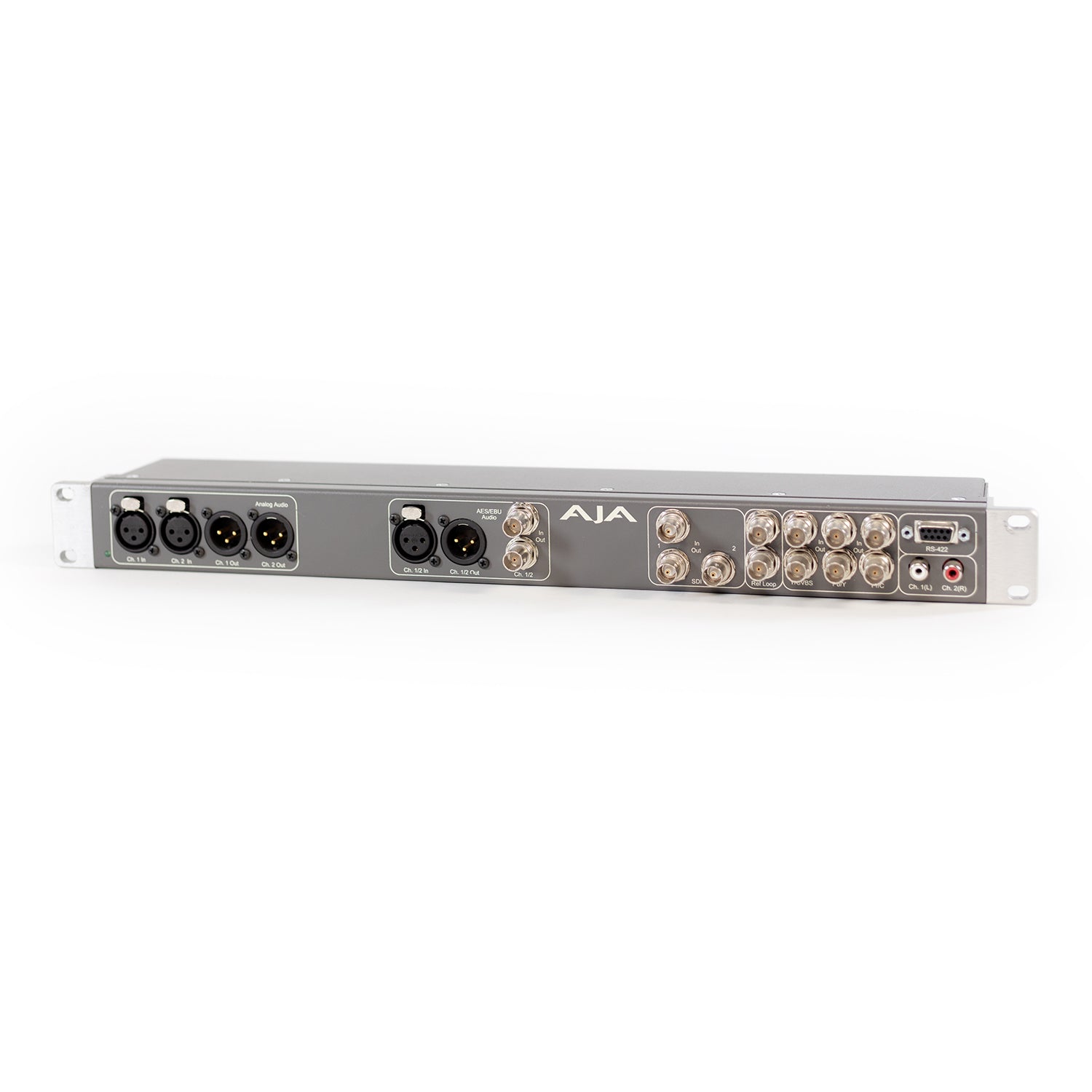

Input and Output Connectors

SD-SDI/HD-SDI Video/Audio

• SDI Output 2 BNC
• SDI Output 1 BNC
• SDI Input BNC

Analog Video

• Y/CVBS In BNC
• Pb/Y In BNC
• Pr/C In BNC
• Y/G/CVBS Out BNC
• Pb/B/Y Out BNC
• Pr/R/C Out BNC
• Reference Input BNC

Balanced Audio

• Analog Audio Channel (1 Input)
• Analog Audio Channel (2 Input)
• Analog Audio Channel (1 Output)
• Analog Audio Channel (2 Output)
• AES Input Channels 1 & 2
• AES Output Channels 1 & 2

Agency Certifications

• Hardware: KONA-2
• Software: Apple Final Cut Pro 5, Adobe AfterEffects, PhotoShop, Quicktime

System Requirements

• Kona-LH, Kona-LHe or Kona-LSe
• Mac OS X

Dimensions

• 19 x 3 (W x H)(48.26 x 7.62cm)

Weight

• 7 lbs (3.175 kg)
