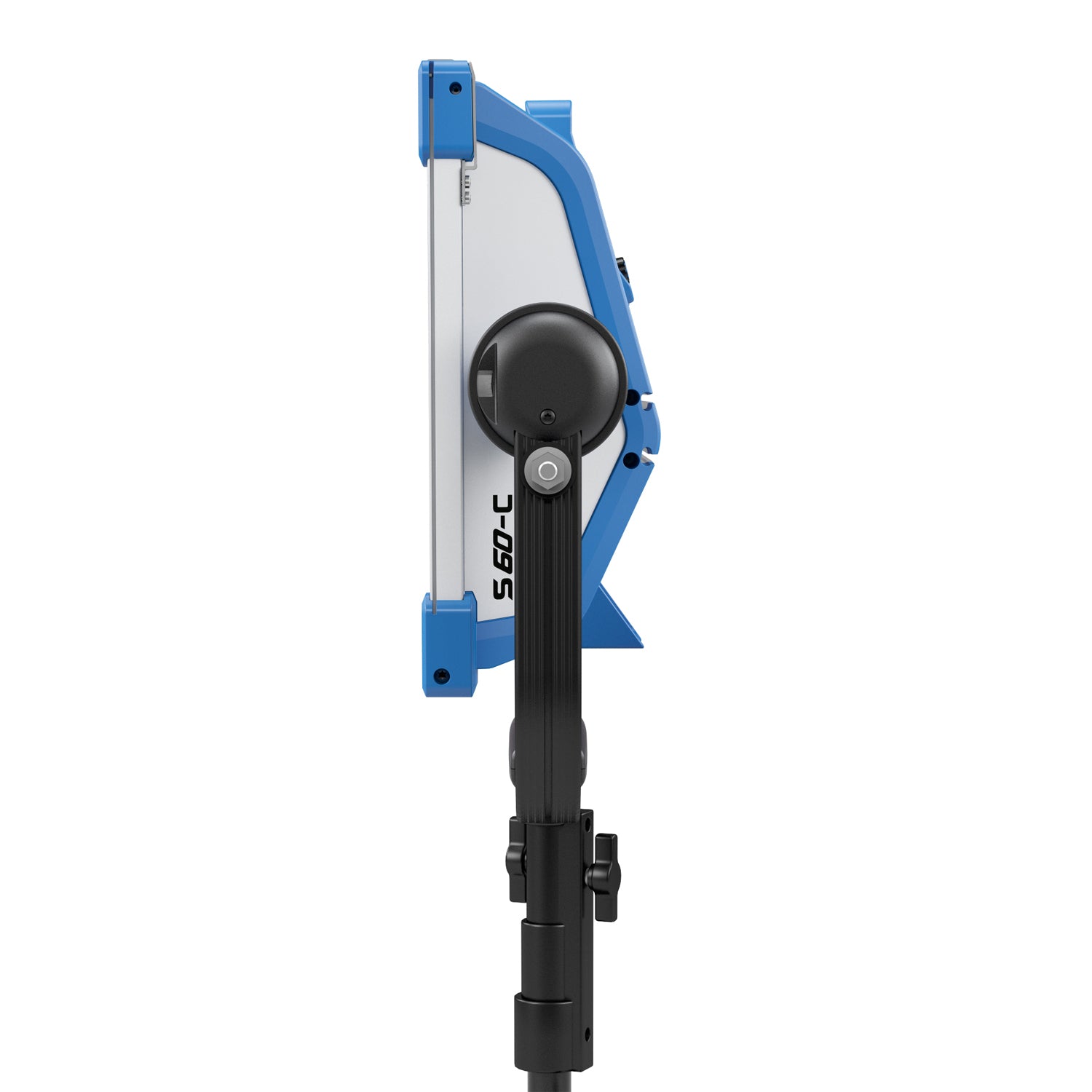

ARRI SkyPanel S60-C LED Soft Light

S60-C - it's an icon

ARRI SkyPanel S60-C is a mid-range light featuring a 645 x 300 mm aperture, perfect for your lighting needs. Powerful and versatile, the S60-C can be used to create soft, even illumination that is suited to the most demanding requirements of any stage or film crew.

With its wide range of colors, it can easily adapt to any environment or look you wish to achieve with your lighting setup. Whether you’re creating a mood on the stage or capturing a dramatic cinematic look outside, ARRI SkyPanel S60-C has you covered!

Experience exceptional illumination with the SkyPanel LED soft light

The SkyPanel LED soft light offers a tremendous amount of light output in a soft and uniform beam field. It surpasses tungsten soft lights of up to 2 kW and tungsten space lights of up to 6 kW. Plus, users have complete control over brightness and color, thanks to its adjustable range of illumination. Experience the unmatched power and finesse of the SkyPanel LED soft light.

Outstanding color rendition - LED white light without sacrifices

ARRI's SkyPanel is the perfect choice for accurate color reproduction and soft LED light. With its advanced LED technology, SkyPanel meets the highest standards of color rendition with natural skin tones and precise temperature settings. Whether CRI (Color Rendering Index), CQS (Color Quality Scale) or TLCI (Television Lighting Consistency Index): SkyPanel delivers soft LED light for any environment.

Illuminate your productions with precise color control

Create the perfect look and color for your set with the tuneable SkyPanel C (Color) versions. With CCT range from 2,800 K to 10,000 K and access to over 85% of the Rec 2020 color space, you can adjust hue/saturation, RGBW mixing, digital gels, source matching, and more for precise lighting decisions every time.

Single soft & clean - the proof is in the shadows

SkyPanel offers a professional-grade LED soft light for superbly clean shadows. It mixes 2,000 calibrated red, green, blue, and white LEDs into one homogeneous beam of soft light. The resulting shadows are soft and devoid of multiple edges or strange colors, making SkyPanel your ideal choice for high-quality soft light and shadow rendition.

Tremendous output - one of the brightest soft lights on the market

The SkyPanel by ARRI is a remarkable LED fixture that defies the norm by delivering both exceptional tuneability and high output. Its impressive light output is consistent across the entire CCT range, making it a top choice for professionals.

• Series: SkyPanel
• Model: S60-C
• Optical System: Soft Diffusion Panel
• Weight in kg / lbs | Fixture only, incl. Diffusion: approx. 10.6 kg / 23.2 lbs
• Measurements (HxWxL) incl. Pin in mm / inch: 566 x 826 x 133 mm / 22.3 x 32.5 x 5.2"
• Measurements (HxWxL) excl. Pin in mm / inch: 433 x 826 x 133 mm / 17.0 x 32.5 x 5.2"
• Housing Color: Blue/Silver, Black
• Power Consumption: 400 W Maximum
• Lamphead Voltage Input: 48 V DC
• Light Aperture / Lens Diameter in mm: 645 x 300 mm
• Light Aperture / Lens Diameter in inch: 25.4 x 11.8"
• Beam Angle: 105° (Half Peak Angle)
• Handling: Aluminium Yoke, High-Strength Tilt Lock / Steel Yoke, Pole Operation for Pan & Tilt
• Mounting: 28 mm Spigot (Junior Pin)
• Tilt Angle; +/- 90°
• Lamphead Power Connection: Male 3-Pin XLR - 15 Amp (Pin 1: Negative / Pin 2: Positive)
• Battery Connector: Male 4-Pin XLR - 10 Amp (Pin 1: Negative / Pin 4: Positive)
• Battery DC Voltage Range: 23 to 36 V DC
• Battery Mode Light Output: 50 % of total output
• White Light: 2,800 K to 10,000 K continuously variable correlated color temperature
• Colored Light: Full RGB+W Color Gamut with Hue and Saturation Control
• Color Temperature Tolerance: +/- 100 K (nominal), +/- 1/8 Green-Magenta (nominal)
• Color Rendition: CRI Average > 95, TLCI Average > 90
• Green-Magenta Adjustment: Continuously adjustable (Full Minusgreen to Full Plusgreen)
• Dimming: 0 to 100 % continuous
• Control: On-Board Controller, 5-Pin DMX In and Through, EtherCon LAN network connectivity, USB-A, Art-Net
• Wireless Control: Not integrated, via SkyLink
• Remote Device Management (RDM): DMX Setup, Hour Counter and Standard RDM Commands
• Software / Mini-USB Interface: Ethernet: DMX Setup, Fixture Status and Firmware Upgrade through PC, Mac USB-A: Software Upgrade via flash drive
• Ambient Temperature Operation: -20 to +45° C (-4 to +113° F)
• Protection Class / IP Rating: III / IP 20
• Estimated LED Lifetime (L70): 50,000 hours
• Estimated Color Shift Over Lifetime (CCT): +/- 5 %
• Certifications: CE, UKCA, CB, ENEC, cNRTLus, FCC, PSE
• Power Supply Unit: S60/S120 PSU
• Power Supply Input Range: 100 to 240 V ~, 50/60 Hz
• Power Supply Output Range: 48 V DC
• Power Input Connection: powerCON TRUE1 (Bare Ends / Schuko / Edison)
• Power Output Connection: Female 3-Pin XLR to 10 Amp (Pin 1: Negative / Pin 2: Positive) powerCON TRUE1 (mains power through)
• Weight in kg: approx. 4 kg
• Weight in lbs: approx. 7.7 lbs
• Measurements (HxWxL) in mm: 91 x 191 x 383 mm
• Measurements (HxWxL) in inch: 3.6 x 7.5 x 15.1"
• Control: On-Board On/Off Switch
• Mounting: SkyPanel PSU Super Clamp Adapter / Rail Mount Adapter
• Certifications: CE, UKCA CB, ENEC, cNRTLus, PSE
