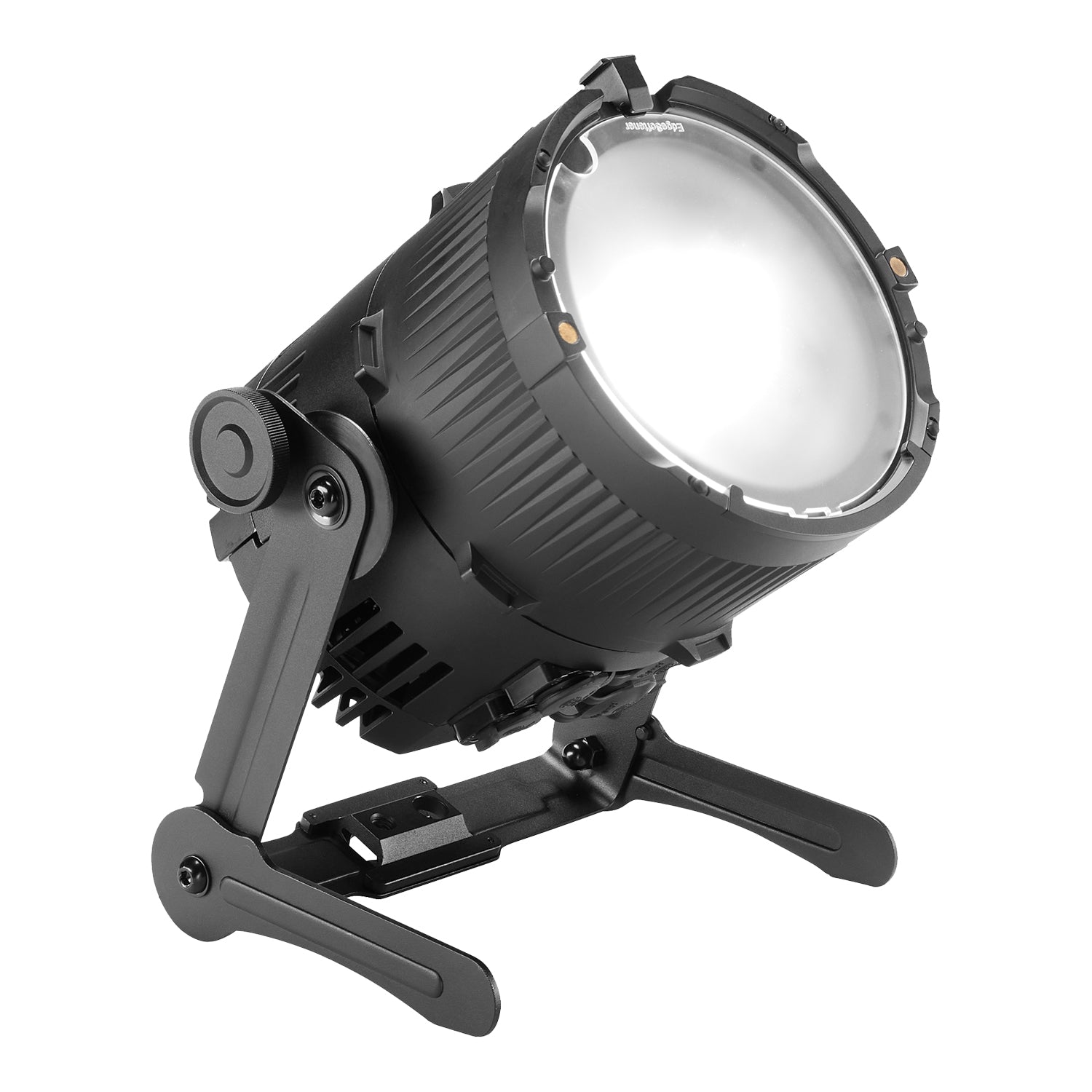

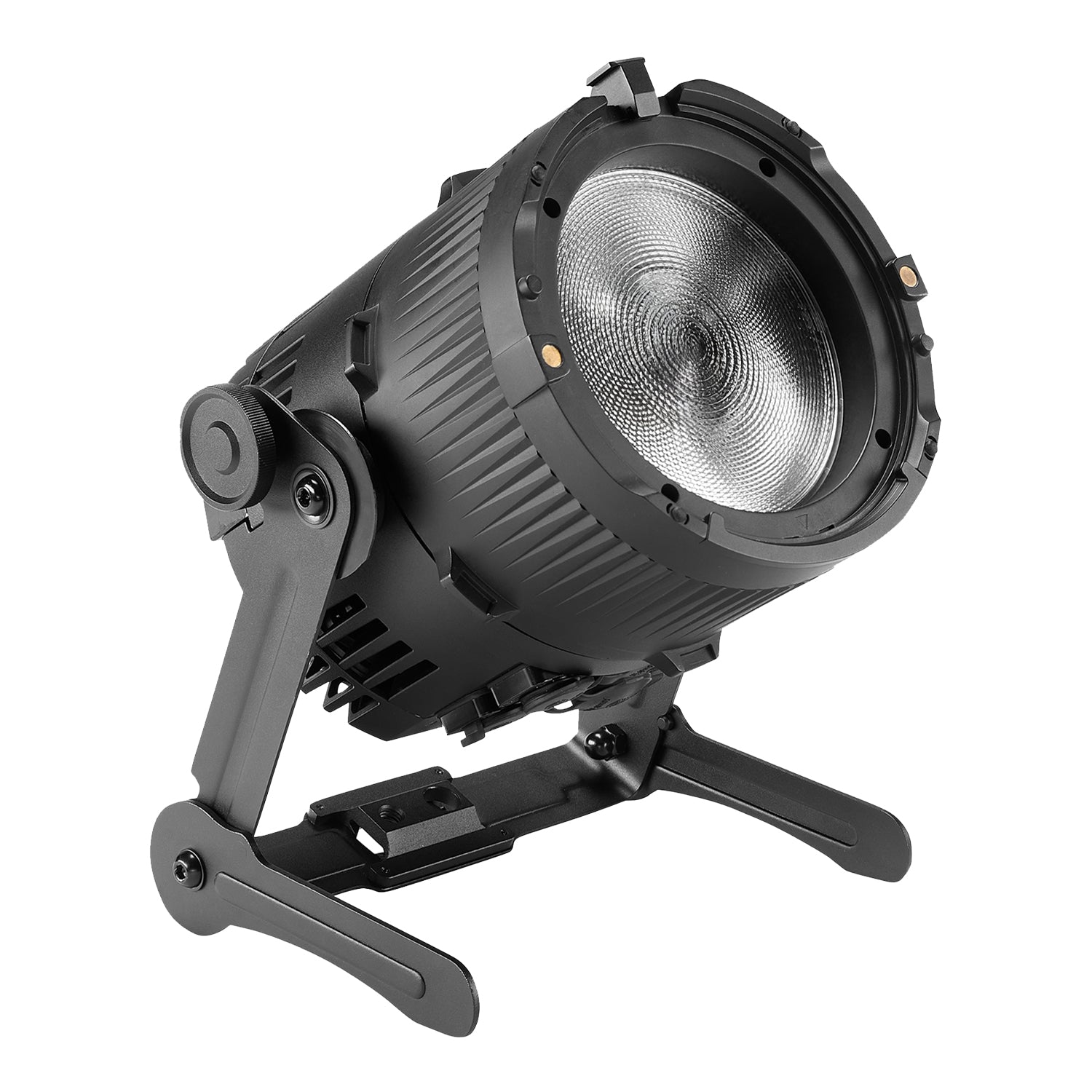

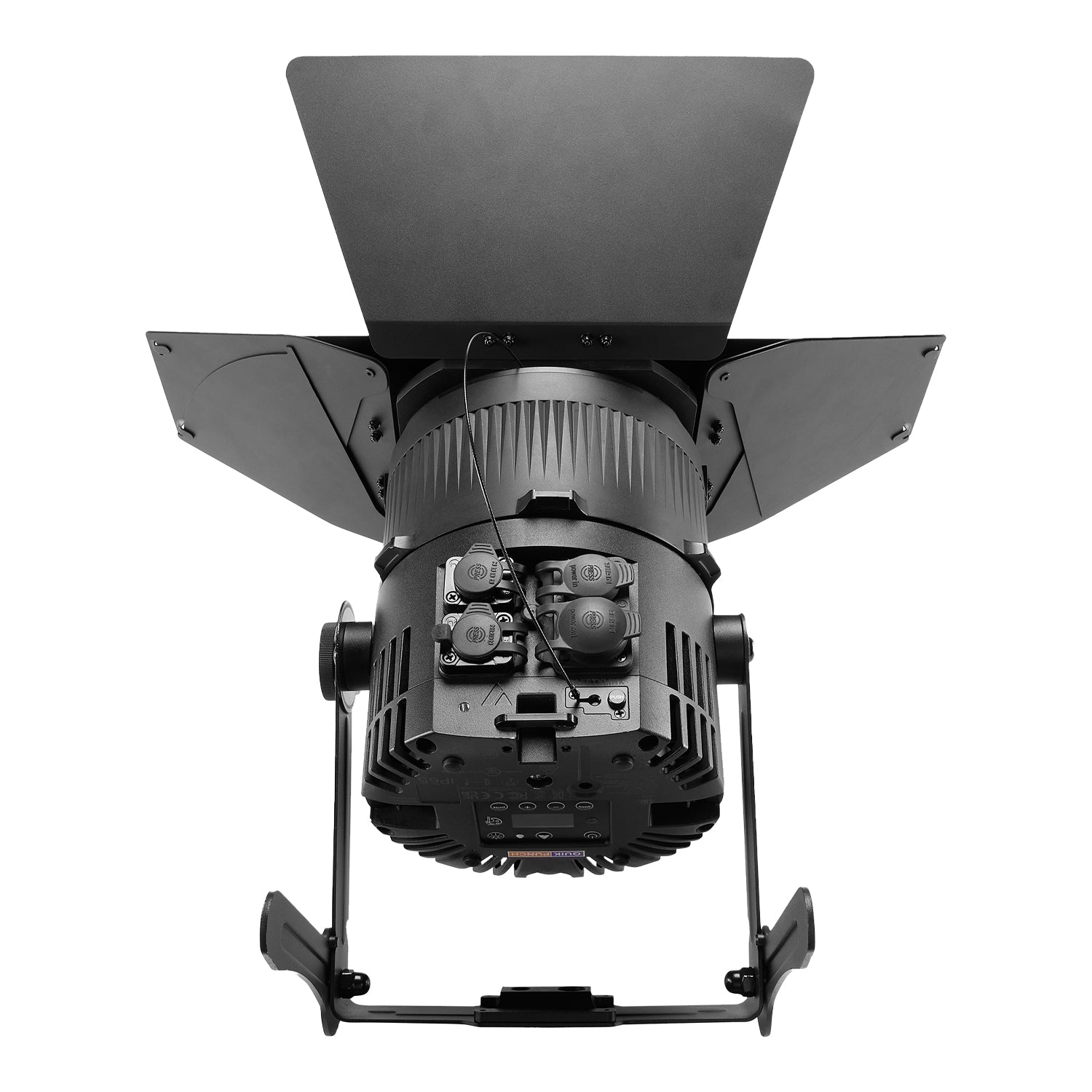

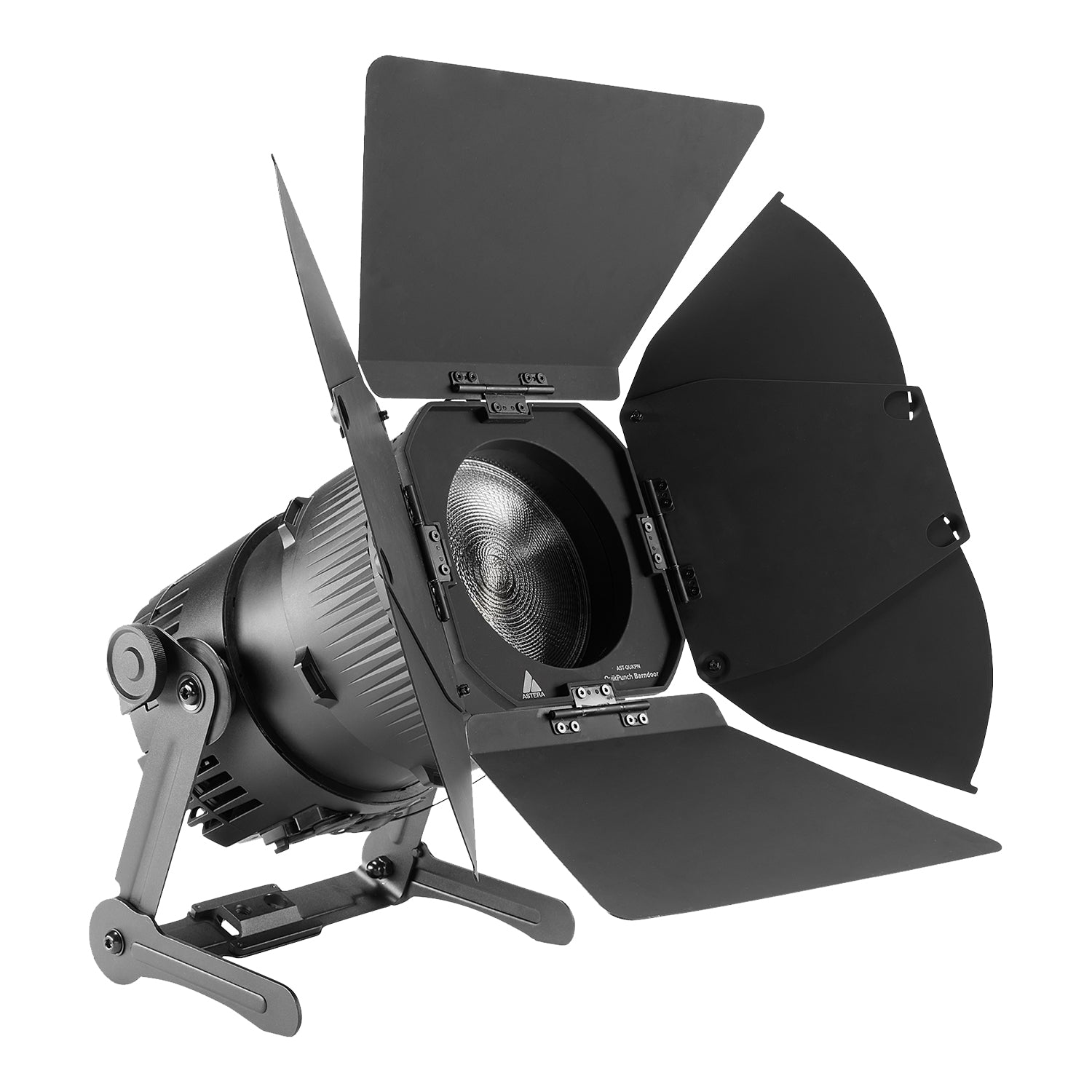

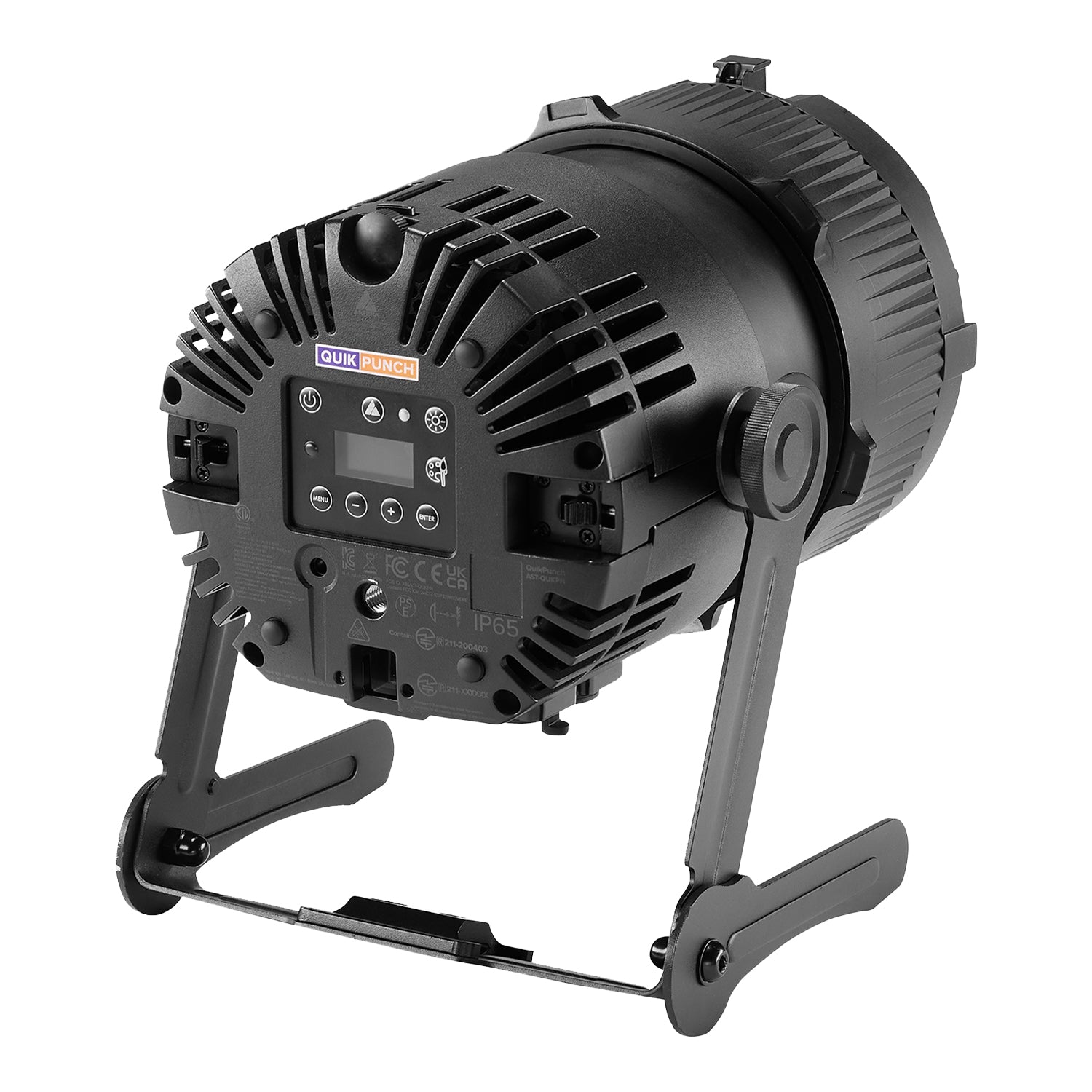

Astera QuikPunch Zoomable LED Spotlight

Accurate punch, fast operation. This wireless spotlight with Fresnel lens features a 13º–60º zoom, zero stray light, and delivers 8,000 lux at 3 meters—all with just 75W of power. (650 W equivalent.) It’s not only a future-proof investment, but also a fixture every event, film, or broadcast crew will want on set.

• TruColor Calibration for consistent color matching across fixtures
• Flicker-free output for high-speed film and broadcast use
• RuntimeExtender technology for configurable battery/runtime management

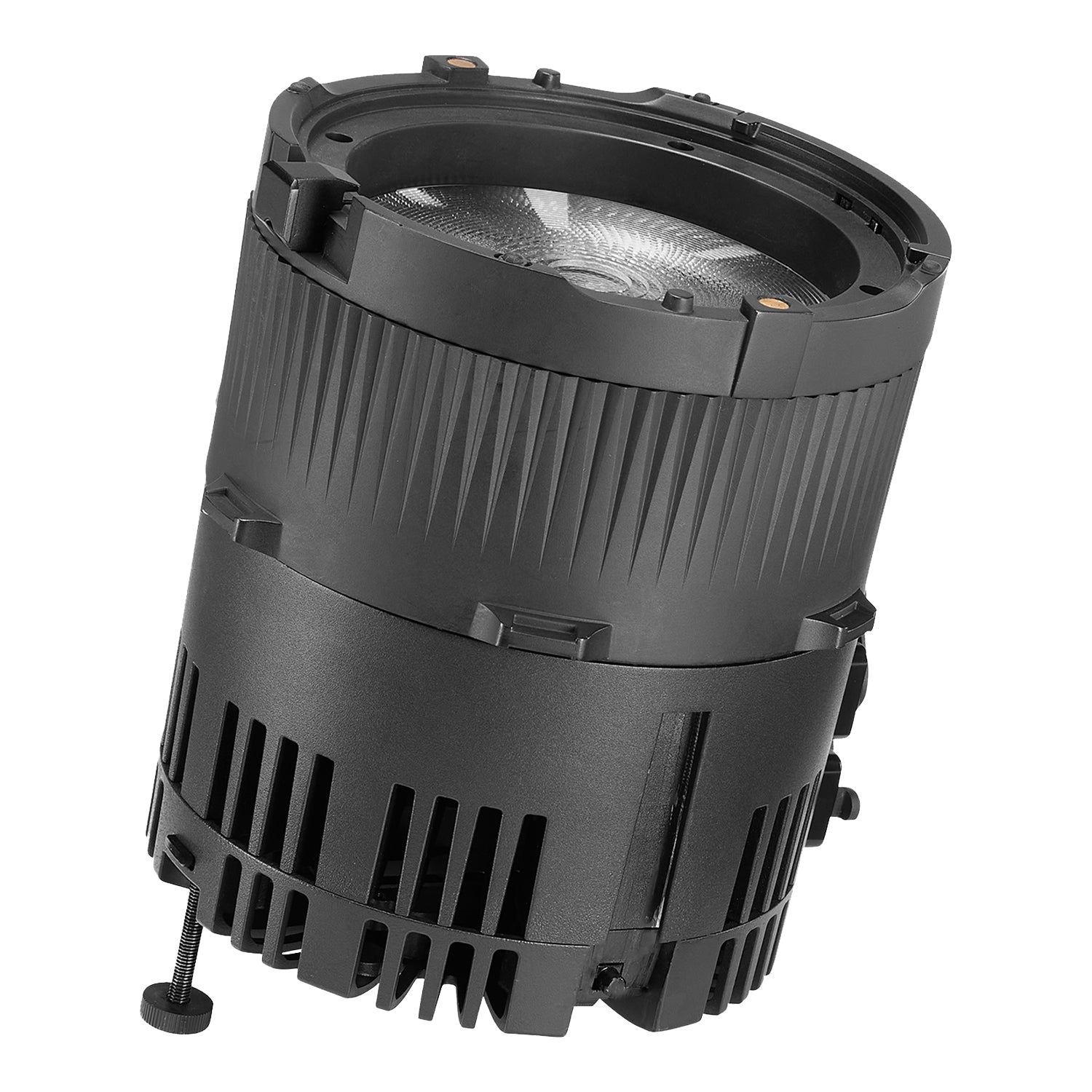

• Removable yoke with multiple mounting options
• IP65-rated construction for indoor and outdoor operation

Optical & Color

• LED Engine: Titan LED Engine
• Color System: RGBMintAmber
• Output Gain: Yes
• LED Power Draw: 75 W
• CRI / TLCI (3200K–6500K, OutputGain disabled): ≥96
• Beam Angle: 13° – 60°
• Field Angle: 20° – 75°
• Strobe Rate: 0 – 25 Hz

Battery & Power

• Battery Runtime: Up to 20 hours
• Battery Runtime (Max Brightness): 4 h 30 m
• Battery Lifetime: 70% capacity after 500 cycles
• Charging Time: 5 h 15 m
• AC Input: 100 – 240 VAC, 50/60 Hz
• AC Current Draw: 115 VAC – 2 A / 230 VAC – 1 A
• AC Connector: PowerCON TRUE1 IN/OUT
• Maximum Power Consumption: 100 W

Control & Connectivity

• Wired DMX: Yes
• CRMX Receiver: Built-in
• BluetoothBridge BTB: Built-in
• Wireless Protocols: CRMX, UHF, Bluetooth, WiFi
• Wireless Range:CRMX/UHF: up to 300 m / 330 ydsBluetooth: up to 3 m / 3.3 yds
• RDM Support: Wireless and/or wired
• Infrared Control: Yes
• PrepBox Compatible: Yes

Environmental

• IP Rating (Wired/Unwired): IP65
• Operating Temperature: 0 – 40 °C / 32 – 104 °F

Physical

• Weight: 6.567 kg / 14.48 lbs
• Dimensions (L × W × D): 236.2 × 195.8 × 295.8 mm / 9.3" × 7.71" × 11.65"
• Mounting Options: AirlineTrack, 3/8"-16 UNC thread, yoke with 3/8"-16 UNC thread and 1/2" hole
