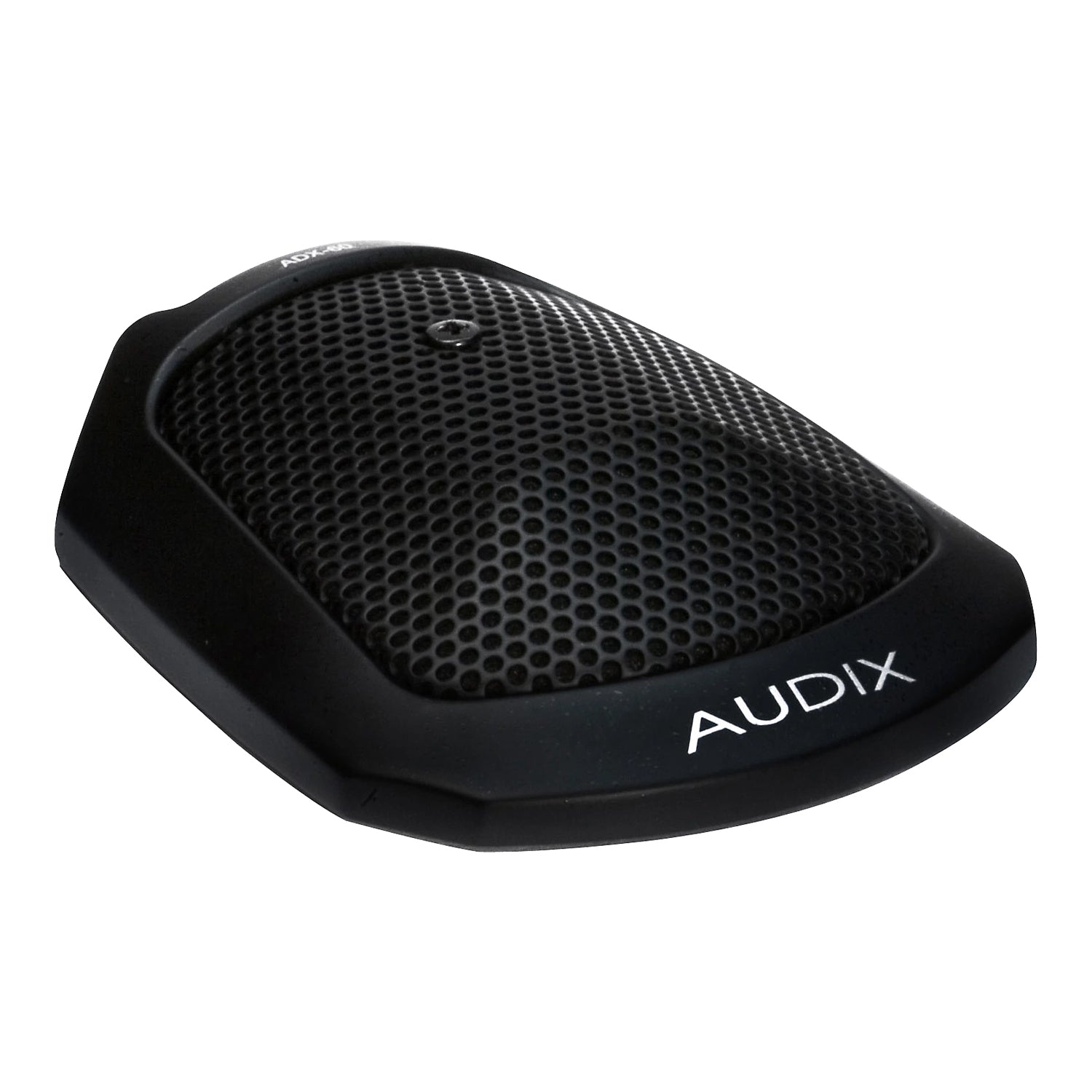

Audix ADX60 Cardioid Boundary Microphone

A professional pre-polarized condenser microphone, the ADX60 is designed for stage, studio, and broadcast applications. The ADX60 is highly sensitive and able to handle distance and area miking for various applications including conferences, plays, theatre, and acoustic instruments.

The ADX60 has a uniformly controlled hemicardioid polar pattern and is designed to capture a designated area. This microphone requires a 9 – 52 V phantom power for operation and is equipped with a 25′ cable and phantom power adapter.

The ADX60 boundary condenser microphone is easy to position, durable, and is manufactured with a high-performance 12 mm capsule, steel mesh grille, and space-saving mini-XLR connector.

• Optimized for speech intelligibility and voice reproduction
• Boundary design minimizes phase interference from nearby surfaces
• Durable zinc-alloy construction
• Integrated preamp circuitry for low-noise operation

Transducer Type

• Pre-polarized condenser

Frequency Response

• 50 Hz – 18 kHz

Polar Pattern

• Cardioid

Output Impedance

• 250 Ω balanced

Sensitivity

• 9 mV/Pa @ 1 kHz

Equivalent Noise Level

• <29 dB (A-weighted)

Signal-to-Noise Ratio

• 65 dB

Maximum SPL

• ≥130 dB

Power Requirements

• None

Connectivity

• Miniature female XLR connector

Polarity

• Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3

Construction

• Die-cast zinc housing
• Black finish

Physical Specifications

• Length: 80 mm (3.1 in)
• Weight: 143 g (5 oz)
