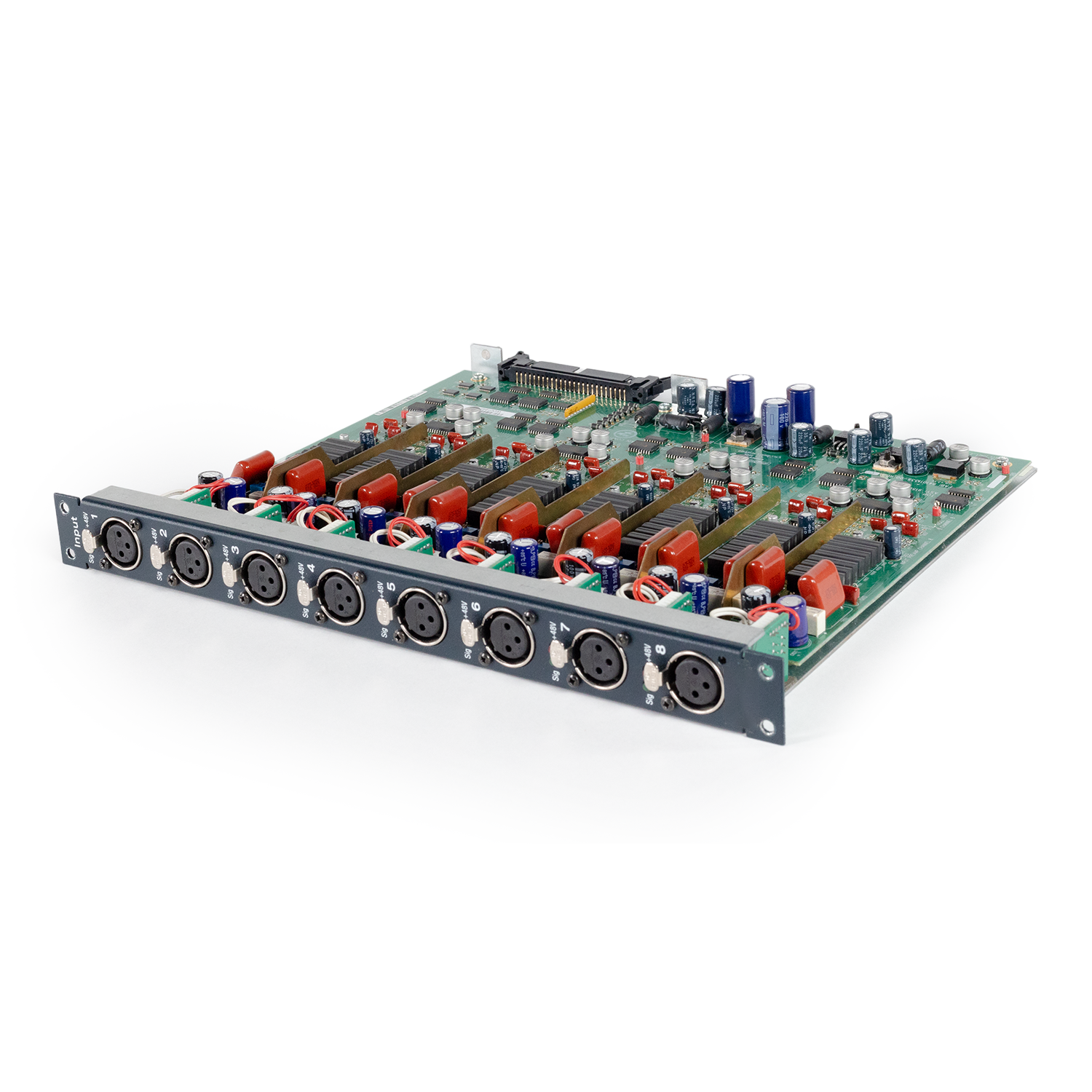

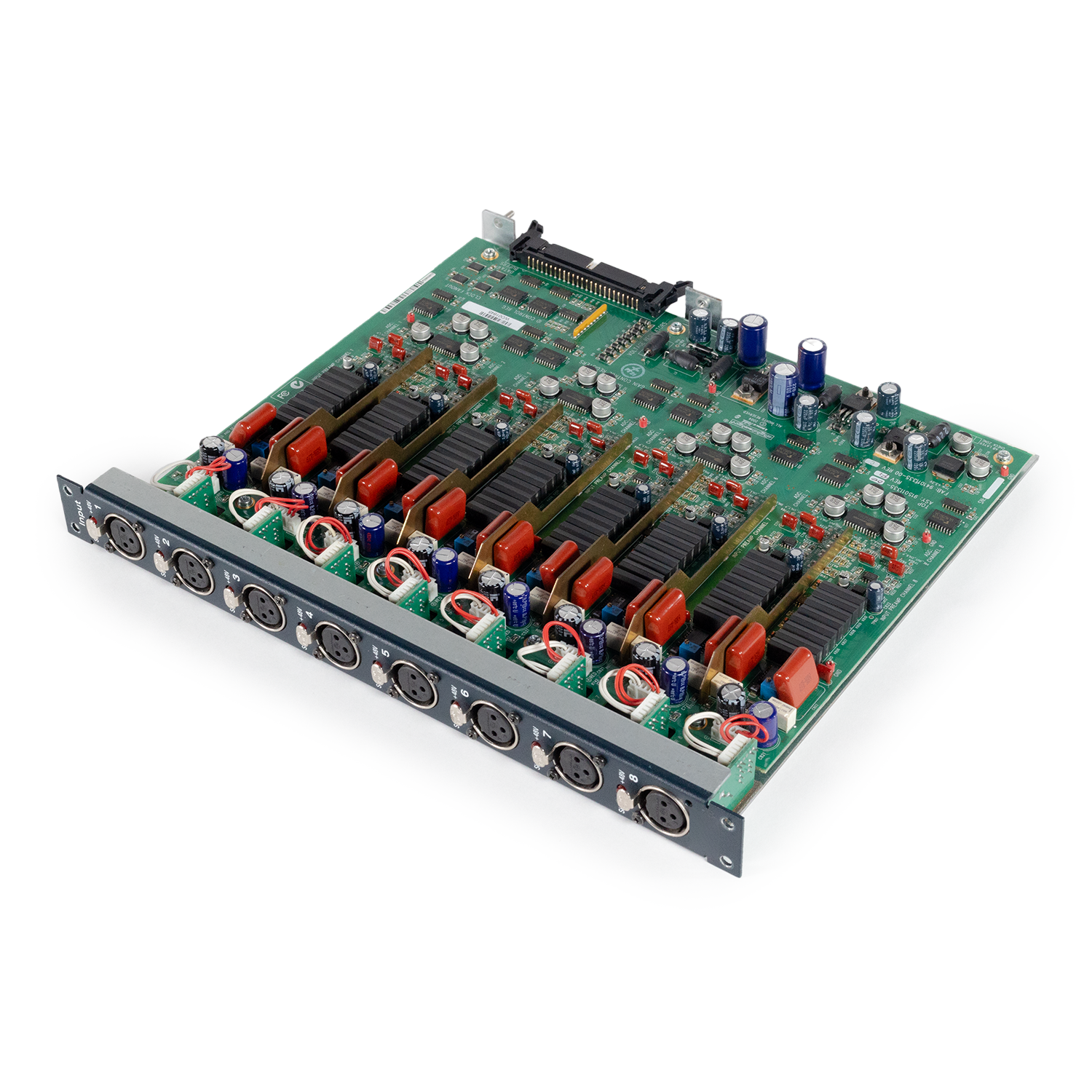

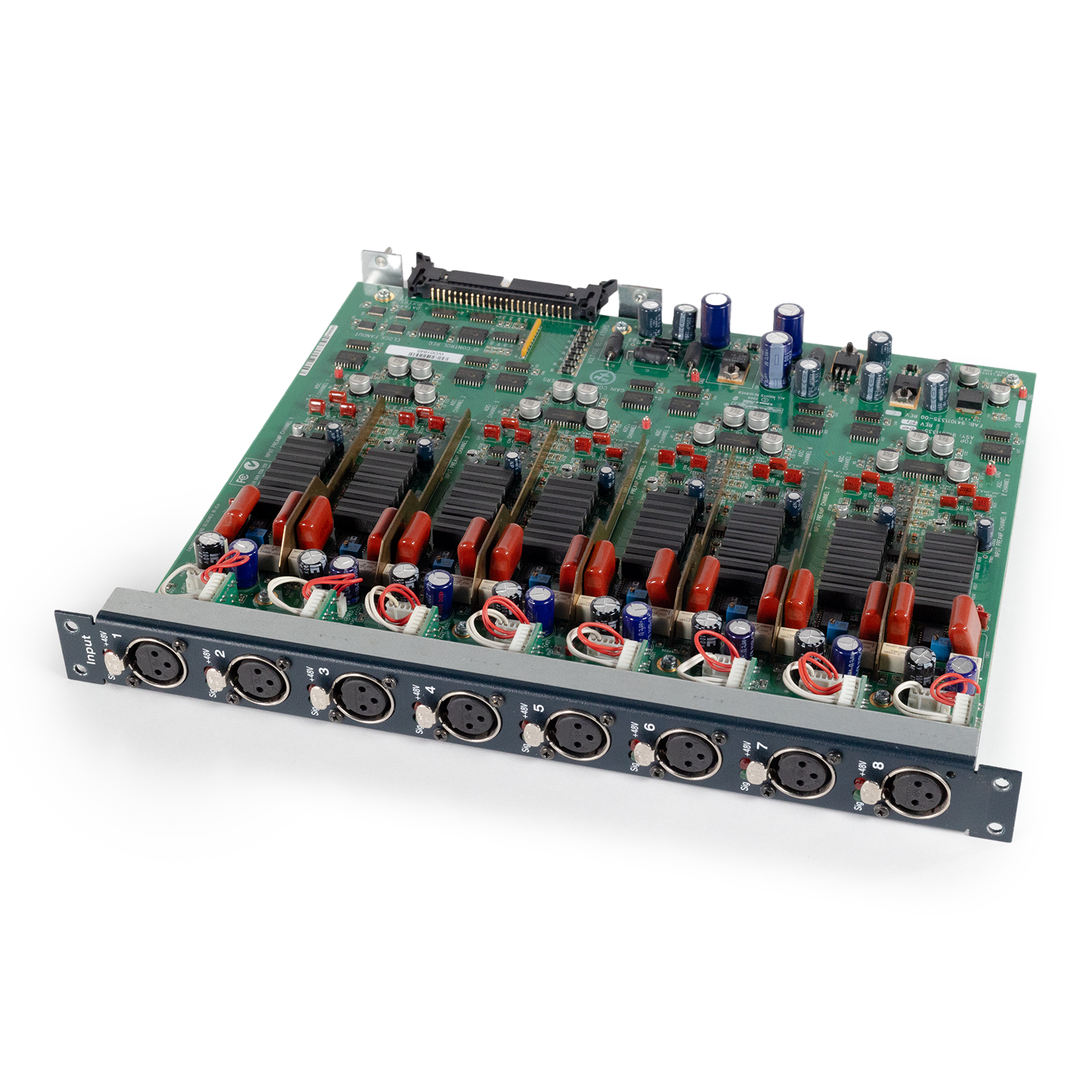

Avid VENUE SRI Analog Input Card

Eight channels of fully recallable analog mic/line-level inputs with 48V of phantom power, a phantom power LED indicator, and an LED signal presence indicator per input. Stage Rack comes standard with the full complement of six SRI Cards, but you can
opt to customize a rack with any combination of up to six input cards for a total of 48 input channels per Stage Rack.

• Eight channels of analog mic/line level inputs via
  XLR3-male connectors
• 24-bit sigma-delta analog-to-digital converters
• 20 dB pad (selectable per channel via D-Show software)
• +48V phantom power (selectable per channel via D-Show software)
• Signal presence and phantom power LEDs
• Polarity invert (selectable per channel via D-Show
  software)

Connector (x8)

• XLR3-F

Phantom Power

• +48V (individually switchable per channel via software)

Maximum Input Level

• +34 dBu with pad (0 dBu = 0.775V rms)

Pad

• 20 dB

Gain

• +10 dB to +60 dB

Input Impedance

• pad off: 40K Ohm, balanced
• pad on: 1.33K Ohm, balanced

EIN

• -126 dBu (maximum gain, 150 Ohm source, 22 Hz—20 kHz BW)

LEDs

• Signal presence (indicates -37 dBu or greater), +48V

A/D

• 24-bit, delta sigma
