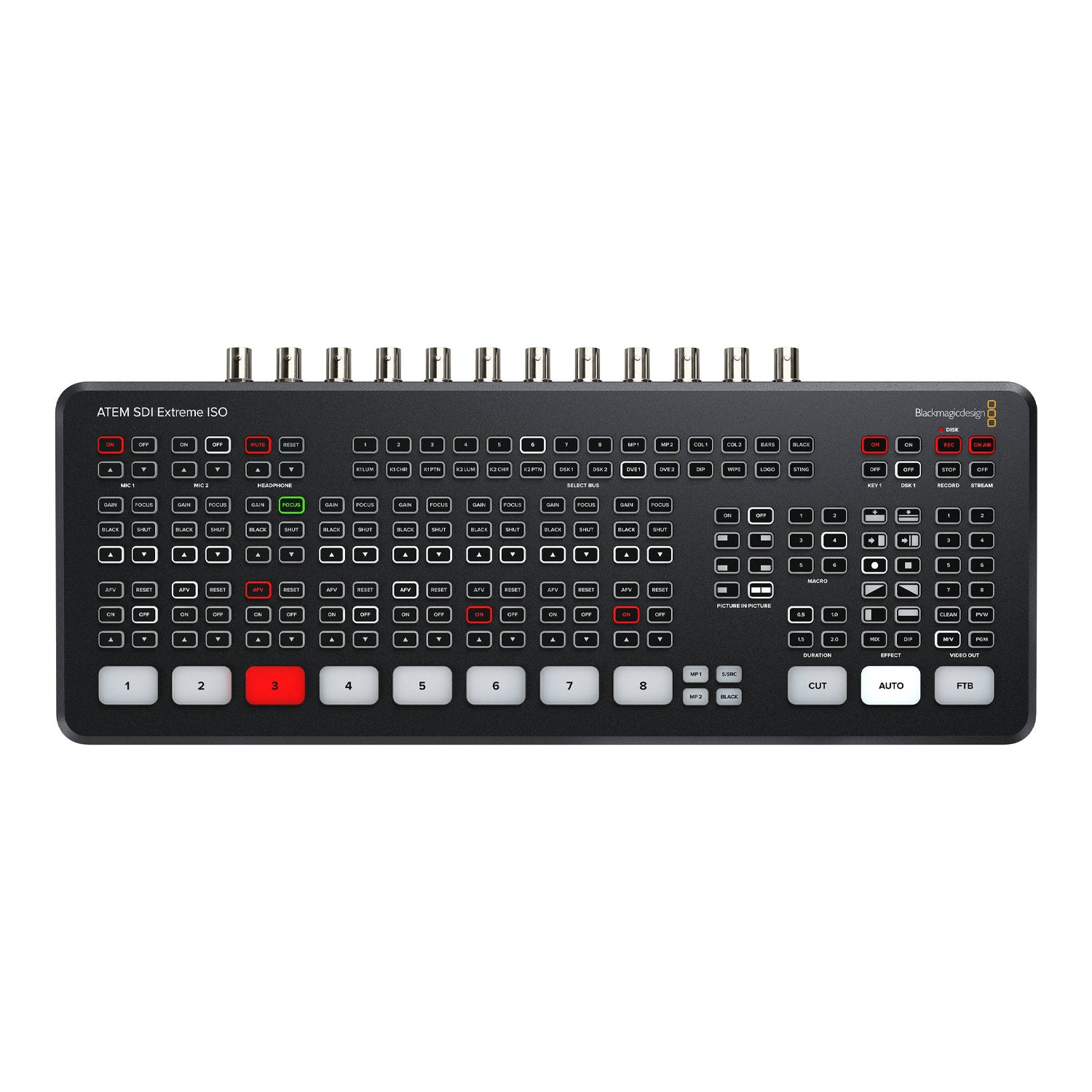

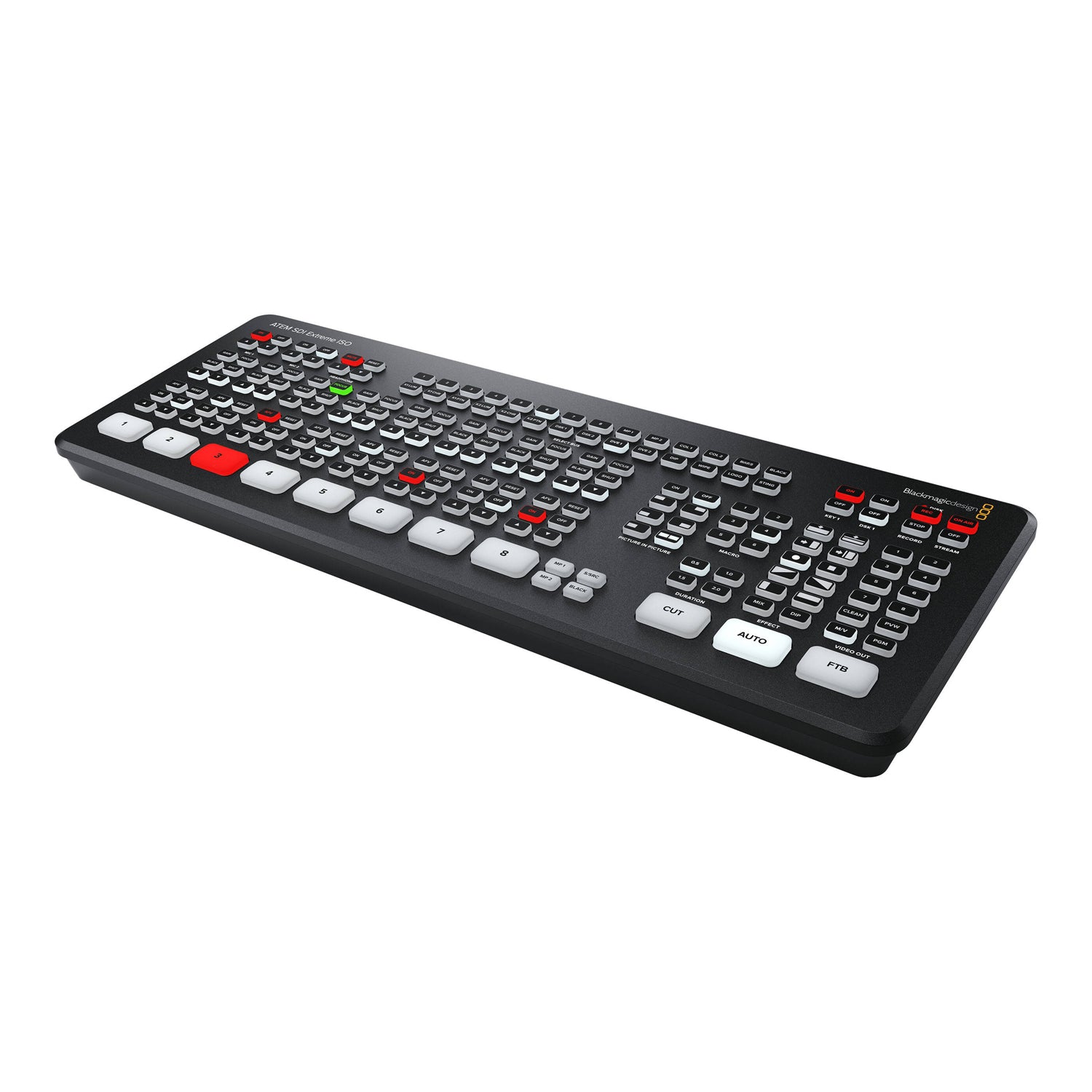

Blackmagic Design ATEM SDI Extreme ISO Switcher

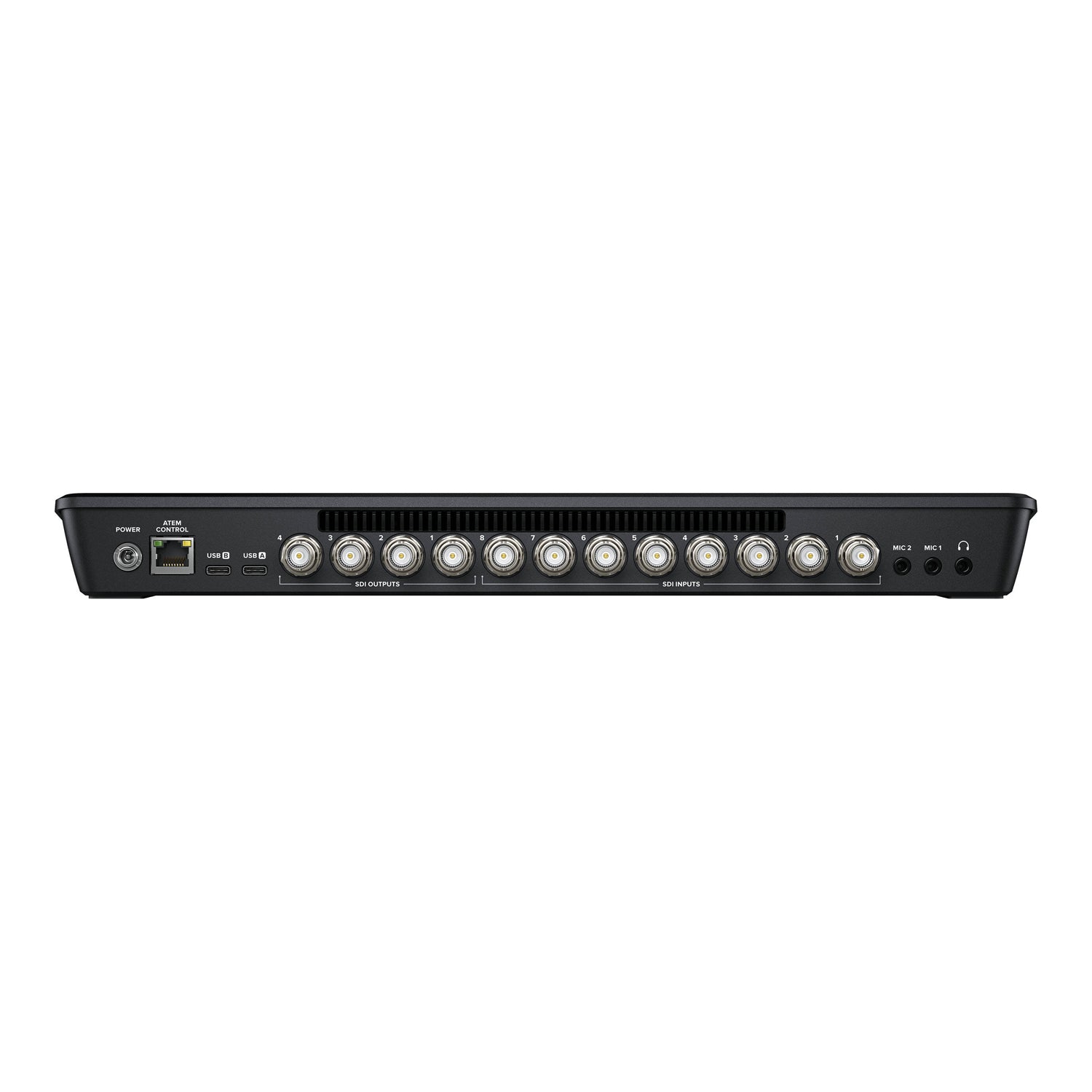

Connections

Total Video Inputs

• 8

Total Outputs

• 6

Total Aux Outputs

• 4

Total Audio Inputs

• 2 x 3.5mm stereo mini jack.

Total Audio Outputs

• 1 x 3.5mm stereo mini jack.

Timecode Connection

• None

SDI Video Inputs

• 8 x 3G-SDI, 10-bit HD switchable.
• 2 channel embedded audio.

Video Input Re-Sync

• On all 8 SDI inputs.

Frame Rate and Format Converters

• On all 8 SDI inputs.

SDI Program Outputs

• 4

Ethernet

• Ethernet supports 10/100/1000 BaseT for live streaming, software control, software updates and direct or network panel connection.

Computer Interface

• 2 x USB Type-C 3.1 Gen 1 for external drive recording, webcam out, software control, software updates and panel connection.

Standards

HD Video Input Standards

• 720p50, 720p59.94, 720p60
• 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
• 1080i50, 1080i59.94, 1080i60

HD Video Output Standards

• 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60

Video Streaming Standards

• 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60

Ultra HD Video Standards

• None

Video Sampling

• 4:2:2 YUV

Color Precision

• 10-bit

Color Space

• Rec 709

Colorspace Conversion

• Hardware based real time.

Product Specifics

Upstream Keyers

• 4

Downstream Keyers

• 2

Advanced Chroma Keyers

• Up to 4

Linear/Luma Keyers

• Up to 4

Transition Keyer

• DVE only.

Total Number of Layers

• 9

Pattern Generators

• 5

Color Generators

• 2

DVE With Borders and Drop Shadow

• 2

Interface

• Minimum monitor resolution of 1366 x 768.

Audio

Audio Mixer

• 11 input x 2 channel mixer.
• Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channel.
• Level and Peak metering. Plus new Fairlight audio enhancements: Compressor, Gate, Limiter, 6 bands of parametric EQ. Master gain control.

Analog Input

• Unbalanced stereo

Analog Input Delay

• Up to 8 frames

Input Impedance

• 1.8k

Max Input Level

• +6dBV

Mic Plug In Power

• Available on both 3.5mm mini jack connections.

Streaming

Direct Streaming

• ATEM SDI Extreme ISO supports direct live streaming using Real Time Messaging Protocol (RTMP) over ethernet or a shared mobile internet connection over USB‑C.

Recording

Direct Recording Video and Audio

• USB-C 3.1 Gen 1 expansion port can record directly to external media.

Video Recording

• 8 x SDI ISO inputs as H.264 .mp4 files at up to 70Mb/s quality at the ATEM video standard with AAC audio.
• 1 x Program out as H.264 .mp4 file at the Streaming quality setting and at the ATEM video standard with AAC audio.

Audio Recording

• 10 x 2 channel audio inputs recorded as separate 24‑bit 48KHz .wav files. Including 2 x analog 2 channel audio inputs and 8 x SDI 2 channel embedded audio inputs.

Switching

• Program switching recorded as a DaVinci Resolve project .drp file.

Media Format

• Supports media formatted ExFAT (Windows/Mac) or HFS+ (Mac) file system.

Multi View Monitoring

Multi View Monitoring

• Configurable to 16, 13, 10, 7 or 4 up views including Program, Preview, 8 SDI inputs, SuperSource, Clean Feed, Media Player, Streaming Status, Recording Status and Audio Meters.

Multi View Video Standard

• HD

Media Player

Media Players

• 2

Channels

• Fill and key for each Media Player.

Media Pool Still Image Capacity

• 20 with fill and key.

Media Pool Still Image Format

• PNG, TGA, BMP, GIF, JPEG and TIFF.

Control

Control Panel

• Built in control panel.
• Supports optional hardware panel.
• ATEM Software Control Panel for Mac and Windows included for free.

Control Panel Compatibility

• Compatible with ATEM Micro Panel, ATEM 1 M/E Advanced Panels, ATEM 2 M/E Advanced Panels, ATEM 4 M/E Advanced Panels plus ATEM Camera Control Panel and ATEM Micro Camera Panel.
• ATEM can also be configured using Blackmagic Videohub Hardware Panel Setup utility to route sources to destinations using Videohub Smart Control Pro and Videohub Master Control Pro.

Control Panel Connection

• Ethernet supports 10/100/1000 BaseT. Ethernet used for direct connection between panel and chassis or via network. ATEM SDI Extreme ISO also supports direct USB‑C connection. Ethernet or USB‑C used for updating the software.

Power Requirements

Power Supply

• 1 x External 12V power supply.

Power Usage

• 36W

Environmental Specifications

Operating Temperature

• 5° C to 40° C (41° - 104° F)

Storage Temperature

• -10° to 60° C (14° to 140° F)

Relative Humidity

• 0% to 90% non-condensing

Physical Specifications

Dimensions (W x H x D)

• 14.56” x 1.56” x 5.94”

Weight

• 3.13 lbs
