Blackmagic Design Heavy Duty SDI to HDMI Micro Converter

The Mini Converter Heavy Duty - SDI to HDMI from Blackmagic Design is an extremely rugged device that accepts a 3G/HD/SD-SDI signal via two redundant inputs and converts it to an HDMI output. From the SDI input signal you can choose to de-embed the audio to the balanced AES/EBU or L/R analog audio inputs. There's also an SDI loop output. Use this device to convert video from sources such as professional camcorders or I/O devices and output to affordable, high-quality HDMI displays for monitoring.

• Rugged Machined Aluminum
• SDI to HDMI Conversion
• 2x 3G/HD/SD-SDI In (Redundant Input)
• 1x HDMI Out
• 1x SDI Loop Out
• AES/EBU & Balanced Analog Audio Outputs
• Audio De-Embedding from the SDI Signal
• USB Input & Mini Switches for Settings
• Dust & Dirt Resistant

Input

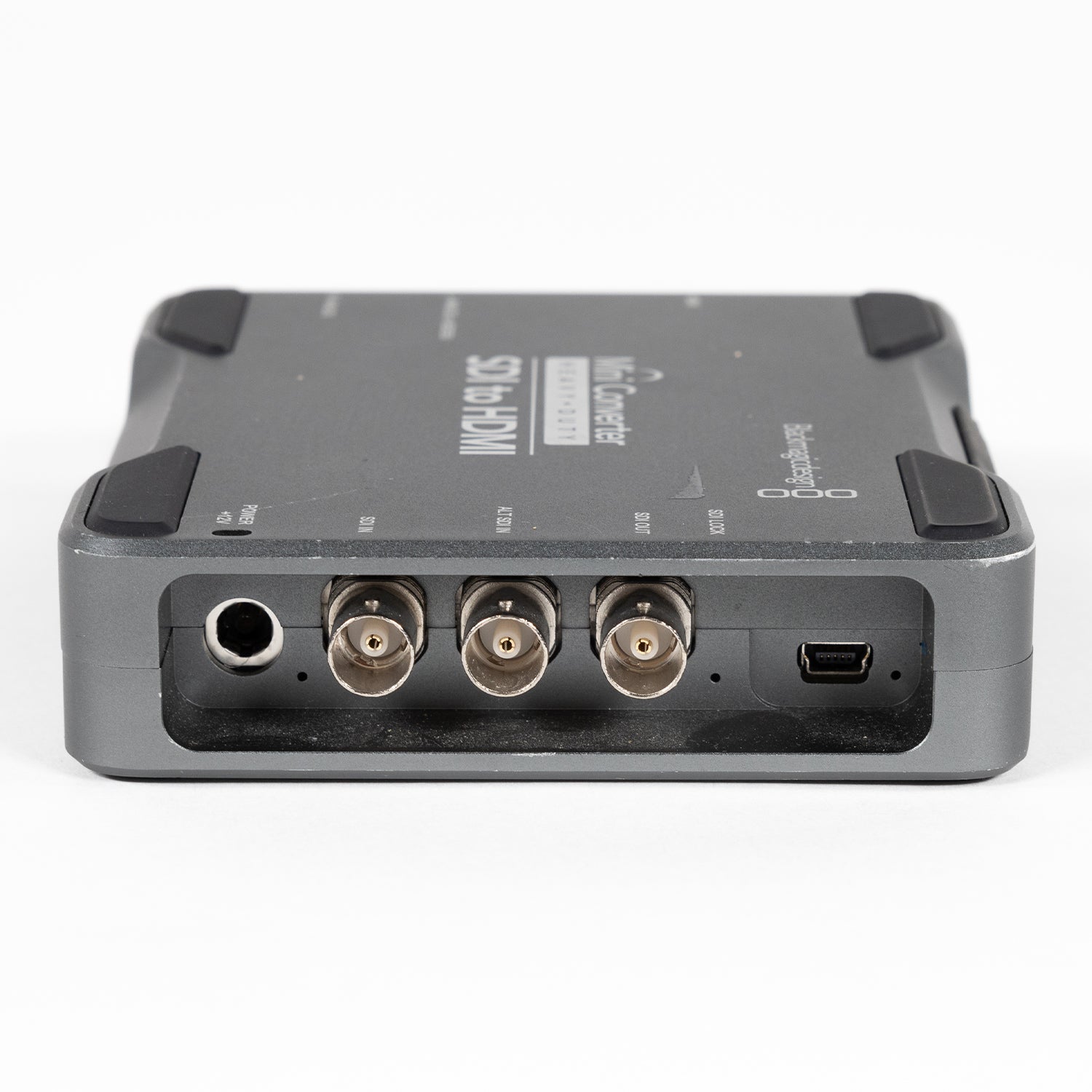

• 1x SDI (switchable between SD, HD & 3 Gb/s SDI; auto-detects SD or HD)
• 1x SDI redundant input (automatically switches over if main SDI input is lost)

Output

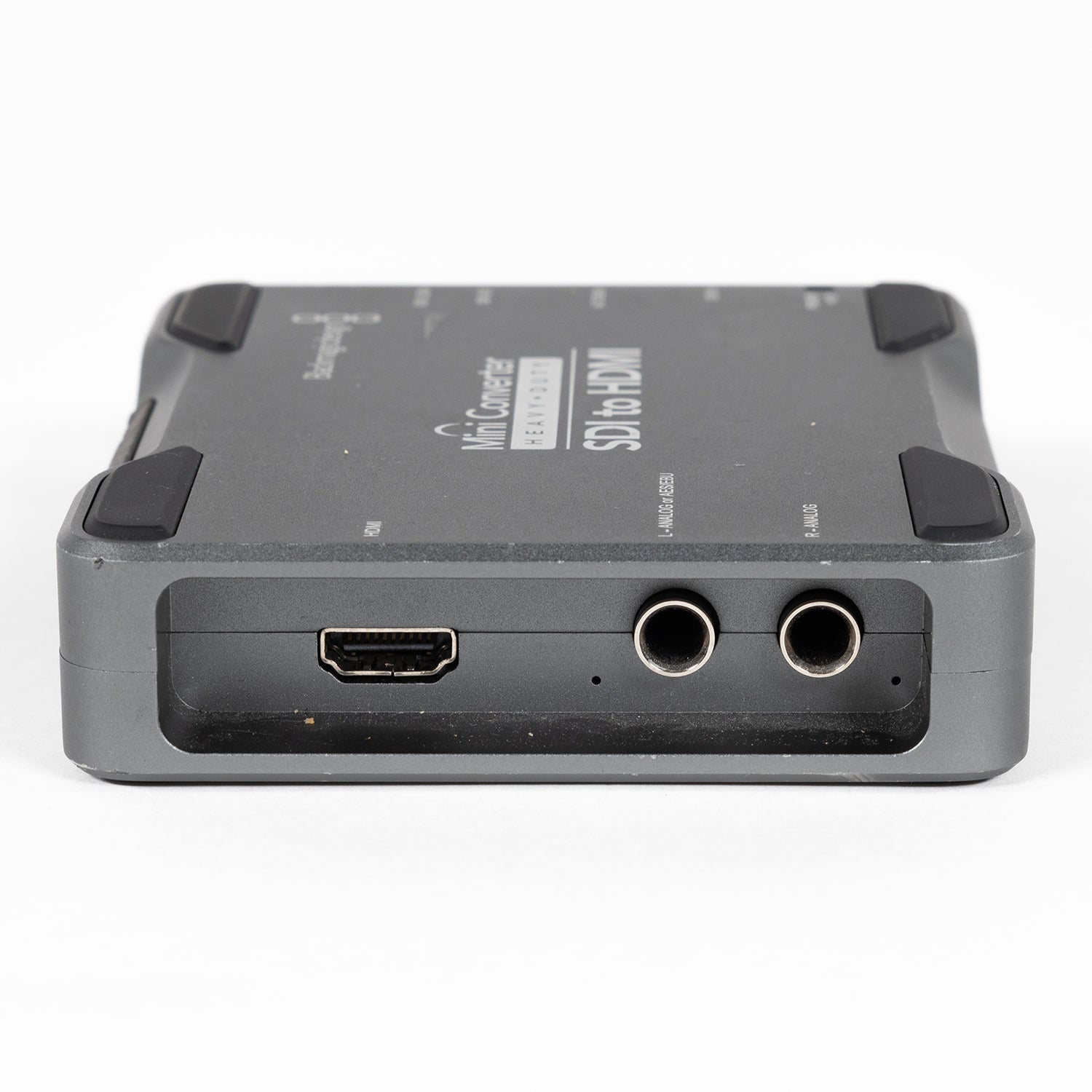

• 1x HDMI
• 1x SDI (automatically matches the SD, HD, or 3 Gb/s input)
• 2x Channels of balanced analog audio (via standard 1/4" jacks)
• 2x Channels of balanced AES/EBU digital audio (output shared with analog audio via one of the 1/4" jacks)

Updates and Configuration

• Via USB 2.0 high speed (480 Mb/s)

Standards

SDI Format Support

• 625p25 PAL, 525p29.97 NTSC, 1080PsF/23.98, 1080PsF/24, 1080PsF/25, 1080i50, 1080i59.94, 1080i60, 720p50, 720p59.94, and 720p60

HDMI Format Support

• 625p25 PAL, 525p29.97 NTSC, 625p50 PAL, 525p59.94 NTSC, 1080p23.98, 1080p24, 1080i50, 1080i59.94, 1080i60, 720p50, 720p59.94, and 720p60

Compliance

• SDI: SMPTE 292M, SMPTE 259M, SMPTE 296M, ITU-R BT.656, and ITU-R BT.601

Video Sampling

• SDI: 4:2:2

Audio Sampling

• SDI: 48 kHz and 24-bit

Color Precision

• SDI: 4:2:2
• HDMI: 4:2:2 and 4:4:4

Color Space

• SDI: YUV
• HDMI: YUV and RGB

Re-clocking

• Yes

Settings Control

• Mini switches or USB software

Power

• 12V DC (universal power supply included, with international socket adapters)

Power Consumption

• 110V: 82mA
• 220V: 41mA
