The Blackmagic Design Videohub 40x40 12G is a zero-latency SDI video routing switcher designed for professional broadcast, live production, and post-production signal distribution. It features 40 inputs and 40 outputs over 12G-SDI, allowing simultaneous routing of SD, HD, UHD, and DCI 4K signals across a single compact 2RU chassis. The router supports multi-rate SDI up to 12G, internal re-clocking on outputs, and reference sync input for integration into genlocked facilities. It is commonly used in broadcast trucks, live event infrastructures, studios, and production facilities requiring high-density signal routing and flexible source-to-destination mapping.

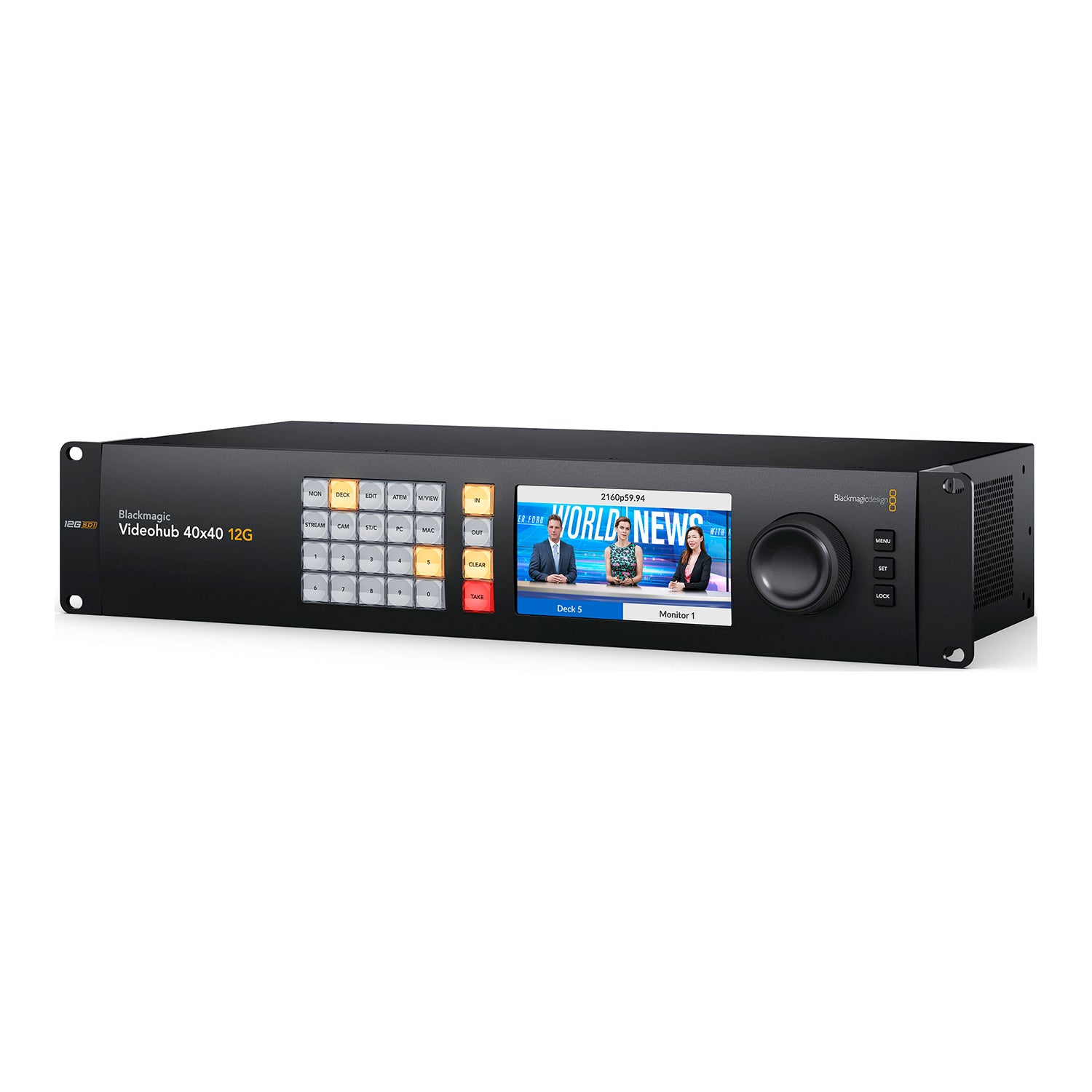

Blackmagic Videohub 40x40 12G is an advanced zero latency video router that supports any combination of SD, HD and Ultra HD on the router at the same time. It has 40 12G-SDI inputs and 40 12G-SDI outputs, redundant power and reference connections in two rack units size. The large full HD LCD lets you see video before routing and clearly displays routing labels and video standards. Routing can be performed by direct button selection and using the large spin knob control that has an electronic clutch. It also features SDI re-clocking, external Ethernet control and supports all SDI video standards up to 2160p60.
2RU rackmount chassis designed for high-density routing environments
- Simultaneous support for mixed formats (SD, HD, UHD, 4K) on all I/O
- Reference input support (tri-sync / black burst) for facility synchronization
- External control via Ethernet, software control panels, and optional hardware panels
- Redundant power supply design for broadcast-critical uptime
- Internal routing memory allows instant recovery after power loss
- SDI auto-detection and multi-rate compatibility across all inputs
- Embedded audio routing with SDI signal pass-through
- Front panel source monitoring via integrated LCD display
- Designed for integration with Blackmagic ATEM, HyperDeck, and broadcast automation systems

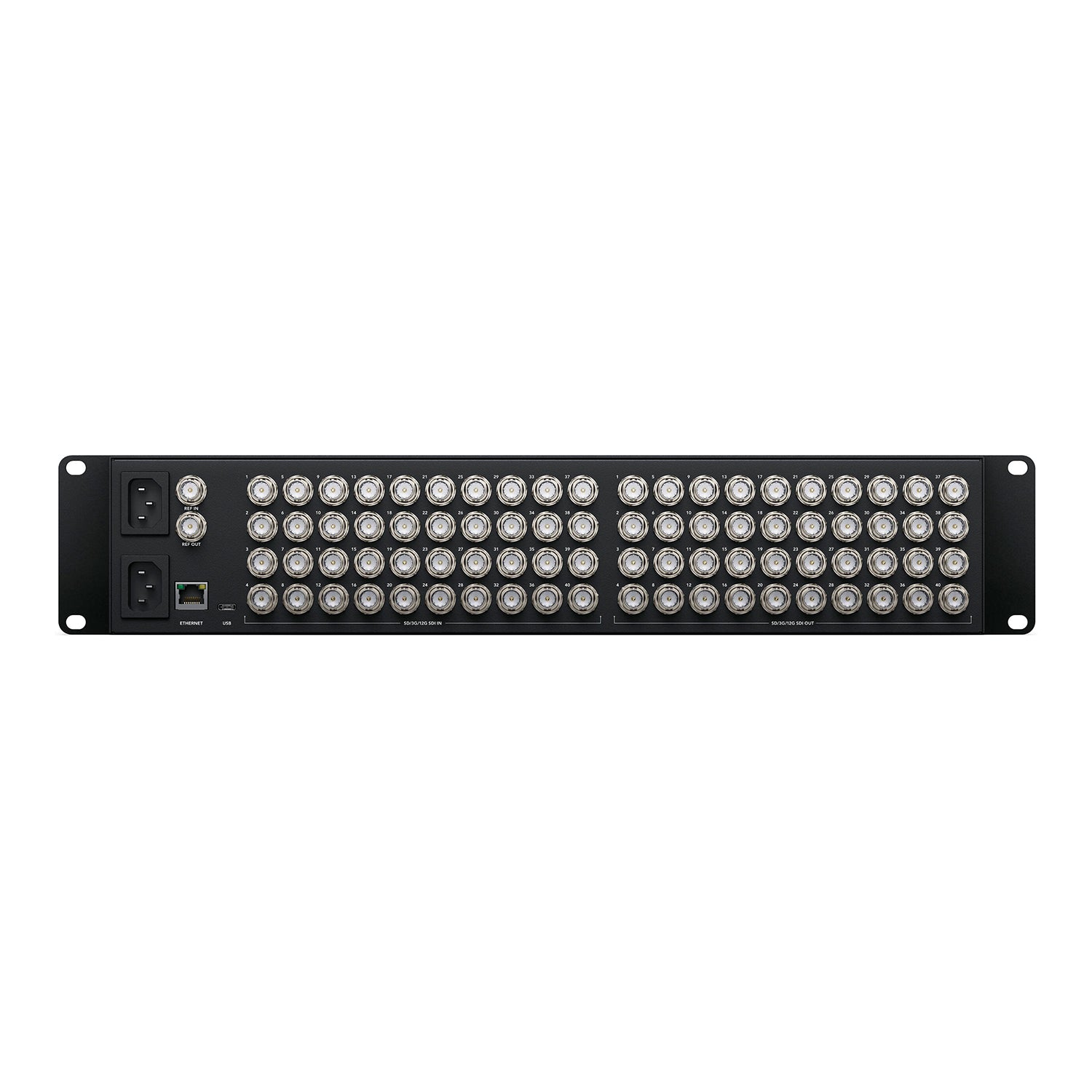

Connections
SDI Video Inputs
SDI Video Outputs
SDI Rates
- DVB-ASI, 270Mb, 1.5G, 3G, 6G, 12G
Video Input Re-Sync
SDI Reclocking
Reference Inputs
Reference Outputs
- Reference terminating loop output
Ethernet
Computer Interface
Standards
SD Video Standards
- 525i59.94 NTSC, 625i50 PAL
HD Video Standards
- 720p50, 720p59.94, 720p60
- 1080i50, 1080i59.94, 1080i60
- 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30,
- 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
- 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
2K Video Standards
- 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI
- 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI
Ultra HD Video Standards
- 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
4K Video Standards
- 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI
SDI Compliance
- SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M Level A & B
- SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-10
- ITU-R BT.656, ITU-R BT.601
SDI Audio Sampling
- 48 kHz / 24-bit (television standard)
SDI Video Sampling
SDI Color Precision
- 10-bit, 12-bit RGB 4:4:4 (HD & 2K modes)
- 10-bit YUV 4:2:2 (all modes)
SDI Color Space
- REC 601, REC 709, REC 2020
SDI Auto Switching
- Automatic detection of 270Mb SD-SDI, 1.5G HD-SDI, 3G Level A/B, 6G-SDI, 12G-SDI per input
SDI Metadata Support
- SMPTE 352M video payload identification
Control
Built-in Control Panel
- 24 buttons, search dial, 3 menu buttons, 5" color display
External Control Panel
- Blackmagic Videohub software (Mac/Windows)
- Supports Smart Control Pro and Master Control Pro panels
- Includes SDK and Ethernet control protocol
Control Panel Connection
Software
Software Control
- Router control software included for Mac and Windows
Internal Software Upgrade
Operating Systems
- macOS 13.0 Ventura or later
- macOS 14.0 Sonoma or later
- Windows 10 (64-bit)
- Windows 11
Display
Built-in Display
- 5-inch LCD for routing and system control
Power
Power Supply
- 2x Internal 100–240V AC 50/60Hz
Power Usage
Power Fail Protection
- Crosspoint state preserved and restored on reboot
Physical
Rack Size
Environmental
Operating Temperature
- 0° to 40°C (32° to 104°F)
Storage Temperature
- -20° to 60°C (-4° to 140°F)
Relative Humidity
