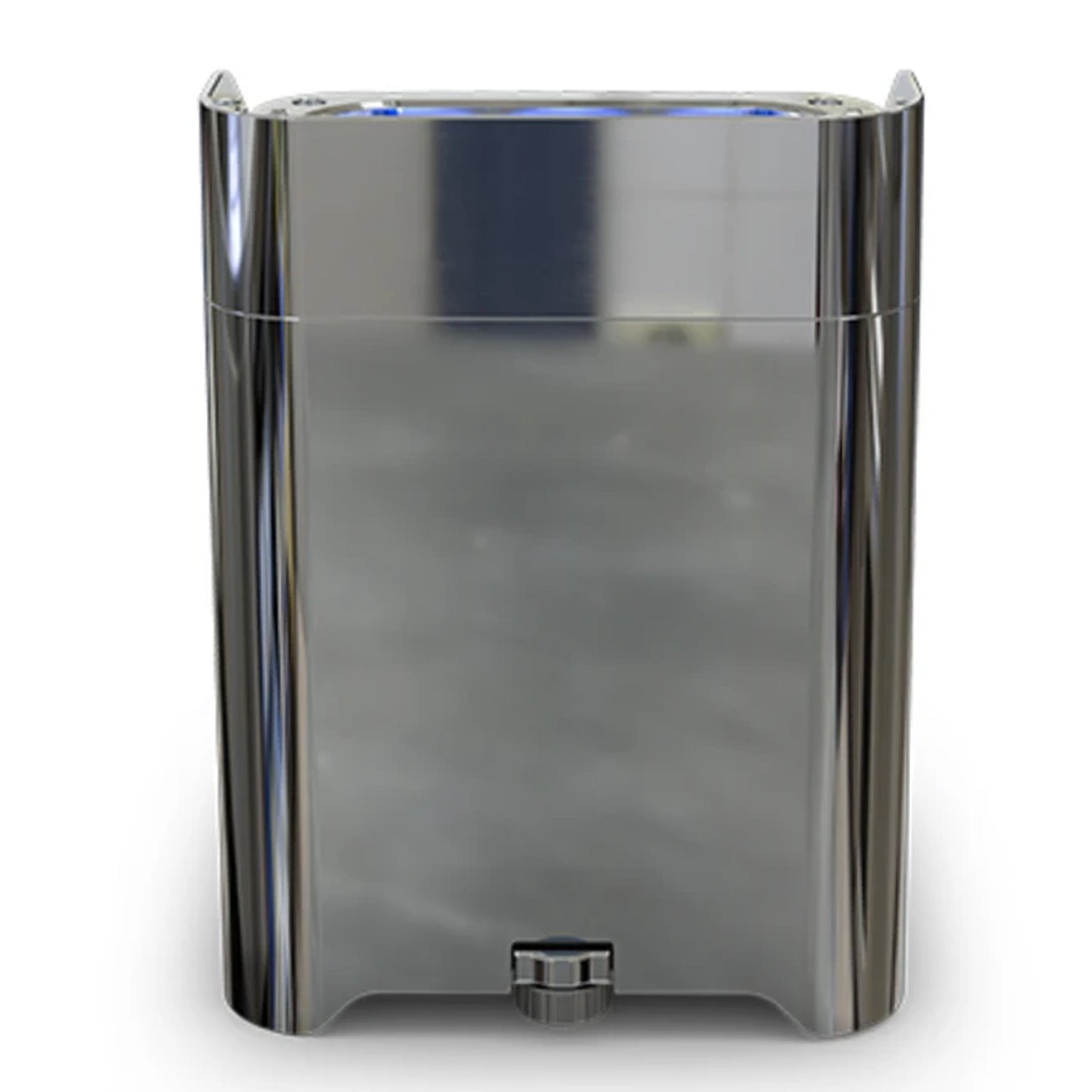

CHAUVET Professional Well Fit X Wireless Uplight

The WELL FIT X is an upgraded workhorse uplight featuring increased lumen output, improved color mixing, and enhanced functionality like beam shaping and a décor-matching cover in a more compact and lightweight design.

Ideal for any indoor or outdoor production, its road-worthy six-unit kit with integrated charging allows for rapid deployment and easy management in any event environment.

• Delivers vibrant color mixing with nine RGBWW LEDs and a 2600K to 10,000K CCT range.
• Built with an IP65-rated housing and Gore valve for reliable all-weather operation.
• Offers versatile wireless control options including CRMX, RDM, NFC, and an included RF remote.
• Provides selectable battery runtimes of 5, 8, 12, or 18 hours at full output.
• Allows software updates via USB-C while fixtures remain inside the charging case.
• Features adjustable PWM for flicker-free on-camera use and a high-contrast OLED display.

• Powerful Output: Nine high-performance RGBWW LEDs provide exceptional color mixing and a crisp 11.5° beam.
• All-Weather Ready: IP65-rated, durable chrome housing designed for both indoor and temporary outdoor events.
• Extended Battery: Selectable run times (5, 8, 12, or 18 hours) to ensure the light lasts the entire duration of your event.
• Wireless Versatility: Fully controllable via LumenRadio CRMX, RDM, NFC, and RF for a completely cable-free setup.

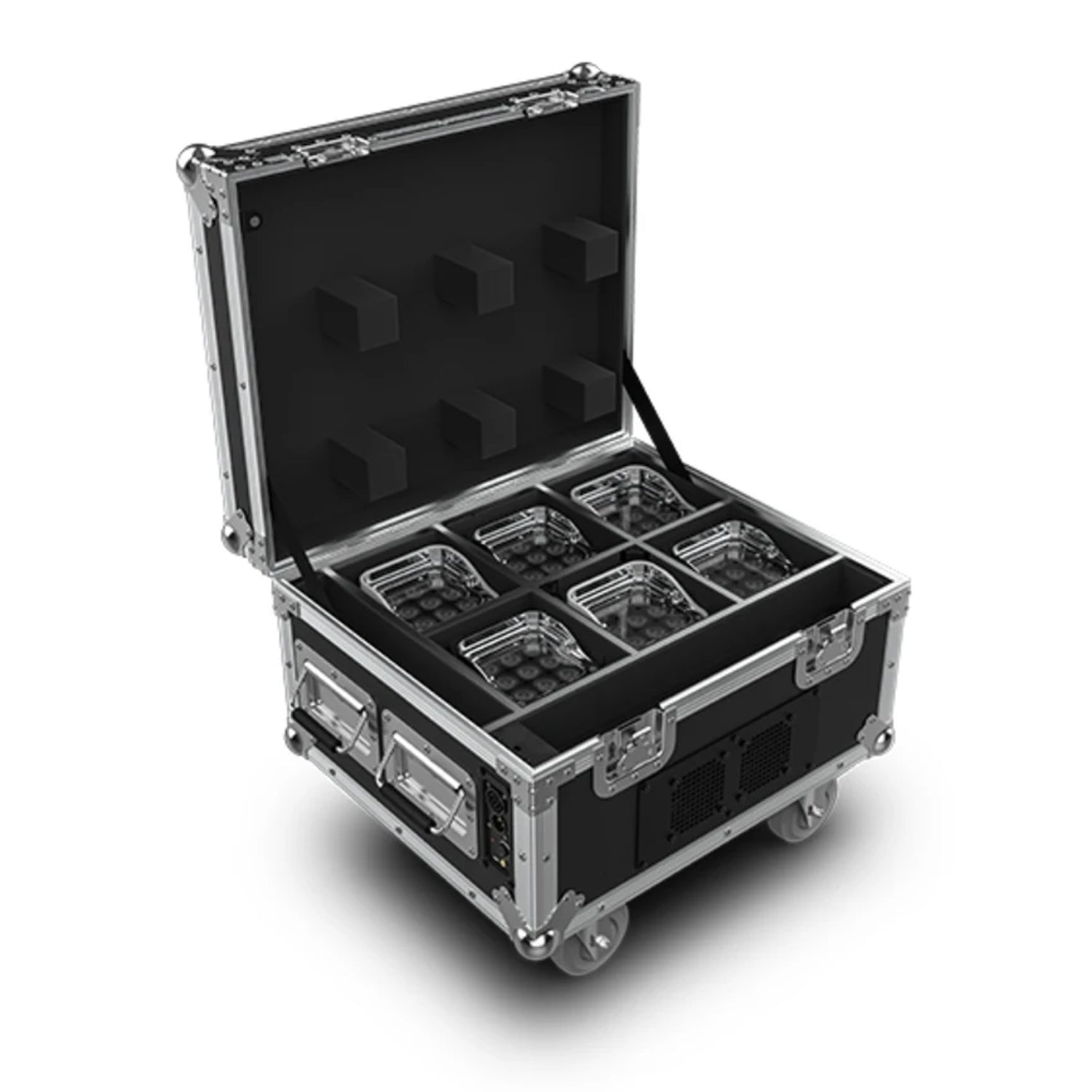

• Smart Charging: Includes a rugged flight case that charges all six units simultaneously, even with the lid closed.

Optical

• Light Source: 9x RGBWW LEDs, 13.2 W total, 50,000 hr life expectancy
• CCT Range: 2600K – 10,000K
• Beam Angle: 11.5° | Field Angle: 21.1°
• Output (OFF battery): 1762 lm | 1087 lux @ 5 m
• Output (5 hr mode): 1944 lm | 1205 lux @ 5 m
• Output (8 hr mode): 1233 lm | 764 lux @ 5 m
• Output (12 hr mode): 821 lm | 507 lux @ 5 m
• Output (18 hr mode): 550 lm | 339 lux @ 5 m
• Selectable PWM: 600 / 1200 / 2000 / 4000 / 6000 / 25,000 Hz

Construction / Physical

• Fixture Dimensions: 4.9 × 4.9 × 6.9 in (126 × 126 × 176 mm)
• 6-Pack Case Dimensions: 21.8 × 18.5 × 13.5 in (554 × 470 × 343 mm)
• Weight (Fixture): 7.0 lb (3.2 kg)
• Shipping Weight: 98.3 lb (44.6 kg)
• Housing: Aluminum die-cast
• Finish: Chrome

Connections

• Power Input (Fixture): 5.5 mm right-angle barrel jack
• Charger Cable Length: 8.5 ft (2.6 m) (sold separately)
• Charging Case I/O: Seetronic TRUE1 IP65 (power in/out)
• Data / Service: USB-C

Control

• Protocols: DMX, RDM, CRMX, NFC, RF
• DMX Channel Modes: 5 / 8 / 12 channels
• Personalities: 3 (5Ch, 8Ch, 12Ch)
• Wireless DMX: W-DMX “G” (G4S), LumenRadio CRMX compatible

Dynamic Effects

• Dimming: Electronic, 4 dim modes + 4 dim curves
• Strobe: 0–30 Hz electronic shutter
• Color Mixing: Standalone RGBWW
• CCT Presets: Yes
• Built-in Programs: Yes | Custom Programs: No

Electrical

• Input Voltage: 100–240 VAC, 50/60 Hz (auto-ranging)

Single Unit Charging:

• 43 W / 0.74 A @ 100 V
• 42 W / 0.64 A @ 120 V
• 42 W / 0.52 A @ 208 V
• 42 W / 0.47 A @ 230–240 V

6-Pack Case:

• Power Linking: 3 units @120V | 4 @208V | 5 @230V
• 239 W / 3.94 A @ 100 V
• 238 W / 3.44 A @ 120 V
• 235 W / 2.48 A @ 208 V
• 235 W / 2.27–2.32 A @ 230–240 V

Battery

• Type: Lithium-ion
• Capacity: 25.9 V, 4.4 Ah
• Charge Time: 1.6 hours
• Runtime Options: 3 / 5 / 8 / 12 hours

Environmental

• Startup Temp: -4°F to 113°F (-20°C to 45°C)
• Operating Temp: -22°F to 113°F (-30°C to 45°C)

Certifications / Ratings

• Certifications: CE, FCC, UKCA
• IP Rating (Fixture): IP65 (temporary outdoor/wet use)
• IP Rating (Case): IP20

Optional Accessories

• Clamps
• 15° Filter Pack
• 60° × 10° Filter Pack
• Single Charger
• Black Fixture Cover
• W-DMX Micro T-1 TRX G6
