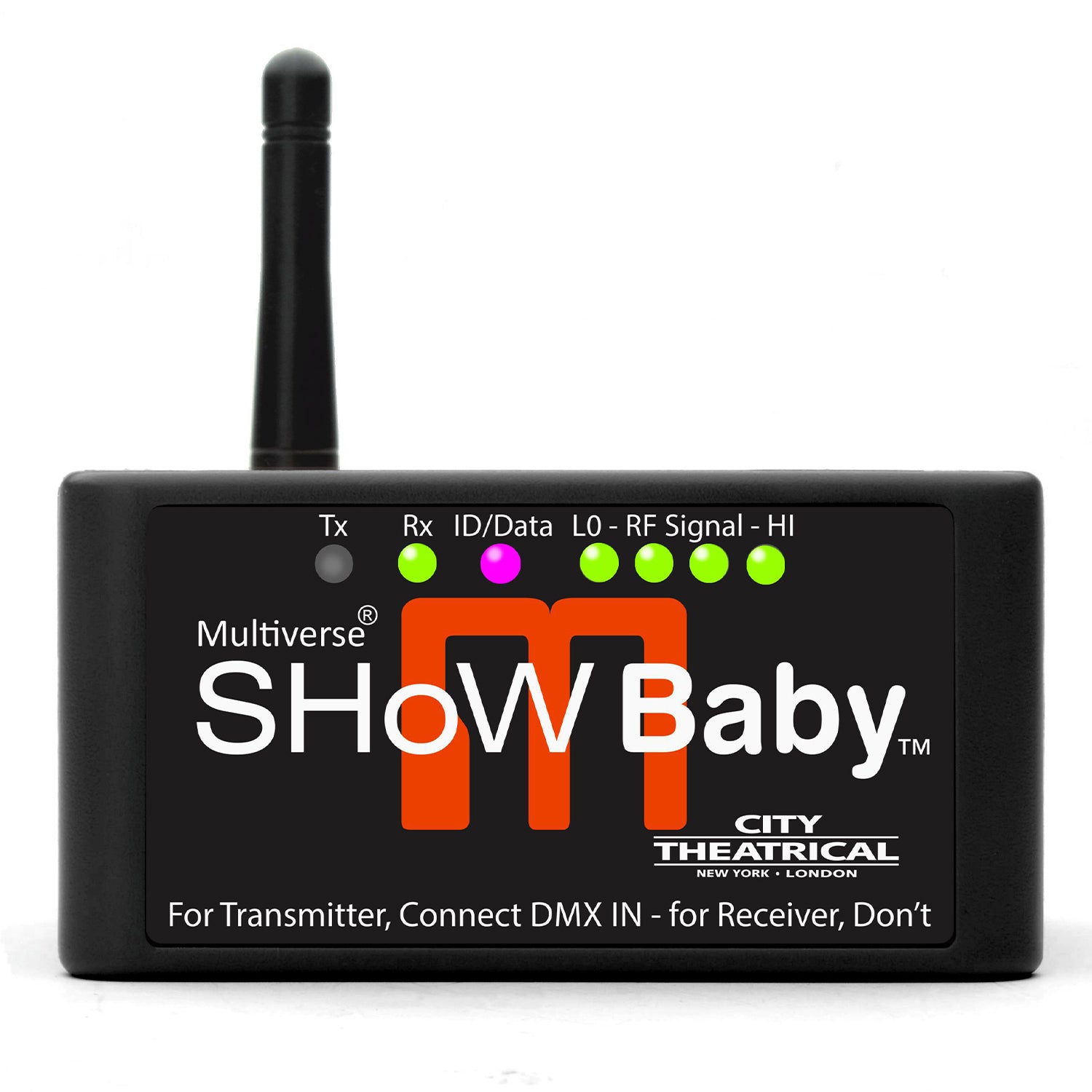

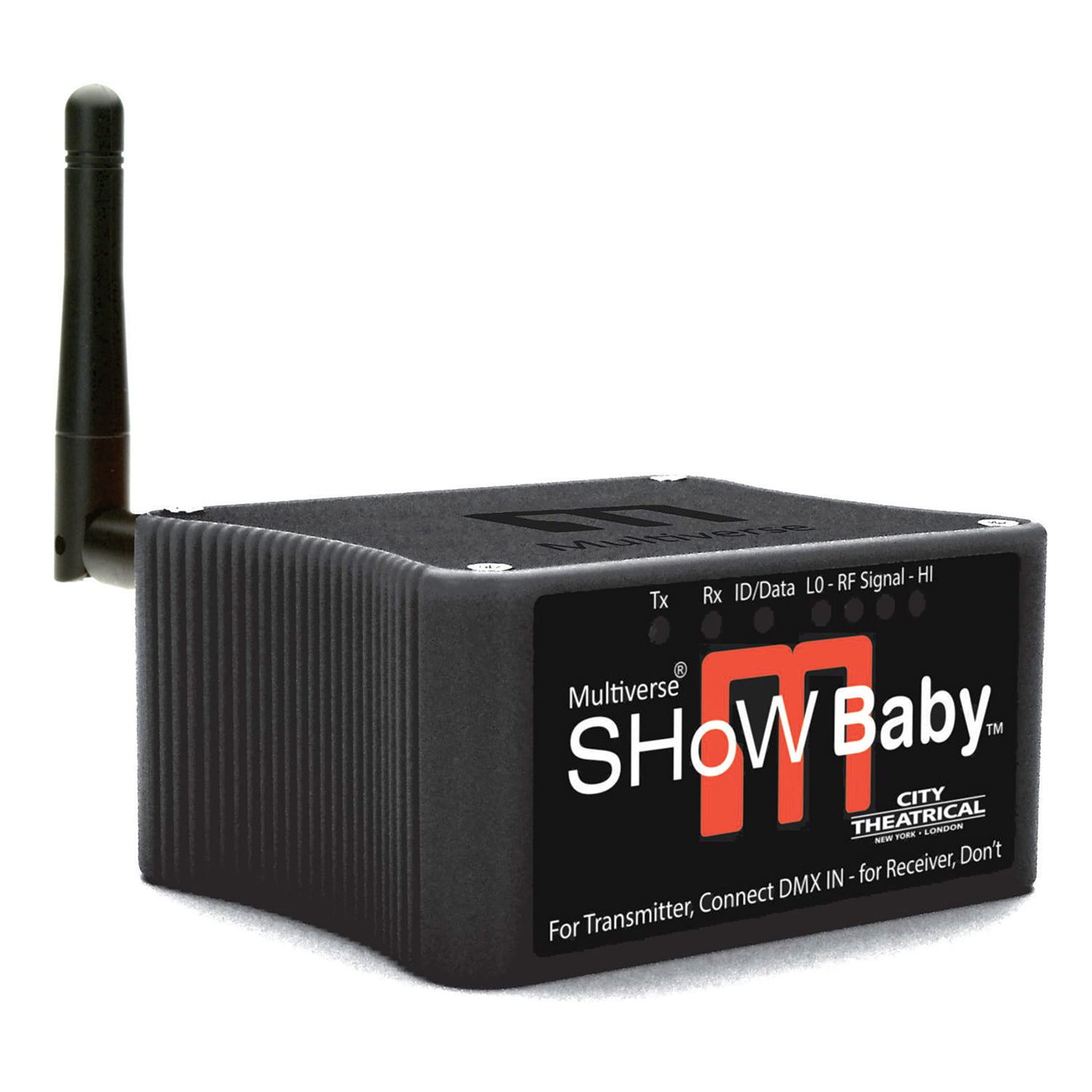

City Theatrical Multiverse SHoW Baby

City Theatrical’s Multiverse® SHoW Baby® is a wireless DMX transceiver that delivers breakthrough plug and play wireless DMX and RDM transmission. In its default mode, it works like any other SHoW Baby 6 Transceiver, with six user selectable SHoW IDs. By connecting an RDM controller, like DMXcat® Multi Function Test Tool, all of the revolutionary new 2.4GHz Multiverse SHoW IDs are accessible.

• Full compatibility with all previous SHoW Babys right out of the box
• Instant plug-and-play configuration: For a Transmitter, connect DMX IN, for a Receiver, don’t!
• Multiverse 2.4GHz Frequency Hopping Spread Spectrum (FHSS) Radio
• Wirelessly broadcast and receive a full Universe (512 slots) of DMX
• Robust wireless DMX512 and RDM data transmission
• Six user selectable SHoW IDs accessible on the “SET ID” button, plus 147 Multiverse and 70 SHoW DMX Neo SHoW IDs accessible via RDM.
• Extremely low 4mS latency
• RDM proxy and responder functions

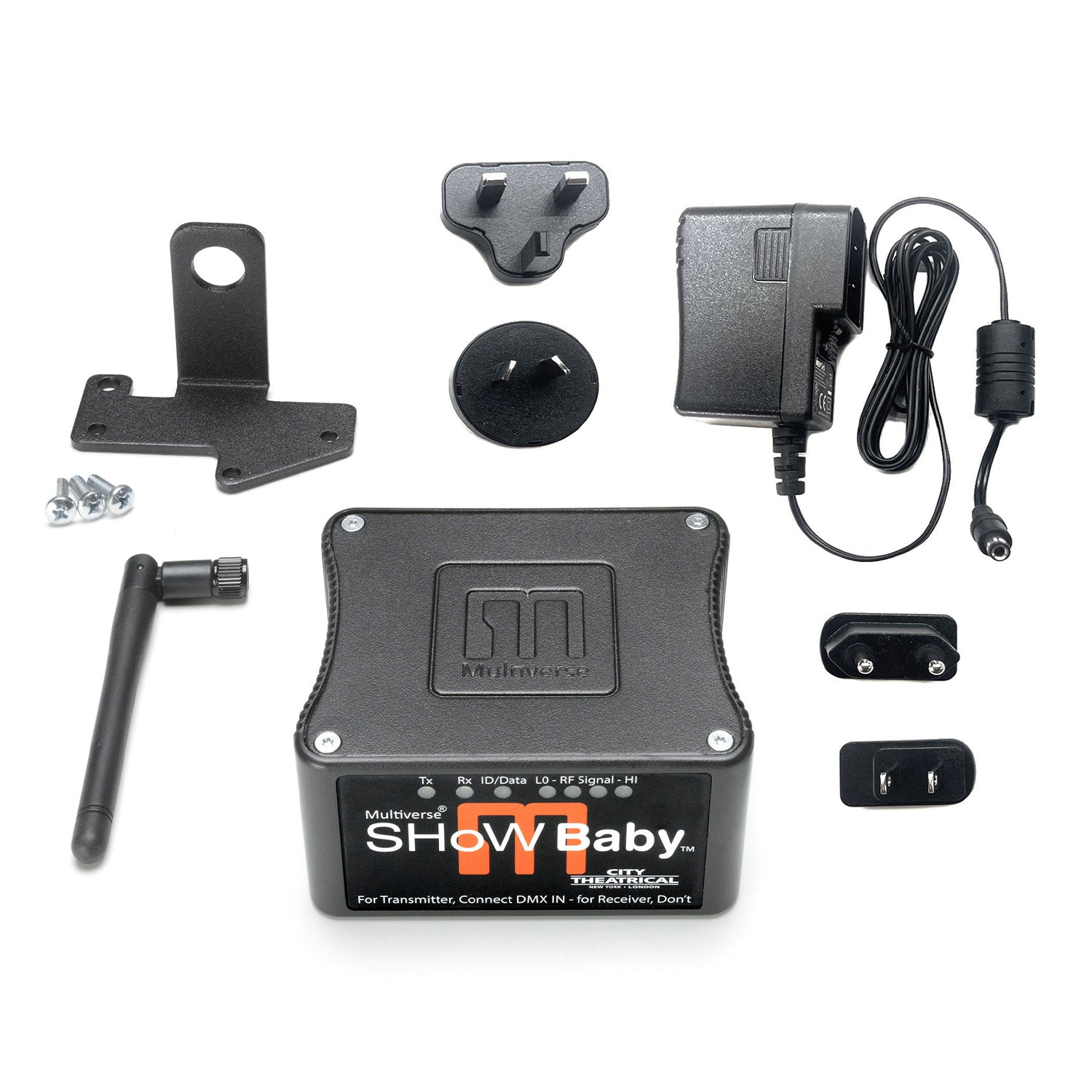

• Mounting bracket for installation with C-Clamp or similar hanging hardware
• Included CL2 Power Supply
• Included 2dBi omni-directional antenna
• Neutrik® 5P XLR Connectors for DMX IN and DMX OUT

General Specifications

Product Name

• Multiverse SHoW Baby

Part Number

• 5900

Maximum Concurrent Universes

• 1

Frequency Range

• 2400–2480 MHz

Physical Specifications

Dimensions

• Length: 92 mm (3.625 in.)
• Width: 76 mm (3.00 in.)
• Height: 46 mm (1.80 in.)

Weight

• 0.16 kg (0.35 lb)

Construction

• Steel and ABS Plastic
• Black Finish

Connection Specifications

Power Connector

• 5.5 mm x 2.1 mm DC Barrel Jack
• Center Positive
• 9 mm Mating Depth
• Not compatible with Multiverse Node power supplies

DMX Connections

• Neutrik® 5-Pin XLR DMX512 Input
• Neutrik® 5-Pin XLR DMX512 Output/Thru

Antenna Connector

• RP-SMA Female

USB Port

• Internal USB Type-A Port (requires removal of cover and circuit board for access)

Functionality

User Interface

• Single Button with LED Indicators

RDM Features

• RDM Proxy
• RDM Responder

Power Specifications

Input Power

• 7.5–30 VDC
• 0.8 W

Maximum Current Draw

• 66 mA at 12 VDC

AC Adapter Input

• 100–240 VAC
• 50/60 Hz

Radio Specifications

Latency

• 4 ms (Average)

RF Sensitivity

• -95 dBm

Loss of Data Behavior

• Output Stops

Broadcast Power

• 2.5 mW
• 8 mW
• 25 mW
• 80 mW EIRP

Broadcast Modes

• Adaptive
• Full
• Low
• Mid
• High
• Max

SHoW IDs

• 217 (Americas and Worldwide)

Environmental Specifications

Use Environment

• Indoor

Operating Temperature

• 0°C to 40°C (32°F to 104°F)

Storage Temperature

• -40°C to 85°C (-40°F to 185°F)

IP Rating

• IP50

Compliance

• FCC
• IC
• CE
• ARIB
• RoHS
