Clear-Com HelixNet HXII-BP Beltpack

HelixNet® is a networked partyline intercom with up to 24 channels and Program Audio over XLR, LAN or WAN.

The HelixNet HXII-BP beltpack is a two-channel intercom user station hosted by Arcadia® Central Station or HelixNet HMS-4X*** main station.

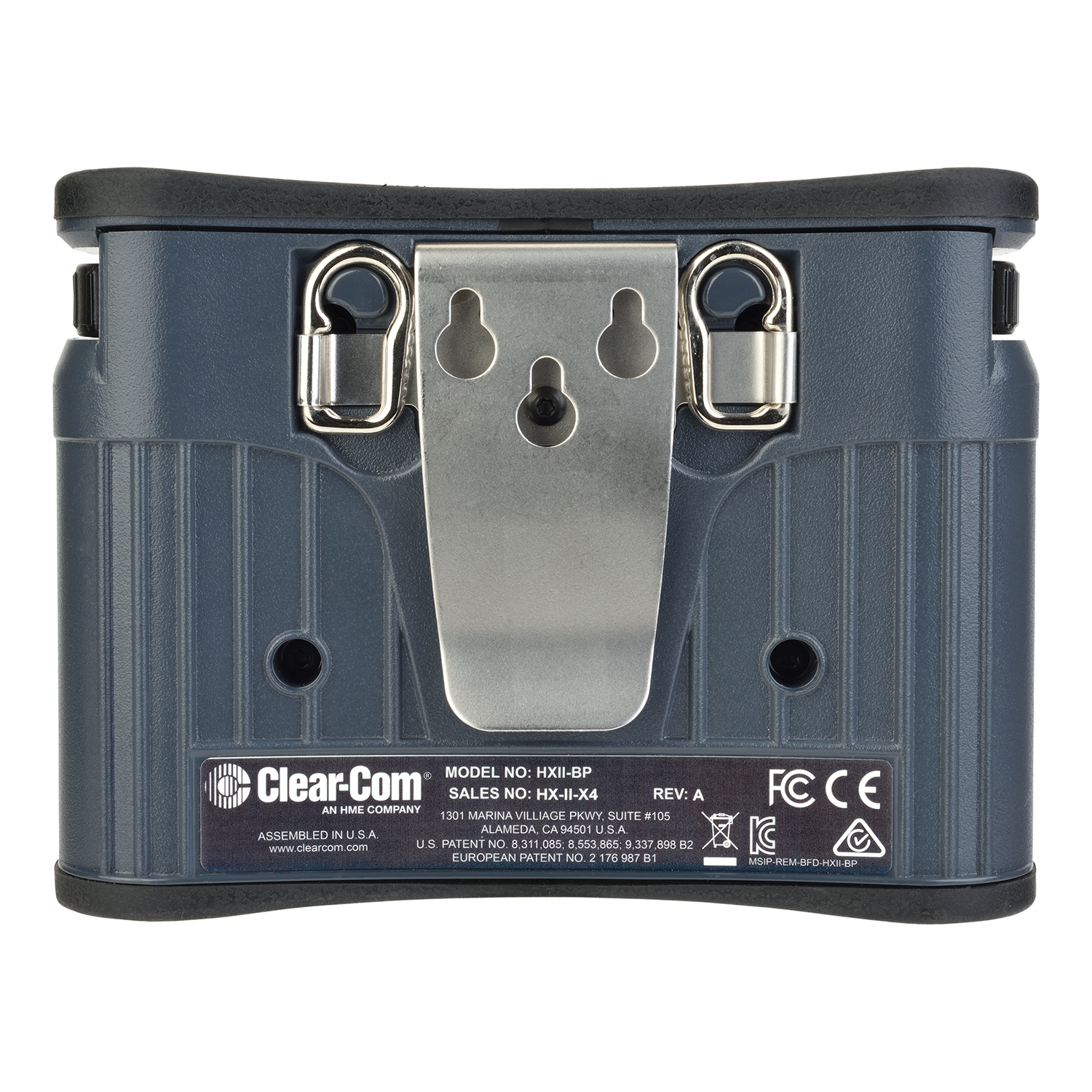

Beltpack

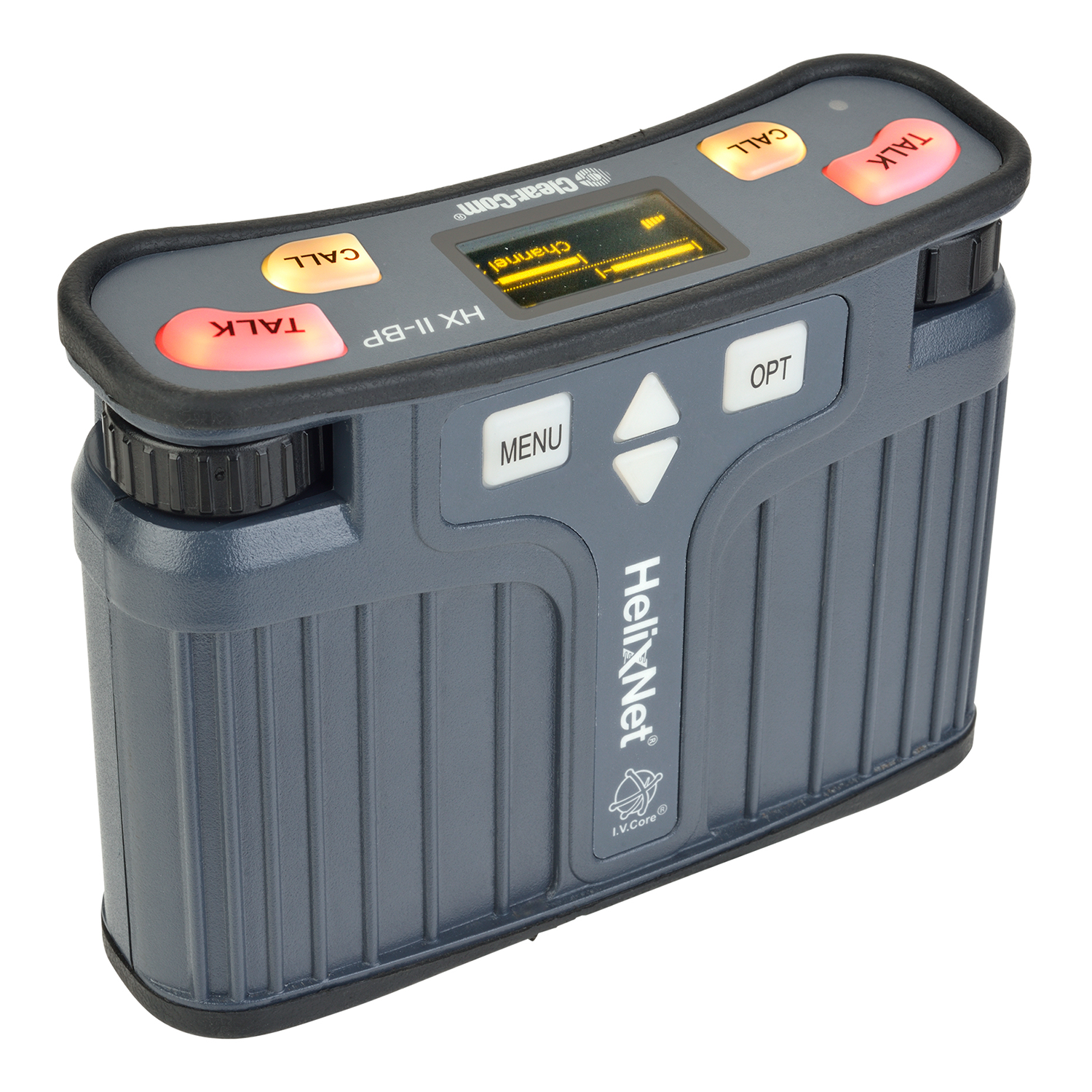

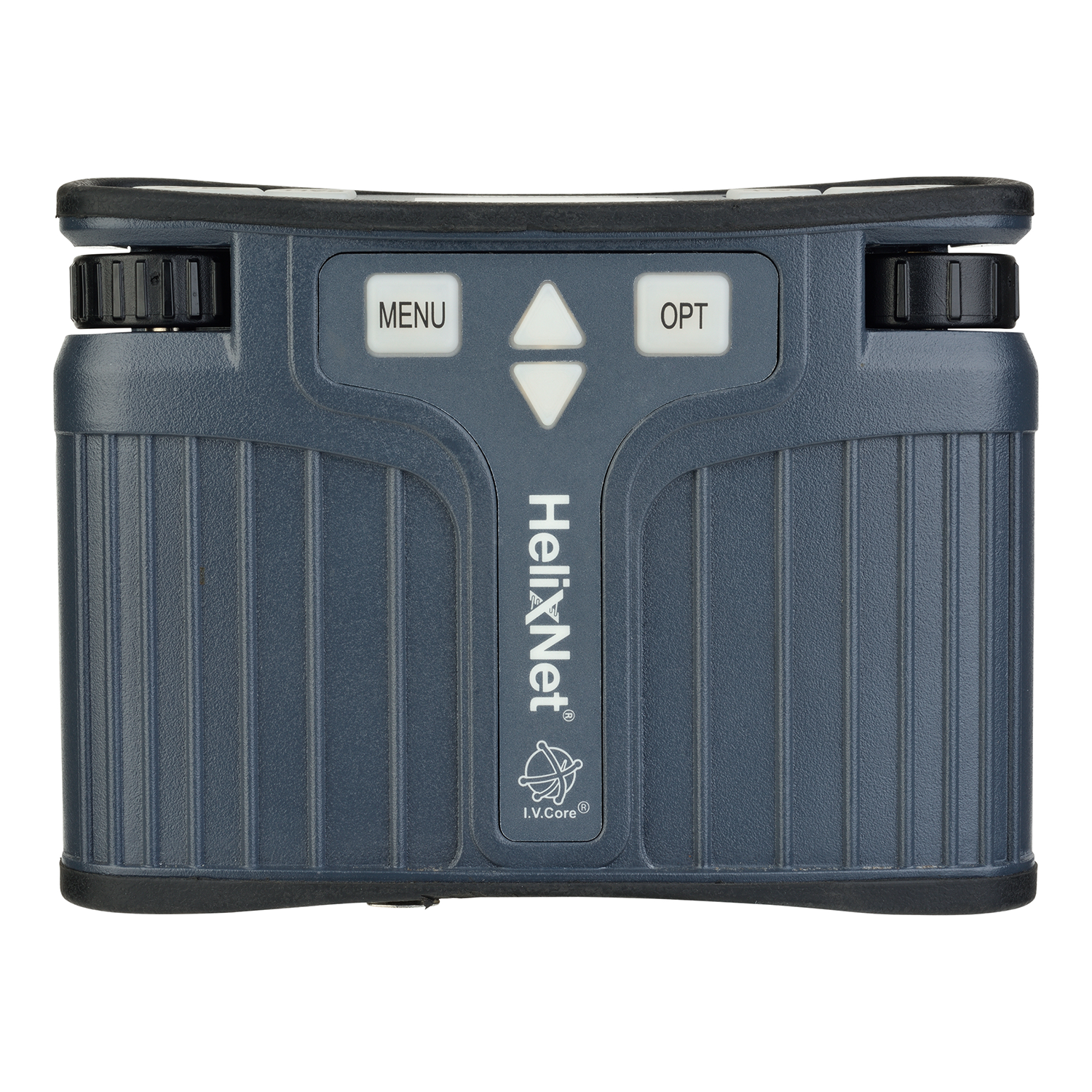

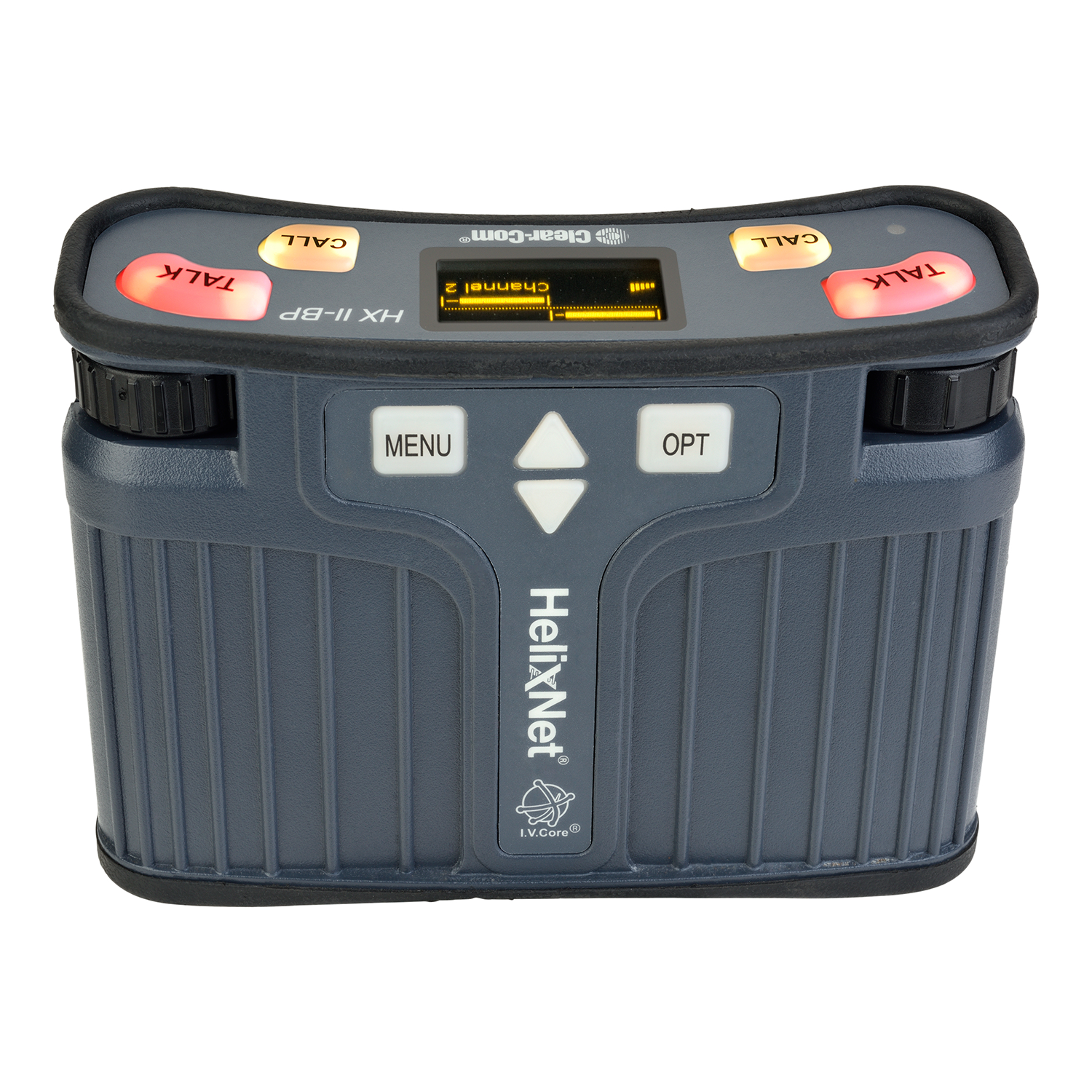

The beltpack provides two keysets assignable to any intercom channel and allows multiple channels to be uniquely stacked onto a keyset. The beltpack comes with a headset connection, independent Program Audio level control and a micro-USB Flasher connection to a third-party USB light.

HXII-BP-X5 has connection to dual ear five-pin headsets for split-ear binaural operation, allowing the user to pan the keysets channels between left and right ears.

Local and Central Management Options

HXII-BP can be added to an Arcadia or a HelixNet system host without central configuration or interruption. Front panel allows tactile device configuration and channel assignment.

Roles can be created and applied to one or multiple HXII-BP remotely or locally. Roles can be edited locally or centrally managed from the Core Configuration ManagerTM (CCM*).

Connectivity and Power Options

HXII-BP connects to Arcadia Central Station or HMS-4X*** main stations with HLI-ET2 Ethernet module over network. Power is supplied to the HXII-BP with Power over Ethernet (PoE) from 3rd party devices.

Alternatively, HXII-BP can connect to HelixNet HMS-4X*** main stations over XLR Powerline with power.**

*CCM and Endpoint network connection to HMS-4X requires HLI-ET2

**XLR Powerline is not available for Arcadia.

***HMS-4X is a legacy product as of 2022

HelixNet System Hosts

• Arcadia: Supports up to 64 HelixNet endpoints (HRM-4X, HKB-2X & HXII-BP) over Ethernet. Up to 24 Channels can be HelixNet Enabled using a Licensed Port for assignment to any HelixNet endpoints keyset.
• HMS-4X***: Supports up to 64 endpoints (HRM4X, HKB-2X, HBP-2X, HXII-BP, HLI-2W2, HLI4W2, LQ port). User stations can connect via the 2 Powerlines (note power and data limits) or over Ethernet via optional HLI-ET2 module. HMS allows use of 12 channels which can be expanded to 24 using optional license.

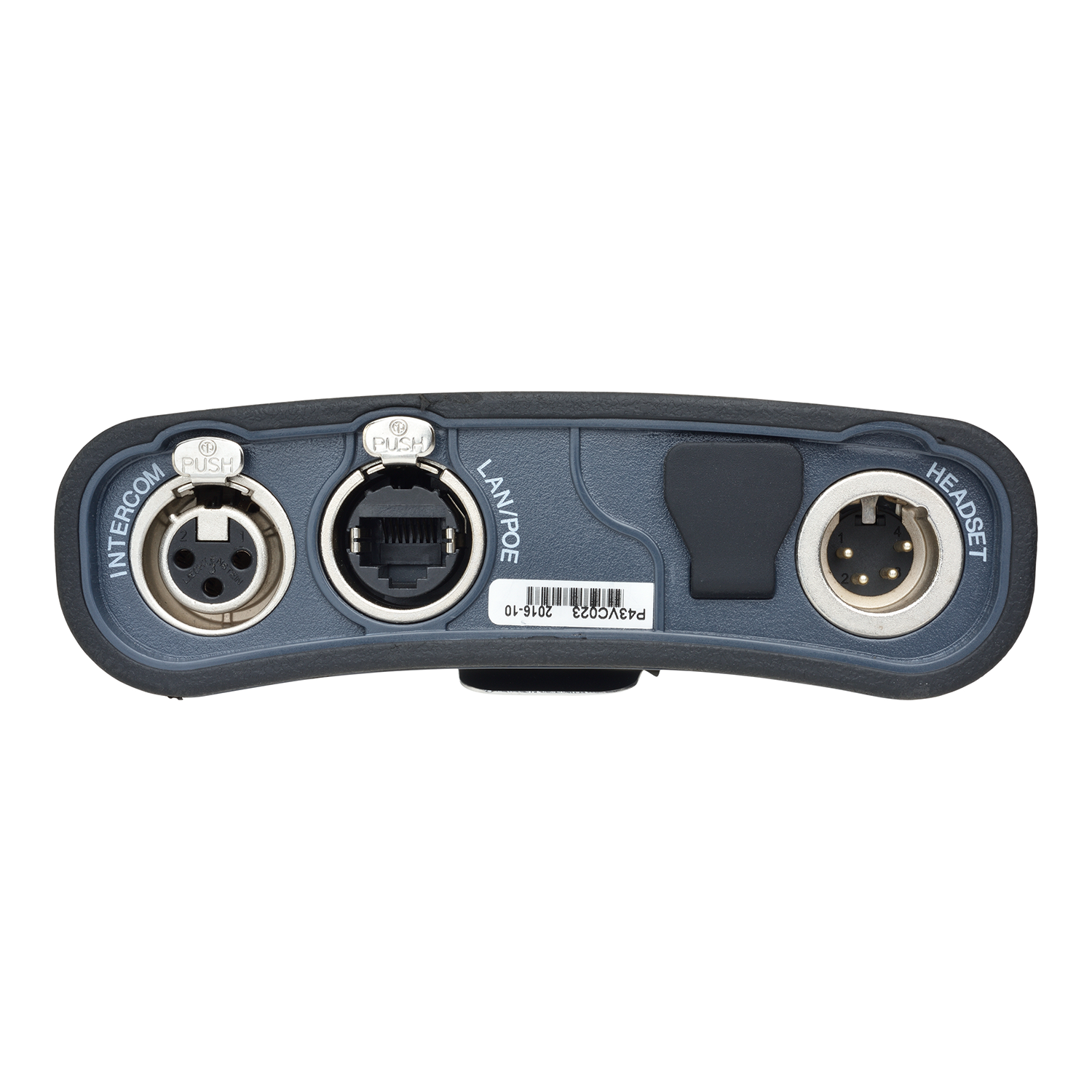

Connectors

• XLR Powerline**: 3-pin XLR-F
• LAN/PoE*: RJ45 etherCON
• Headset: 4-pin XLR-M (-X4) or 5-pin XLR-F (-X5)
• USB: Micro AB
•


Microphone Pre-Amplifier

• Headset Mic Impedance: 200Ω (Dynamic)
• Headset Mic Voltage: 1.7V (Electret selectable)
• Limiter: +23dB

Route to 4-wire output at 0dBu out:

• Mic Gain: 60dB (Dynamic), 45dB (Electret)
• Frequency Response: 300Hz – 10 kHz ± 3dB, contoured for intelligibility
• Distortion: <0.2% THD @ 1kHz
• Noise: <-55dBu (Dynamic), <-65dBu (Electret)

Headphone Amplifier

• Load Impedance: >32Ω
• Output Level: +12dBu before clipping
• Sidetone: -12dB (selectable)

Route from a 4-wire input at 0dBu in:

• Max Gain: 0dB
• Frequency Response: 40Hz - 10kHz ±3dB
• Distortion: <0.2% THD @ 1kHz
• Noise: -65dBu
• Headphone Limiter: 0dB (selectable)

Device Power

• Voltage: 48V DC
• Current (Max): 0.09A
• Power (Max): 4W
• BTU (Max): 13BTU/hr

This unit can be powered via:

• PoE - Power over Ethernet*: IEEE 802.3af-2003 - Class 1
• PSE: 4.0W DC max @ Power Source Req.
• PD: 3.84W DC max @ Powered Device Draw

Powerline**:

• Input Voltage: ±29.5V DC
• Input Current (Max): 0.13A
• Powerline Utilization: HXII-BP = 1 beltpack

Note: the maximum Powerline capacity of the HMS-4X***

Use HelixNet Cable Calculator to validate load and cable distance.

Environmental

• 32° to +104°F (0° to +40°C)
• 0 - 90% relative humidity
• IP53 rated

Dimensions / Weight

• Dimensions (W x H x D): 3.9 x 5.3 x 1.7in (99 x 135 x 43mm)
• Weight: 12.2oz (0.35kg)

*Ethernet to HMS-4X requires HLI-ET2

**Not available for Arcadia.

***HMS-4X is a legacy product as of 2022
