Cobalt OGCP-9000/CC Color Corrector Remote Control Panel for openGear® Cards

The OGCP-9000/CC is a remote control panel designed with a special emphasis for the Color Corrector models, and models equipped with +COLOR option.

Communication with the openGear™ frame occurs over the optimized high-speed Ethernet control protocol, allowing lightning-fast access. The OGCP-9000/CC offers instantaneous, real-time adjustments, so operators can manipulate on-air signals with confidence and precision.

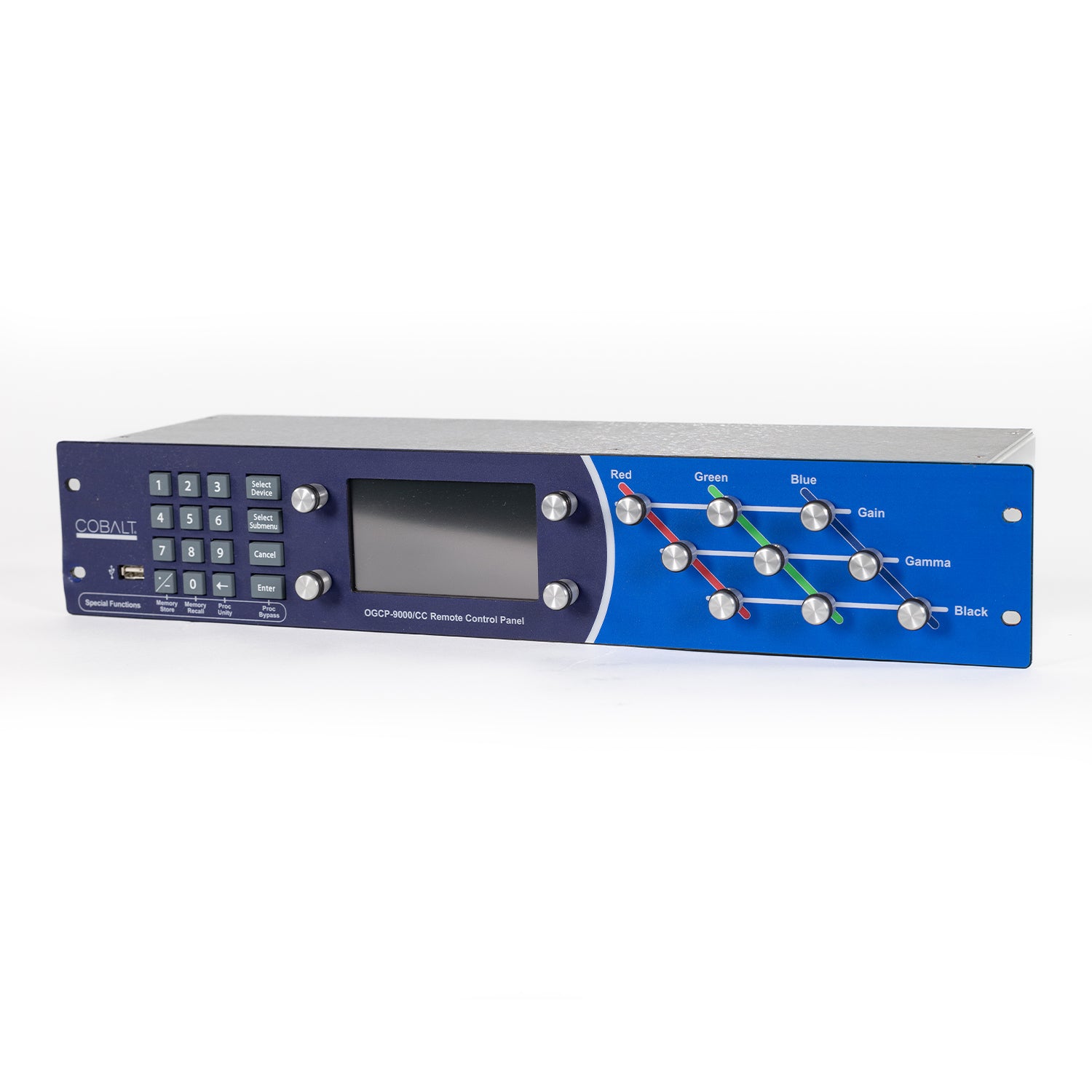

Rotary controls allow direct access to gain, gamma and black for each of the RGB channels, in addition to YCbCr proc controls.

An easy to use keypad enables intuitive access with minimal submenus. Cards use only one level of submenus to access all of its functions.

The control panel is optimized for both bright and low light environments. A large format, super-bright, wide-angle color LCD screen shows sharp and clear text; operators can select either a white or black background. Other features include a fully backlit keypad and user-adjustable LED back light.

Station engineers can configure the panel to restrict availability of specific cards and parameters for operation. Configuration is done through a simple web interface, where configurations can be exported, backed up, and re-imported easily.

The OGCP-9000/CC works seamlessly with DashBoard™ control software. Any changes made with either system are instantly reflected on the other.

• Real time adjustments, excellent for on-air manipulation
• No deep submenus – all parameters can be accessed quickly
• 10/100 Mbps Ethernet TCP/IP connection
• Save and restore panel configuration with web interface
• Completely configurable with password protected web interface
• Optimized for bright and low light environments
• Seamless integration with DashBoard™ control software
• Rugged 2RU rack mounted chassis

Power

• 9 Watts

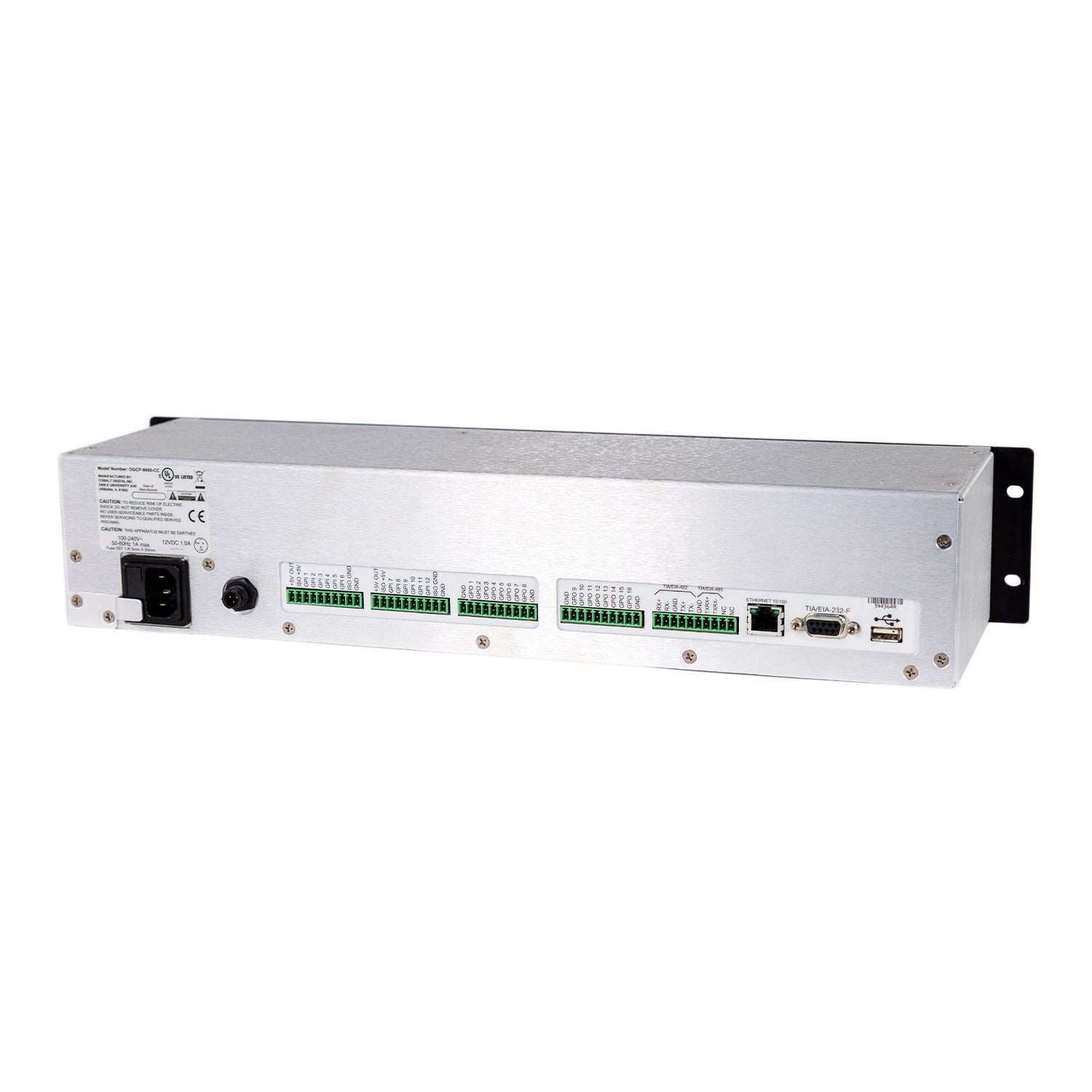

AC Power

• IEC C14 Chassis Plug. 90-264 VAC @ 47-63 Hz

DC Power

• 12 VDC, 1.0 A

Ethernet

• 10/100 Mbps with Auto-MDIX on RJ45 socket with DC isolation

LCD

• 500 cd/m2 (nits) of brightness, 300:1 contrast ratio, 120 degree viewing angle

Size

• Standard 2 RU; 5" depth
