Community IP8-1122/96B 12" 2-Way 90° x 60° Installation Loudspeaker

Used Gear

Community IP8-1122/96B 12" 2-Way 90° x 60° Installation Loudspeaker

Name: Community IP8-1122/96B 12" 2-Way 90° x 60° Installation Loudspeaker
Brand: Community
SKU: PES-COM-IP8112296B
Price: 1750.0 USD
Availability: InStock

$1,750.00

$2,500.00

Condition: Like New

Brand New — Gear has never been used and is still in original packaging.

Open Box — Gear has never been used, but the factory seal is broken on packaging.

Like New — Gear has been used, but has little to no cosmetic damage.

Good — Gear is in good working condition with moderate cosmetic damage.

Fair — Gear is functional, but with obvious wear and tear.

For Parts Only — Gear is not functional, but has salvageable parts that can be used to repair similar gear.

Quantity:

1 in stock.

Community IP8-1122/96B 12" 2-Way 90° x 60° Installation Loudspeaker

$1,750.00

$2,500.00

Community IP8-1122/96B 12" 2-Way 90° x 60° Installation Loudspeaker

Description

I SERIES Point Source 800 loudspeakers provide exemplary acoustic performance, modular flexibility and elegant aesthetics for modern performance venues. Designed to support the goals of systems integrators and consultants both acoustically and mechanically, I SERIES includes a wide variety of arrayable, rotatable coverage patterns and a comprehensive selection of modular bracket systems that accelerate system design and system commissioning.

FEA-optimized linear suspensions, high-flux neodymium motors, and integral demodulation rings ensure precise transducer motion control and very low distortion at high SPL levels. The custom long-excursion LF driver delivers deep bass response and a balanced midrange in the most demanding applications. The HF compression driver's non-metallic diaphragm provides natural, transparent sound quality that accurately reproduces and complements any source.

The rotatable 13-inch (330mm) HF waveguide provides well-defined coverage and a smooth off-axis response that enhances arrayability. Individually voiced crossovers produce proper beamwidth matching transitions and identical sonic signatures throughout the product line, permitting horn patterns to be mixed throughout an installation. Additionally, user selectable single-amp or biamp operating modes expand application flexibility.

Features

High-flux, linear neodymium motors with demodulation rings for very low distortion
Exceptional sound quality and clarity at very highoutput levels
Lightweight and compact with deep LF extension
Large rotatable waveguide with individually voiced crossover, single amp / biamp selectable
Innovative low profile modular bracket systems create elegant arrays with simplified installation

Specifications

Operating Mode

Passive or Biamp with DSP

Operating Environment

Indoor or Weather-Resistant Outdoor

Operating Range

44 Hz to 22.4 kHz

Nominal Beamwidth (H x V)

90°x 60°, rotatable waveguide

Transducers

LF: 1 x 12" (305mm) neodymium driver, 3" (76mm) voice coil, demodulation ring
HF: 1 x 1.4" (36mm) exit compression, 2.6" (66mm) voice coil, demodulation ring, ketone polymer diaphragm, neodymium compression driver

Continuous Power Handling @ Nominal Impedance

Passive

80V
800W @ 8 ohms (3200W peak)

LF

69V
600W @ 8 ohms (2400W peak)

HF

25V
80W @ 8 ohms (320W peak)

Nominal Sensitivity

Passive

@ 1W: 94 dB
@ 2.83V: 94 dB

LF

@ 1W: 95 dB
@ 2.83V: 95 dB

HF

@ 1W: 105 dB
@ 2.83V: 105 dB

Nominal Maximum SPL (Whole Space)

Passive

Peak: 129 dB
Continuous: 123 dB

LF

Peak: 129 dB
Continuous: 123 dB

HF

Peak: 130 dB
Continuous: 124 dB

Equalized Sensitivity

System

@ 1W: 93 dB
@ 2.83V: 93 dB

Equalized Maximum SPL

System

Peak: 128 dB
Continuous: 122 dB

Recommended Amplifiers

Passive: 800W - 1600W @ 8 ohms, (80V - 113V)
LF: 600W - 1200W @ 8 ohms, (69V - 98V)
HF: 80W - 160W @ 8 ohms (25V - 36V)

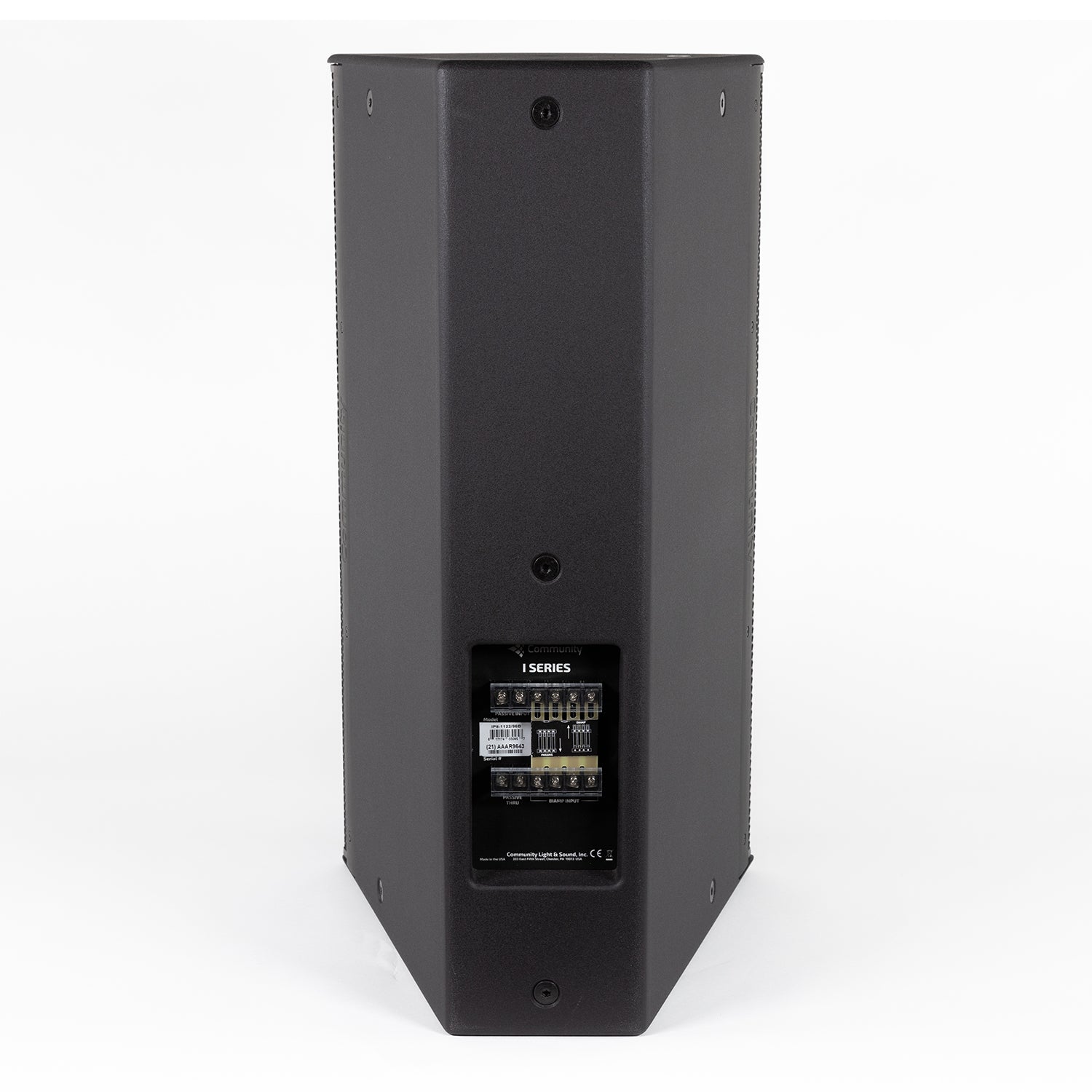

Input Connection

(2) Screw terminal blocks (6-position)

Mounting Points

(15) M10 threaded rigging points

Environmental

Outdoor: IP55W per IEC 60529 , MIL-STD-810G

Weight

55 lbs (24.9 kg) loudspeaker only

Dimensions

H x W x D: 28.00" x 14.50" x 17.70" (711 x 368 x 450 mm)
