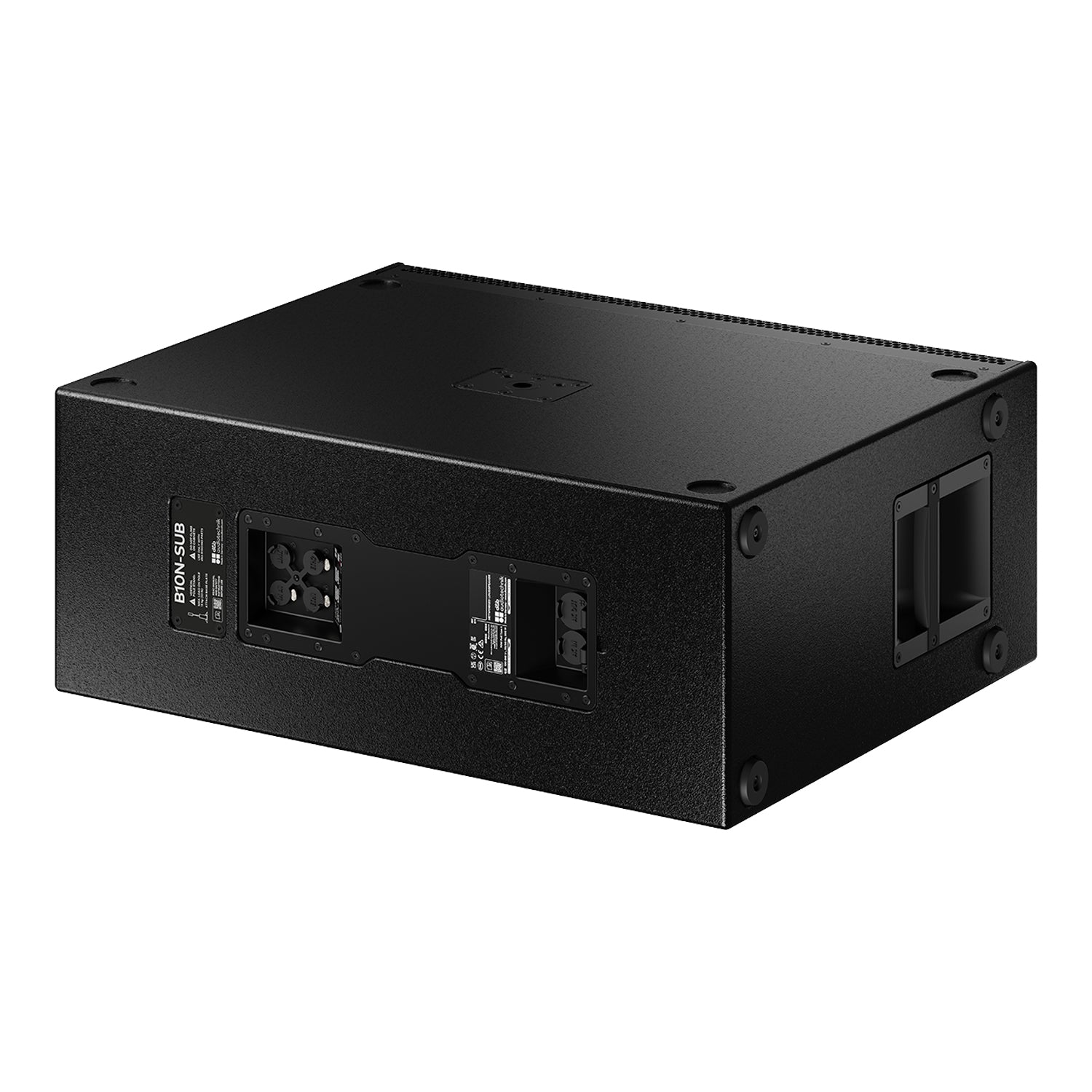

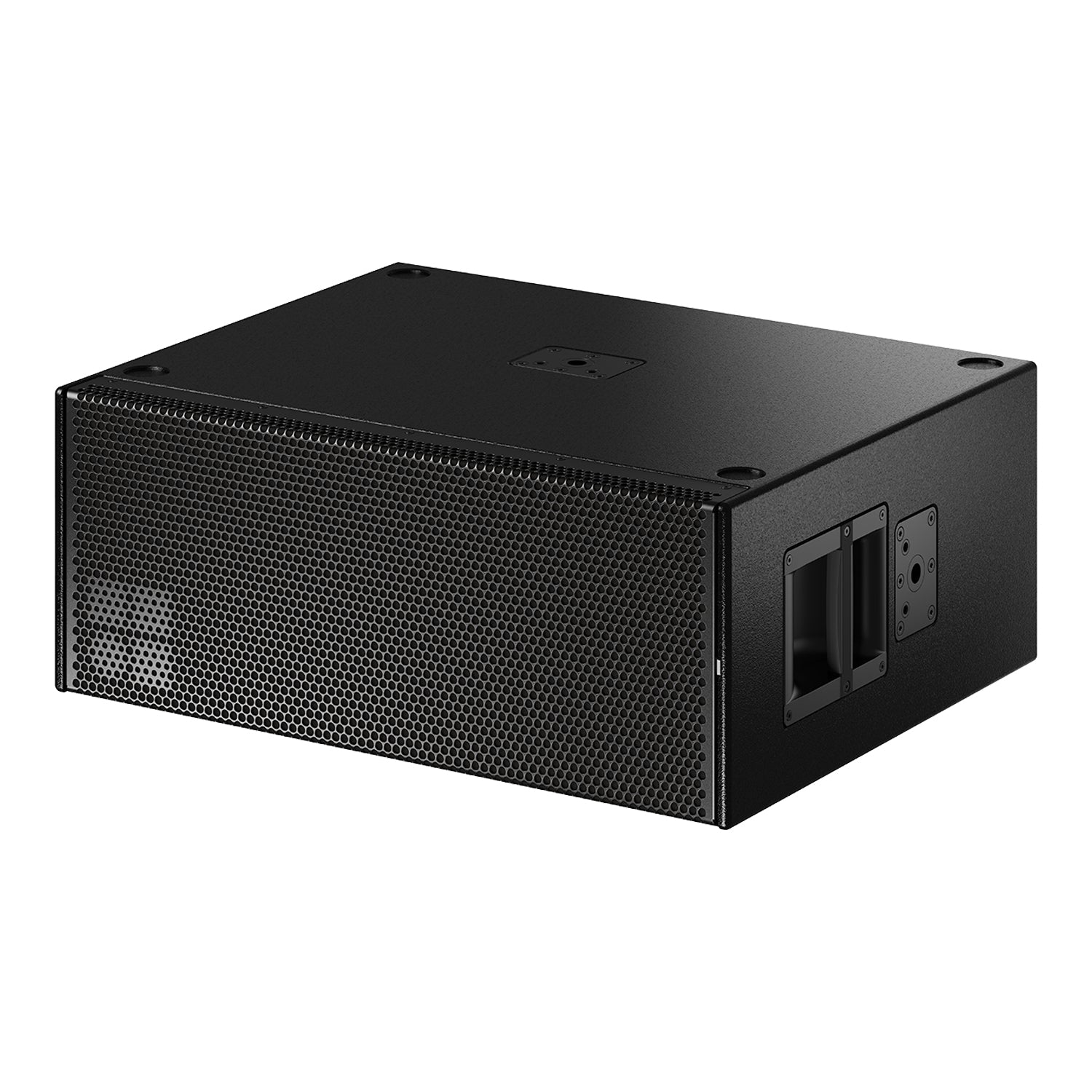

d&b B10N-SUB Networked Subwoofer

The B10N-SUB is a mobile-specific networked compact multipurpose subwoofer that optimally pairs with the U-Series and other compact d&b loudspeaker systems. It includes two 10” drivers, housed within a bass-reflex cabinet, that features a newly designed sophisticated port concept that minimizes port noise and audible flow turbulence even at the highest SPL. The form factor makes this subwoofer an ideal solution for small footprint applications or set-ups where low heights are necessary. Based on the same technology as the U-Series Networked variants, the B10N-SUB provides all hybrid-topology advantages, offering system architecture freedom also for high-impact low-end extension.

When operating on PoE++ B10N can be powered by DN2, the d&b proprietary AVB MILAN PoE++ Network Switch for a rugged, reliable solution or other 3rd party switches with equivalent performance capabilities and certifications.

System Data

Frequency response (-5 dB standard)

• 38 Hz - 130 Hz

Frequency response (-5 dB 100 Hz mode)

• 38 Hz - 100 Hz

Max. sound pressure

• PoE++: 129 dB
• AC: 129 dB

Digital Signal Processing

Equalizer

• 2 user definable 16-band equalizer

Latency analog input

• 1.1 ms

Frequency generator

• Pink noise or sine wave 10 Hz to 20 kHz

Delay

• 1.1 ms to 1 sec.

Connectors

INPUT ANALOG

• 3 pin XLR female

ANALOG LINK

• 3 pin XLR male, parallel to input

MILAN INPUT

• 1 stream with up to 8 channels @ 48/96 kHz

Network Connection

• 2 x RJ 45 (etherCON®)

Network Switch

• integrated 2-port, 100 Mbit/1 Gbit

ETH1/PRI

• Milan™, Remote control via R1 star topology

ETH2/SEC

• Milan™ redundancy only, no remote control star topology

Power Supply

Mains voltage

• powerCON® TRUE1 TOP In and Thru

Power supply

• Switched mode power supply with automatic mains range selection and active Power Factor Correction (PFC).

Rated mains voltage

• 100 - 240 V, 50 - 60 Hz

Dimensions & Weight

Dimensions (h x w x d)

• 280 x 706 x 565 mm
• 11 x 27.8 x 22.25"

Weight

• 28.5 kg / 63 lb
