Decimator 12G-CROSS HDMI / SDI 4K Cross Converter
Features
- Small, low power, portable converter
- Allows HDMI or SDI outputs to be sourced from either the HDMI or SDI input or the new 4K scaling engine
- 4K scaling engine can be driven by either the SDI or HDMI input and supports horizontal and/or vertical flipping
- Includes 4 x (3G/HD/SD)-SDI outputs, that allow it to be used as a 1 to 4 distribution amplifier
Description
Combining capabilities usually reserved for a computer-controlled converter, the DECIMATOR 12G-CROSS 4K HDMI/SDI Cross Converter with Scaling and Frame Rate Conversion is an independent device that features both HDMI and a 12G/3G/HD/SD-SDI input, and can cross-convert either signal to the other. It features a built-in scaler and frame rate converter, allowing you to convert the input signal to your required output standard in 3249 possible conversion combinations, and it supports 294 VESA formats via the HDMI input.

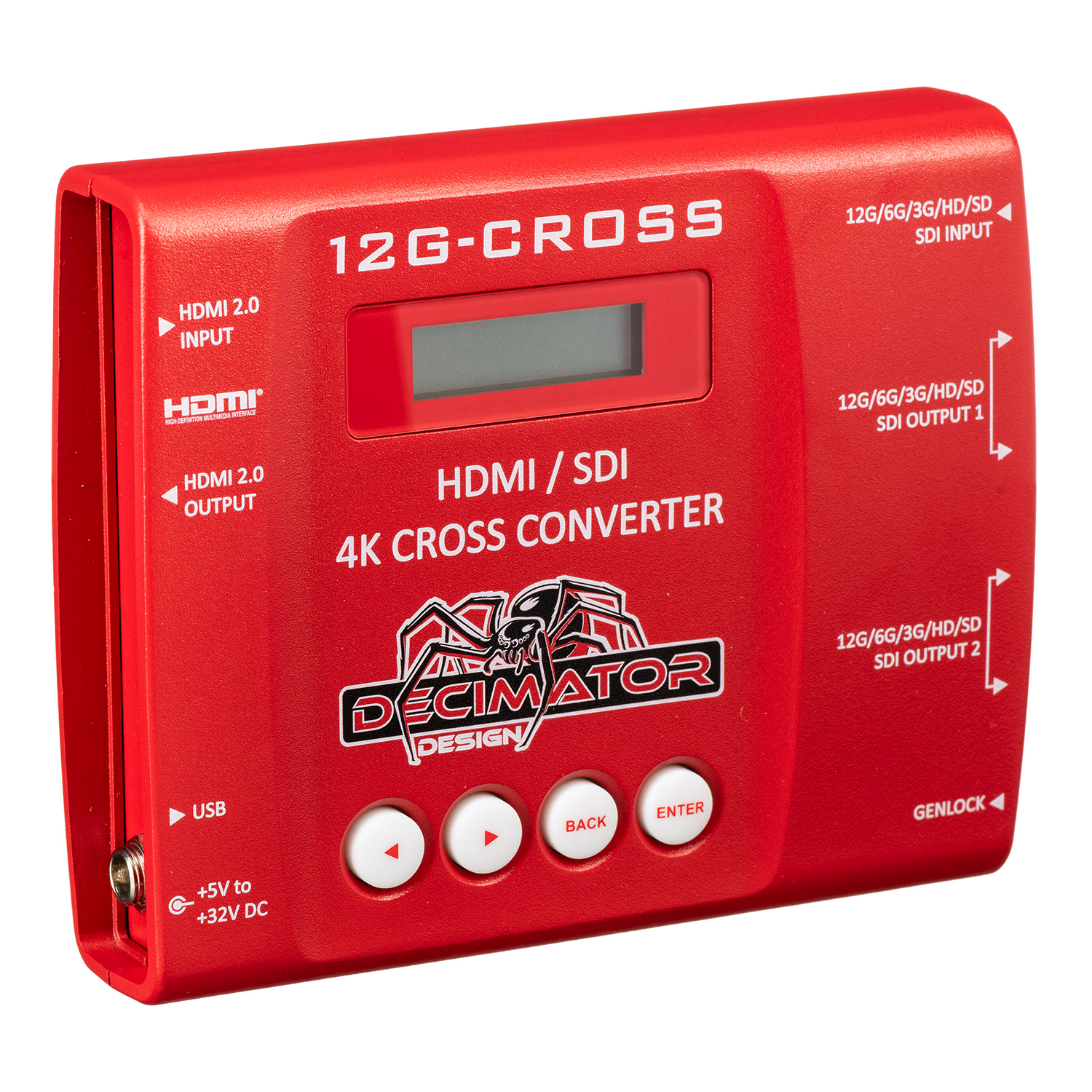

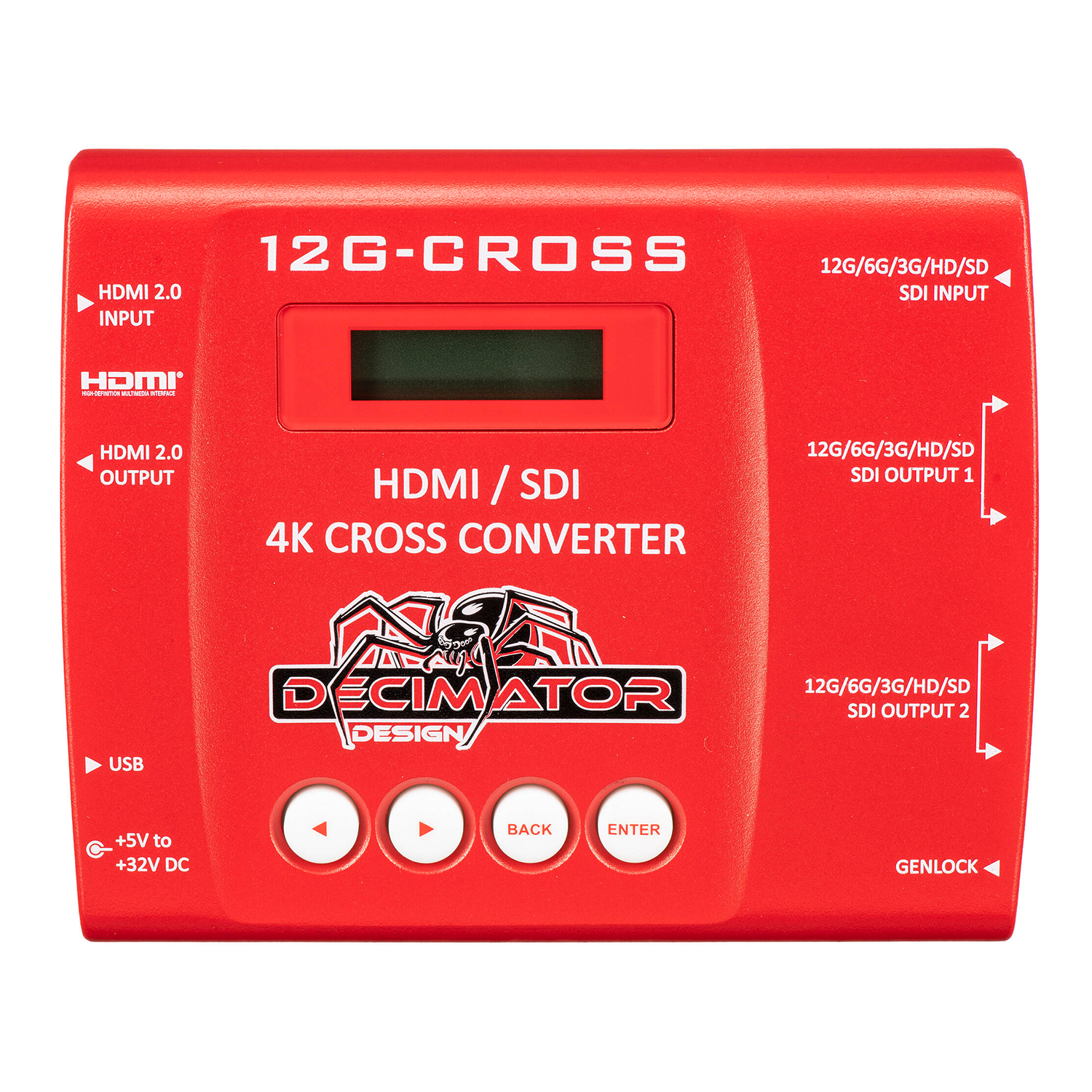

The 12G-CROSS features one HDMI 2.0 output and two pairs of 12G/3G/HD/SD-SDI outputs, controllable via 57 selectable conversion modes to fit your needs. This converter does not require a computer or DIP switches to control as it incorporates a small LCD screen for menu functions, and four buttons for control. It comes with a USB cable, a power supply, and features a threaded locking power socket to prevent accidental power loss during use.
Specifications
SDI FORMATS
12G:SMPTE 2048-1/2036-1@11.88 and 11.868Gb/s
- (3840 or 4096) x 2160p@60/59.94/50Hz
6G: SMPTE 2048-1/2036-1@5.94 and 5.934Gb/s
- (3840 or 4096) x 2160p@30/29.97/25/24/23.98Hz
3G-A or 3G-B: SMPTE 424M@2.97 and 2.967Gb/s
- •(1920 or 2048) x 1080p@60/59.94/50Hz
HD:SMPTE 292M/274M/296M@1.485 and 1.435Gb/s
- 1920 x 1080i@60/59.94/50Hz
- (1920 or 2048) x 1080p/psf@30/29.97/25/24/23.98Hz
- 1280 x 720p@60/59.94/50/30/29.97/25/24/23.98Hz
SD:SMPTE 259M@270Mb/s
- 720 x 576 (PAL)
- 720 x 480i59.94 (NTSC)
HDMI FORMATS
- (4096 or 3840) x 2160p@60/59.94/50/30/29.97/25/24/23.98Hz
- 1920 x 1080p@60/59.94/50/30/29.97/25/24/23.98Hz
- 1920 x 1080i@60/59.94/50Hz
- 1280 x 720p@60/59.94/50/30/29.97/25
- 720 x 480p59.94 or 720 x 576p50
- 720 x 480i59.94 (NTSC) or 720 x 576 (PAL)

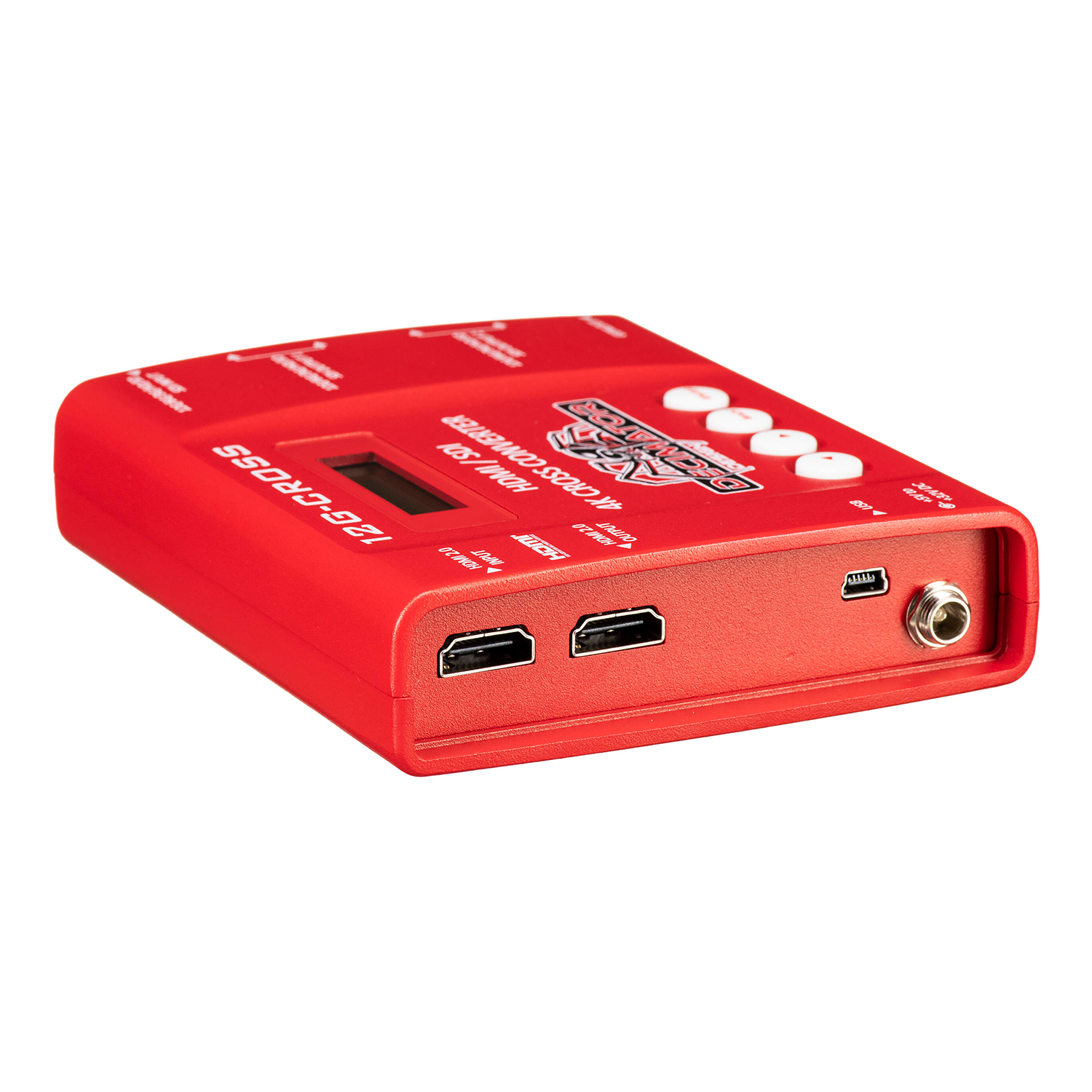

INPUTS
- 1 x HDMI Type A
- 1 x (12G/6G/3G/HD/SD)-SDI
- 1 x Genlock

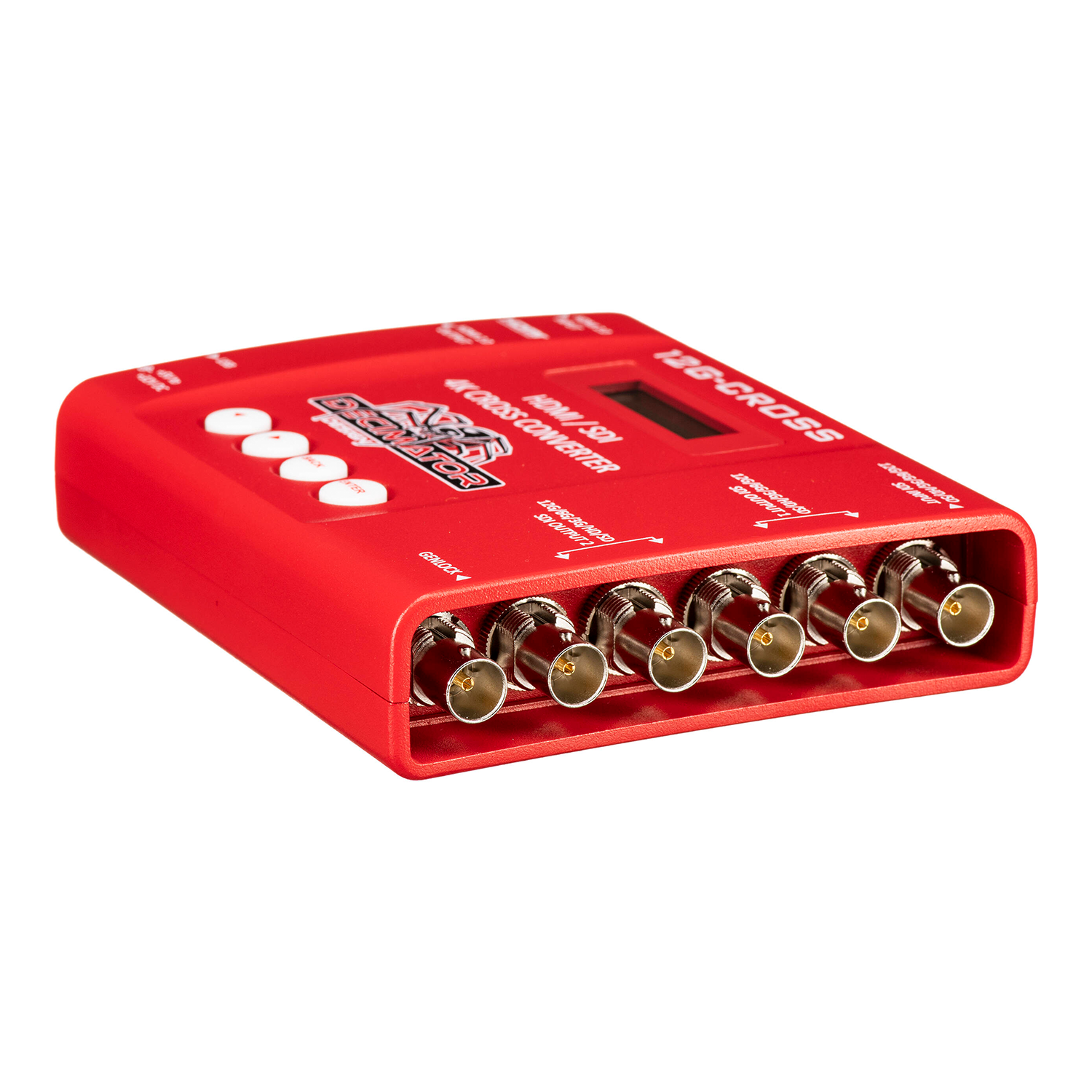

OUTPUTS
- 1 x HDMI Type A
- 2 x (12G/6G/3G/HD/SD)-SDI Re-clocked Loop-through
- 2 x (12G/6G/3G/HD/SD)-SDI
LCD / BUTTON MENU OPTIONS
- SDI output source from HDMI IN, SDI IN or Scaler
- HDMI output type and source from HDMI IN, SDI IN or Scaler
- Scaler source, reference, format and Aspect Controls
- Audio pair routing for HDMI and SDI output
- LCD backlight off time
- Back to Status time
POWER
- +5V to +32V DC
- Positive Centre Pin
DIMENSIONS
- 106mm x 130mm x 31mm (4.2” x 5.1” x 1.2”)
