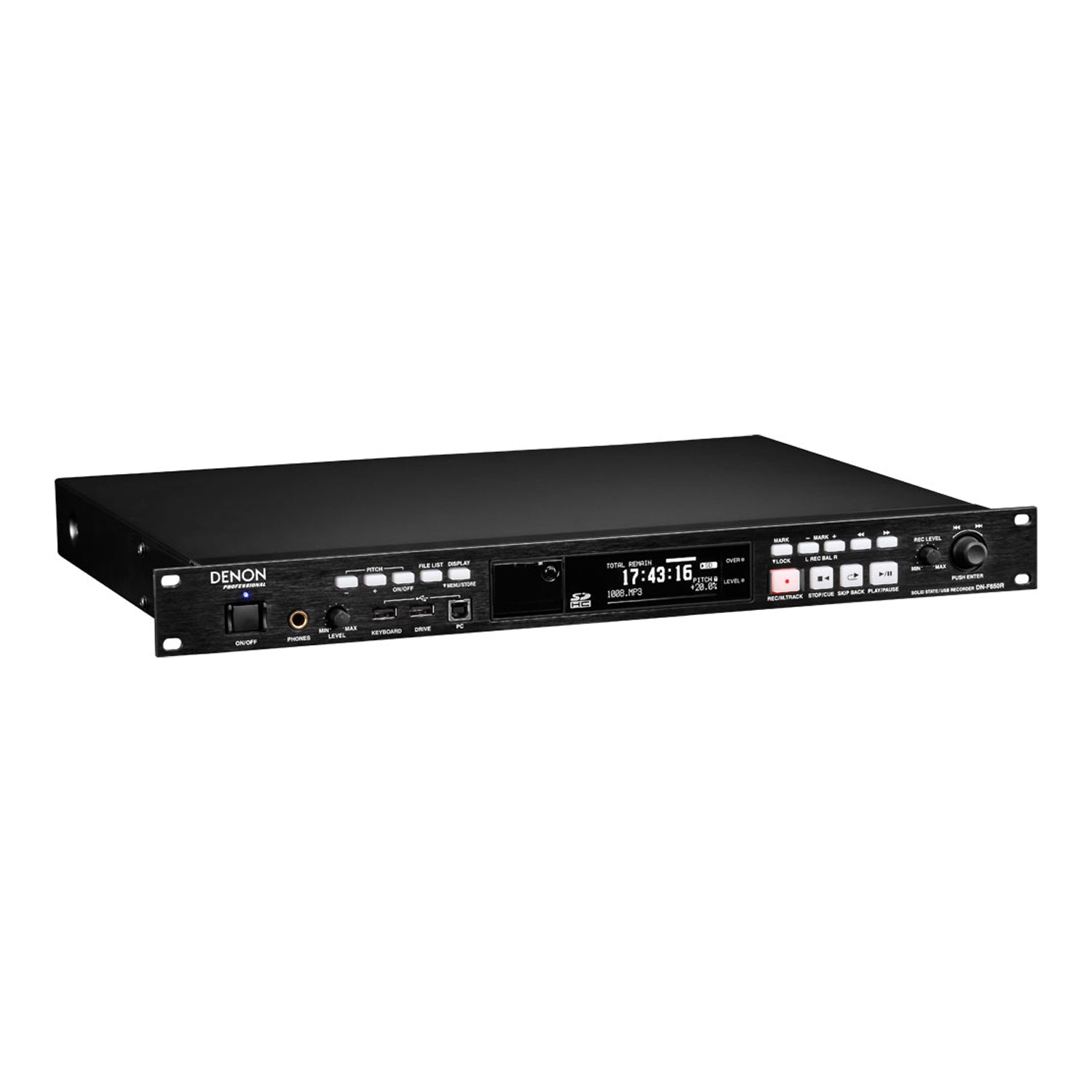

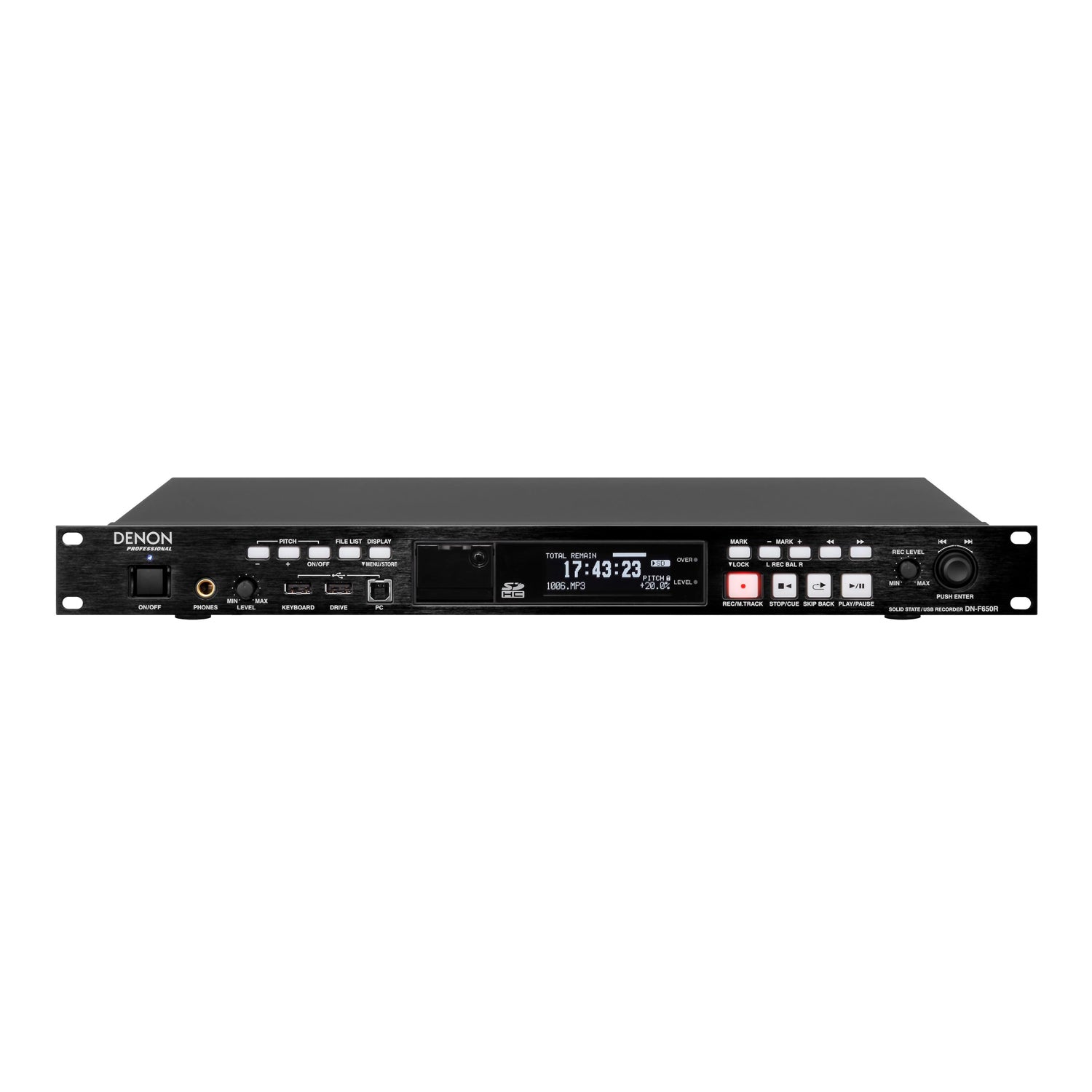

Denon DN-F650R SD/USB Digital Recorder

The Denon DN-F650R is a highly versatile professional solid state recorder offering recording to and between SD/SDHC flash card and USB external drives. Designed to fulfill the most demanding playback and recording applications in AV installation, audio production, live sound, theatre and broadcast, the DN-F650R is a professionally specified, up to date replacement for cassette, DAT, MD, CDR and commodity PC based systems currently fulfilling such roles. Balanced XLR analog audio and AES/EBU digital I/Os are featured, as well as unbalanced analog and S/PDIF connectivity. Serial, parallel and contact closure remote control are supported, and the unit can be operated with Denon Professional’s latest RC-F400S ‘Hot Start’ serial remote controller.

• 1 RU Rackmount size
• Records and plays back from stable, industry-standard SD/SDHC flash media and USB drives (Thumb / HDD)
• Records WAV (.wav) at 44.1 / 48 / 96 kHz
• Records MP3 (.mp3) at 32-320 kbps
• Balanced (XLR) and unbalanced (RCA) analog inputs and outputs
• S/PDIF and AES/EBU digital input and output
• +20% / –40% Pitch Control with tempo lock
• RC-F400S Hot Start Remote compatibility

System

• Media: SD, SDHC, USB Drives
• Supported File Formats: WAV, MP3 (MPEG-1 Layer III)
• Media Format: FAT, FAT32
• MP3 Bit Rate: 32–320 kbps (Stereo)
• Sampling Frequencie: 44.1 kHz, 48 kHz, 96 kHz
• Quantization: 16-bit, 24-bit

Audio Performance

• Audio Channels: Stereo (2-Ch) / Mono (1-Ch)
• Frequency Response: 20 Hz–40 kHz (±1.0 dB)
• Signal-to-Noise Ratio: 96 dB (1 kHz, 0 dB Playback, A-Weighted)
• Channel Separation: 86 dB (1 kHz, 0 dB Playback)
• Total Harmonic Distortion (THD): 0.01% (1 kHz, 0 dB Playback)
• Dynamic Range: 96 dB
• Variable Pitch Control: +20% / -40% (0.1% Steps)

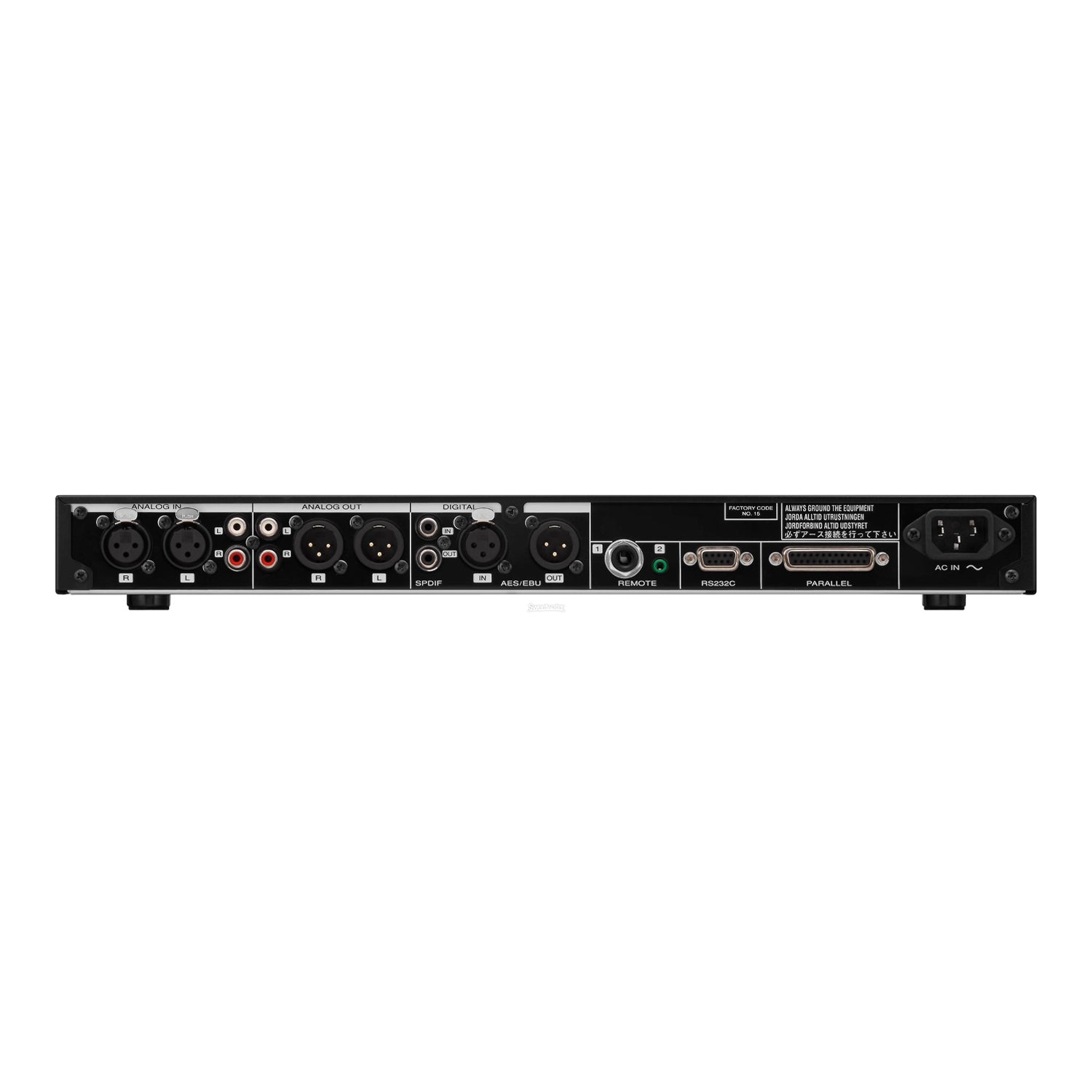

Analog Inputs

Balanced Input

• Connector: XLR (Pin 1: Ground, Pin 2: Hot, Pin 3: Cold)
• Input Sensitivity: +24 / +18 / +12 / 0 dBu
• Input Impedance: 24 kΩ

Unbalanced Input

• Connector: RCA
• Input Sensitivity: 500 mVrms
• Input Impedance: 22 kΩ

Digital Inputs

• AES/EBU: XLR
• S/PDIF: RCA

Outputs

Balanced Output

• Connector: XLR (Pin 1: Ground, Pin 2: Hot, Pin 3: Cold)
• Output Level: +24 / +18 / +12 / 0 dBu

Unbalanced Output

• Connector: RCA
• Output Level: 2 Vrms

Digital Outputs

• AES/EBU: XLR
• S/PDIF: RCA

Headphone Output

• Connector: 1/4" (6.35 mm) TRS
• Output Level: 20 mW @ 32 Ω

Power

• Power Supply: 100–230 VAC, 50/60 Hz
• Power Consumption: 22 W

Environmental

• Operating Temperature: +5°C to +35°C
• Operating Humidity: 25–85% RH (Non-condensing)
• Storage Temperature: -20°C to +60°C
• Storage Humidity: 25–85% RH (Non-condensing)

Physical Specifications

• Dimensions (W × H × D): 483 × 44 × 325 mm
• Weight: 3.7 kg
