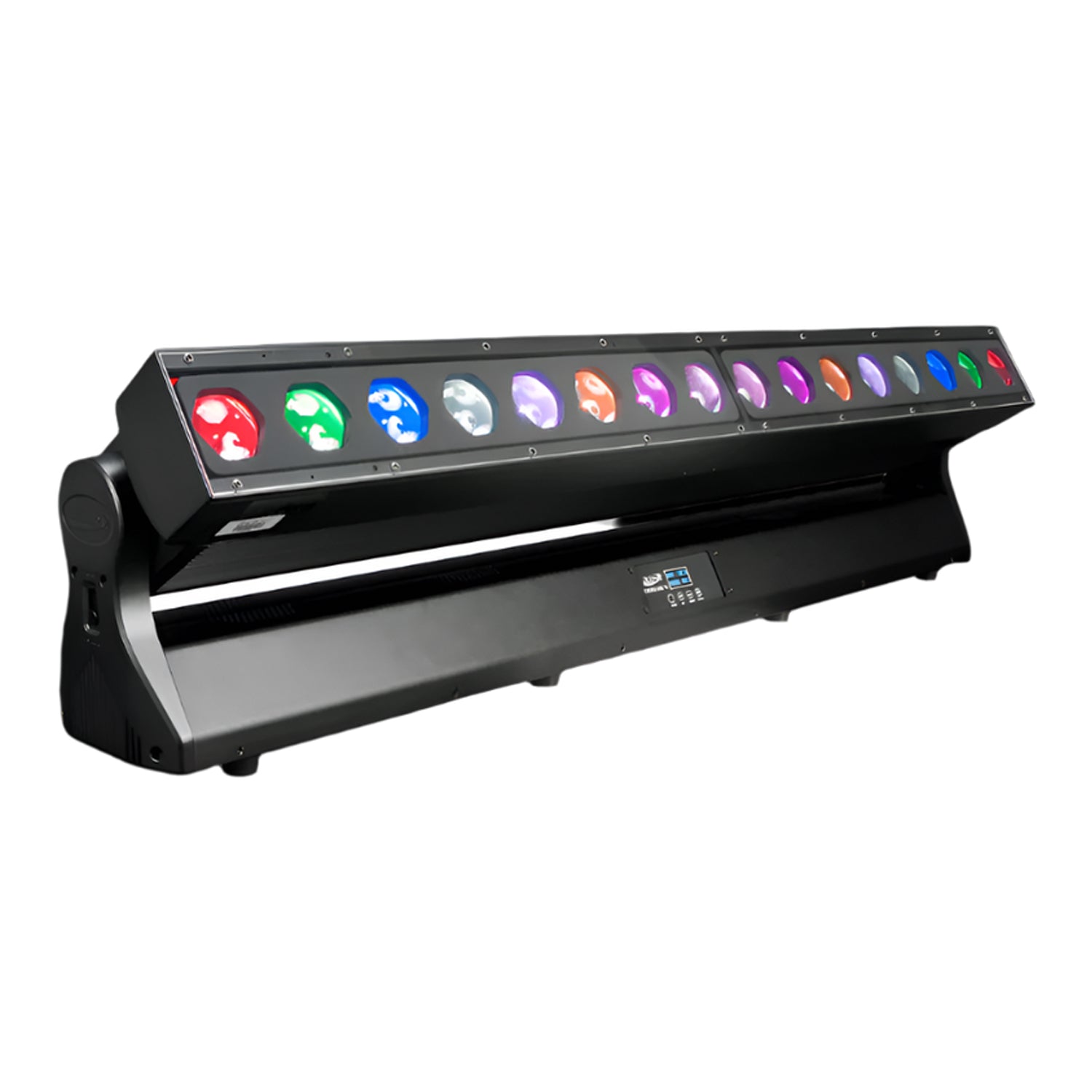

Elation Chorus Line 16 LED Strip Light

CHORUS LINE 16 is a professional 16-pixel bar wash luminaire featuring sixteen 40W RGBW LEDs with individual pixel control, motorized 4°–40° zoom, and 220° tilt movement. Designed for dynamic stage, broadcast, and installation applications, it offers RGBW color mixing, adjustable color temperature from 2,700K to 7,000K, electronic strobe effects, and 16-bit dimming performance. Flicker-free operation with adjustable refresh rates and gamma settings makes it suitable for TV and film environments. Comprehensive control options include DMX, RDM, Kling-Net, and Art-Net support, along with EtherCON networking and locking power connections.

• 16 Pixel Bar Wash Luminaire with 40W 4-in-1 RGBW LEDs
• Motorized 4° to 40° Zoom and 220° Tilt Movement
• RGBW Color Mixing and Full Pixel Control
• 2,700K - 7,000K Linear Color Temperature Range
• 64 Color Presets and 14 Unique Color Macros
• Electronic Strobe, 16-bit Variable Dimming Curve Modes
• Adjustable LED Refresh Rate Frequency
• Adjustable LED Gamma Brightness
• Flicker Free Operation for TV and FILM
• DMX, RDM, Kling-Net, Art-Net Protocol Support

SOURCE

• Light Source: (16) × 40W 4-in-1 RGBW LEDs
• LED Life Expectancy: 50,000 hours average*

LED life may vary based on environmental conditions, power quality, usage patterns, control settings, and dimming behavior.

EFFECTS

• Motorized Zoom
• 220° Motorized Tilt
• Full RGBW Color Mixing
• Individual Pixel Control
• Variable Color Temperature: 2,700K – 7,000K
• 64 Built-In Color Presets
• 14 Color Macros
• Electronic Strobe
• Selectable Dimming Curve Modes

COLOR

• LED Color System: RGBW

CONTROL / CONNECTIONS

• DMX Channel Modes: 3
• Maximum DMX Channels: 78
• Control Protocols:DMX512RDMKling-NetArt-NetsACN
• Adjustable Refresh Rate: 900Hz – 25,000Hz
• Adjustable Gamma Settings:2.02.22.42.8
• Control Interface: 4-Button Touch Control Panel
• Display: 180° Reversible LCD Menu Display
• Movement Resolution:8-bit Zoom16-bit Zoom8-bit Tilt16-bit Tilt

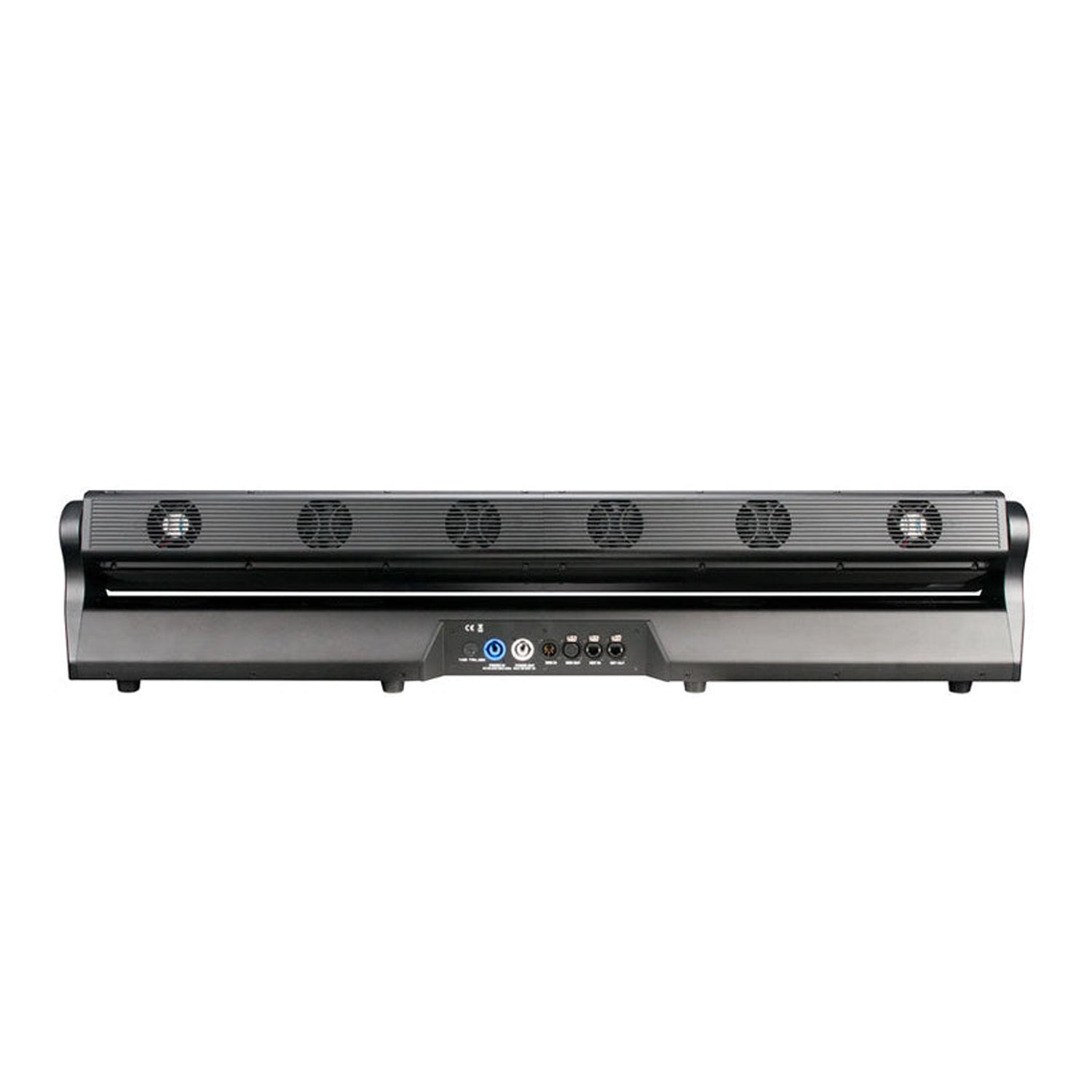

• Data Connections:5-Pin DMX In/OutRJ45 EtherCON In/Out
• Power Connections:powerCON Power In/Out

SIZE / WEIGHT

• Length: 42.05 in (1068 mm)
• Width: 7.44 in (189 mm)
• Height: 11.46 in (291 mm)
• Weight: 47.0 lb (21.3 kg)

ELECTRICAL / THERMAL

• Input Voltage: AC 100–250V, 50/60Hz
• Maximum Power Consumption: 739W
• Operating Temperature: 5°F to 113°F (-15°C to 45°C)
