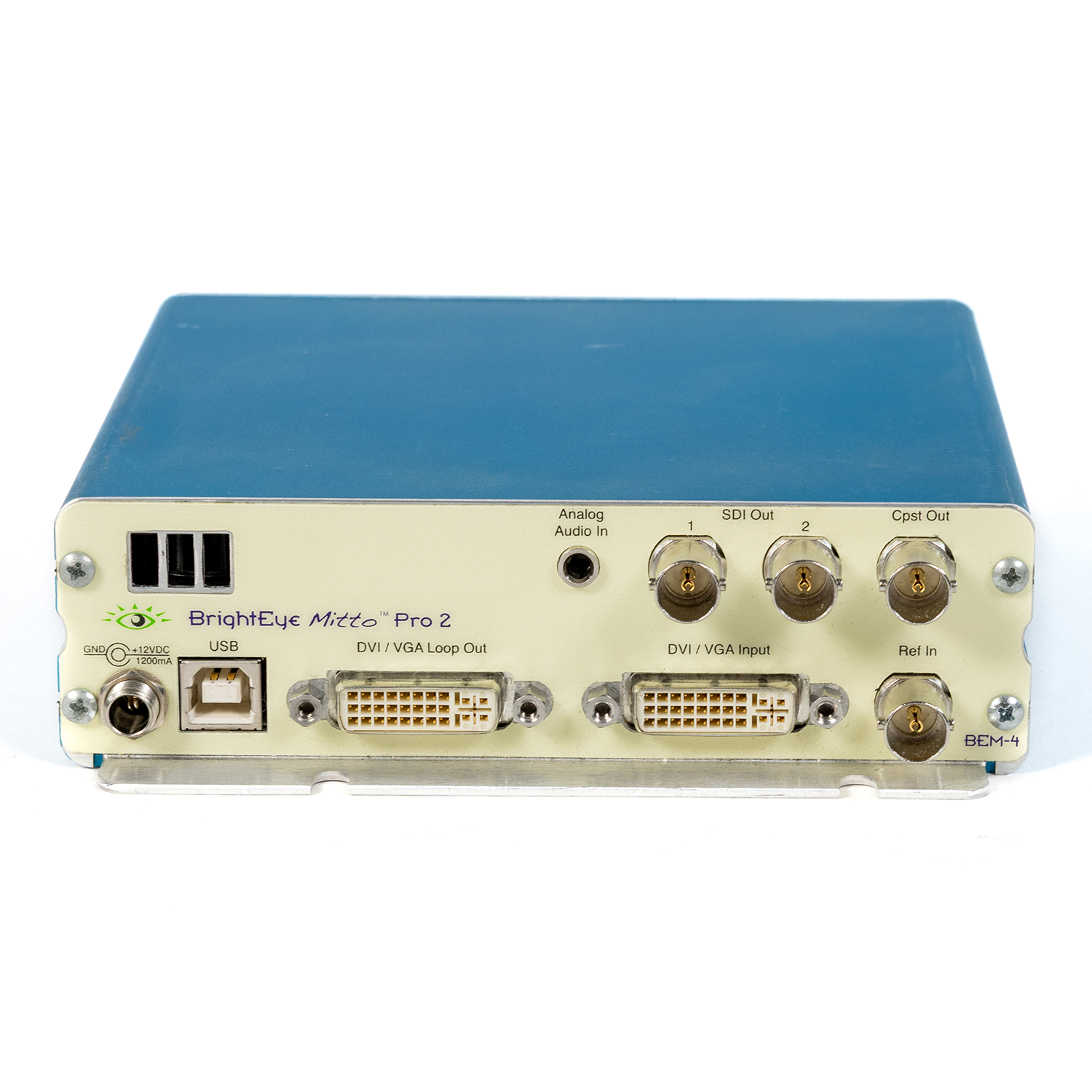

Ensemble Designs BEM-4 BrightEye Mitto Pro 2 Scan Converter

The BEM-4 BrightEye Mitto Pro 2 is a scan converter from Ensemble Designs that converts DVI video input into SDI and HD-SDI formats, while also allowing the user to select which part of the screen to output. VGA and HDMI input are also supported, but require the use of additional adapters; this unit comes with two VGA to DVI adapters. Analog audio input is supported via a 3.5mm socket, and audio output can be embedded onto the SDI outputs.

The BEM-4, in conjunction with the included BrightEye Software for Mac and Windows, allows computer video to be used for the most demanding applications including broadcast, high-end military, medical, classroom, church, and corporate events. Even a small part of the screen, such as a Skype window, can be selected with a mouse and converted to full screen HD. Resize the selection window by clicking and dragging with your mouse. From your desktop, you have intuitive control over video and audio parameters. The BEM-4 provides the functionality and control to operate as a router or switcher.

• HDCP Supported
• Converts DVI input to SDI and HD-SDI video output
• Users can select specific areas of the video input to send to the output
• Supports VGA and HDMI I/O with optional adapters
• Includes two (2) DVI to VGA adapters
• Auto senses DVI or VGA
• Proprietary scaling and filtering system provides maximum detail, flicker-free video output
• Used with Mac and Windows devices including laptops, iPhone, and iPad
• Intuitive front-panel controls
• Easily adjust video parameters and select video output format
• Genlock and Time-to-House Reference, fully timeable
• Rack-mountable
• Memory presets for your favorite settings
