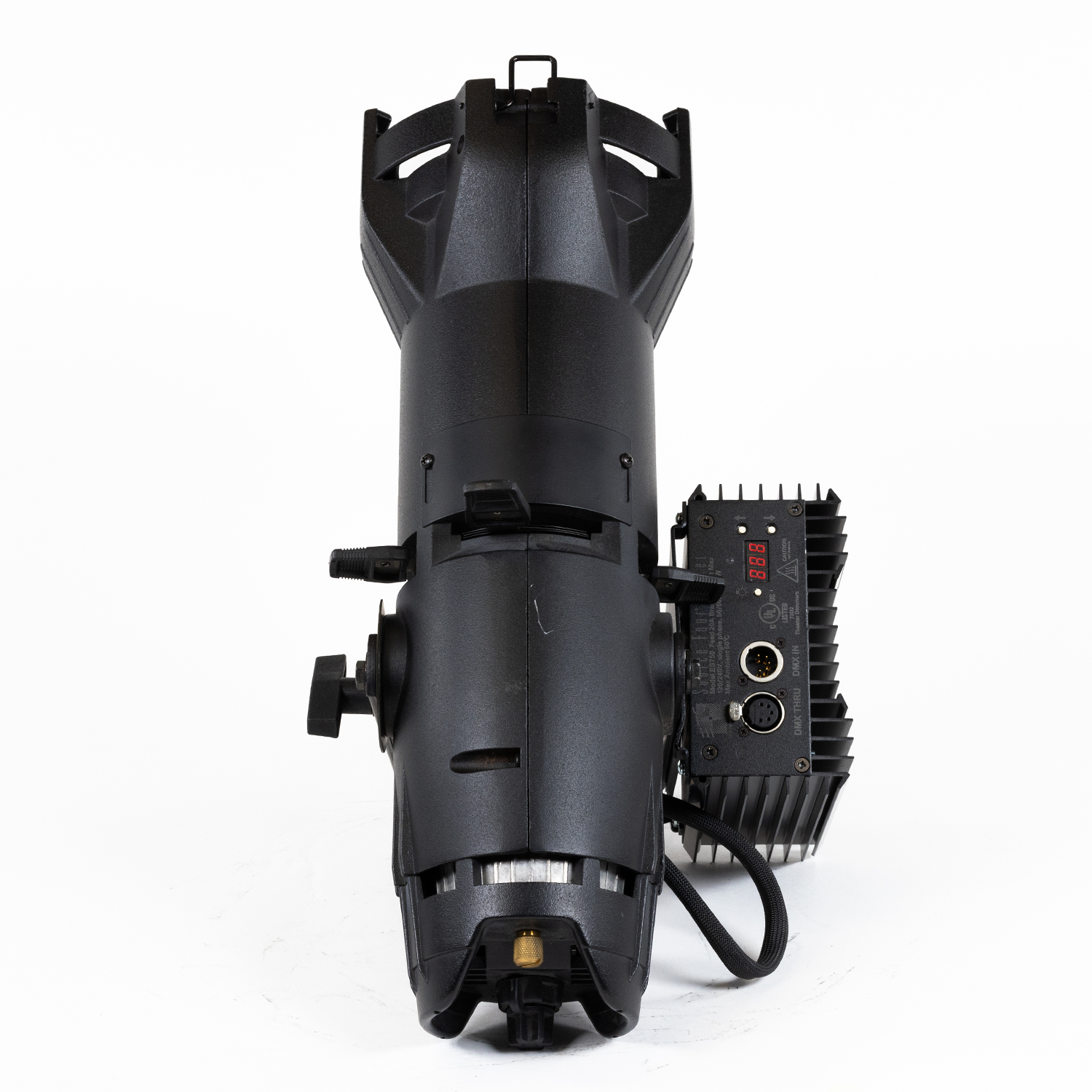

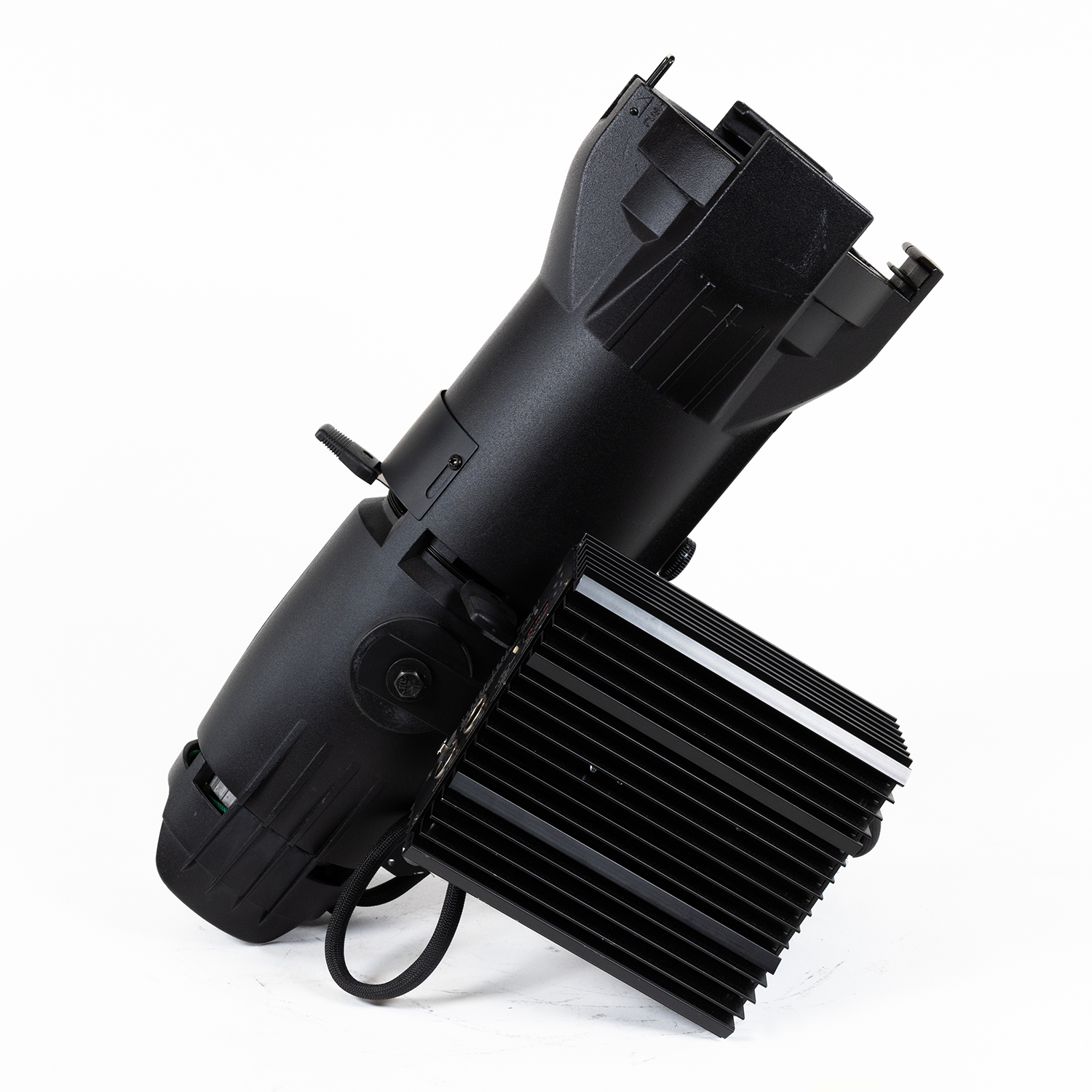

ETC Source Four Jr. 50-Degree Ellipsoidal with ES750 Silent Dimmer

Source Four Jr. 50-Degree Ellipsoidal

Compared to many conventional 650W and 1000W ellipsoidal spotlights, Source Four jr's 575 watts still deliver an even brighter light and offer the flexibility of multiple HPL lamp options and interchangeable lenses. The Source Four jr is perfect for -- but never limited to -- smaller theater venues, churches, schools, industrials, and any other application where affordability, space-savings and great performance are the criteria.

ES750 Silent Dimmer

Using ETC’s Electronic Silent* (ES) technology and a convection cooled design, this high-performance dimmer can be used with any 750W or less tungsten fixture. By taking DMX control signals directly, this self-dimming tungsten fixture can now reside alongside LEDs and moving lights, allowing system designs to focus on switched power and data distribution instead of centralized dimming systems.

Source Four Jr. 50-Degree Ellipsoidal

• 50º fixed-field angle
• Rated up to 575W
• Super-efficient HPL lamp
• Interchangeable lens assemblies
• Faceted dichroic reflector removes 90% of IR heat from beam
• Two-plane stainless-steel shutter blade assembly
• Tool-free lamp adjustment
• Rugged die-cast aluminum construction
• Accepts M-size gobos and drop-in iris
• Supports ETC Dimmer Doubling™ (North America only)

ES750 Silent Dimmer

• ES Dimming technology
• Produces no lamp noise (exceeds all risetime specs)
• Electronics sound-pressure level less than 0dBA at 1meter
• Convection-cooled
• ANSI E1.20 RDM and ANSI E1.11 DMX512A
• Yoke-mount and pipe-mount brackets included, direct mounting on a fixture yoke or to a pipe in multiple orientations to accommodate maximum flexibility (C-Clamps sold separately)
• One-press dim to FULL for easy focusing (press again to release to DMX input)
• Up and down level control
• Returns to previous level after power loss
