As the first member of this series, Solidcom M1 is your go-to choice for micro-mid events with a capacity from 100 to 1000 guests, including church events, electronic field productions, exhibitions, concerts, etc.
Solidcom M1 is a new generation 1.9GHz full-duplex professional wireless intercom system that supports 8-channel belt packs simultaneous communication and cascade connection of multiple devices. Featuring a built-in panel antenna, the base station of Solidcom M1 can achieve 400m one-way transmission range fronting the panel and an extra 50m range at the back. The auxiliary external FRP antenna are endowed 300m reliable transmission in 360-degree radius range.
Specifications
Base Station
Interface: POE Interface (RJ45) | Power Supply Interface (RJ45) | 4-Wire Audio Interface | USB Interface| 2-Wire Audio Interface
Power Supply: POE Power Supply | NP-F Battery
Frequency Response: 200Hz to 7kHz
Signal-to-Noise Ratio: >50dB
Distortion: <1%
Transmission Range: 1,300ft (400m) LOS
Frequency Band: 1.9GHz
Modulation Mode: GFSK
TX Power: Maximum 21dBm
RX Sensitivity: ≤–93dBm
Frequency Bandwidth: 1.728MHz
Power Consumption: <3W
Dimensions (L x W x H): 255.5mm x 180.4mm x 48.5mm (10" x 7.1" x 1.9")
Weight: About 1560g (55oz)
Temperature Range: 0 to 45℃ (Working Status) | –20 to 60℃ (Storage Status)
Dimensions (L x W x H): 105mm x 65mm x 22.4mm (4.1" x 2.5" x 0.9")
Weight: About 200g (7.05oz)
Temperature Range: 0 to 45℃ (Working Status) | –20 to 60℃ (Storage Status)
What's Included
(1) Solidcom M1 Main Station

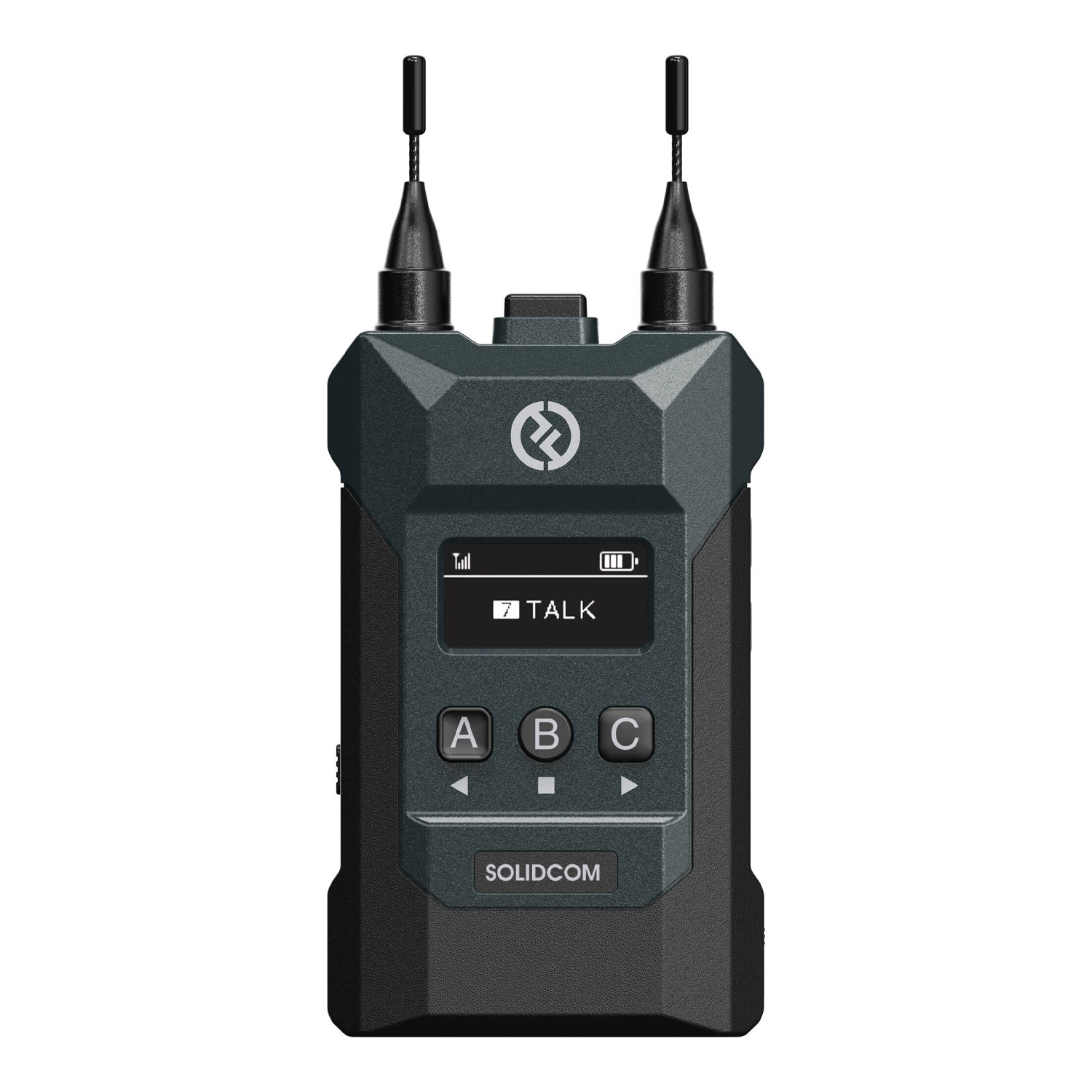

(8) Solidcom M1 Beltpack
(16) Solidcom M1 Beltpack Battery

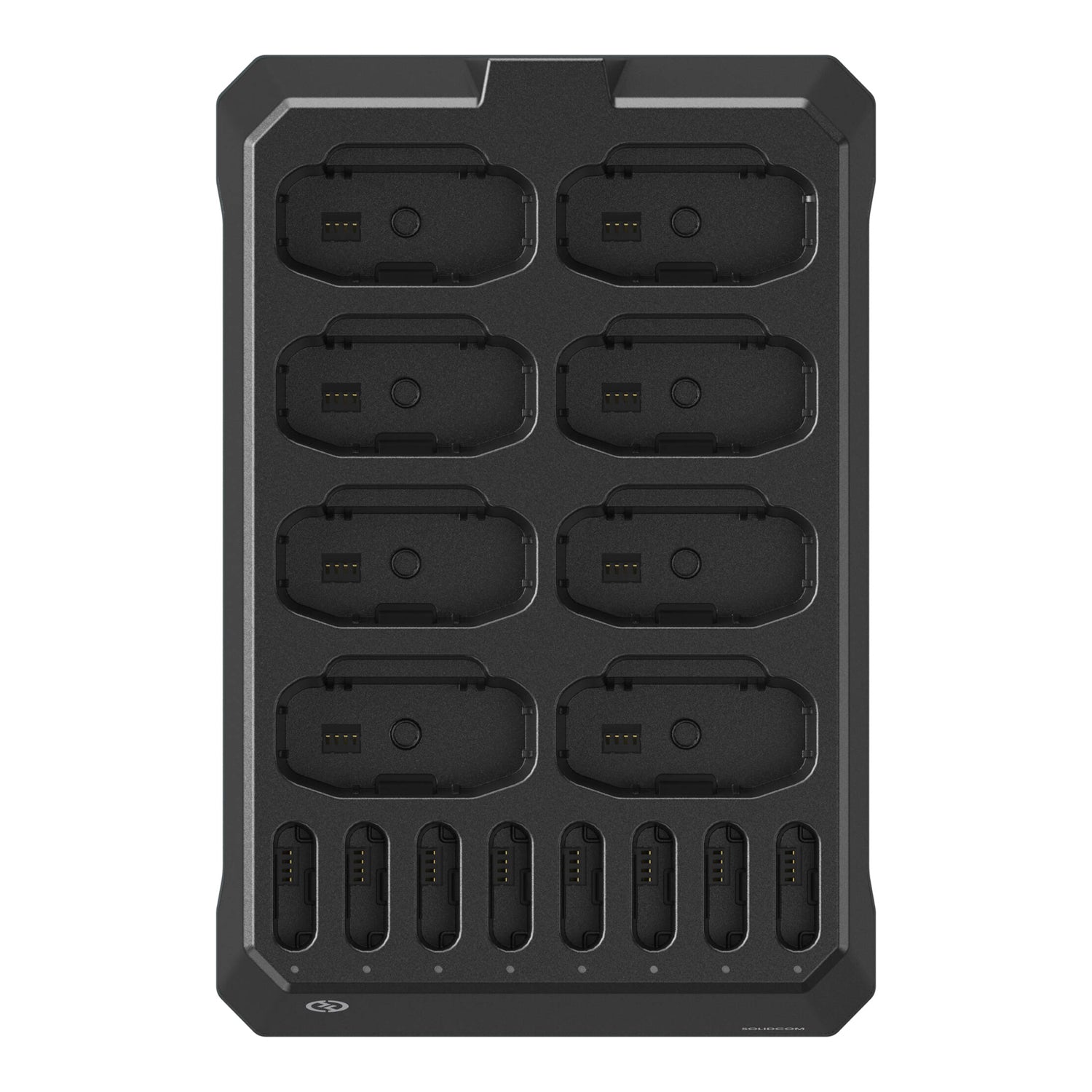

(1) Solidcom M1 Charging Base
(2) Solidcom M1 Omnidirectional Antenna

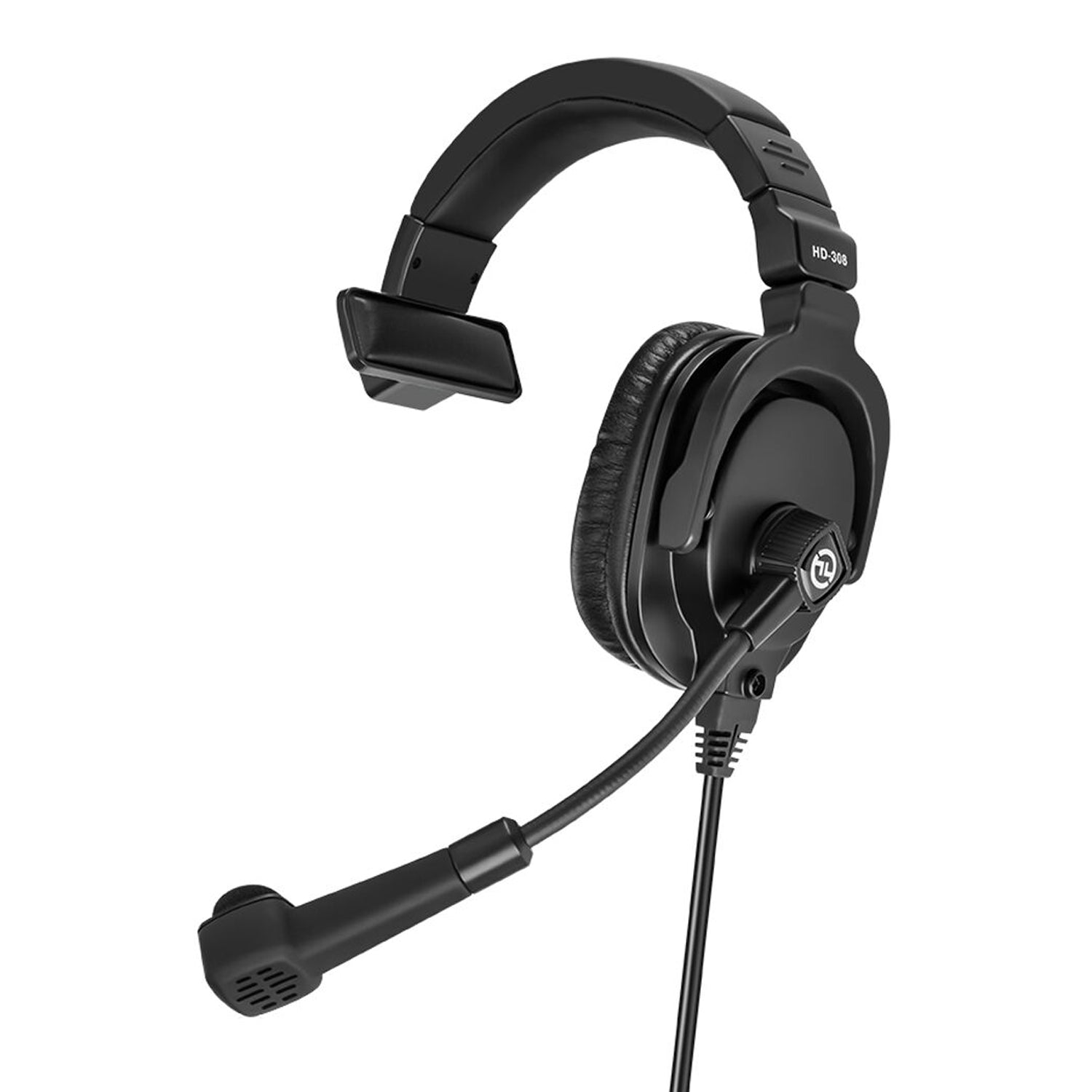

(8) Solidcom M1 Single-Ear Headset with 8-Pin LEMO
(1) Baby Pin (f) - 3/8" Thread (m) Adapter
(1) Solidcom M1 Station PoE Power Supply
(1) Solidcom M1 Charging Base Power Supply (4-Pin XLR)
