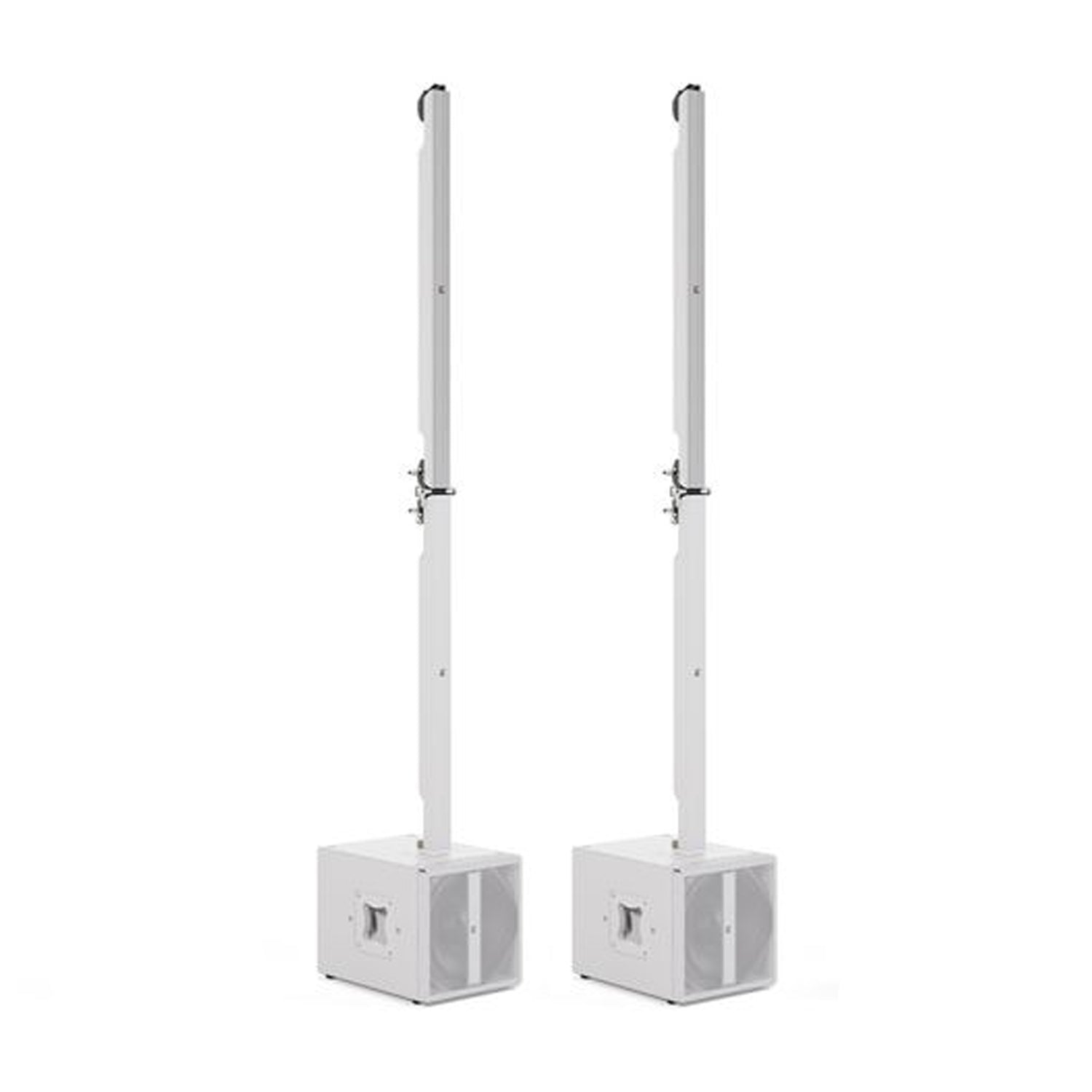

K-Array Event-KREV101 System (White)

The Event-KREV101 is the base element of K-Array's Event Series. The all-white mono column combines a Kobra-KK102 loudspeaker for uniform coverage with a Thunder-KMT12 subwoofer for low-frequency reinforcement. Designed for speech and background music applications, the system can operate as a standalone solution or serve as a modular building block within larger Event Series deployments.

• Pure Array Technology (PAT) column design
• Selectable vertical coverage modes
• Integrated DSP processing
• Modular Event Series system architecture
• Concealed cable management through column support pole

Type

• Line array

Transducers

• 16 × 2" neodymium magnet woofers

Frequency Response

• 150 Hz – 18 kHz (-6 dB)

Rated Power

• 400 W

Maximum SPL

• 126 dB Peak

Nominal Impedance

• 8 Ω / 32 Ω selectable

Crossover

• External crossover required

Coverage

• Vertical: 7°–35° selectable
• Horizontal: 120°

Connectivity

• SpeakON NL4
• 1+ / 1- (signal)
• 2+ / 2- (through)

IP Rating

• IP54

Compliance

• EN 54-24:2008 compliant

Dimensions (W × H × D)

• 59 × 1000 × 81 mm (2.3 × 39.4 × 3.2 in)

Weight

• 4.8 kg (10.6 lb)

Available Finishes

• Black
• White
• Custom RAL colors
• Brushed finish
• Polished finish
• 24K gold finish

Thunder-KMT12 Powered Subwoofer

Type

• Point source subwoofer

Transducer

• 12" neodymium magnet woofer

Frequency Response

• 45 Hz – 150 Hz (-6 dB)

Maximum SPL

• 131 dB Peak

Coverage

• Omni

Amplifier Section

Amplifier Type

• 2-channel switch-mode Class-D

Rated Output Power

• 2 × 1000 W @ 8 Ω

Power Consumption

• 300 W (1/8 rated power, pink noise)

Connectivity

• SpeakON NL4
• 1+ / 1- (signal)
• 2+ / 2- (through)

Environmental Rating

• IP40
• IP43 with K-AMPCOVER

Dimensions (W × H × D)

• 326 × 327 × 436 mm (12.8 × 12.9 × 17.1 in)

Weight

• 15.6 kg (34.4 lb)

Available Finishes

• Black
• White
• Custom RAL colors

System Applications

• Corporate AV
• Presentations and speech reinforcement
• Hospitality and event venues
• Houses of worship
• Background music systems
• Rental and production applications
• Portable sound reinforcement systems

Technology

• Pure Array Technology (PAT)
• Modular Event Series architecture
• Selectable vertical coverage control
• Compact column-array format
• Integrated powered subwoofer platform

Notes

• Frequency response specifications measured using dedicated presets.
• Maximum SPL ratings calculated using a crest factor of 4 (12 dB) at 1 meter and exclude power compression effects.
