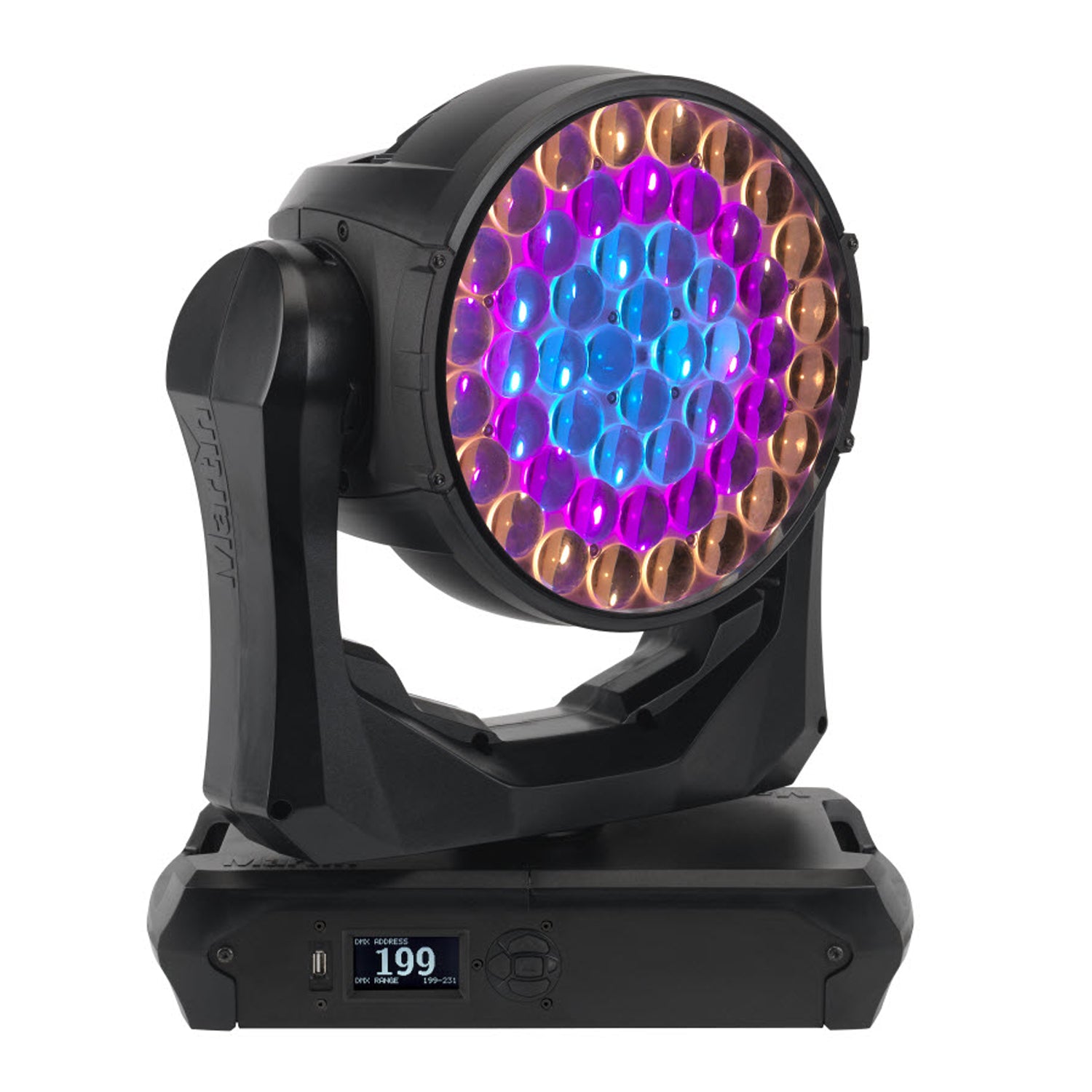

Martin MAC Quantum Wash

The MAC Quantum Wash features tight beams, beautiful wash fields, a market-leading color palette, and uniform mixing that combines to accommodate the most demanding applications, offering brightness and perfection. Combining an impressive 750 watt of RGBW LED power with Martin’s market leading optical system ensures that the 1:5 zoom on the MAC Quantum Wash operates with maximum output and superior performance.

• RGBW LED color mixing with unique and expressive Colorganics™ system for superior default white and deep saturated colors
• 1:5 zoom for tight beams and even washes
• Beam twister effects: Rotating front lens for stunning mid-air and projection effects

PHYSICAL

• Length: 452 mm (17.8 in.)Width: 431 mm (17.0 in.) across yoke
• Height: 511 mm (20.1 in.) head straight up | 581 mm (22.9 in.) maximum
• Weight: 21 kg (46.3 lbs.)

DYNAMIC EFFECTS

• Pre-programmed effects: Range of synchronized and independent color, intensity, beam twister and zone effects
• Color mixing: RGBW
• Beam effects: Beam twister, light and color morphing, color spin
• 'Color wheel' effect: 36 solid colors plus white, variable-speed 'color wheel rotation' effect and random color
• Color ring effects: 36 split ring colors with variable-speed color wheel rotation effects
• Shutter effect: Electronic, with variable speed regular and random strobe
• Color temperature control: Variable 2000 - 10,000 K
• Electronic dimming: Four dimming curve options
• Zoom: Motorized
• Pan: 540°
• Tilt: 270°
• Pan and tilt speed: Adjustable via onboard control panel and DMX

CONTROL AND PROGRAMMING

• Control systems: DMX
• Control resolution: 8-bit, with 16-bit control of pan, tilt, dimming and lens rotation
• DMX channels: 33/17
• DMX compliance: USITT DMX512-A
• RDM compliance: ANSI/ESTA E1.20
• Control options: Independent control of color ring/beam zones
• Macro programs selectable via DMX: Range of synchronized and independent color, intensity, beam twister and zone effects
• RDM: Implemented
• Setting and addressing: Control panel with backlit graphic display
• Transceiver: RS-485
• Fixture software update: USB memory device or USB/DMX hardware interface over DMX link

OPTICS

• Zoom range: 11–53° (1:5)
• Light source: 50 x 15 W RGBW LEDs
• Minimum LED lifetime: 50,000 hours (to >70% luminous output)
• LED refresh rate: Beam 3000 Hz, Aura 3000 Hz
• Output: 16,000 lm
• Color Modes: Extended Mode and Calibrated Mode
• Binning: Tight color and flux binning
• Calibration: Full Gamut Color Calibration

CONSTRUCTION

• Housing: High-impact flame-retardant thermoplastic
• Color: Black
• Protection rating: IP20

INSTALLATION

• Mounting points: 2 pairs of quarter-turn locks
• Location: Indoor use only, must be fastened to surface or structure
• Orientation: Any
• Minimum distance to combustible materials: 0.2 m
• Minimum distance to illuminated surfaces: 2.0 m

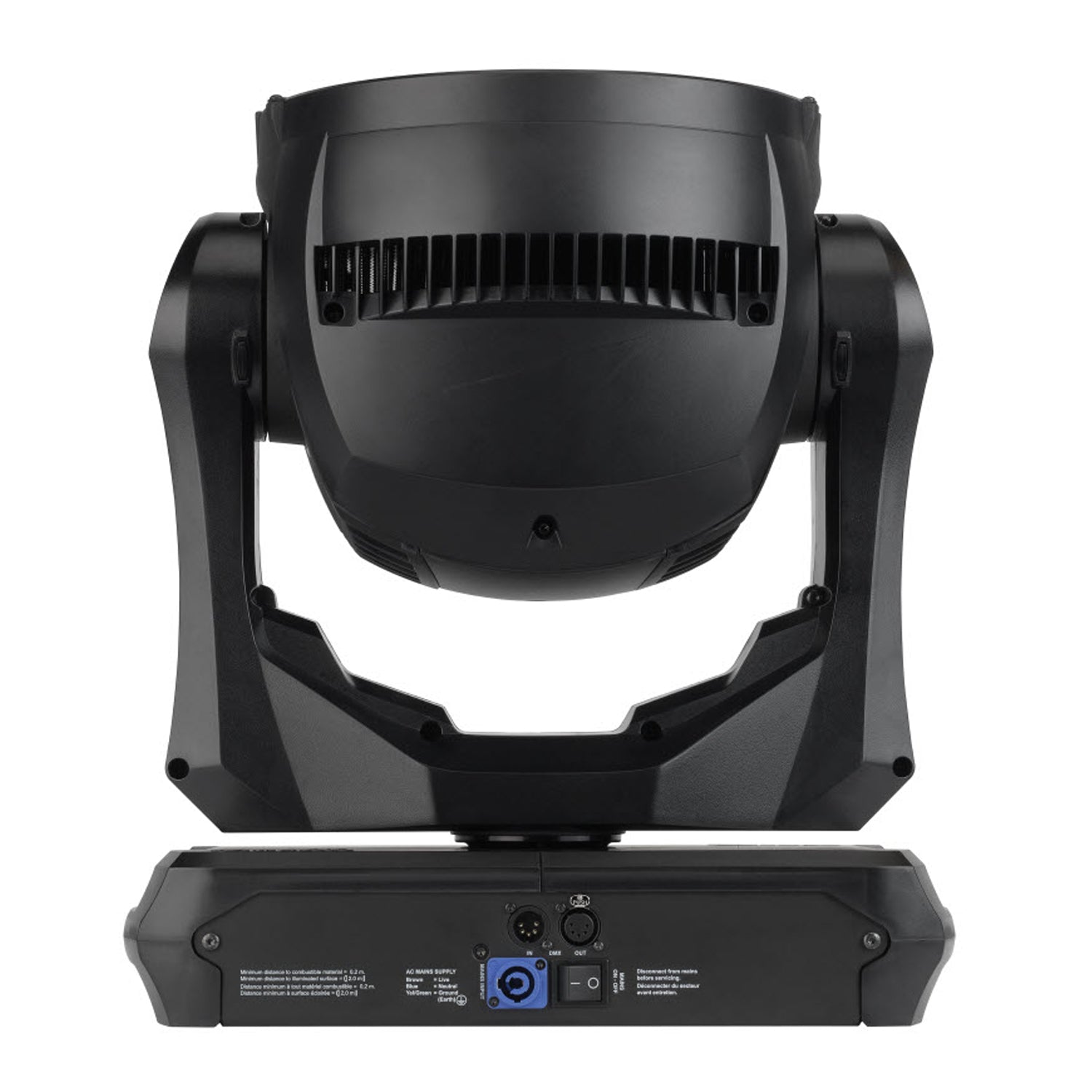

CONNECTIONS

• AC power input: Neutrik PowerCon
• DMX and RDM data in/out: 5-pin locking XLR

ELECTRICAL

• AC power: 120-240 V nominal, 50/60 Hz
• Power supply unit: Auto-ranging electronic switch mode
• Typical half-cycle RMS inrush current: 10.3 A
• Typical power consumption, all effects static, zero light output: Approx. 50 W
• Maximum total power consumption: 1020 W

TYPICAL POWER AND CURRENT

• 120 V, 60 Hz: 7.4 A, 880 W, PF 0.999
• 208 V, 60 Hz: 4.2 A, 860 W, PF 0.995
• 230 V, 50 Hz: 3.8 A, 856 W, PF 0.993
• 240 V, 50 Hz: 3.7 A, 858 W, PF 0.992
• Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%.

THERMAL

• Cooling: Forced air (temperature-regulated, low noise, user-definable levels)
• Total heat dissipation (calculated, +/- 10%): 3480 BTU/hr.
• Maximum ambient temperature (Ta max.): 40° C
• Minimum ambient temperature (Ta min.): 5° C
