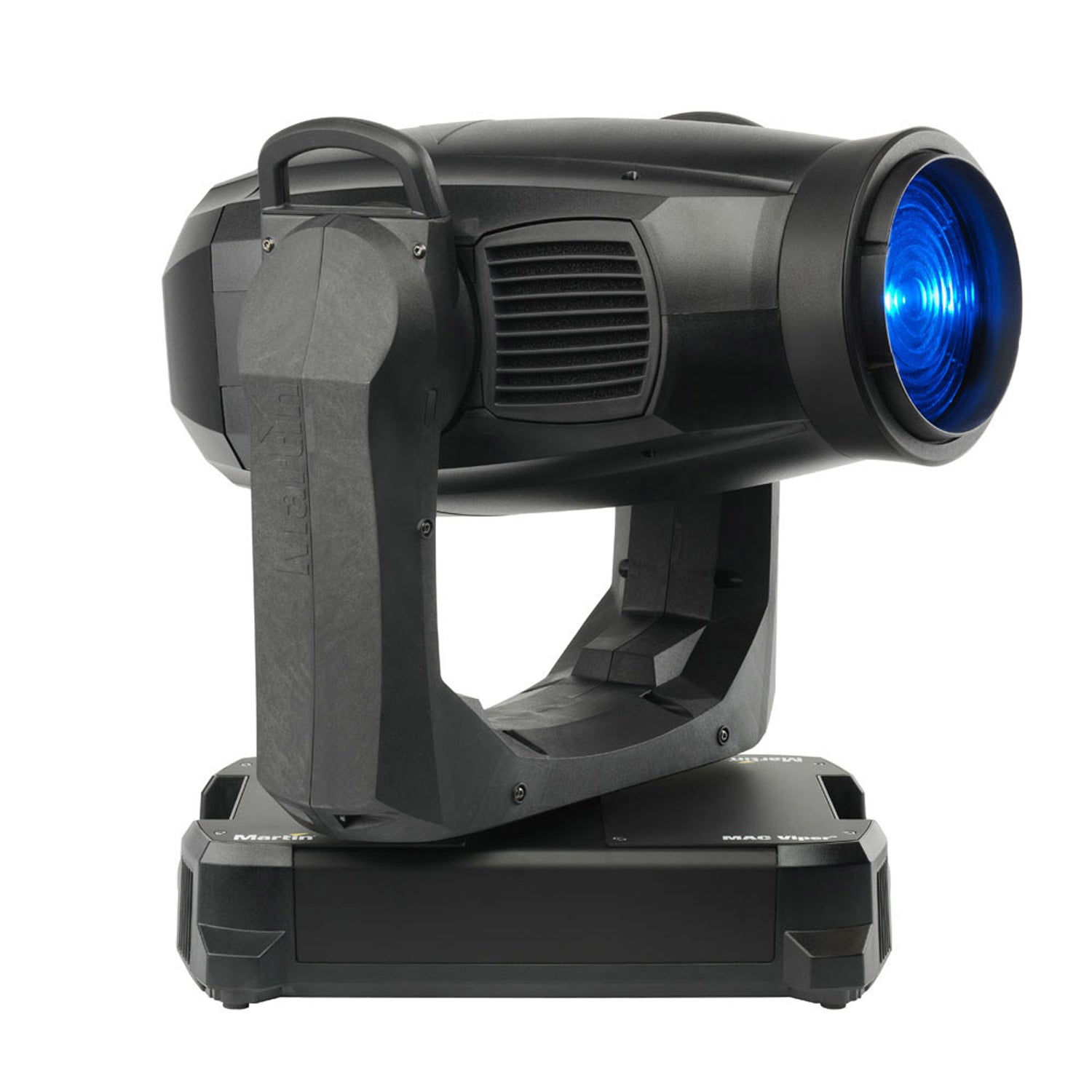

Martin MAC Viper Wash DX
Features
- 33000 Lumens – Excellent light quality with a uniform field and 6000K color temperature
- 1:5 zoom - Continuous and fast
- Internal barndoor system – 1 pair of indexing shutters
- CMY – Vibrant color mixing with a superior palette of colors including true reds, rich ambers, primary green and deep blues
- Linear CTO – Daylight to tungsten CCT control and expansion of the CMY palette
- 7-slot color wheel – Static colors and correction filters for added color choice and bump effects
- Dimmer and shutter - Combined dimmer/shutter system with intensity effects, instant blackout/open and smooth fades
- Iris – Fast and tight iris with adjustable dynamic effects, complementing the barndoor system
- Diverse strobe effects
Description
The MAC Viper Wash DX is a full-feature, full-range wash luminaire with a unique internal barndoor system (shutters) that enables designers to shape and control light projection onto stages, performers, scenery, scrims or any set element with great precision. The fixture’s internal framing system makes it a highly capable, automated substitute for a conventional daylight Fresnel fixture.
The MAC Viper Wash DX features an outstanding quality of light with unlimited color choices and maintains near full efficiency throughout its entire zoom range with no visible beam jump when zooming from tight to wide. The fixture has adopted the compact form, impressive speed, superior light quality and beautiful colors that the MAC Viper Profile is renowned for and uses the same 1000-watt lamp.
Specifications
PHYSICAL
- Length: 472 mm (18.6 in.) base 566 mm (22.3 in.) head
- Width: 473 mm (18.6 in.) 335 mm (13.2 in.) base
- Height: 732 mm (28.8 in.) head straight up 749 mm (29.5 in.) maximum
- Weight: 34.1 kg (75.2 lbs.)
- Minimum center-to-center distance in side-by-side installation: 650 mm (25.6 in.)
DYNAMIC EFFECTS
- Color mixing: CMY, independently variable 0 - 100%
- Color wheel: 7 interchangeable dichroic filters + open, indexing, continuous rotation, random color
- Beam shaping: Internal barn doors, continuously variable opening, indexed rotation
- Iris: 0 - 100%, pulse effects
- Mechanical dimmer/shutter: 0 - 100% continuous dimming, variable & random strobe & pulse effects, instant open & blackout
- Color temperature control: CTO, variable 6000 - 3200 K
- Dimming options: Choice of four dimming curves
- Zoom: Motorized
- Pan: 540°Tilt: 268°
- Position correction system: Absolute position monitoring
CONTROL AND PROGRAMMING
- DMX channels: 18/24
- DMX compliance: USITT DMX512-A
- RDM compliance: ANSI/ESTA E1.20
- 16-bit control: Dimmer, pan, tilt
- Setting and addressing: Control panel with backlit graphic display and jog wheel or via DMX
- Receiver: Opto-isolated RS-485
- Firmware update: USB memory device or USB/DMX hardware interface over DMX link
OPTICS
- Zoom range: 13.5° - 59° (1:5)
- Color temperature: 6000 K
- Output: 33,000 lumens
LAMP
- Type: 1000 W short-arc discharge
- CRI (Color rendering index): >85
- Average lifetime: 750 hours
- Socket: SPGJX36
- Ballast: Electronic
- Approved lamps: Osram Lok-it! 1000/PS Brilliant, Osram Lok-it! 1000W/PS VS1, Philips MSR Gold MiniFastFit 1000W
SERVICE UTILITIES
- Fixture identification: User-settable fixture ID number
CONSTRUCTION
- Housing: UV-resistant fiber-reinforced composite
- Color: Black
- Reflector: Glass, cold light
- Protection rating: IP20
INSTALLATION
- Mounting points: Eight quarter-turn locking points
- Orientation: Any
- Minimum distance to combustible materials: 0.3 m (1.0 ft.)
- Minimum distance to illuminated surfaces: 3.4 m (11.2 ft.)
CONNECTIONS
- AC power input: Neutrik PowerCon
- DMX and RDM data in/out: 5-pin locking XLR
- USB memory devices: USB host socket
ELECTRICAL
- AC power: 120-240 V AC nominal, 50/60 Hz
- Power supply unit: Auto-ranging electronic switch mode
- Typical half-cycle RMS inrush current at 230 V, 50 Hz: 16.2 A
- Power Factor: 0.99 @ 120 V / 208 V / 230 V / 240 V
- Typical current draw: 10.3 A @ 120 V , 5.8 A @ 208 V , 5.2 A @ 230 V , 5.0 A @ 240 V
- Power Consumption | Typical: 1225 W
THERMAL
- Cooling: Filtered forced air (temperature-regulated, low noise)
- Total heat dissipation (calculated, +/- 10% at 120 V, 60 Hz): 4180 BTU/hr
- Maximum surface temperature, steady state, at 40° C ambient: 150° C (302° F)
- Maximum ambient temperature (Ta max.): 40° C (104° F)
- Minimum ambient temperature (Ta min.): 5° C (41° F)
ENVIRONMENTAL
- RoHS: Compliant
- REACH: Compliant
- WEEE: Compliant
- Proposition 65: Compliant
- Efficacy (max output): 28
- LWR (Lumen-to-Weight Ratio): 967 lm/kg (438 lm/lb)
