Meyer Sound ULTRA-X20 Compact Wide Coverage Loudspeaker

AN EVOLUTION OF TRUSTED TECHNOLOGY

Meyer Sound’s ULTRA-X20 self-powered full-range loudspeaker brings state-of-the-art ULTRA‑X40 point source technology to a smaller, lighter footprint, ideal for installed and portable applications where size and weight are critical factors. Whether used as a compact main system or as fills or surrounds in a larger system, count on the ULTRA-X20 to deliver high power output, low distortion, and consistent polar response in any configuration.

SMALL AND MIGHTY

The ULTRA-X20 measures just 7.5 inches wide by 19.04 inches high by 8.6 inches deep, but packs a mighty punch. It features two 5-inch cone drivers and a 2-inch compression driver in concentric configuration for more consistent pattern control below the crossover point.

CUSTOMIZABLE COVERAGE

The ULTRA-X20 rotatable horn produces precise, even coverage regardless of orientation. It's available in three Constant-Q horn variants, for optimal coverage in any scenario. The ULTRA-X20 features a 110° x 50° horn, while the ULTRA-X22 provides more controlled 80° x 50° coverage and the ULTRA-X23’s horn provides a wider 110° x 110° coverage.

THE SOLUTION FOR COMPACT AUDIO EXCELLENCE

The ULTRA-X20 family is engineered with versatility in mind: as the foundation of a compact main system, or to supplement a larger system. Extend low-frequency power by pairing them with Meyer Sound’s USW‑112P subwoofer, 750‑LFC low-frequency control element, or USW‑210P subwoofer. Carefully tailored phase and frequency responses allow for quick and easy deployments when using ULTRA-X family products with LFC or USW products for portable applications.

READY FOR RIGGING

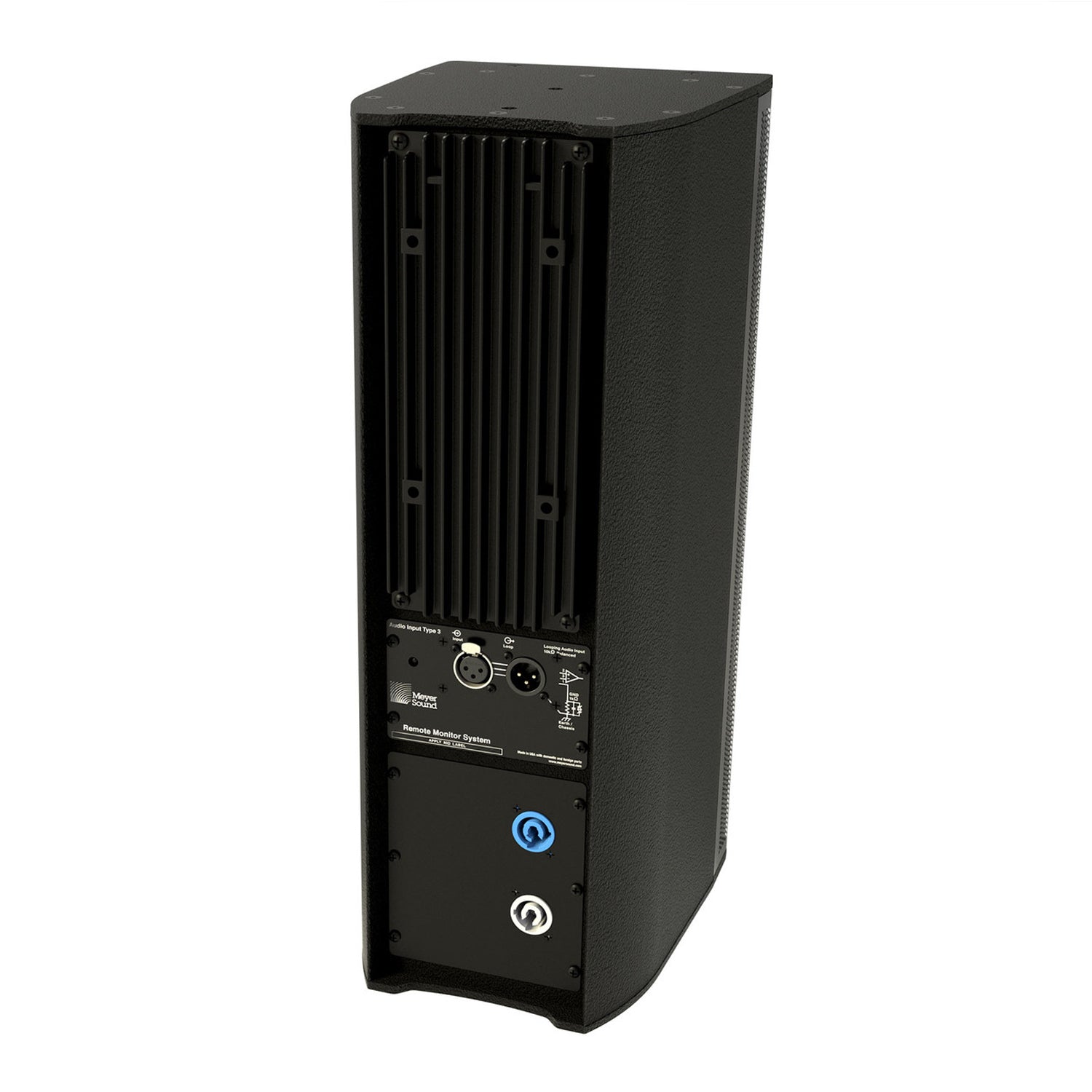

Four integral M8 rigging points allow a range of configurations including requiring pole mounting, hanging, wall mounting or ceiling mounting—in horizontal or vertical orientation, at any angle. Four M6 points on the heatsink are compatible with most industry-standard wall mount brackets. Optional accessories include a 35 mm-to-M8 pole adapter, U-bracket, yoke, and a pinnable link that facilitates hanging from a single pick-up point. The lightweight aluminum enclosure can be outfitted in optional weather protection and custom color finishes.

Acoustical

• Operating Frequency Range: 60 Hz – 18 kHz
• Frequency Response: 65 Hz – 17.5 kHz ± 4 dB
• Phase Response: 95 Hz – 18 kHz ±45°
• Linear Peak SPL: 127 dB with 20 dB crest factor
  (M-noise), 123.5 dB (Pink Noise), 125.5 dB (B-noise)

Coverage

• Rotatable horn: 110° x 50°

Transducers

• Low Frequency: Two 5-inch cone drivers; 6 Ω nominal impedance
• High Frequency: One 2-inch diaphragm compression driver connected to a rotatable horn; 8 Ω nominal impedance

Audio Input | Analog

• Type: Differential, electronically balanced
• Maximum Common Mode Range: ±15 V DC, clamped to earth for voltage transient
  protection
• Connectors: XLR 3-pin female input with male loop output; optional XLR 5-pin connectors to accommodate both balanced audio and RMS signals; XLR 3-pin TOP (Total Outdoor Protection) connectors on weather-protected units only.
• Input Impedance: 10 kΩ differential between pins 2 and 3
• Wiring: Pin 1: Chassis/earth through 1 kΩ, 1000 pF, 15 V clamp network to provide virtual ground lift at audio frequencies | Pin 2: Signal + | Pin 3: Signal | Pin 4: RMS (polarity insensitive) | Pin 5: RMS (polarity insensitive) | Case: Earth ground and chassis
• Nominal Input Sensitivity: 0 dBV (1.0 V rms) continuous is typically the onset of
  limiting for noise and music
• Input Level: Audio source must be capable of producing of +20 dBV (10 V rms) into 600 Ω to produce the maximum peak SPL over the operating bandwidth of the loudspeaker.

Audio Input | Digital

• Connectors: etherCON TOP

Amplifier

• Type: Three-channel, Class-D
• Total Output Power: 860 W peak
• THD, IM, TIM: <0.02%
• Cooling: Convection

AC Power

• Connector: powerCON 20 input with loop output; powerCON TRUE1 TOP with loop output on digital and weather-protected units
• Automatic Voltage Selection: 90–265 V AC, 50–60 Hz
• Safety Rated Voltage Range: 100–240 V AC, 50–60 Hz
• Turn-on and Turn-off Points: 90 V AC turn-on, no turn-off; internal fuse protection above 265 V AC

Current Draw

• Idle Current: 0.15 A rms (115 V AC); 0.13 A rms (230 V AC); 0.16 A rms (100 V AC)
• Maximum Long-Term Continuous Current (>10 sec): 0.9 A rms (115 V AC); 0.5 A rms (230 V AC); 1.1 A rms (100 V AC)
• Burst Current (<1 sec): 1.6 A rms (115 V AC); 0.8 A rms (230 V AC); 1.8 A rms (100 V AC)
• Maximum Instantaneous Peak Current: 3.5 A peak (115 V AC); 1.8 A peak (230 V AC); 4.1 A peak (100 V AC)
• Inrush Current: < 20 A peak

Remote Monitoring | Analog

• Optional RMS module: two-conductor twisted-pair
  network that reports all operating parameters of
  amplifiers to system operator’s host computer via the RMServer hardware unit.

Remote Monitoring | Digital

• Integrated monitoring via Compass Control Software

Physical

• Dimensions: W: 7.44 in (189 mm) x H: 19.04 in (484 mm) x D: 8.66 in (220 mm)
• Weight: 27 lb (12.3 kg)
• Enclosure: Aluminum with slightly textured black finish
• IP Rating: Weather-protected version rated IP54. See the ULTRA-X20 Operating Instructions available at meyersound.com/documents for details.
• Protective Grille: Powder-coated, round-perforated steel
• Rigging: Two integrated M8 threaded points on each end; optional accessories for various rigging options; four M6 threaded holes with 5-inch by 2.75-inch (127 mm by 70 mm) hole pattern on the rear for use with third-party wall mounts.
