Panasonic AK-UCU600 Camera Control Unit

With the AK-UCU600 Camera Control Unit (CCU), uncompressed longdistance transmission of 4K/HD video signals via optical fiber is supported. The AK-HRP1000GJ/1005GJ Remote Operation Panels (ROP) are equipped with a color LCD display that provides excellent visibility and functions for quick response. This system achieves high-quality video and excellent operability. In cases where power is supplied by the CCU, it is possible to transmit at a long distance of up to approx. 2,000 m between the camera and the CCU. The distance can be extended up to 10,000 m by providing a local power supply at the camera head and using general-purpose single mode optical fiber. Between the CCU and the ROP, in addition to a dedicated serial line, IP connection via LAN cable is also supported.

Power supply

• AK-UCU600P/AK-UCU600PS: 100 V - 120 V AC (52713.png), 50 Hz/60 Hz
• AK-UCU600E/AK-UCU600ES: 100 V - 240 V AC (52722.png), 50 Hz/60 Hz

Power consumption

• 500 W (Without camera connected: 90 W)

Capacity for supplying power to a camera

• 240 V AC (52840.png), 1.46 A , 50 Hz/60 Hz

Operating temperature

• 0 °C to 40 °C (32 °F to 104 °F)

Humidity

• 10% to 90% (no condensation)

Dimensions (W×H×D)

• 424 mm × 88 mm × 401 mm (16-5/8 inches × 3-7/16 inches × 15-13/16 inches) (excluding protrusions)

Weight

• Approx. 8.9 kg (19.6 lb)

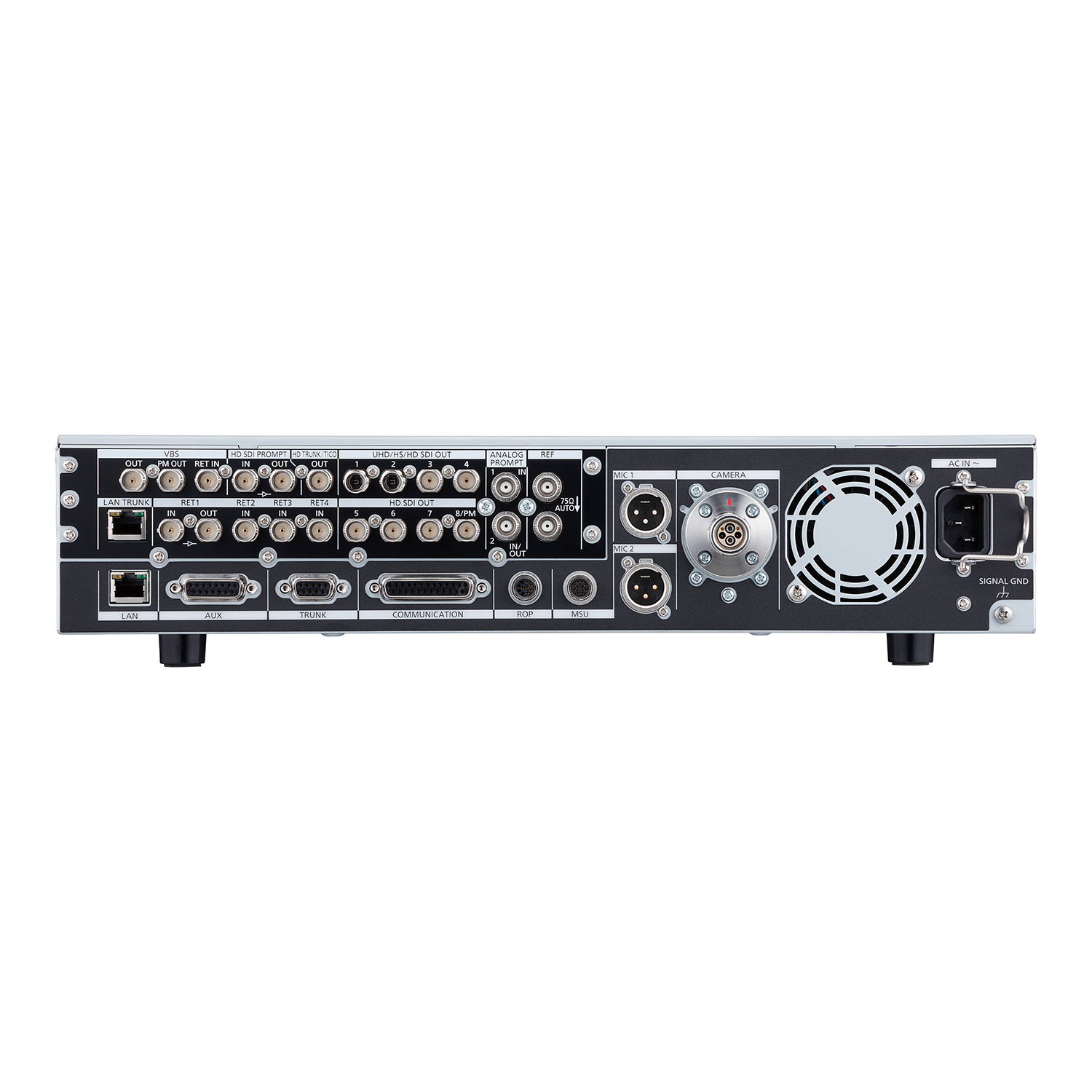

Video output

• 3G/HD-SDI: 5 lines (embedded audio is supported only for HD signals)
• 12G/6G/3G/HD-SDI: 2 lines
• HD-SDI: 1 line (shared with picture monitor output*2)
• Analog composite: 2 lines (1 line shared with picture monitor output*2)

HD TRUNK/TICO output

• When HD TRUNK - HD-SDI, when TICO - 3G/HD-SDI: 1 line

Return input

• 3G-HD/HD/SD-SDI: 4 lines (RET1 input has active-through output)
• Analog composite: 1 line

Prompter input

• HD-SDI: 1 line (with active-through output)
• Analog composite: 2 lines (through output of 1 and input of 2 share the connector*2) It is not terminated when the unit is turned OFF. No through output.

Reference input

• BB (black burst) / tri-level*1: 1 line (automatic termination, connect to upper connector; BB signal and tri-level signal automatically recognized, with loop-through output)

Microphone output

• 0 dBm/600 Ω: 2 lines (XLR, 3-pin, male)

Communication

• Intercom input/output (ENG / PROD, 0 dBm, 600 Ω (4 W) / 1 V [p-p], 200 Ω (RTS), 4 W / RTS / CLRCOM): 2 lines*2
• PGM input (0 dBm/600 Ω): 2 lines
• Tally input (red, green, yellow): 1 input each

AUX

• WFM control: 6-bit (open collector output, terminal shared with camera microphone gain setting*2)
• Camera microphone gain setting input: 5-bit (photo-coupler input, terminal shared with WFM control*2)
• Down-conversion system setting input: 2-bit (photo-coupler input)

TRUNK

• RS-422 / RS-232C: 2 lines*2

FRONT ROP

• RS-422: 1 line, 16 V DC output (only one of this and REAR ROP can be selected at one time via the menu or the [ROP FRONT/REAR] selection switch on the front panel)

REAR ROP

• RS-422: 1 line, 16 V DC output (only one of this and FRONT ROP can be selected at one time via the menu or the [ROP FRONT/REAR] selection switch on the front panel)

MSU

• RS-422: 1 line, GPI for control

LAN TRUNK

• LAN connection with camera side via an optical cable*3: 1 line, 100BASE-TX, 1000BASE-T

LAN

• Personal computer connection for distribution via the Web*3: 1 line, 10BASE-T, 100BASE-TX (use a crossover cable when connecting directly with a personal computer)

*1 The BB (black burst) signal and tri-level sync signal of the reference input are recognized automatically.

*2 Depending on the setting, only one of them can be selected at one time.

*3 IP video is cannot be transmitted when [CCU MODE] is set to [2160/23.98p], [2160/23.98psf], [1080/23.98p], or [1080/23.98psF].
