Panasonic AV-HS410 Live Production Switcher

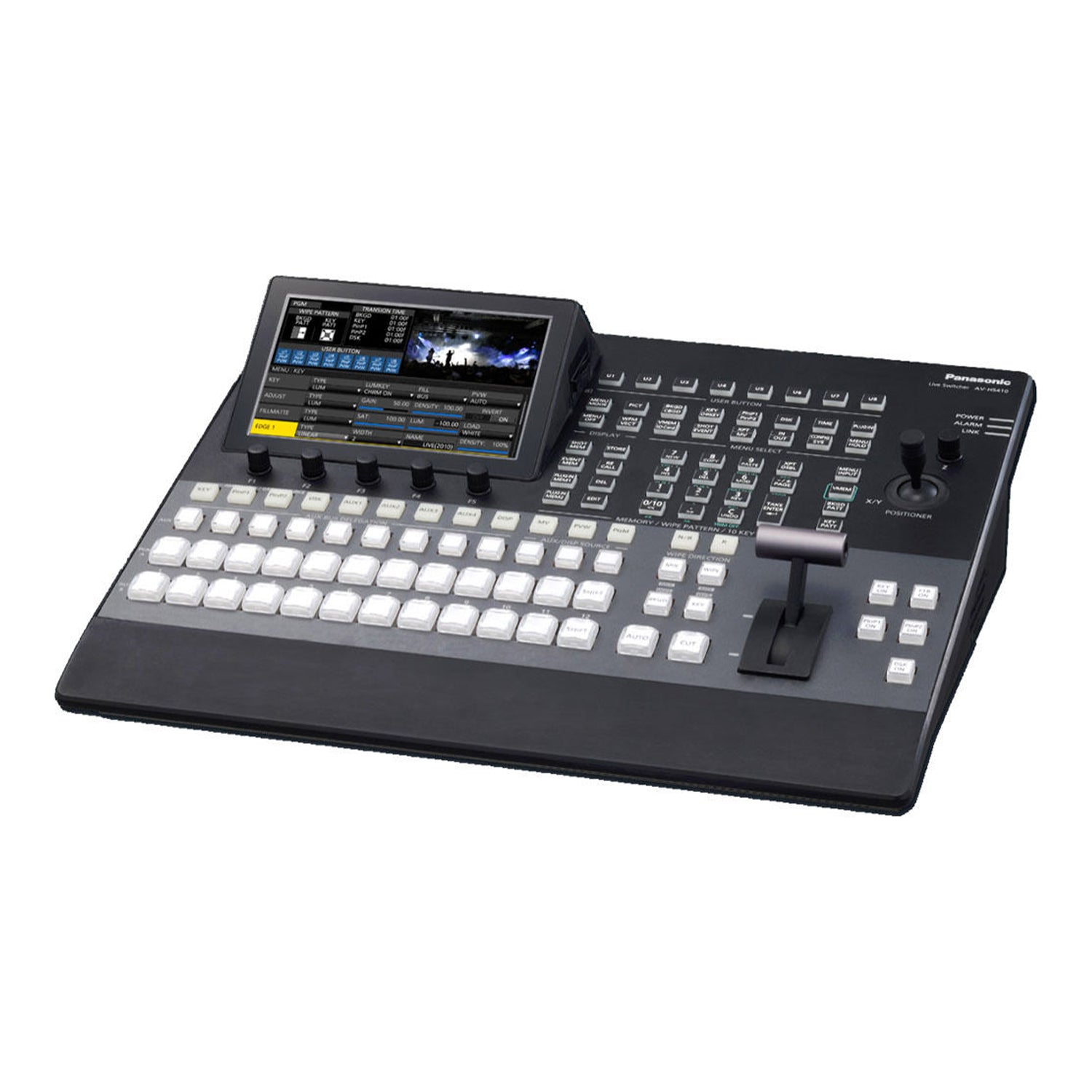

The AV-HS410 is an HD/SD selectable 1ME Switcher that rivals many high-end switchers by incorporating a host of inputs and outputs, effects and system expandability into its compact, 19 type, half-rack size. It comes standard with 9 inputs and can increase a maximum capacity of 13 inputs when optional boards are mounted. It provides versatile effects, including transitions with digital video effects and Primatte® chroma keying. Its 177.8 mm (7 inches) color LCD monitor improves operability by an easy-to-see setting screen, new video memory, Memory Preview, enhanced MultiViewer functions, and a button layout that is designed to simplify live relay operation.

• Expandable architecture with optional input/output interface boards
• Flexible AUX bus assignment and customizable output routing
• SDHC/SD card support for storing still images and switcher settings
• Built-in frame synchronization and up-conversion support on selected SDI inputs
• Compact 19-inch half-rack form factor for mobile and fixed installations

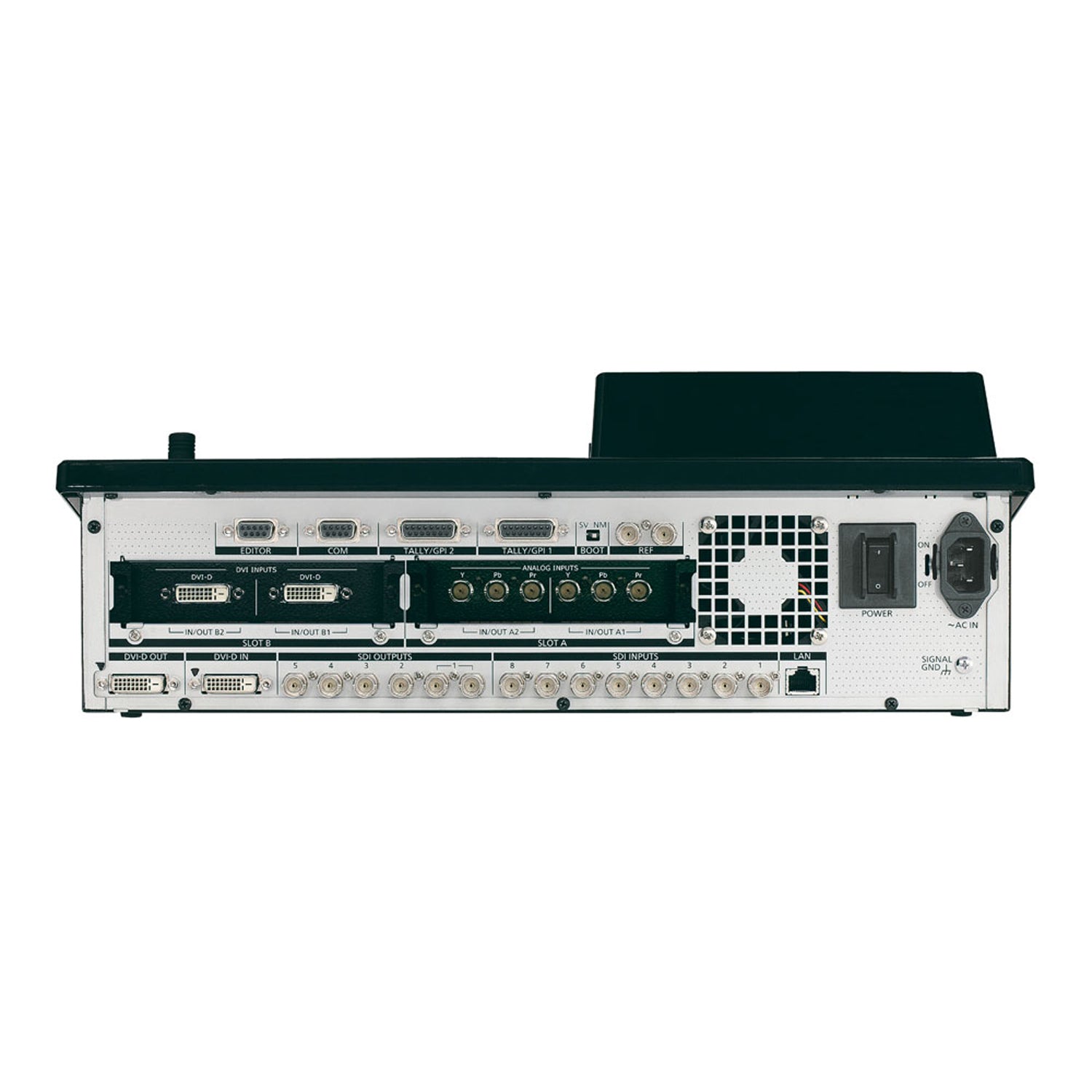

Video Inputs

• Standard SDI: 8 × BNC (SDI INPUT 1–8)
• Up-conversion: Available on SDI INPUT 5–8
• Standard DVI-D: 1 × DVI-D input
• Optional Expansion: Up to 4 additional inputs (IN A1, IN A2, IN B1, IN B2)
• Supports up to 2 optional I/O boards

Video Outputs

• Standard SDI: 5 outputs via 6 × BNC (SDI OUT 1 with dual outputs, OUT 2–5 single)
• Standard DVI-D: 1 × DVI-D output
• Optional Expansion: Up to 4 additional outputs (OUT A1, OUT A2, OUT B1, OUT B2)
• Assignable outputs: PGM, PVW, AUX1–AUX4, Multi View, CLN, KEYOUT, Memory Preview
• Supports up to 2 optional I/O boards

Supported Signal Formats

• SD: 480/59.94i, 576/50i
• HD: 1080/59.94i, 1080/50i, 720/59.94p, 720/50p, 1080/24PsF, 1080/23.98PsF

Signal Processing

• YPbPr 4:2:2, 10-bit (8-bit video memory)
• RGB 4:4:4, 8-bit

Mix Effects (M/E)

• 1 M/E

SDI Input Specifications

• Standards: SMPTE 292M (HD-SDI), SMPTE 259M (SD-SDI)
• Standard Inputs: 8
• Maximum Inputs: 12 with optional boards
• HD cable equalization up to 328 ft (100 m)
• SD cable equalization up to 656 ft (200 m)

SDI Output Specifications

• Standards: SMPTE 292M (HD-SDI), SMPTE 259M (SD-SDI)
• Standard Outputs: 5 (6 BNC connectors)
• Maximum Outputs: 9 with optional boards
• HD output complies with SMPTE 292M
• SD output complies with SMPTE 259M

Optional Analog Video

• Composite Input: NTSC/PAL via optional board (up to 4 inputs)
• Component Input: SD/HD YPbPr via optional board (up to 4 inputs)
• Component Output: SD/HD YPbPr via optional board (up to 4 outputs)

DVI-I (Optional)

• Input: Analog/Digital RGB (XGA to SXGA @ 60 Hz)
• Output: Analog/Digital RGB (XGA to WUXGA @ 60 Hz)
• HDCP not supported

DVI-D

• Standard Input: 1 × DVI-D
• Supports computer resolutions up to 1920 × 1200 @ 60 Hz
• Supports 1080p50/59.94 RGB input
• Standard Output: 1 × DVI-D
• Supports HD output formats up to 1080p59.94
• High-resolution Multi View output supported
• HDCP not supported

Reference Sync

• Black Burst or Tri-Level Sync input (Genlock)
• Loop-through reference output
• Dual Black Burst outputs in Internal Sync mode
• Supports system frame rates of 59.94 / 50 / 24 Hz

Video Delay

• 1 line with Frame Sync and Up-Converter disabled
• 1 frame with Frame Sync or Up-Converter enabled
• Additional 1-frame delay through PinP, DVE, Multi View, Down Converter, DVI I/O

Control Interfaces

• LAN: RJ-45, 10/100Base-T Ethernet (IP Control)
• EDITOR: RS-422 (D-Sub 9-pin)
• COM: RS-422 (D-Sub 9-pin), selectable communication modes
• TALLY/GPI: Dual D-Sub 15-pin connectors8 GPI inputs19 tally/GPI outputs1 alarm output

Boot Mode

• Service/Normal boot switch (SV/NM)

Bus Configuration

• 2 × Picture-in-Picture
• 4 × AUX buses

Memory

• SDHC / SD card slot for stills and settings

System Frequency

• Switchable: 59.94 Hz / 50 Hz / 24 Hz

Display

• Integrated 7-inch WVGA (800 × 480) color LCD

Power

• AC 100–240 V, 50/60 Hz
• Power Consumption: 88 W

Environmental

• Operating Temperature: 32–104°F (0–40°C)
• Operating Humidity: 10–90% (non-condensing)

Dimensions

• 17.3 × 6.2 × 14.2 in (440 × 158 × 361 mm)

Weight

• 13.7 lb (6.2 kg) without optional boards
• 14.6 lb (6.6 kg) fully configured with optional boards
