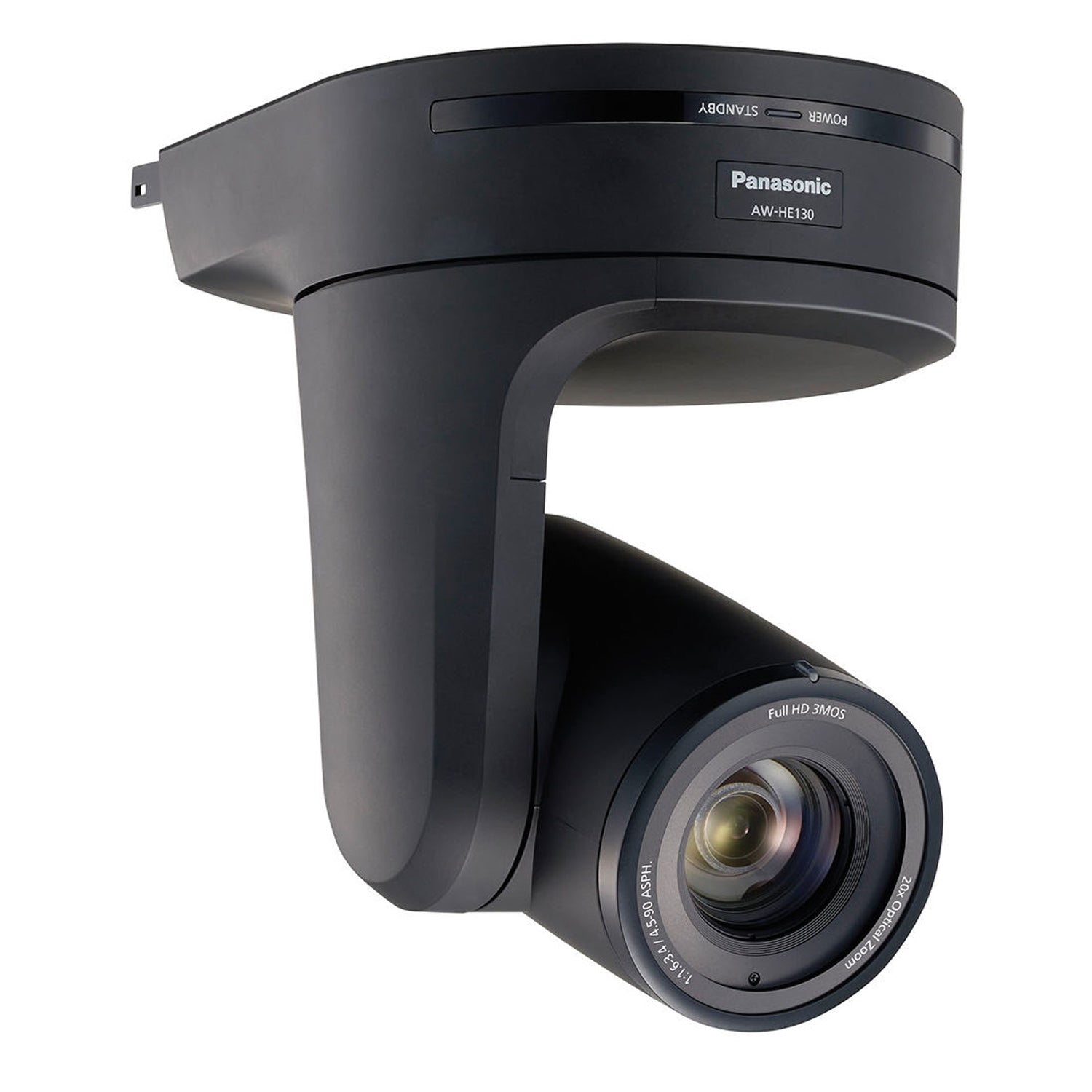

Panasonic AW-HE130 Full-HD Professional PTZ Camera

The AW-HE130 is capable of Production Quality Full HD video output up to 1080/60p via IP transmission, in addition to 3G-SDI and HDMI. Equipped with three newly developed 1/2.86 MOS sensors for high sensitivity, a superior S/N ratio and high resolution. The AW-HE130W/K also supports PoE+, so the camera only needs one LAN cable for its power supply, control and video output. Presenting the new standard in versatile, high-quality remote production with 3G-SDI, IP-Streaming, and POE+.

• Dimensions (W x H x D): 180 mm x 228 mm x 234 mm (7-3/32 inches x 9 inches x 9-3/16 inches)
  (excluding protrusions, cable cover, direct ceiling mount bracket)
• General-Storage Temperature: –20 °C to 50 °C (–4 °F to 122 °F)
• Power Requirements: DC 12 V (AC adaptor supplied) DC 42 - 57 V (PoE+ power supply)
  1.8 A (AC adaptor supplied) 0.6 A (PoE+ power supply)
• Ambient Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
• Finish: AW‑HE130WP/AW-HE130WE: Pearl white | AW‑HE130KP/AW-HE130KE: Metallic black
• Allowable Humidity Ranges: 20 % to 90 % (no condensation)
• Mass: Approx. 3.1 kg (6.83 lb) [Including mount bracket]
• Controller supported: AW-RP120G, AW‑RP50, AK-HRP200G
• LENS: Motorized 20 zoom, F1.6 to F3.4
  (f=4.5 mm to 90 mm; 35 mm equivalent: 32.13 mm to 642.5 mm)
• MINIMUM ILLUMINATION: 2 lx (50 IRE, F1.6, 36 dB)
• Synchro scan: 59.94 Hz: 60.15 Hz to 642.21 Hz
  50 Hz: 50.15 Hz to 535.71 Hz
• Horizontal Resolution: 1000 TV lines Typ (Center area)
• Gain Selection: Auto, 0 dB to 36 dB
• WHITE BALANCE: AWB A, AWB B, ATW, 3200K, 5600K, VAR (2000K to 15000K)
• Color separation optical system: 3MOS
• Focus: Switching between auto and manual
• Focus Distance: Entire zooming range: 800 mm (2.62 ft) | Wide end: 400 mm (1.31 ft)
• Gamma: HD, SD, FILMLIKE1, FILMLIKE2, FILMLIKE3
  0.30 to 0.75 (Manual setting)
• Scene File: Scene1, Scene2, Scene3, Scene4
• Electronic Shutter Speed: 59.94p/59.94i: 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000
  29.97p: 1/30, 1/60, 1/120, 1/250, 1/500,1/1000, 1/2000, 1/4000, 1/10000
  23.98p: 1/24, 1/60, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000
  50p/50i: 1/60, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000
  25p: 1/25, 1/60, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000
• Imaging Sensors: 1/2.86-type Full-HD 3MOS
• Chroma Amount Variability: OFF, -99 % to 40 %
• Frame Mix: 0 dB, 6 dB, 12 dB, 18 dB, 24 dB
• STANDARD ACCESSORIES: Mount bracket for installation surface (Hanging / Desktop): 1, Drop-prevention wire: 1, Drop-prevention wire mounting screw (comes attached to the unit): 1, Bracket mounting screws (bind-head) M4 x 10 mm: 4, Main unit mounting screw (with flat washer,spring washer) M3 x 6 mm: 1, Cable cover: 1, Power cable: 1, AC adaptor: 1, CD-ROM
• Input Connector: DC 12 V IN, G/L IN (BNC) | BBS (Black Burst Sync), tri-level sync supported | Locking to a color subcarrier is not possible with BBS. PoE+ (IEEE802.3at standard)
• Panning range: ±175°
• Quietness: NC35 or less
• Camera/pan-tilt head control: IP connecting cable | When connecting through a PoE+ hub: LAN cable (category 5e or above, straight cable), max. 100 m (328 ft) | When a PoE+ hub is not used: LAN cable (category 5 or above, crossover cable) max.100 m (328 ft) | RP connecting Cable: LAN cable (category 5 or above, straight cable), max. 1000 m (3280 ft)
  RS-422A, AW series protocol
• VIDEO OUTPUT: HDMI: HDMI connector | HDCP is not supported. | Viera Link is not supported. | HD/SD-SDI OUT: SMPTE424/SMPTE292/SMPTE259 standards 75 Ω (BNC x 1) | VIDEO OUT: NTSC/PAL 1.0 V [p-p]/75 Ω (BNC x 1)

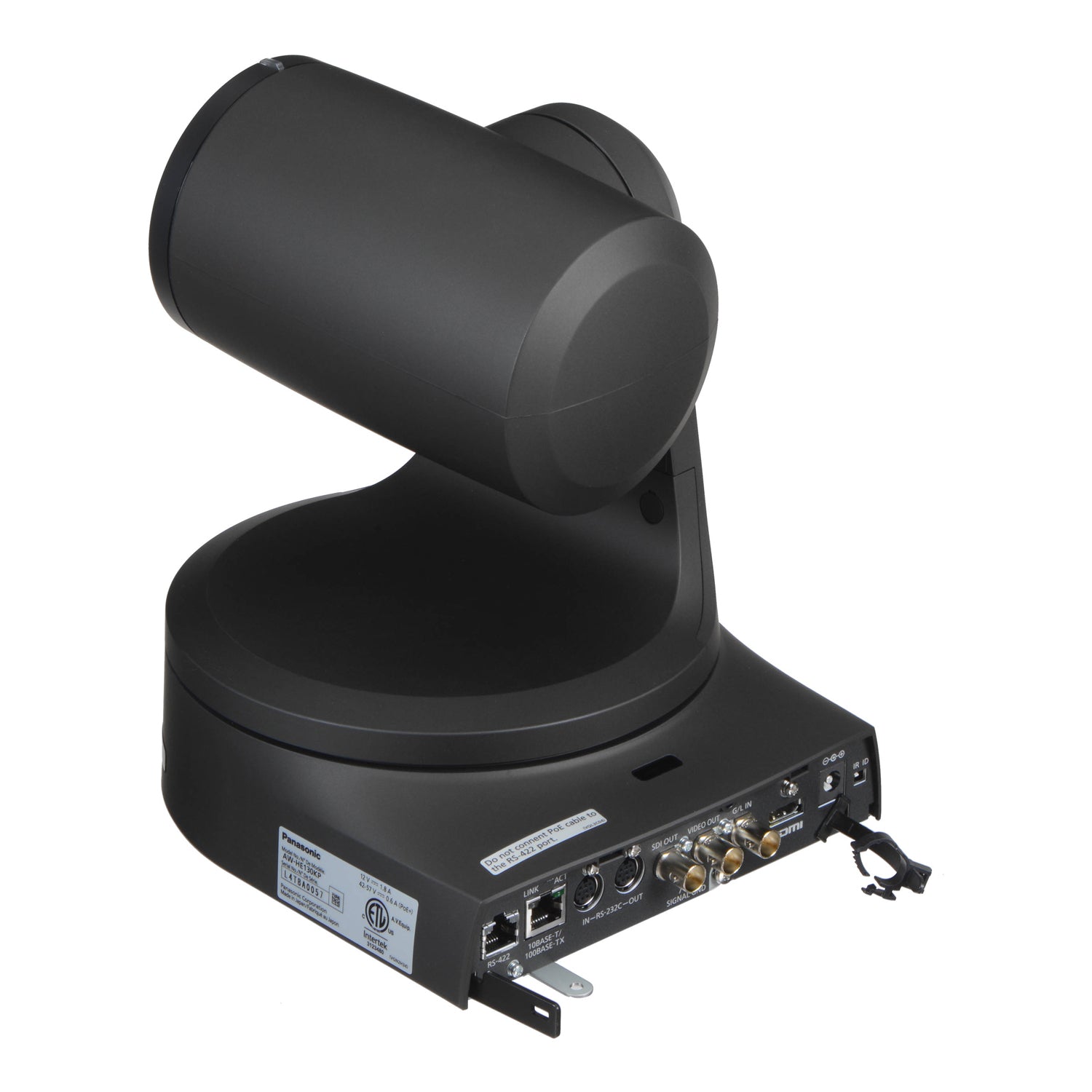

• Input/Output Connector: LAN: LAN connector for IP control (RJ‑45), PoE+ | RS-422: CONTROL IN RS-422A (RJ‑45) | MIC/LINE input: ø3.5 mm stereo mini jack Input impedance: High impedance | During MIC input Supported mic: Stereo mic (plug-in power, on/off switching via menu) | Supply voltage: 2.5 V ± 0.5 V | Mic input sensitivity: Approx. -40 dBV ± 3 dBV (0 dB=1 V/Pa, 1 kHz) | During LINE input
  Input level: Approx. -10 dBV ±3 dBV
• Pan-tilt Operation Speed: 0.08°/s to 60°/s
• Tilting Range: –30° to 210°
