Panasonic AW-RP150 Touchscreen Remote Camera Controller

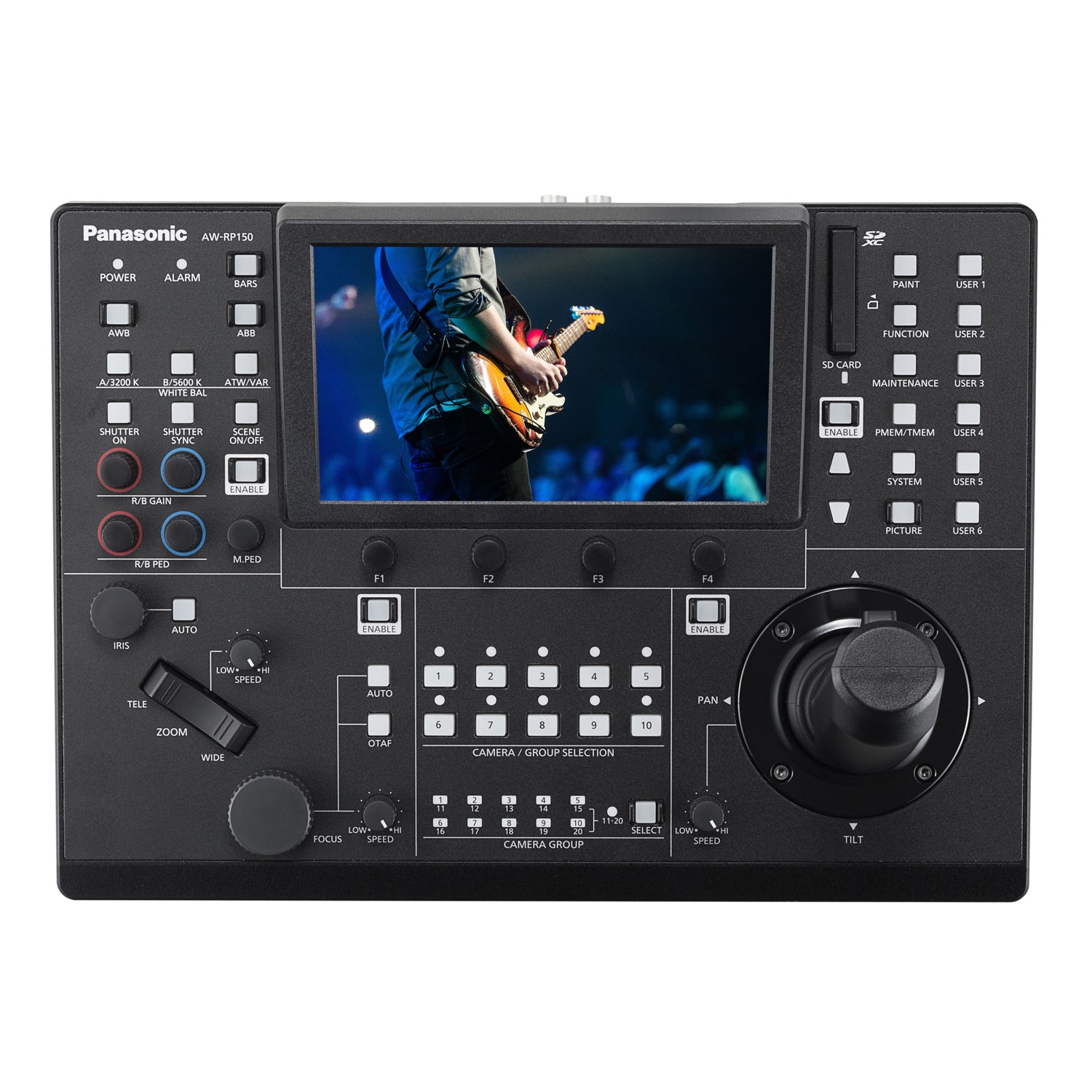

The AW-RP150 will be the newest remote camera controller to compliment Panasonic's comprehensive professional PTZ camera lineup. It has the same great functionality of the AW-RP120 and AW-RP50, and joins the lineup with significant improvements over those models, including a new one-hand operation joystick (controlling PTZ or Focus) and a large touch-panel LCD screen for monitoring and menu setting.

• Large touchscreen for easy usability

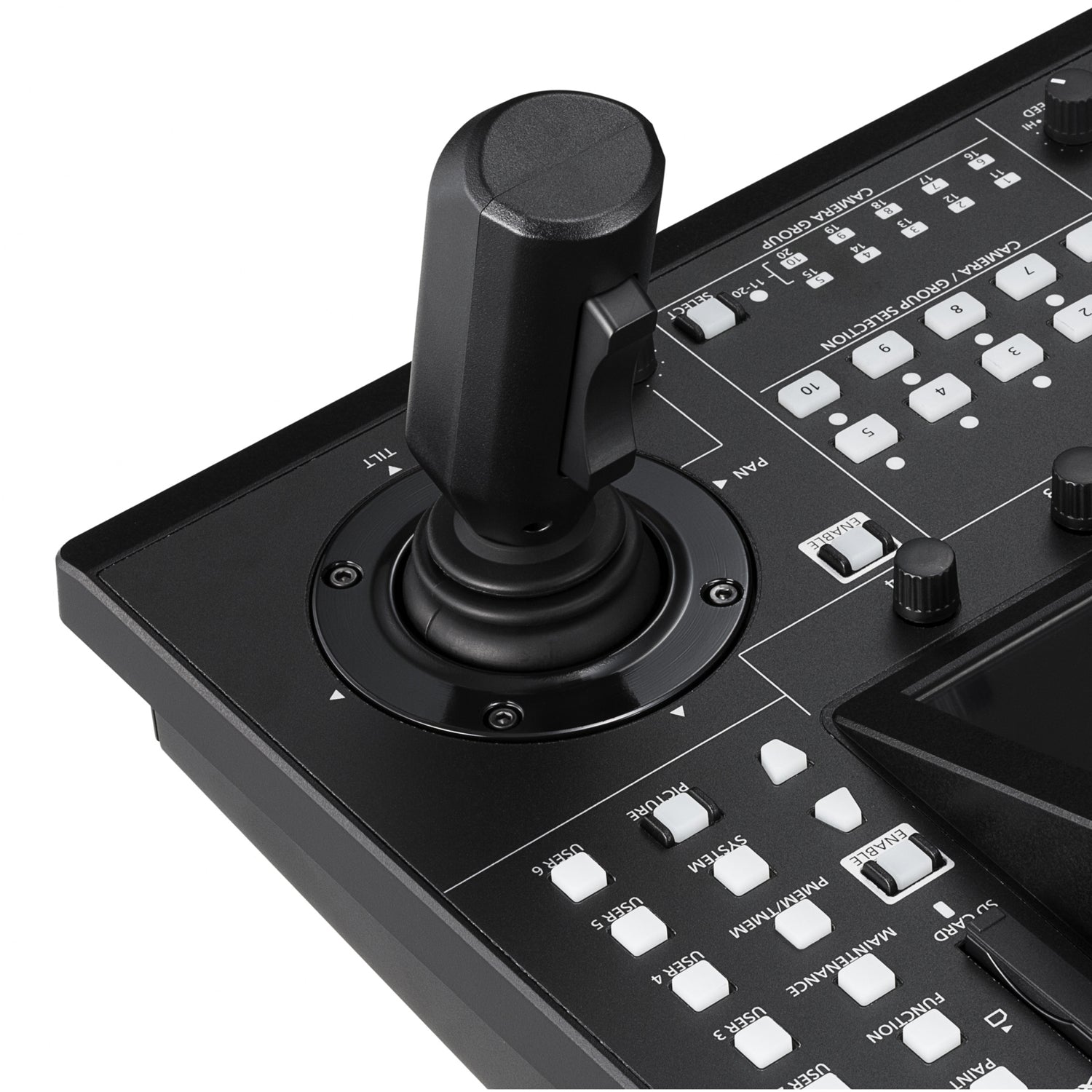

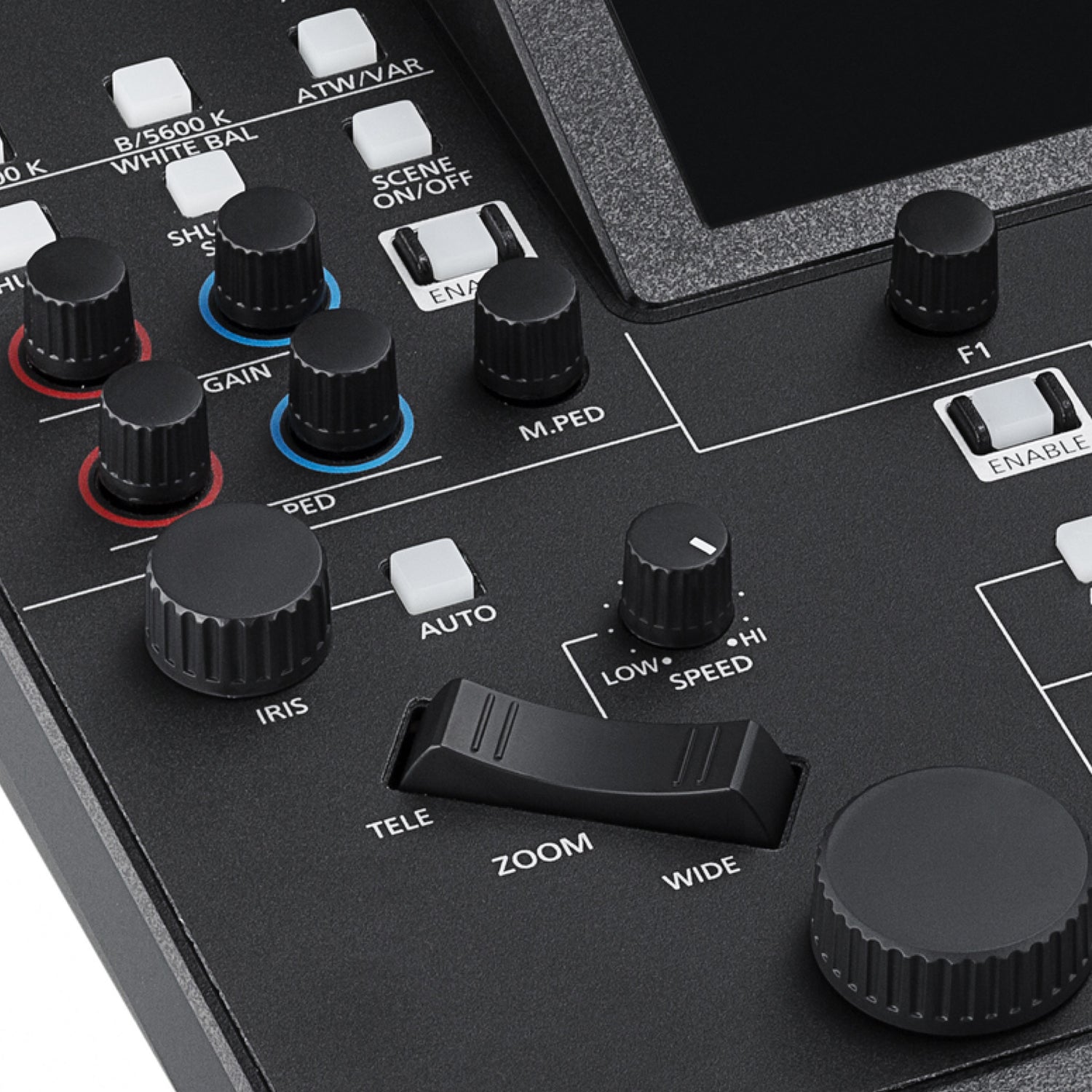

• New joystick for one-handed operation
• Simplified PTZ camera presets and tracing memory
• Intuitive design elements based on direct feedback from everyday robotic camera operators
• 3G-SDI Active Through Output, 5 x RS-422, LAN PoE+, 2 x GPIOs

Power Requirements

• 12 V DC (10.8 V to 13.2 V)

Current consumption

• 1.0 A (Connector Input) | 0.6 A (PoE+ power supply)

Ambient Operating Temperature

• 0 °C to 40 °C (32 °F to 104 °F)

Ambient Operating Humidity

• 20% to 90% (no condensation)

Storage Temperature

• -20 °C to 50 °C (-4 °F to 122 °F)

Weight

• Approx. 3.2 kg (7.05 lb)

Dimensions (W x H x D) (mm)

• 342 mm x 178 mm x 245 mm (excluding protrusions)
• 13-15/32 inches x 7 inches x 9-21/32 inches (excluding protrusions)

LCD Display

• 7-inch Touch Panel GUI Monitor (WVGA (800×480)

SD Memory Card slot

• SDHC / SDXC Memory Card Slot x 1

No. of Connectable Cameras

• 200 (IP), 5 (RS422)

No. of Camera Selection Buttons

• 10

No. of Camera Groups

• 20 (10 units per 1 group)

Preset Memory

• No. of memory presets: 100

Tracing Memory

• No. of cameras : Cam1 to Cam10
• Recording time, no. of memory settings : Maximum 5 min. total per camera, maximum of 10 settings per camera

No. of User Assignable Buttons

• 6 + up to 10 on the LCD menu

Pan / Tilt Speed Adjustment

• 7 levels

Tally LED display color

• green / red

PoE+

• IEEE802.3at standard: DC 42 V to 57 V (Camera Input)

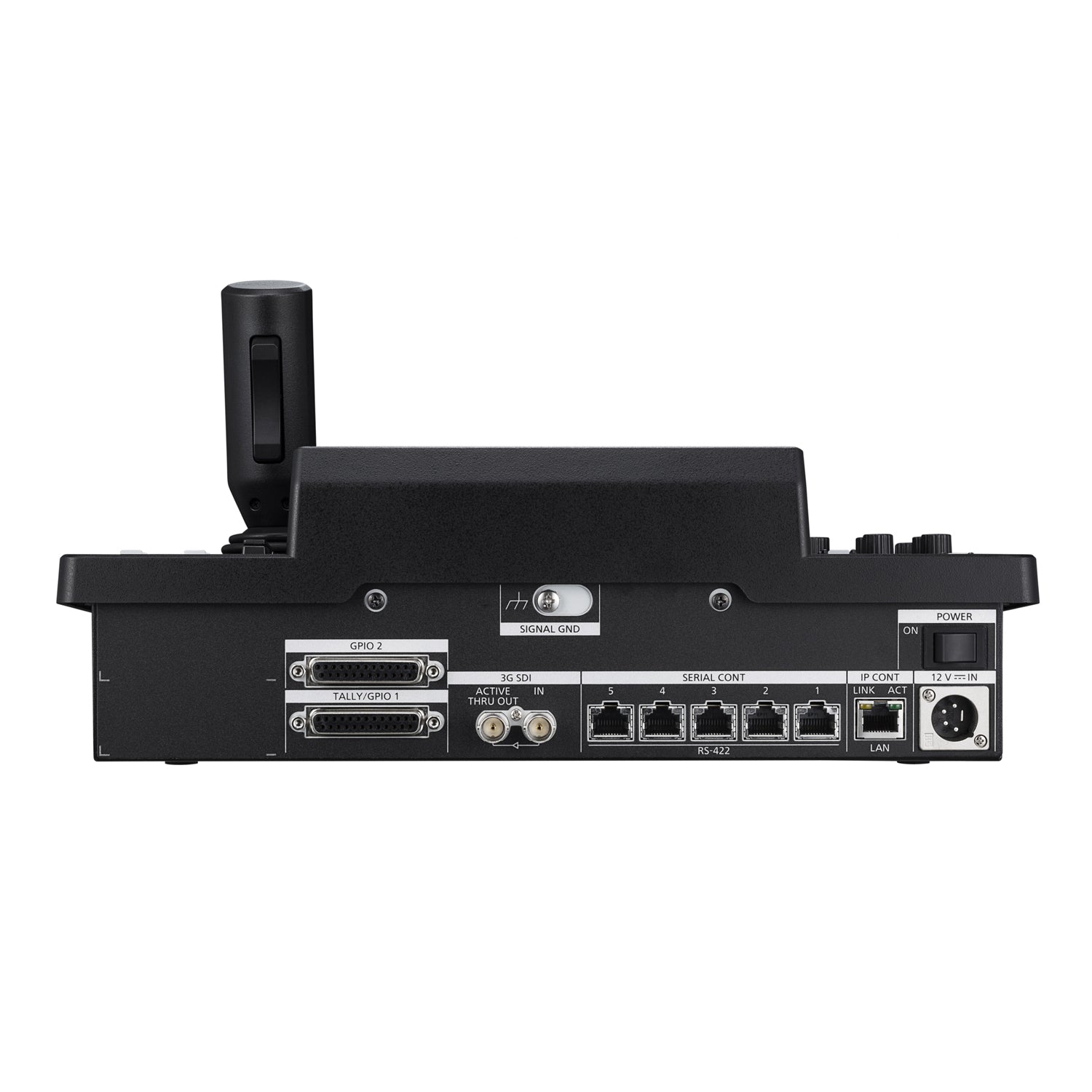

Input / Output

DC 12 V IN XLR 4-pin

3G-SDI IN

SMPTE292 / 75 Ω (BNC x 1)

• Supported formats: 1080/59.94p, 1080/50p, 1080/59.94i, 1080/50i, 1080/23.98p, 1080/25p, 1080/23.98PsF, 1080/25PsF

ACTIVE THRU OUT

• SMPTE292 / 75 Ω (BNC x 1)

IP CONT

• 100BASE-TX
• PoE+ input
• Connection cable: LAN cable, max. 100 m (328 ft)
• When connecting the unit via a switching hub: Straight cable or a cross cable (category 5 cable), STP (Shielded Twisted Pair) cable recommended
• When connecting the unit directly: Crossover cable (category 5 cable), STP (Shielded Twisted Pair) cable recommended

SERIAL CONT (RJ-45)

• RS-422 (control signals for remote cameras), TALLY OUT
• Connecting cable: Straight cable (category 5e or better shielded cable), max. 1000 m (3280 ft)
• TALLY OUT: Open collector output (negative logic)
• Maximum voltage resistance DC 24 V, Maximum current 50 mA

TALLY/GPIO 1

• D-sub 25-pin, female, inch thread
• TALLY IN : 10 inputs (for receiving photocoupler signals)
• GPI : 6 inputs (for receiving photocoupler signals)
• GPIO : 5 inputs (for receiving photocoupler signals) or 5 outputs (open collector outputs, negative logic)
• Input/output switched with menu settings

GPIO 2

• D-sub 25-pin, female, inch thread
• GPI : 10 inputs (for receiving photocoupler signals)
• GPIO : 10 inputs (for receiving photocoupler signals) or 10 outputs (open collector outputs, negative logic)
• Input/output switched with menu settings
• Reserve connectors: 2 connectors (For future expansion feature)
