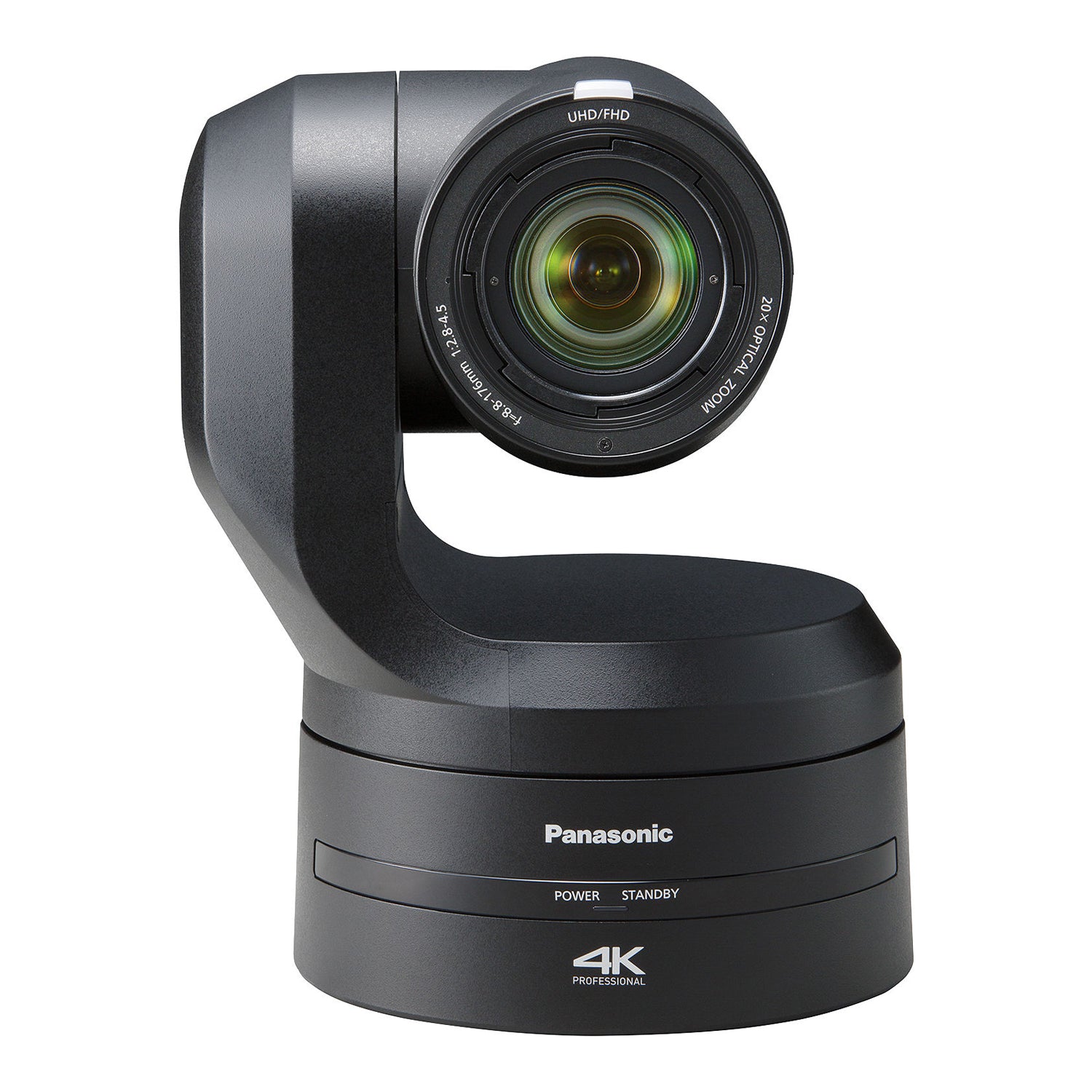

Panasonic AW-UE150 4K 60p Professional PTZ Camera

The AW-UE150 is a key model in Panasonic's comprehensive professional PTZ camera lineup. Featuring a 1-type large MOS sensor, this next-generation PTZ camera supports high-quality 4K/UHD 60p video, features a 75.1-degree viewing angle, 20x optical zoom and supports versatile outputs, including 12G-SDI, HDMI, optical fiber, and IP. Simultaneous 4K/HD operation makes this PTZ camera powerhouse ideal for those looking to future-proof their system.

• Power Requirements: Due to increased PRO PTZ camera installations utilizing existing PoE++ infrastructure, the AW-UE150 unit does not include a standard power supply. If the AW-UE150 will be installed in an area without PoE++, please utilize an IA-70a power supply. XLR 4-PIN: 12 V DC (10.8 V to 13.2 V) PoE++: IEEE 802.3bt (Type 4) Standard DC 42 V to 57 V (Camera Input)
• PoE++: IEEE802.3bt standard: DC 42 V to 57 V (Camera Input)
• Current consumption: 4.0 A (XLR IN connector), 1.2 A (PoE++ power supply)
• Ambient Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
• Ambient Operating Humidity: 20 % to 90 % (no condensation)
• Storage Temperature: -20 °C to 50 °C (-4 °F to 122 °F)
• Mass: Approx. 4.2 kg (9.24 lb) (excluding mount bracket)
• Dimensions (W x H x D) (mm): 213 mm x 267 mm x 219 mm (excluding protrusions, direct ceiling mount bracket)
• Dimensions (W x H x D) (inch): 8-3/8 inches x 10-1/2 inches x 8-5/8 inches (excluding protrusions, direct ceiling mount bracket)
• Finish: AW-UE150WP/AW-UE150WE: Pearl white | AW-UE150KP/AW-UE150KE: Black
• Controller supported: AW-RP150GJ
• Imaging Sensors: 1-type 4K MOS×1
• LENS: Motorized Optical 20x zoom, F2.8 to F4.5[f=8.8 mm (11/32 inches) to 176.0 mm (6-15/16 inches); 35 mm (1-3/8 inches)equivalent: 24.5 mm (31/32 inches) to 490.0 mm (19-9/32 inches)]
• Zoom: Optical zoom: 20x | i.Zoom: UHD 24x, FHD 32x | Digital zoom: 10x
• Conversion Lens: Not supported
• Angle of View Range | Horizontal: 75.1° (wide) to 4.0° (tele)
• Angle of View Range | Vertical: 46.7° (wide) to 2.3° (tele)
• Angle of View Range | Diagonal: 82.8° (wide) to 4.6° (tele)
• Optical Filter: Through, 1/4, 1/16, 1/64, IR through (IR through is used as “Night mode”)
• Focus: Switching between auto and manual
• Focus Distance: Entire zooming range: 1000 mm (3.3 ft) | Wide end: 100 mm (0.33 ft)
• Color separation optical system: 1MOS
• Standard Sensitivity: F9, 2000 lx (When normal mode is selected)
• MINIMUM ILLUMINATION: 2 lx (F2.8, 59.94p, 50IRE, 42 dB, without accumulation)
• S/N: 60 dB or more
• Horizontal Resolution: 1600 TV lines Typ (Center area)
• Gain Selection: Auto, 0 dB to 36 dB | Super Gain function equipped : +37 dB to 42 dB
• Frame mix: 30 dB, 6 dB, 12 dB, 18 dB, 24 dB
• Electronic Shutter Speed | 59.94p/59.94i: 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
• Electronic Shutter Speed | 29.97p: 1/30, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
• Electronic Shutter Speed | 23.98p/24p: 1/24, 1/48, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
• Electronic Shutter Speed | 50p/50i: 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
• Electronic Shutter Speed | 25p: 1/25, 1/50, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
• Syncro Scan: 59.94p/59.94i : 60.00 Hz to 7200 Hz | 29.97p : 30.00 Hz to 7200 Hz | 23.98p/24p : 24.00 Hz to 7200 Hz | 50p/50i : 50.00 Hz to 7200 Hz | 25p : 25.00 Hz to 7200 Hz
• Gamma: HD / FILMLIKE1 / FILMLIKE2 / FILMLIKE3/ FILM REC / VIDEO REC / HLG
• WHITE BALANCE: ATW : 3200K, 5600K | ATW Speed : Normal / Slow / Fast | AWB : AWB-A / AWB-B | VAR (selectable between 2000K and 15000K by designating a value)
• Chroma Amount Variability: OFF, -99 % to 99 %
• Scene File: Scene1, Scene2, Scene3, Scene4
• Output Format | 4K: 2160/59.94p, 2160/50p, 2160/29.97p, 2160/25p, 2160/24p, 2160/23.98p
• Output Format | HD: 1080/59.94p, 1080/50p, 1080/29.97p, 1080/29.97PsF, 1080/25p, 1080/25PsF, 1080/23.98p, 1080/24p, 1080/23.98p, 1080/23.98PsF, 1080/59.94i, 1080/50i, 720/59.94p, 720/50p
• Synchronization System: Internal / External synchronization (BBS / Tri-level sync)

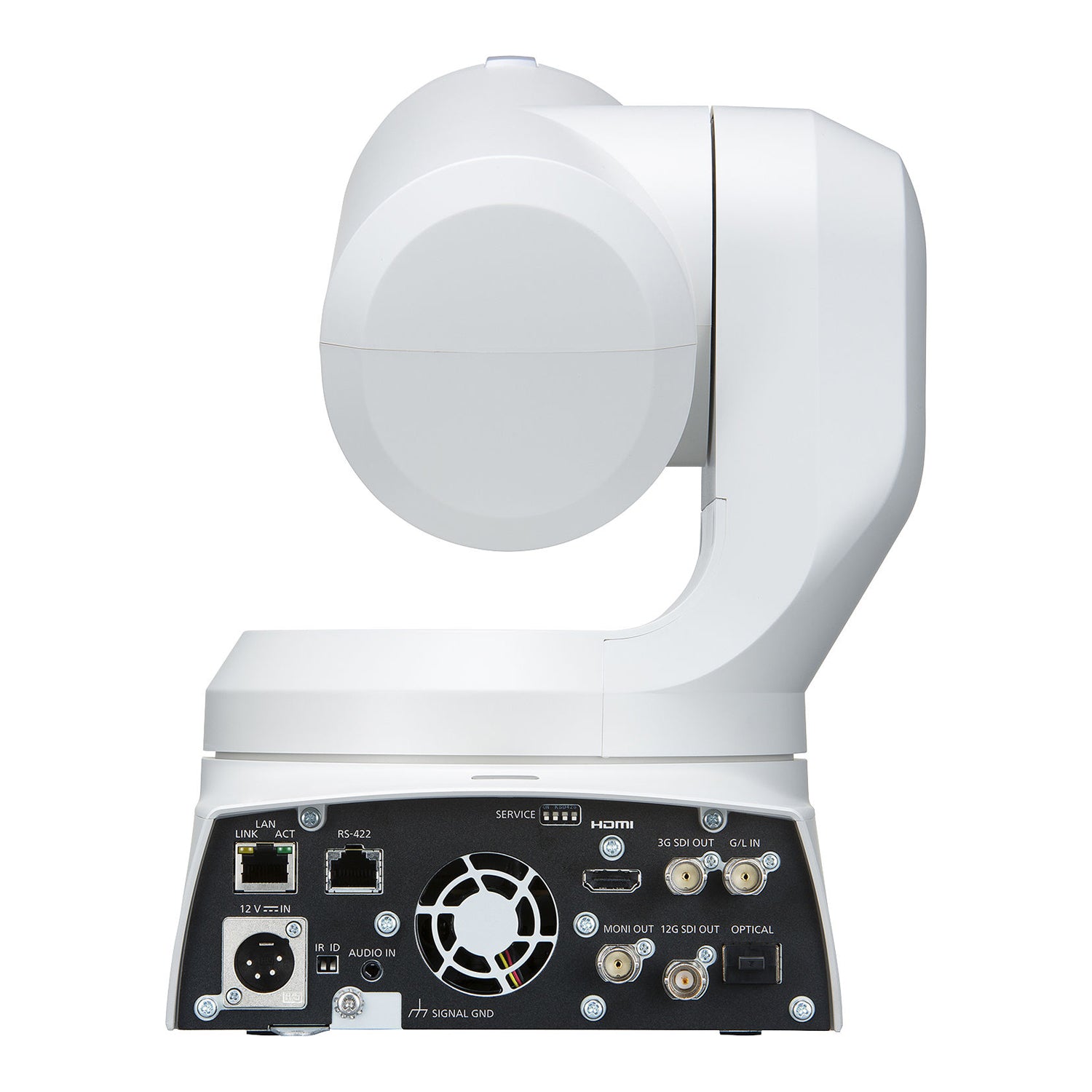

• Input Connector: DC 12 V IN, G/L IN (BNC)・BBS (Black Burst Sync), tri-level sync supported
• VIDEO OUTPUT | HDMI: HDMI 2.0 standard | 4:2:2/10bit | HDCP is not supported. | Viera Link is not supported.
• VIDEO OUTPUT | 12G-SDI OUT: SMPTE 2082-1 standard / 75 Ω (BNC x 1)
• VIDEO OUTPUT | 3G-SDI OUT: SMPTE292 / 75 Ω (BNC x 1) | Level-A/Level-B supported
• VIDEO OUTPUT | MONI OUT: SMPTE292 / 75 Ω (BNC x 1)
• VIDEO OUTPUT | Optical Fiber: SFP+ standardSingle Fiber | The signal sent is the same as 12G-SDI OUT. | This unit does not support input by optical signals.
• Input / Output Connector | LAN: LAN connector for IP control (RJ-45)
• Input / Output Connector | RS-422: CONTROL IN RS-422A (RJ-45)
• Input / Output Connector | MIC/LINE input: φ3.5 mm stereo mini jack | Input impedance: High impedance - During MIC input | Supported mic: Stereo mic (plug-in power, on/off switching via menu) | Supply voltage: 2.5 V ± 0.5 V | Mic input sensitivity: Approx. -40 dBV ± 3 dBV(0 dB=1 V/Pa, 1 kHz) - During LINE input | Input level: Approx. -10 dBV ±3 dBV
• Camera/pan-tilt head control | IP connecting cable: LAN cable: (category 5e or above, straight cable / crossover cable) max. 100 m (328 ft)
• Camera/pan-tilt head control | AW protocol connecting cable: LAN cable (category 5e or above, straight cable) max. 1000 m (3280 ft)

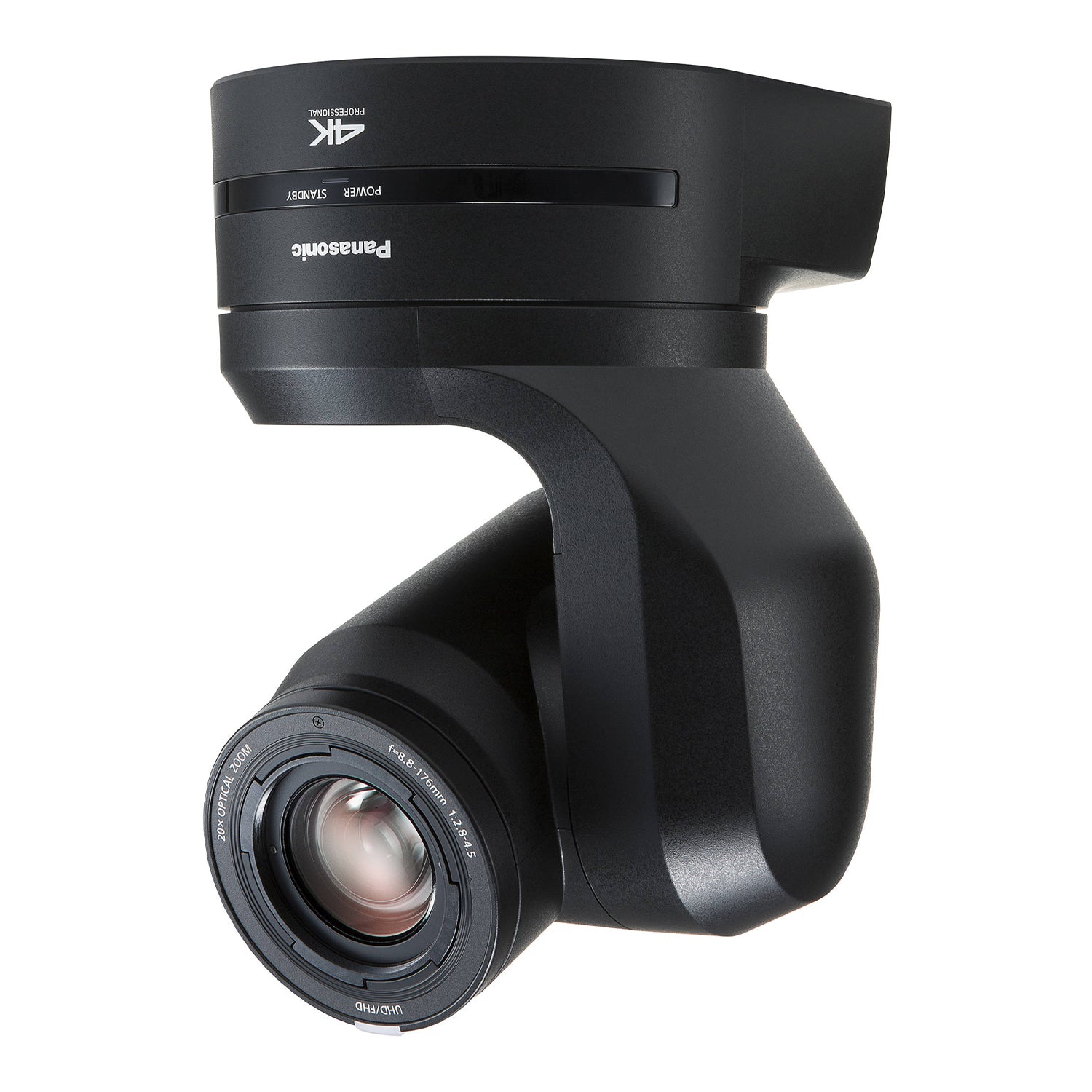

• Installation Method: Stand-alone (Desktop) or suspended (Hanging)
• Pan/Tilt Operation Speed: Minimum speed 0.08°/s | Maximum speed 60°/s or higher | Maximum speed is 180°/s in high-speed mode
• Panning range: ±175°
• Tilting Range: -30° to 210°
• Quietness: NC35 or less
• Image Streaming Mode: JPEG (MJPEG), H.264, H.265
• Image Resolution: 3840×2160, 1920×1080, 1280×720, 640×360, 320×180
• Image Transmission setting (JPEG): Frame Rate: Maximum 30 fps | Image quality (Fine / Normal)
• Image Transmission Setting (H.264) | Frame Rate: [60Hz] 5fps/15fps/30fps/60fps (UHD: 30fps, 60fps) | [50Hz] 5fps/12.5fps/25fps/50fps (UHD: 25fps, 50fps)
• Image Transmission Setting (H.264) | Max Bit Rate: HD : 512kbps/768kbps/1024kbps/1536kbps/2048kbps/3072kbps/4096kbps/6144kbps/8192kbps/10240kbps/12288kbps/14336kbps/16384kbps/20480kbps/24576kbps/32768kbps/40960kbps/51200kbps/76800kbps | UHD : 12800kbps/25600kbps/51700kbps/76800kbps
• Image Transmission Setting (H.265) | Image Transmission Type: Unicast port (AUTO) | Unicast port (MANUAL) | Multicast port
• Image Transmission Setting (H.265) | Frame Rate: [60Hz] 30fps | [50Hz] 25fps
• Image Transmission Setting (H.265) | Max Bit Rate: 8192kbps/12800kbps/25600kbps/51200kbps/76800kbps
• Audio Compression Type: AAC-LC, 48 kHz / 16 bit / 2ch
• Supported protocol: IPv6 : TCP / IP, UDP / IP, HTTP, HTTPS, DNS, NTP, DHCPv6, RTP, MLD, ICMP, ARP, RTMP | IPv4 : TCP / IP, UDP / IP, HTTP, HTTPS, RTSP, RTP / RTCP, DHCP, DNS, DDNS, NTP, UPnP, IGMP, ICMP, ARP, RTMP
• NDI support: NDI | HX
• Tally LED display color: red / green
