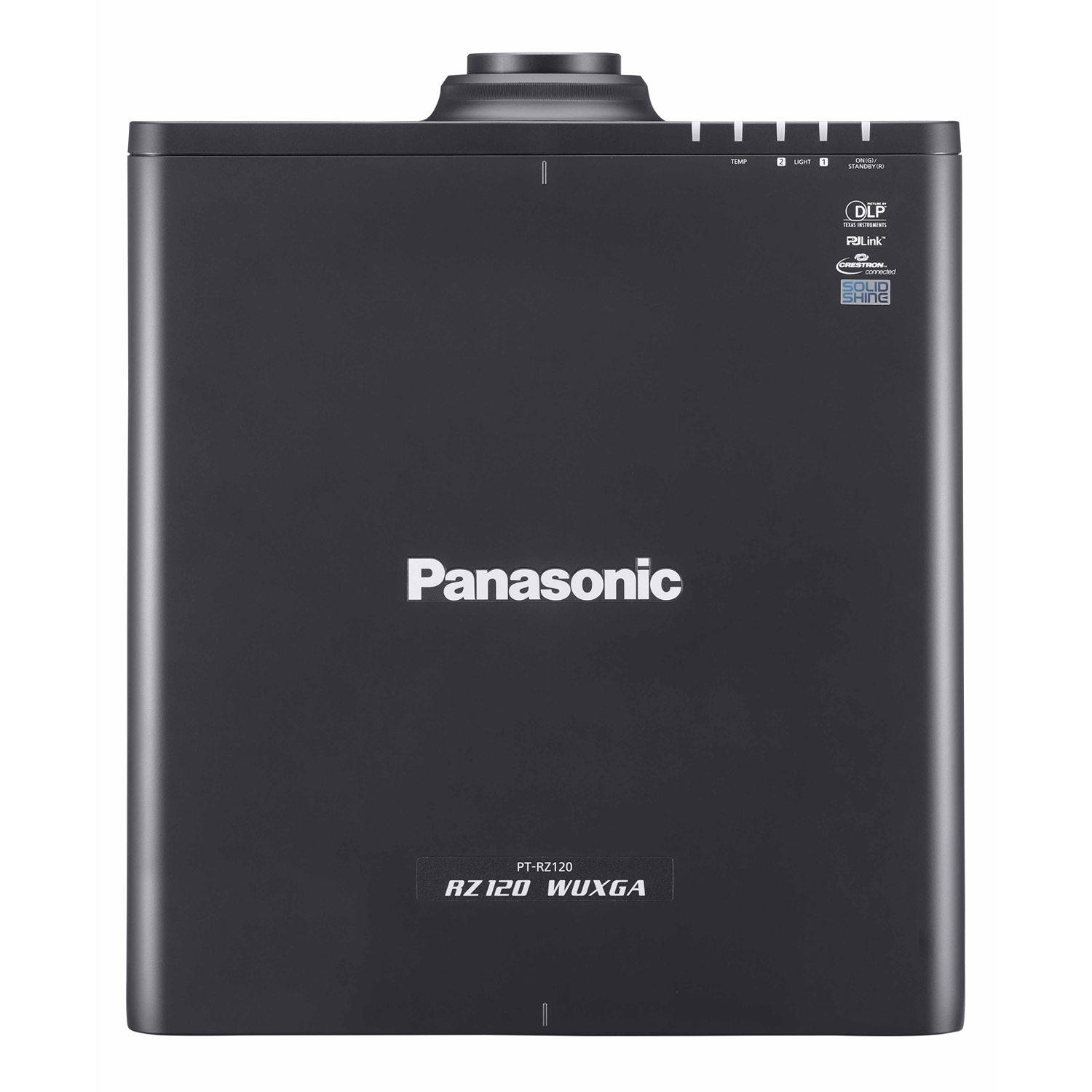

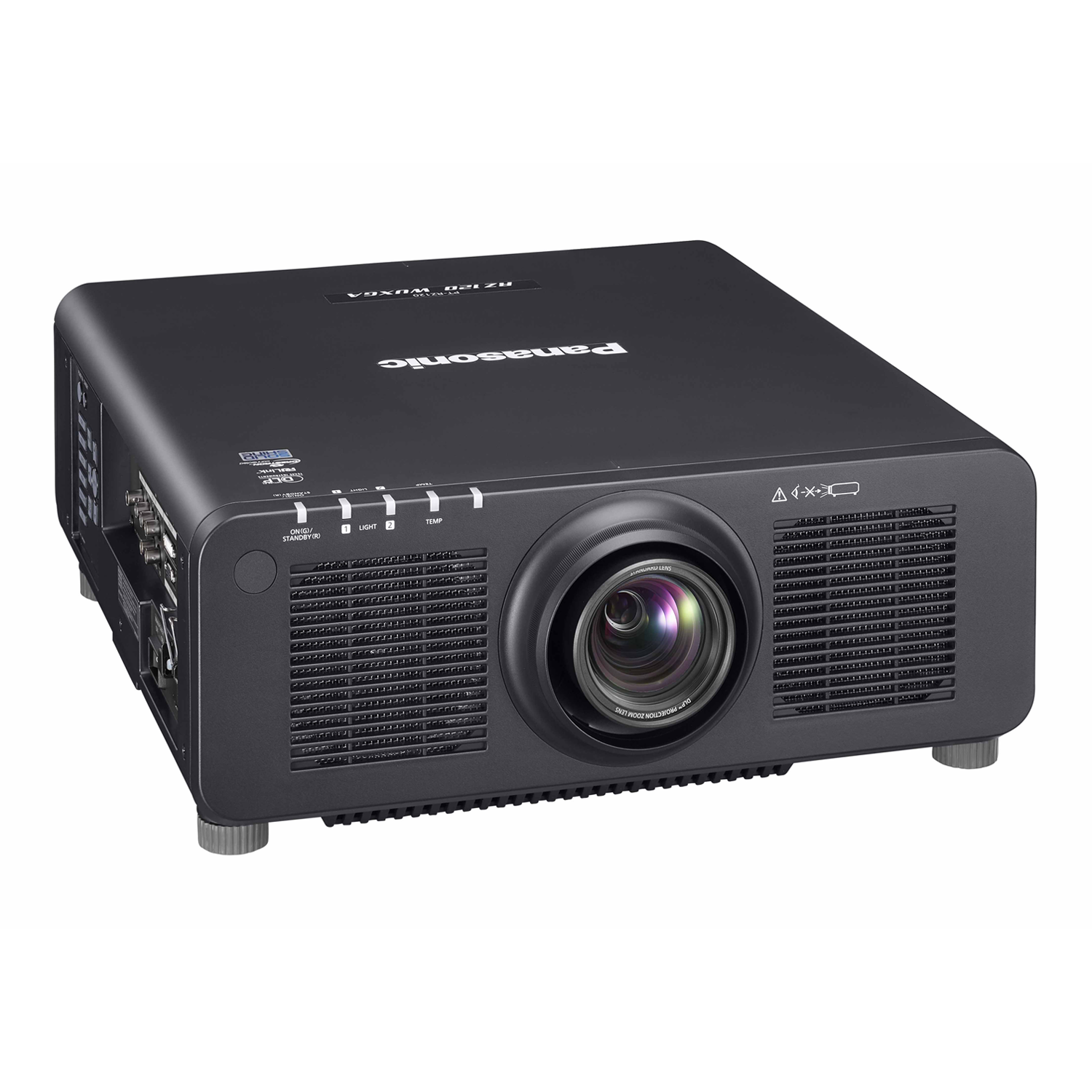

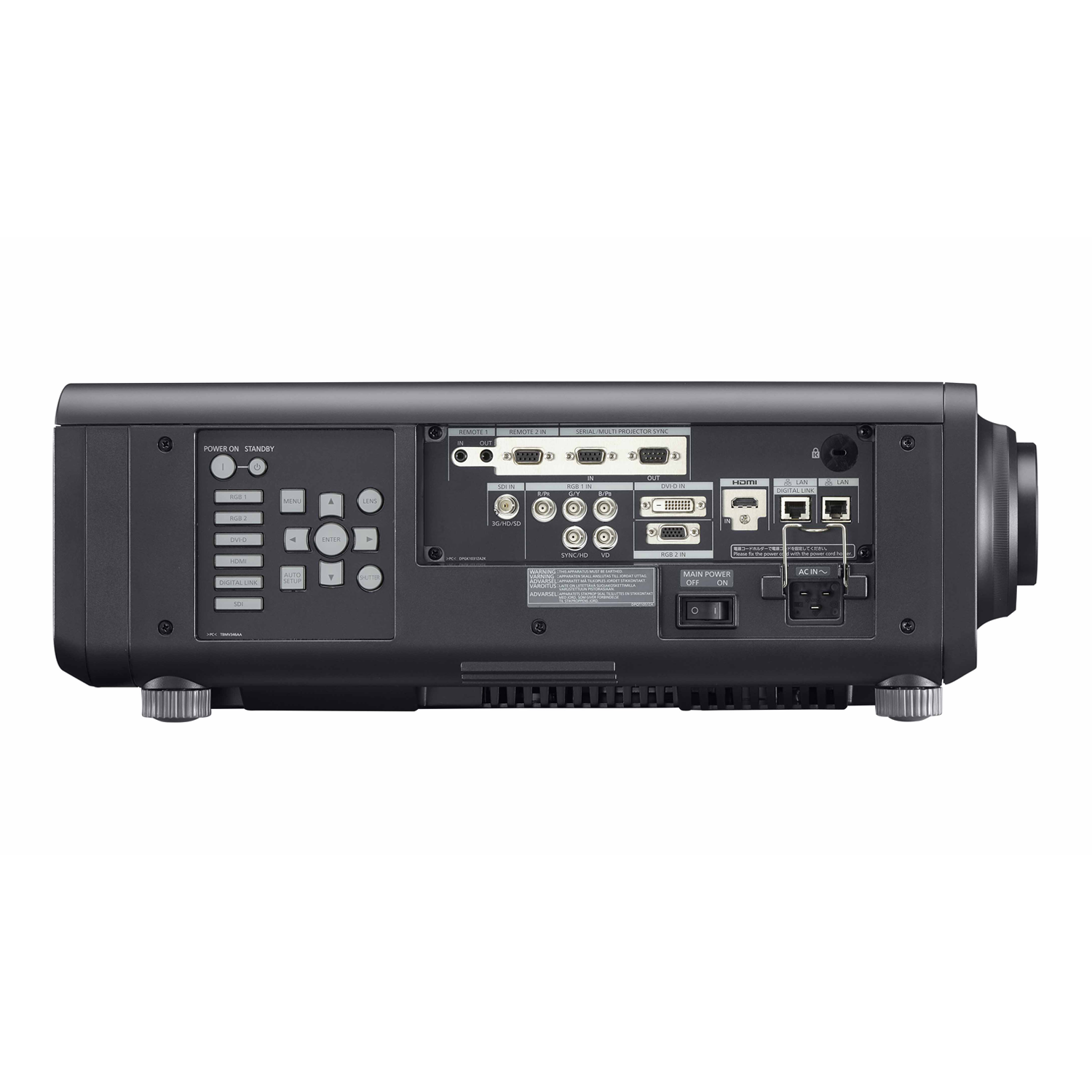

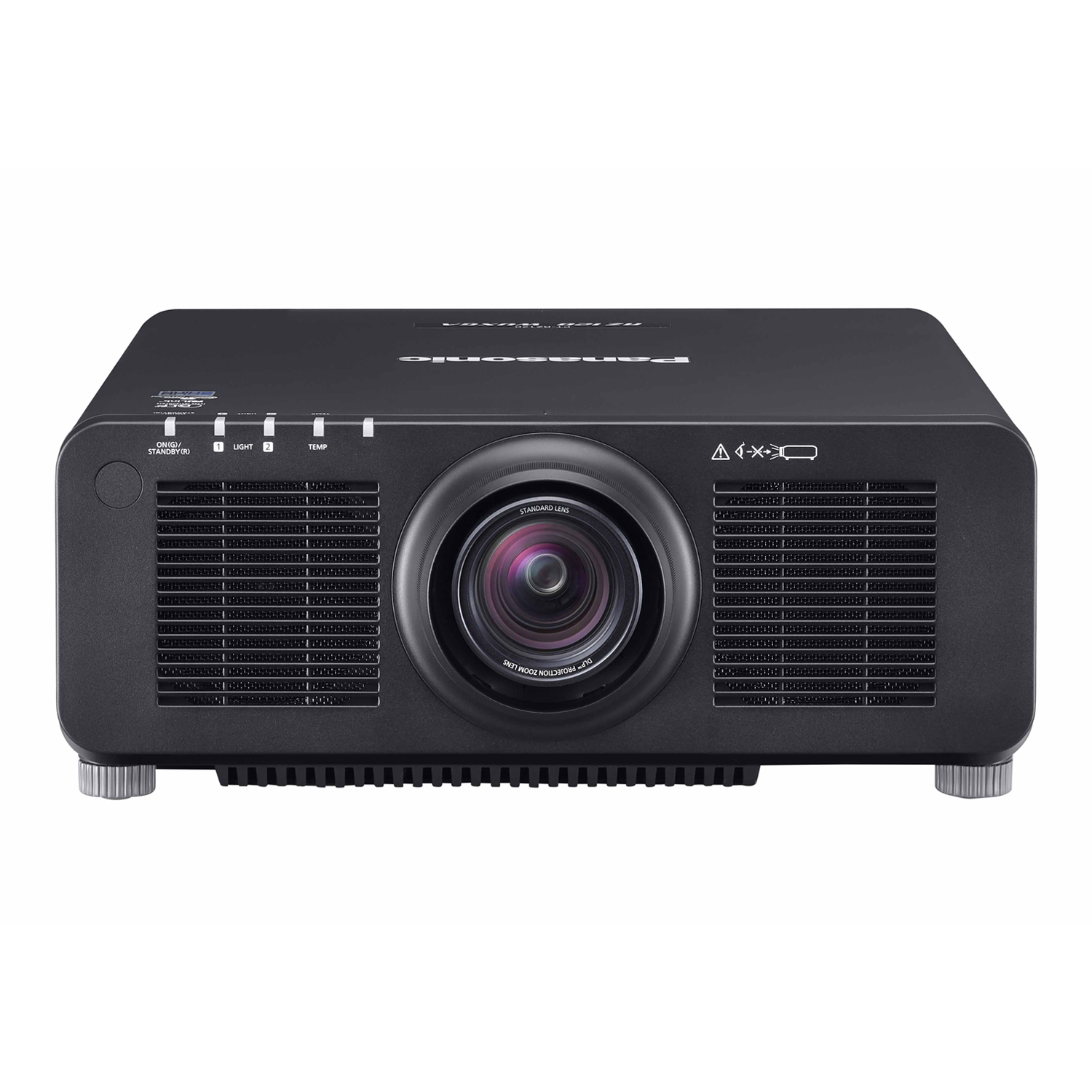

Panasonic PT-RZ120 12,000 Lumen DLP Projector
Features
- Laser 1-chip DLP, 12,000 ANSI lumens, WUXGA
- High brightness and excellent image quality with laser light source
- Maintenance free up to 20,000 hours with dust-resistant optical block and long lasting laser engine
- 10,000 : 1 contrast ratio
- 4K Input available (HDMI/DIGITAL LINK)
Panasonic PT-RZ120 12,000 Lumen DLP Projector
Overview
How the Game-Changing PT-RZ120 Can Revitalize Your Success
The 12,000 lm*1 PT-RZ120 is a first among 1-Chip DLP™ projectors. Further refinements to our high-quality imaging technology and filterless cooling system result in uncommonly high brightness from a compact body. Expect vibrant, high-contrast pictures and consistent color uniformity across multiple screens courtesy 1-Chip DLP™ technology and dual solid-state laser light engines. Hermetically sealed optics contribute to 20,000 hours*2 maintenance-free projection, enhancing installation flexibility in elevated positions such as museums, auditoriums, university halls, and even larger, brighter environments.
Specs
- Brightness: 12,600 lm (Center)*1 / 12,000 lm*2
- Resolution: 1920 x 1200 pixels
- Technology: Laser 1-chip DLP
- DLP™ chip | Panel size (mm): 17.0 mm diagonal (16:10 aspect ratio)
- DLP™ chip | Panel size (inch): 0.67 inch diagonal (16:10 aspect ratio)
- DLP™ chip | Display method: DLP™ chip x 1, DLP™ projection system
- DLP™ chip | Pixels: 2,304,000 (1920 x 1200) pixels
- Light source: Laser diodes laser Class 1 (Class 3R for US models)
- Screen size (diagonal) (mm): 1.27-15.24 m, 1.27-5.08 m with ET-DLE055, 2.54-8.89 m with ET-DLE035, 16:10 aspect ratio
- Screen size (diagonal) (inch): 50-600 inch, 50-200 inch with ET-DLE055, 100-350 inch with ET-DLE035, 16:10 aspect ratio
- Brightness: 12,500 lm (Center)*1 / 12,000 lm*2
- Center-to-corner uniformity: 90%
- Contrast: 10,000:1 (Full On/Full Off, Dynamic Contrast Mode: 3)
- Optical axis shift*2 | Vertical (from center of screen): +50 %, -16 % (+40%, -16% with ET-DLE060) (powered)
- Optical axis shift*5 | Horizontal (from center of screen): +30 %, -10 % (+19%, -10% with ET-DLE060 / +28 %, -10 % with ET-DLE085) (powered)
- Keystone correction range: Vertical: ±40° (±16° with ET-DLE060, ±22° with ET-DLE085/DLE055, +5° with ET-DLE035), Horizontal: ±15° (±10° with ET-DLE060) (cannot be operated with ET-DLE035)
- Keystone correction range with optional Upgrade Kit ET-UK20: Vertical: ±45° (±16° with ET-DLE060, ±40° with ET-DLE150/DLE250 / supplied lens, ±22° with ET-DLE085/DLE055), Horizontal: ±40° (±10° with ET-DLE060, ±15° with ET-DLE085/DLE055), When vertical and horizontal keystone are used simultaneously, correction cannot be made exceeding total of 55°.
- Installation: Ceiling/floor, front/rear, free 360-degree installation
- Terminals | SDI IN: BNC x 1: 3G/HD/SD-SDI input
- Terminals | HDMI IN: HDMI 19-pin x 1 (Deep Color, compatible with HDCP)
- Terminals | DVI-D IN: DVI-D 24-pin x 1 (DVI 1.0 compliant, compatible with HDCP, compatible with single link only)
- Terminals | RGB 1 IN: RGB x 1 (BNC x 5): RGB/YPBPR/YCBCR
- Terminals | RGB 2 IN: D-sub HD 15-pin (female) x 1: RGB/YPBPR/YCBCR
- Terminals | SERIAL IN: D-sub 9-pin (female) x 1 for external control (RS-232C compliant)
- Terminals | SERIAL OUT: D-sub 9-pin (male) x 1 for link control
- Terminals | REMOTE 1 IN: M3 x 1 for wired remote control
- Terminals | REMOTE 1 OUT: M3 x 1 for link control (for wired remote control)
- Terminals | REMOTE 2 IN: D-sub 9-pin (female) x 1 for external control (parallel)
- Terminals | LAN: RJ-45 x 1 for network connection, 10Base-T, 100Base-TX, compatible with PJLink™
- Terminals | DIGITAL LINK: RJ-45 x 1 for network and DIGITAL LINK connection, 100Base-TX, compatible with PJLink™ (Class 2), HDCP, Deep Color
- Power supply: AC 100-240 V, 50/60 Hz
- Power consumption: 1,275W (TBD)
- Operating noise: 46 dB (TBD)
- Cabinet materials: Molded plastic
- Dimensions (W x H x D) (mm): 498 x 200*3 x 538 mm (without lens)
- Dimensions (W x H x D) (inch): 19 19/32 inch x 7 7/8 inch x 21 3/16 inch (without lens)
- Weight (kg): Approximately 24.4 kg (without lens) (TBD)
- Weight (lbs.): Approximately 53.8 lbs (without lens) (TBD)
- Operating environment (℃/M): Operating temperature: 0-45 °C *5, operating humidity: 10-80 % (no condensation)
- Operating environment (°F/Feet): Operating temperature: 32-113 °F *5, operating humidity: 10-80 % (no condensation)
- Applicable software/application: Logo Transfer Software, Multi Monitoring & Control Software, Geometry Manager Pro, Smart Projector Control for iOS/Android™
