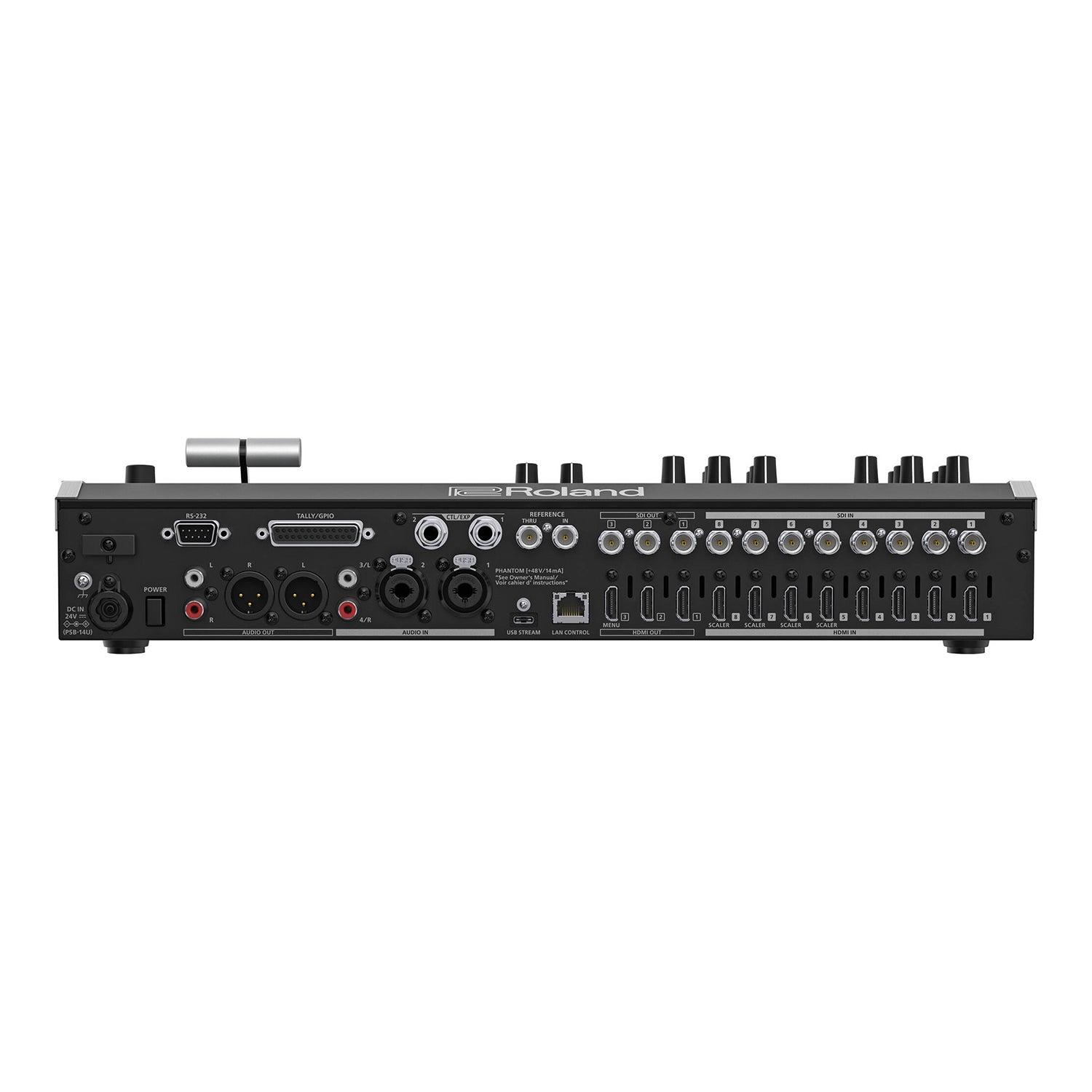

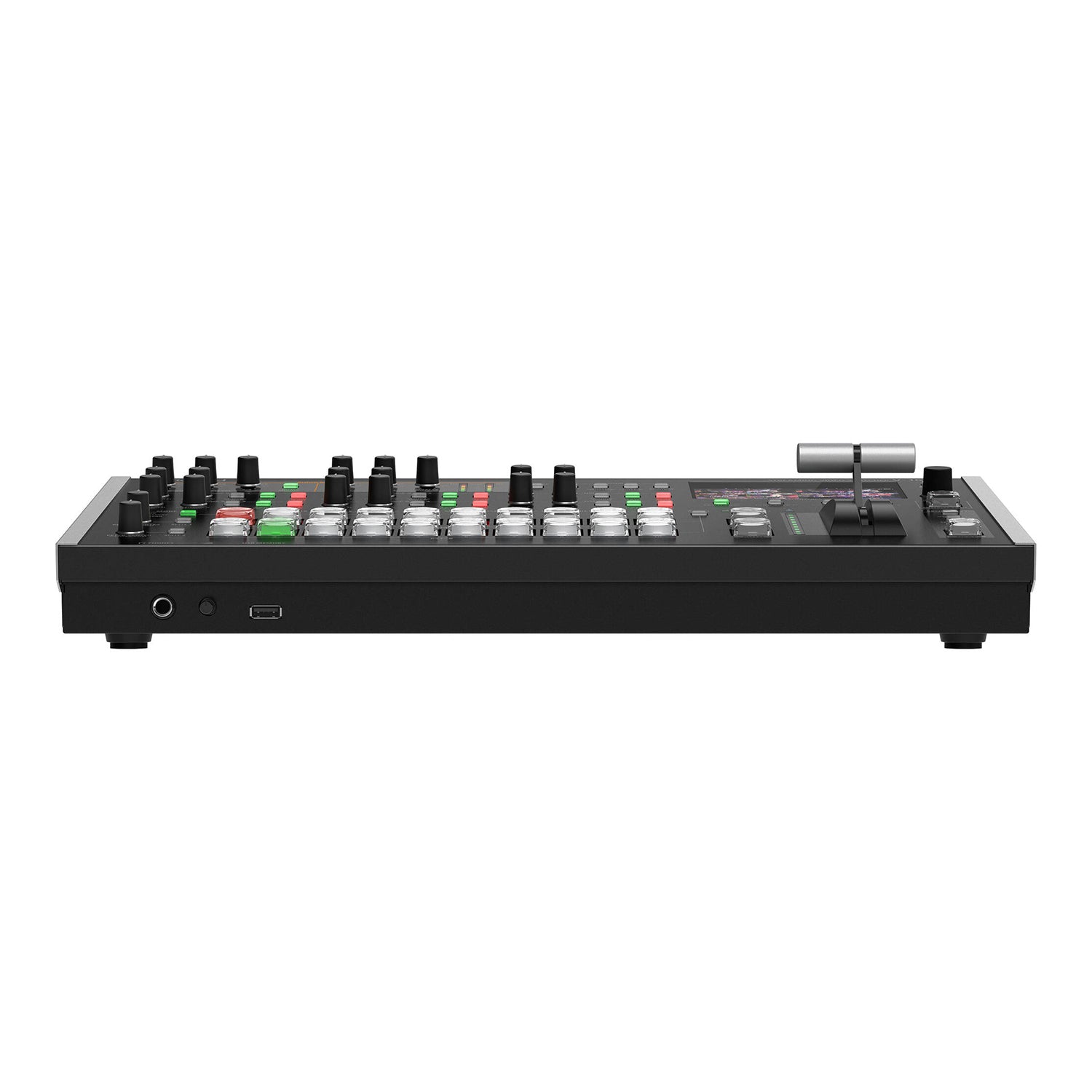

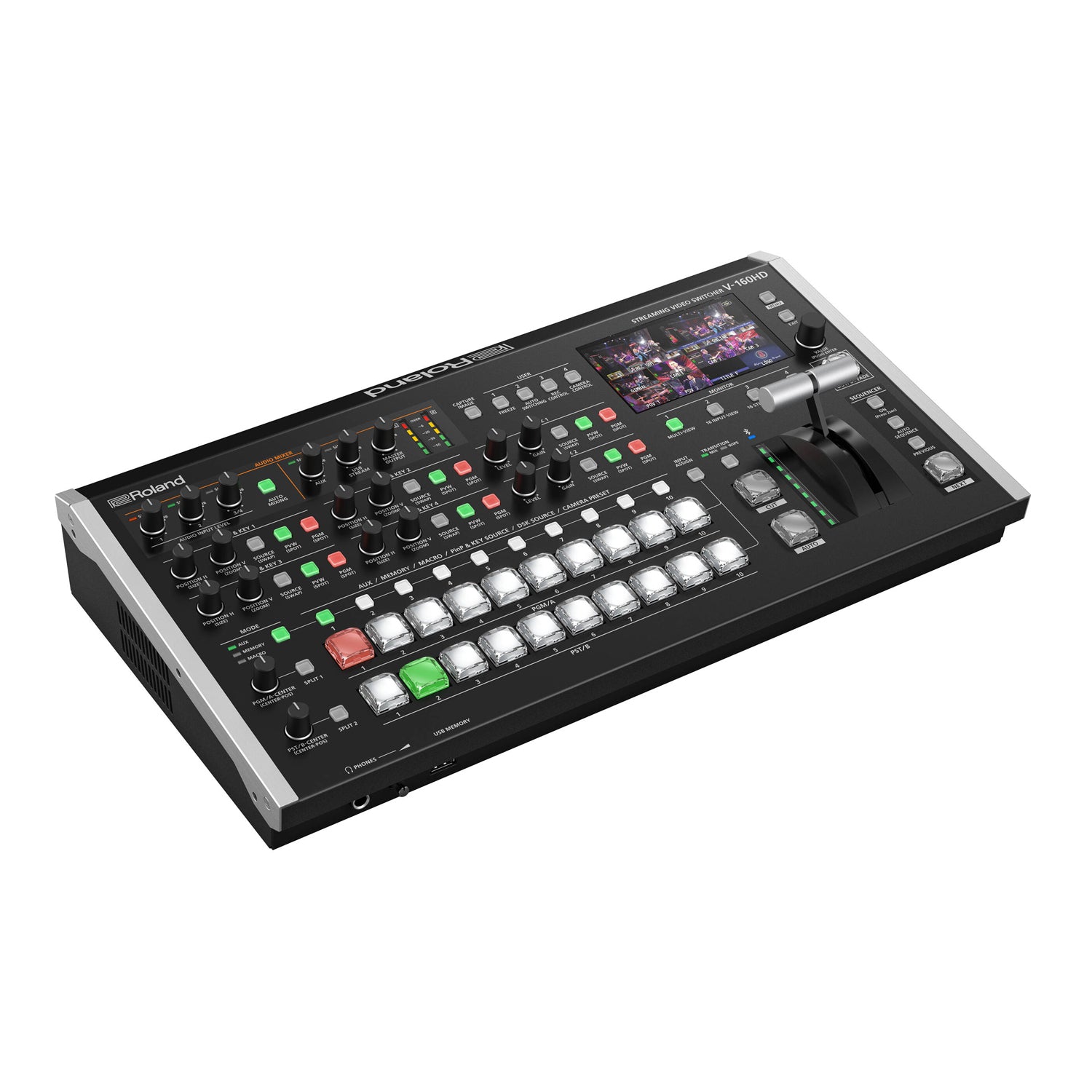

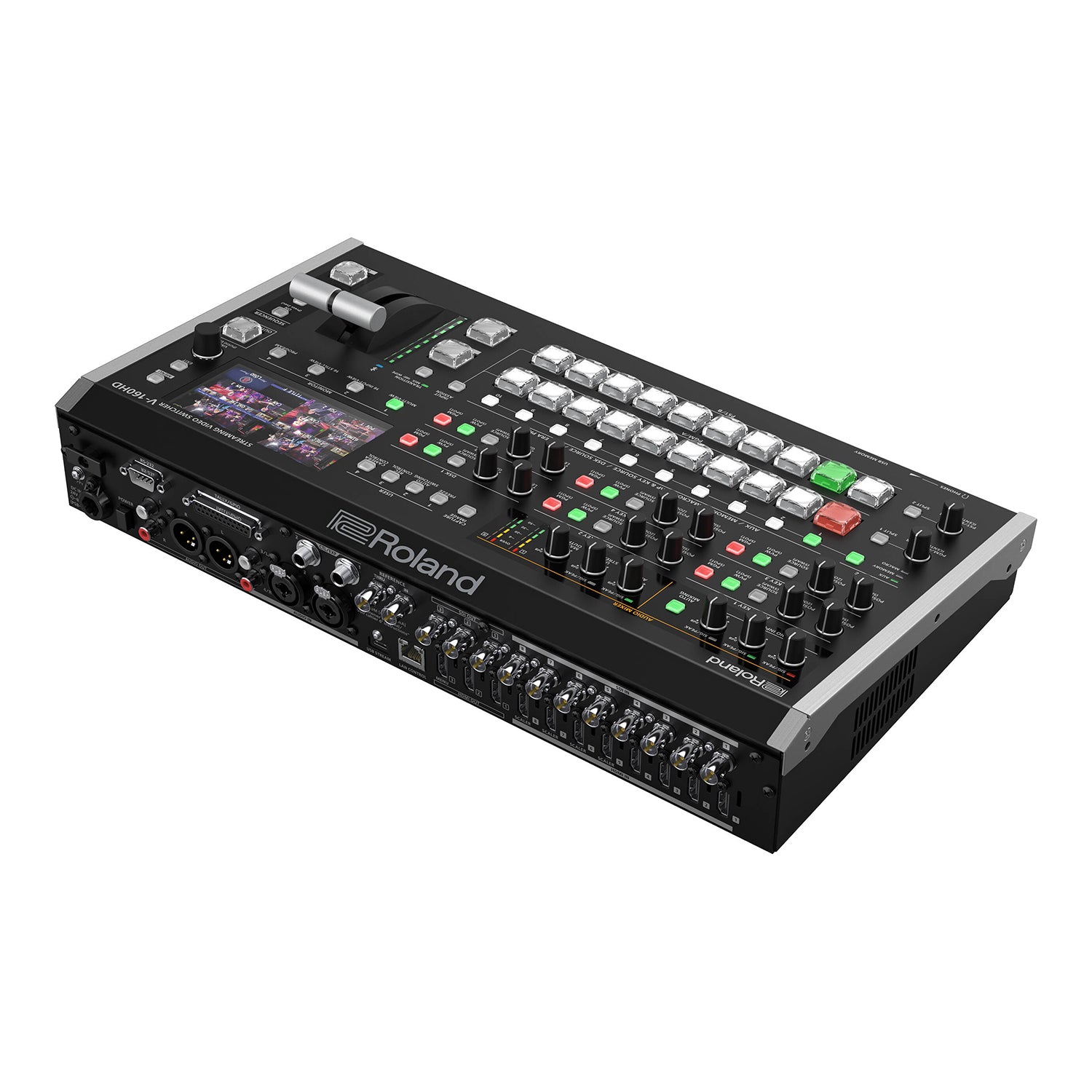

Roland V-160HD Streaming Video Switcher

Filled with pro features to take on any modern production, the V-160HD sets a new standard in hybrid event switching. Connect with live audiences in Full HD with comprehensive SDI and HDMI I/O and simultaneously stream to any popular web platform via USB-C. There's also an eight-layer video effects engine, a 40-channel digital audio mixer, and integrated PTZ camera control, plus next-generation cue management and live show automation features that make tough production tasks simple.

• Eight-layer video composition engine with keying, DSK, and multi-layer effects
• Frame-rate converters on all inputs; real-time scalers on four HDMI inputs
• 16-slot still-image store supporting BMP, JPEG, and PNG with alpha channel
• Remote control via LAN, USB, RS-232, Bluetooth, Windows, macOS, and iPad apps
• Up to 100 macro memories, 30 preset memories, and 1,000-step sequencing for show automation

Mix Effects

Available M/E Layers

• 8 M/E

Effect Types

• 8x Graphic, Transition, Chroma Key, Alpha Key, Luma Key

Graphics Memory

• 16 Images (Total)

Downstream Keys

• 2x Chroma, Luma

Generators

• 1x Pattern

Audio Mixing

• 40-Channel Mixing

Processing

Switching Type

• Pushbutton, T-Bar

Processing Resolution

• 1080p at 29.97 / 50 / 59.94

Color Processing

• 8-Bit 4:2:2 YCbCr

Audio Processing

• 48 kHz / 24-Bit

Input

Number of Video Input Sources

• 16

Video Inputs

• 8x HDMI Female
• 8x BNC (3G-SDI)

Input Video Format (SDI)

• 1080p at 23.98 / 24 / 29.97 / 30 / 50 / 59.94 / 60 fps
• 1080i at 50 / 59.94 fps
• 720p at 50 / 59.94 fps

Input Video Format (HDMI)

• 1080p at 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 fps
• 1080i at 50 / 59.94 fps
• 720p at 50 / 59.94 fps
• 576p at 50 fps
• 576i / 625 lines at 50 fps
• 480p at 59.94 fps
• 480i / 525 lines at 59.94 fps
• WUXGA (1920 x 1200) at 60 fps
• UXGA (1600 x 1200) at 60 fps
• SXGA+ (1400 x 1050) at 60 fps
• FWXGA (1366 x 768) at 60 fps
• SXVGA (1280 x 1024) at 60 fps
• WXGA (1280 x 800) at 60 fps
• XGA (1024 x 768) at 60 fps
• SVGA (800 x 600) at 60 fps

Audio Inputs

• 1x 2RCA Stereo Analog Female
• 2x XLR 3-Pin Analog Male

Input Audio Format

• Analog: 48 kHz / 24-Bit

Embedded Audio Input

• HDMI: 2-Channel (per input)

Output

Video Output Channels

• 7

Video Outputs

• 3x HDMI Female (Loop Output)
• 3x BNC (3G-SDI) Female (Preview)
• 1x USB-C (USB Video) Female

Output Video Format (HDMI / SDI)

• 1080p at 30 / 59.94 / 60 fps
• 1080i at 30 / 59.94 / 60 fps
• 720p at 50 / 59.94 / 60 fps
• 8-Bit 4:2:2 YCbCr

USB-C Output Format

• 1080p at 25 / 29.97 / 50 / 59.94 fps
• 720p at 25 / 29.97 / 50 / 59.94 fps
• 480p at 25 / 29.97 / 50 / 59.94 fps

Audio Outputs

• 1x 2RCA Stereo Analog Female
• 2x XLR 3-Pin Stereo Analog Male
• 1x 1/4" TRS Stereo Analog Female

Output Audio Format

• Analog: 48 kHz / 24-Bit

Embedded Audio Output

• HDMI: 8-Channel (per output)
• SDI: 8-Channel (per output)
• USB-C: 2-Channel (per output)

Multiview Output

• 1-Way Multiview via HDMI

Connectivity

Other I/O

• 1x DE-9/DB-9 RS-232 Input
• 1x RJ45 Control Input/Output
• 1x DB-25 GPI / Tally Input/Output
• 1x USB-A Service Input

Video Standard Compliance

• SMPTE 292M / 424M / 425M-A / 425M-B

Digital Audio Decoding

• PCM

HDCP Support

• Yes

IP Encoding / Decoding

IP Video (MJPEG)

• 1920 x 1080 at 30p / 60p Encoding

IP Audio

• PCM Encoding

Display

Display Size

• 4.3"

Screen Resolution

• 480 x 272

Hardware

OS Compatibility

• Windows / macOS / iPadOS (Mobile)

Wireless

• Bluetooth 4.2

Power

Power Input

• 1x Barrel (24 VDC)

Power Consumption

• 55 W (2.5 A)

General

Operating Conditions

• 32 to 104°F / 0 to 40°C

Dimensions

• 17.2 x 10 x 4.1 in / 437 x 253 x 103 mm

Weight

• 8.6 lb / 3.9 kg
