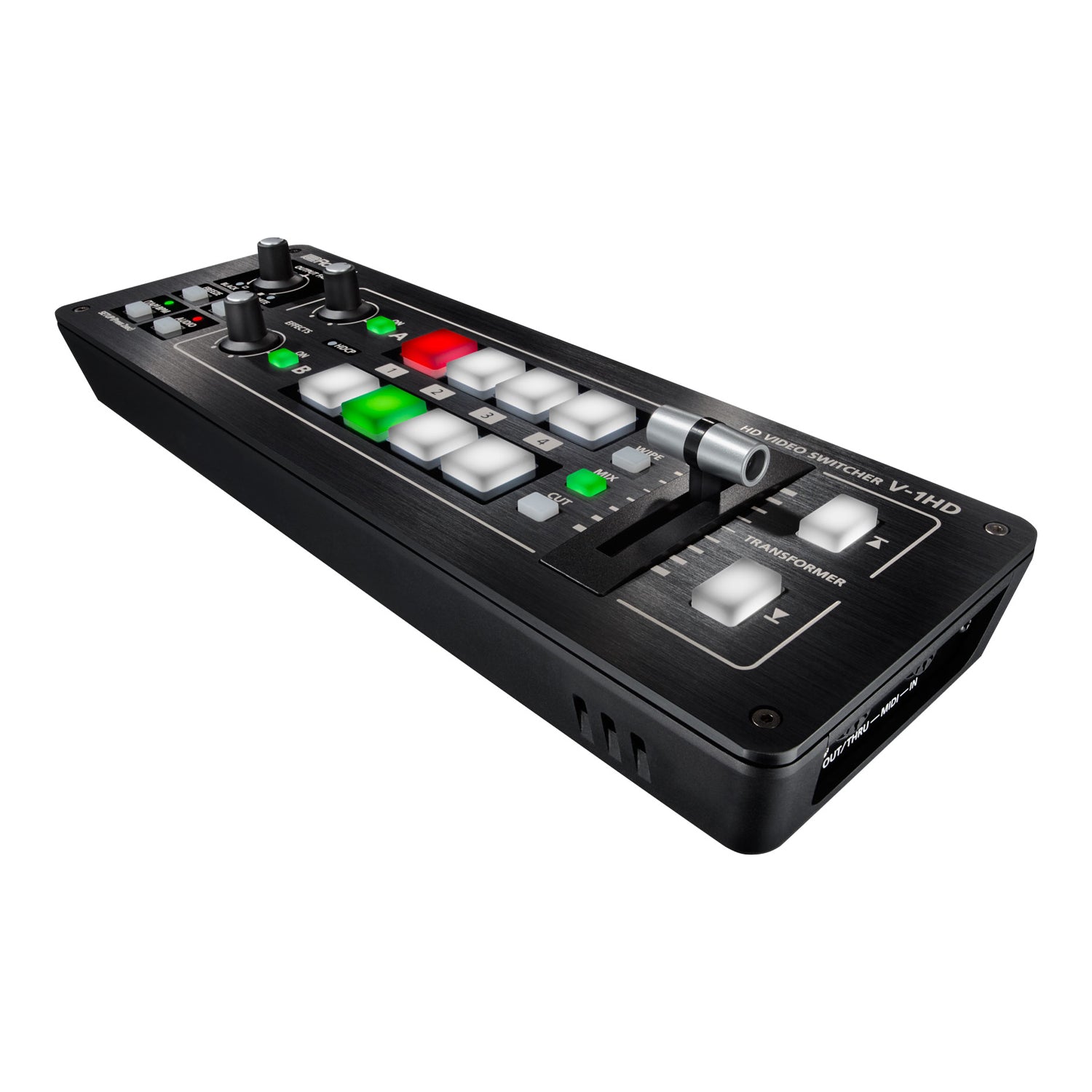

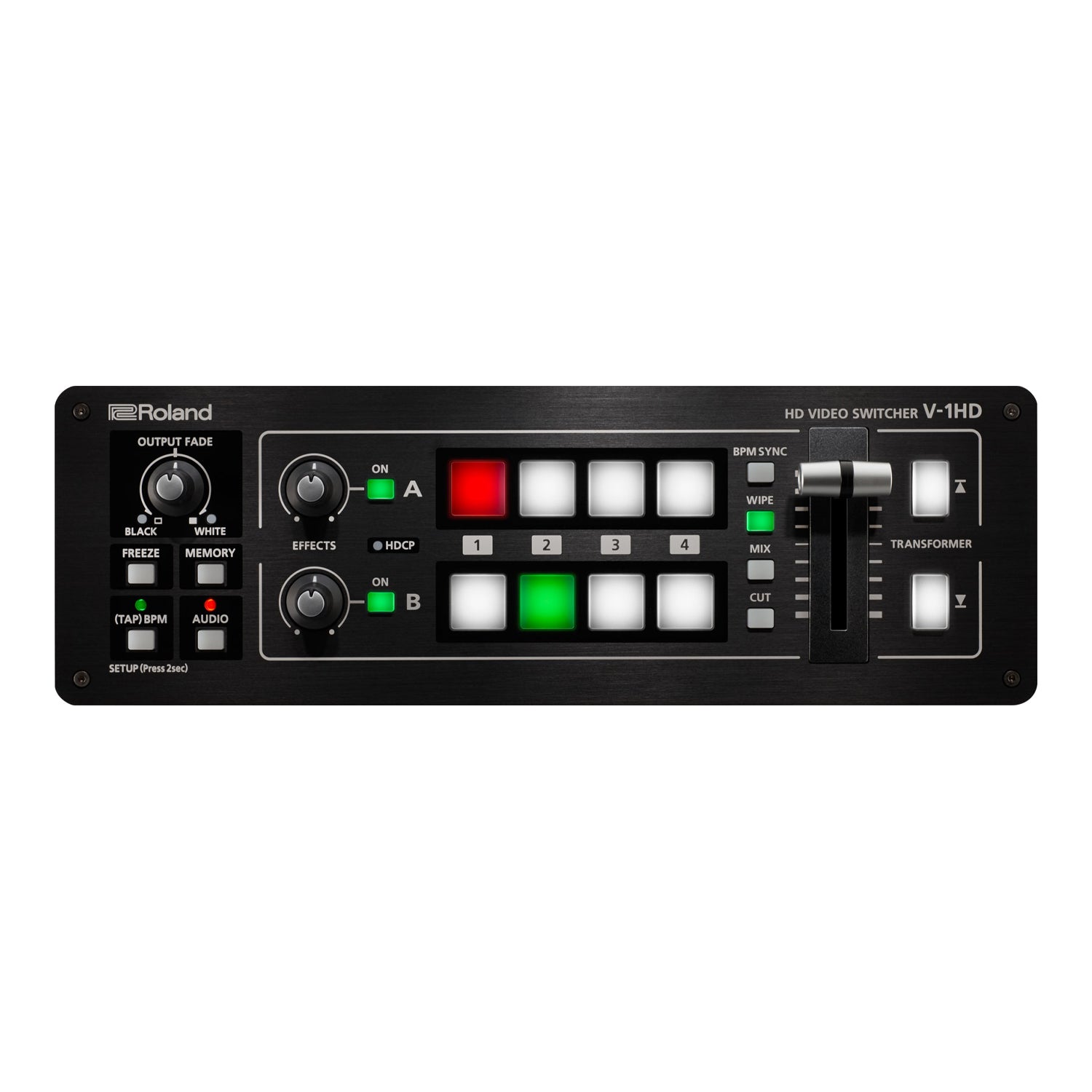

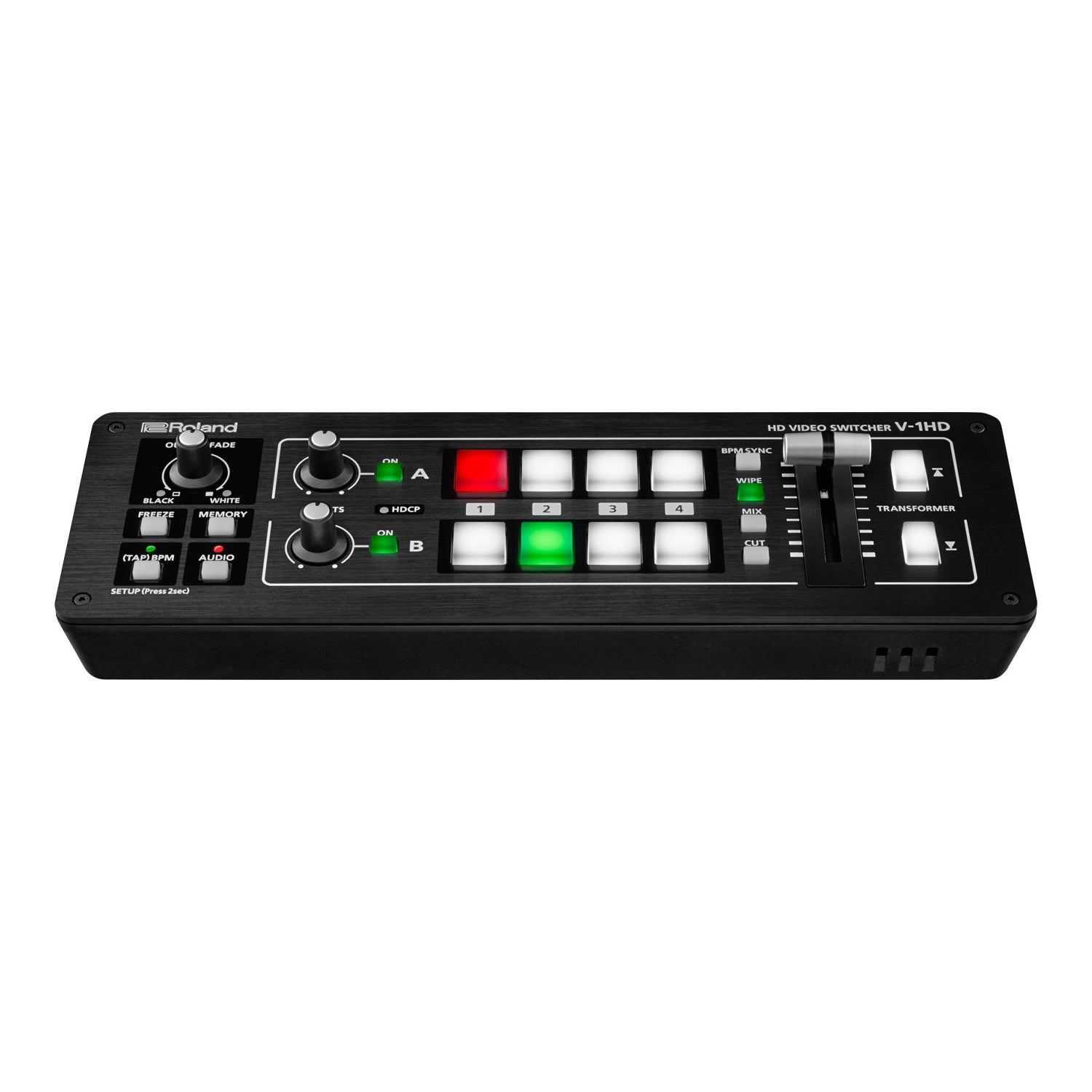

Roland V-1HD HD Video Switcher

• 4 HDMI inputs
• Supports up to Full HD 1080p
• Easy-to-use interface
• Full 12-channel audio mixer included
• Easy to operate with hardware controls
• Two HDMI outputs
• Picture-in-picture and split functions
• Two EFFECTS knobs deliver genuine visual performance
• Remote control via USB or MIDI connection
• Software control using V-1HD RCS Application for Mac, PC, and iPad

Video Processing

• 4:2:2 (Y/Pb/Pr), 8-bit

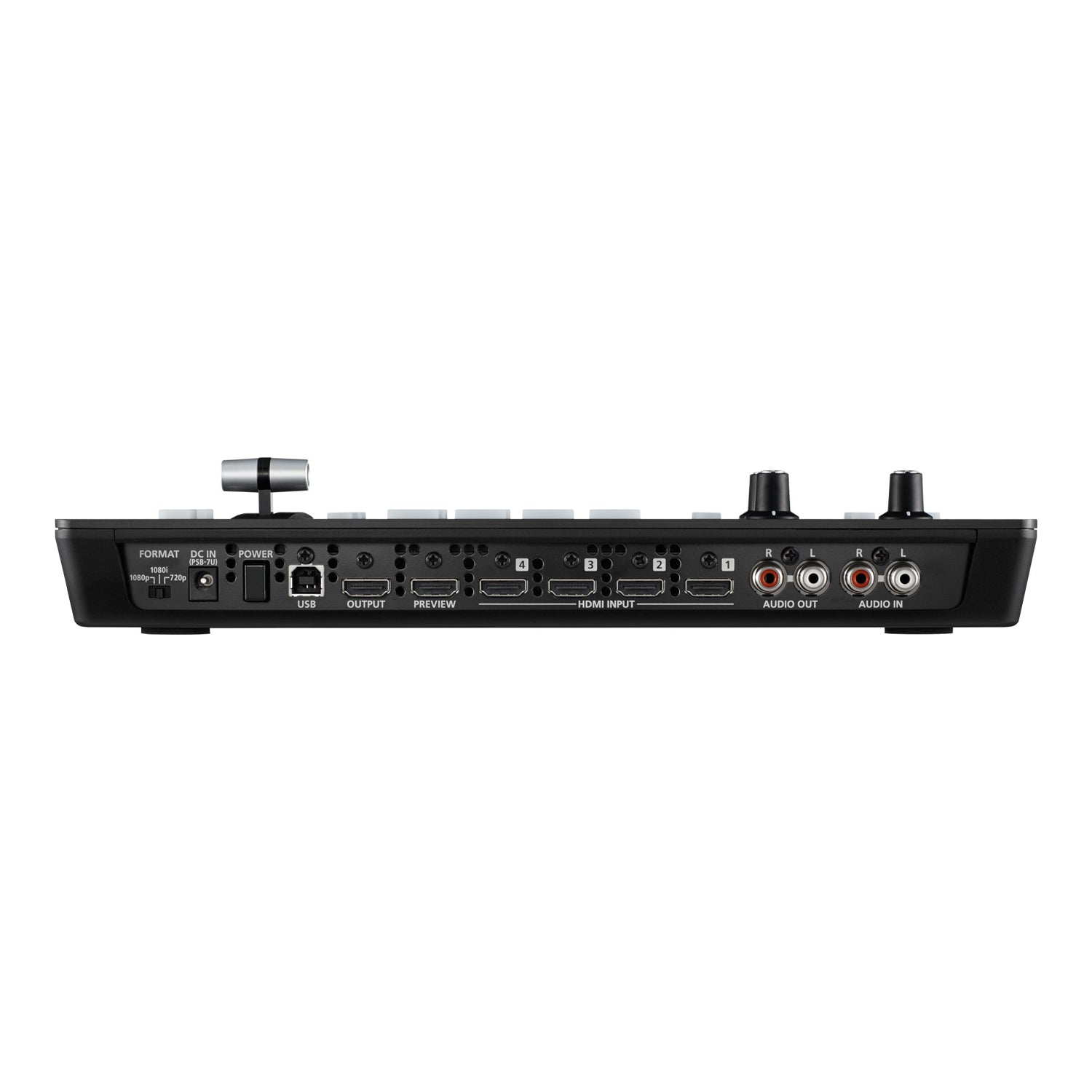

Video Input Connectors

HDMI INPUT 1–4

• (4x) Type A, 19-pin
• HDCP Supported

Video Input Formats

HDMI

• 720/59.94p, 720/50p (720p Mode)
• 1080/59.94i, 1080/50i (1080i Mode)
• 1080/59.94p, 1080/50p (1080p Mode)
• * The input interlaced video signal is converted to progressive video signal by internal processing.
• * The video signal frame rate is selected by SETUP parameters (59.94 or 50).

Video Output Connectors

(1x) HDMI OUTPUT

• Type A, 19-pin
• HDCP Supported

(1x) HDMI PREVIEW

• Type A, 19-pin
• HDCP Supported

Output Formats

HDMI

• 720/59.94p, 720/50p (720p Mode)
• 1080/59.94i, 1080/50i (1080i Mode)
• 1080/59.94p, 1080/50p (1080p Mode)
• * The video signal frame rate is selected in SETUP parameters (59.94 or 50)

Video Effects

Transition

• CUTMIX (DISSOLVE, FAM, NAM, MOSAIC)WIPE (30 Types)TRANSFORMER (11 Types)

Effects

• NEGATIVE, EMBOSS, COLORIZE, COLORPASS, POSTERIZE, SILHOUETTE, MONOCOLOR, FINDEDGE, FLIP, WH-LUMIKEY@, BK-LUMIKEY@, GR-CHROMAKEY@, BL-CHROMAKEY@, PinP (1/4)@, PinP (1/3)@, PinP (1/2)@, SPLIT (H-STRETCH)@. SPLIT (H-CENTER)@, SPLIT (V-STRETCH)@, SPLIT (V-CENTER)@
• * @ marked Effects are effected common to A-BUS and B-BUS.

Audio Processing

• Sampling Rate: 24-bit / 48 kHz

Audio Input Connectors

Digital

• HDMI INPUT 1–4 (Type A, 19-pin) ×4

Analog

• AUDIO IN (RCA)

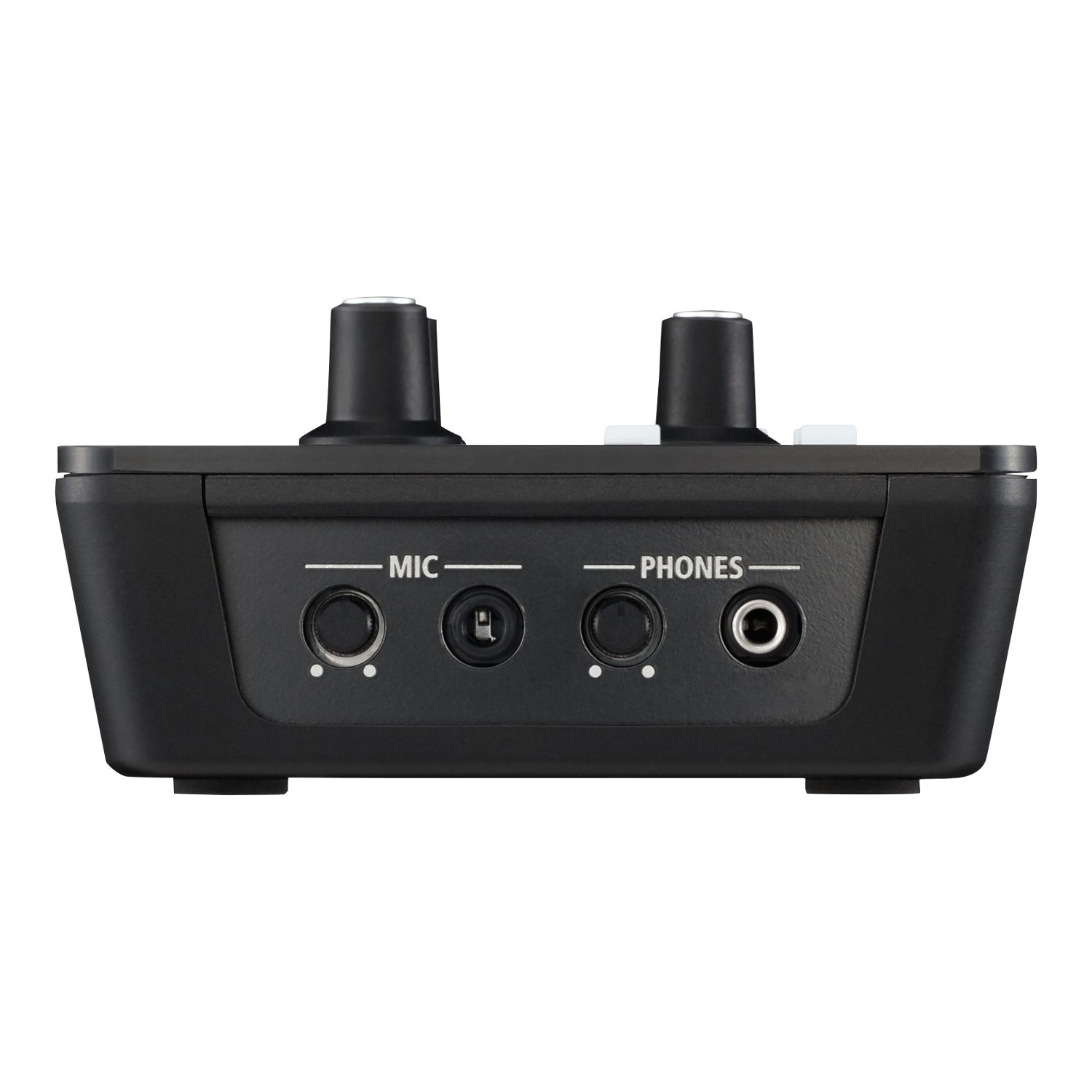

• MIC (Stereo Mini, Plug-In Power Supported)

Input Level

AUDIO IN

• -10 dBu (Maximum +8 dBu)

MIC

• -41 to -13 dBu (Maximum -1 dBu)

Input Impedance

AUDIO IN

• 15 kΩ

MIC

• 10 kΩ

Audio Outputs

Digital

• HDMI OUTPUT (Type A, 19-pin)
• HDMI PREVIEW (Type A, 19-pin)

Analog

• AUDIO OUT (RCA)
• PHONES (Stereo Mini)

Output Level

AUDIO OUT

• -10 dBu (Maximum +8 dBu)

PHONES

• 72 mW + 72 mW (32 Ω)

Output Impedance

AUDIO OUT

• 1 kΩ

PHONES

• 10 Ω

Audio Effects

• EQ
• Delay
• Compressor
• High-Pass Filter (HPF)
• Gate
• Reverb
• Mastering Effect

Control & Connectivity

• USB Connector: Type B (PC remote control)

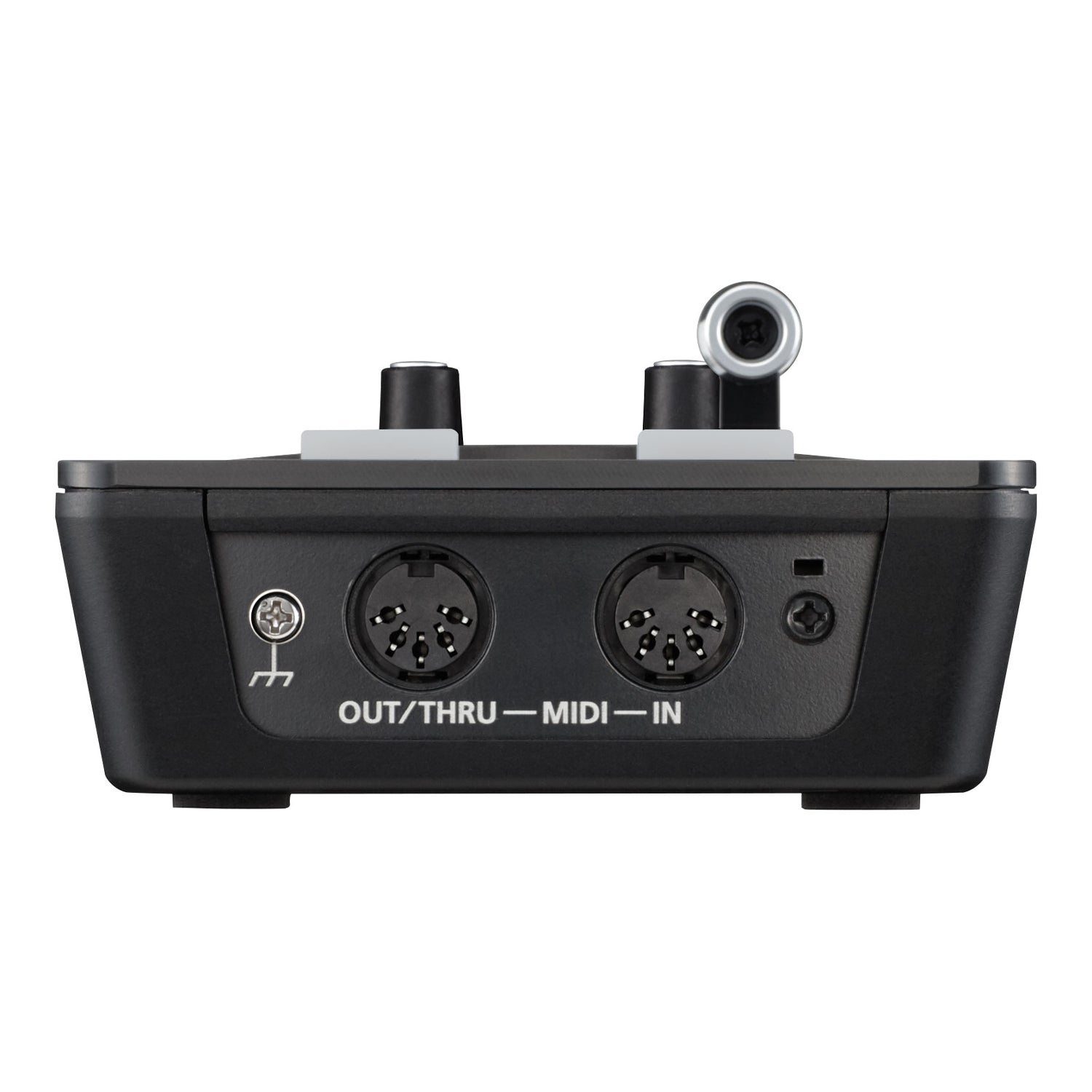

• MIDI: IN, OUT/THRU
• Memory Presets: 8 Types
• Freeze Function: Captures input video frame
• BPM Sync: Automatic transitions synchronized to tempo
• Output Fade: White, Black, Audio

Power

• Power Supply: AC Adapter
• Current Draw: 1.5 A
• Power Consumption: 18 W

Physical Specifications

• Dimensions (W × D × H): 313 × 102 × 59 mm (12-1/3 × 4 × 2-1/3 in.)
• Weight: 1.2 kg (2 lb 10.4 oz) excluding AC adapter
