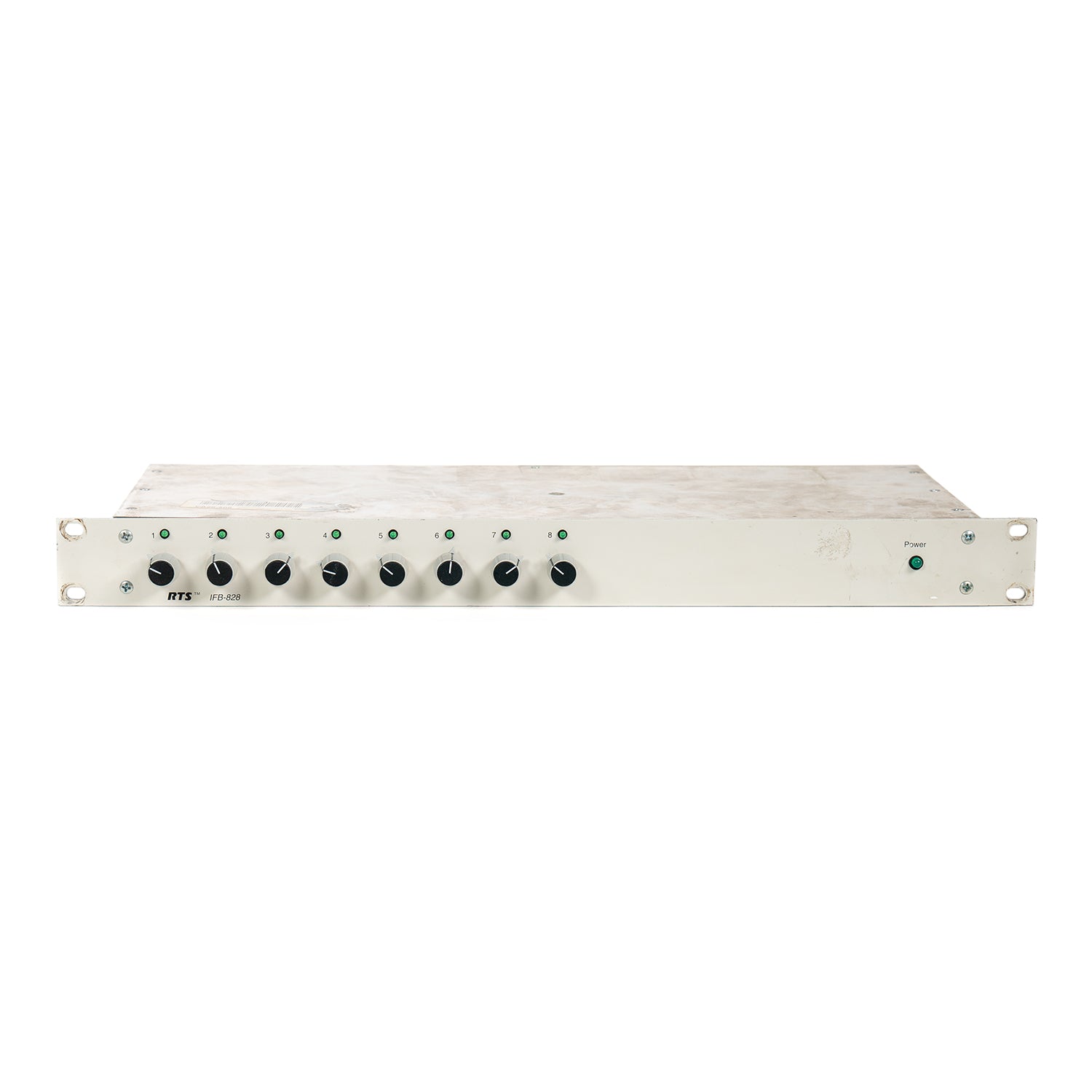

RTS IFB-828 8-Channel IFB Panel with Volume Controls

Used Gear

RTS IFB-828 8-Channel IFB Panel with Volume Controls

Name: RTS IFB-828 8-Channel IFB Panel with Volume Controls
Brand: RTS
SKU: RTS-IFB828-GD
Price: 200.0 USD
Availability: OutOfStock

$200.00

$350.00

Sold out

Condition: Good

Brand New — Gear has never been used and is still in original packaging.

Open Box — Gear has never been used, but the factory seal is broken on packaging.

Like New — Gear has been used, but has little to no cosmetic damage.

Good — Gear is in good working condition with moderate cosmetic wear and tear.

Fair — Gear is functional, but with obvious wear and tear.

For Parts Only — Gear is not functional, but has salvageable parts that can be used to repair similar gear.

RTS IFB-828 8-Channel IFB Panel with Volume Controls

Details

At A Glance

Description

The IFB-828 interfaces up to eight (8) RTS System’s Model IFB-325, 4020, or 4030 IFB Belt Packs to any RTS Digital Matrix Intercom System, and it provides power to belt packs.

The IFB-828 may also be used as a simple program interface to feed two (2) separate program sources to each of eight (8) 4020 or 4030 belt packs (16 program sources to eight (8) belt packs total).

Features

Specifications

Dimensions

19” wide x 1.75” high x 7.5” deep (483mm x 44.5mm x 191mm)

Input Power Requirements

110/120 or 220/240 VAC, 50/60Hz, selectable via a back panel switch

Audio Inputs

Type: Balanced (transformer coupled)
Level: +4 to +8dBu
Impedance: Approximately 600 Ohms

Audio Outputs

Type: Unbalanced
Level: -10 to -6dBu

Output Power (each IFB belt pack channel)

+24VDC, 160mA not to exceed a total of 750mA

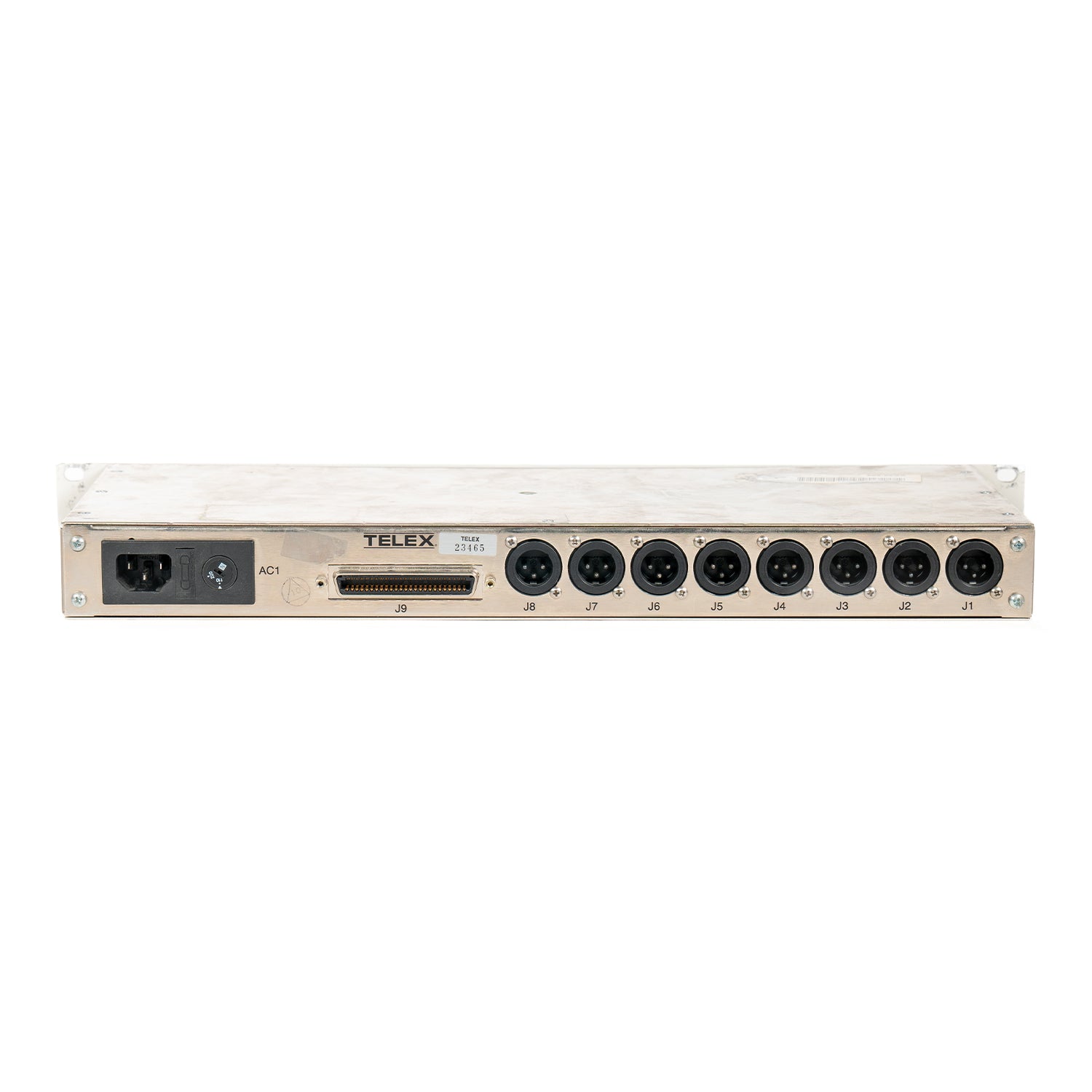

Connectors

Input (J9)

Type: 50-pin telco

Outputs (J1 to J8)

Type: 3-Pin Male XLR
Pin 1: Audio and DC Common
Pin 2: +IFB Audio (interrupt audio) and +24VDC

What's Included

The IFB-828 interfaces up to eight (8) RTS System’s Model IFB-325, 4020, or 4030 IFB Belt Packs to any RTS Digital Matrix Intercom System, and it provides power to belt packs.

The IFB-828 may also be used as a simple program interface to feed two (2) separate program sources to each of eight (8) 4020 or 4030 belt packs (16 program sources to eight (8) belt packs total).
