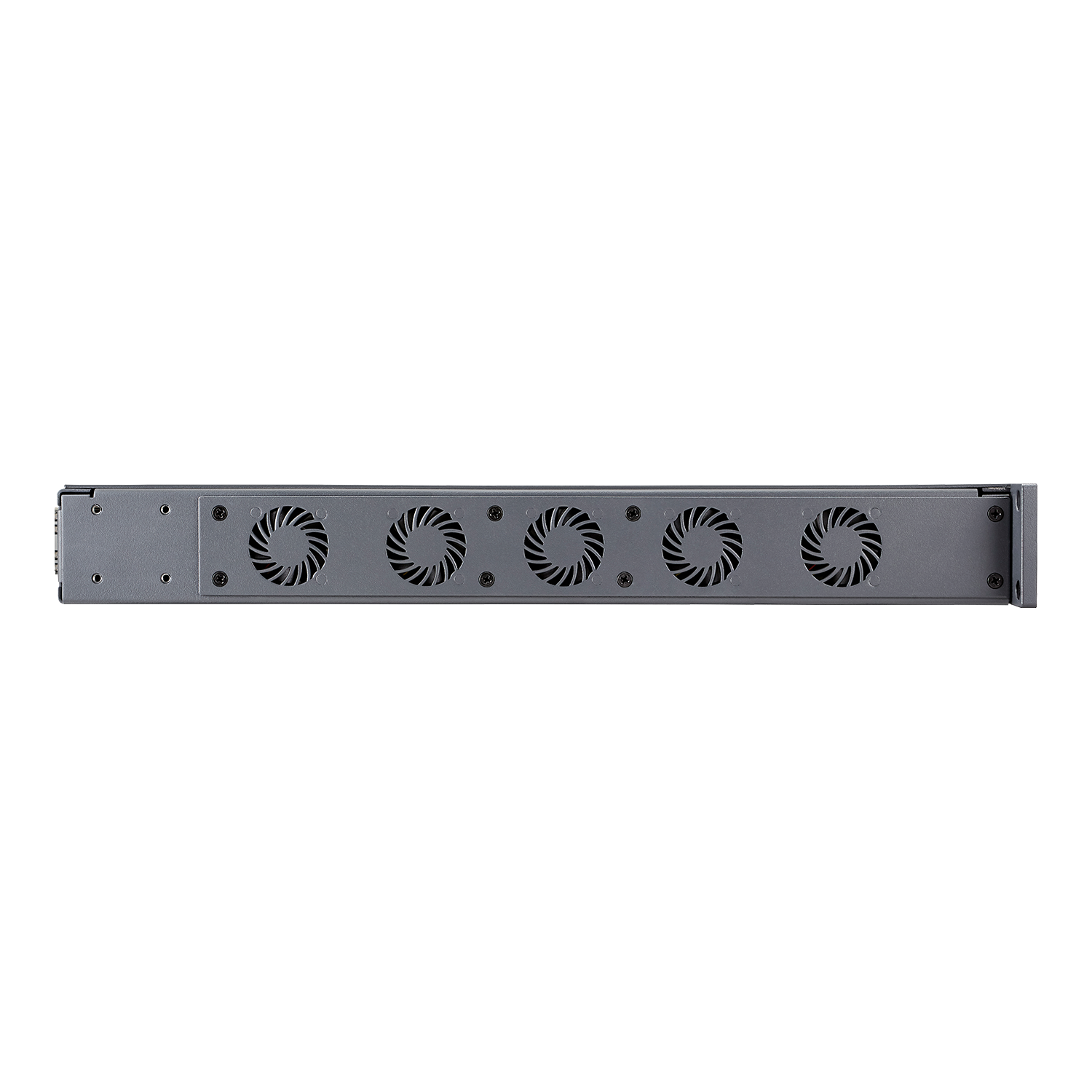

RTS ODIN OMNEO Digital Intercom

The ODIN Digital Intercom is a highly scalable intercom system in a 1RU (Rack Unit) package. As your capacity evolves, a single ODIN can grow from 16 ports to a maximum of 128 ports. Up to eight ODIN frames can be interconnected via optical Inter-Frame Links creating a single matrix with up to 1024 ports. The total number of licensed ports may be allocated freely to any port hardware type supported by the unit. The front panel has been designed to incorporate a User Interface as an alternative option to AZedit that supports the most common setup and configuration tasks. Featuring connectors for AIO, RVON, OMNEO and TW (two-wire) technology, ODIN supports keypanel technology going forward and, as always, RTS legacy keypanels. OMNEO is standard on RJ-45 connectors or is available using optional Optical Fiber SFP connectors.

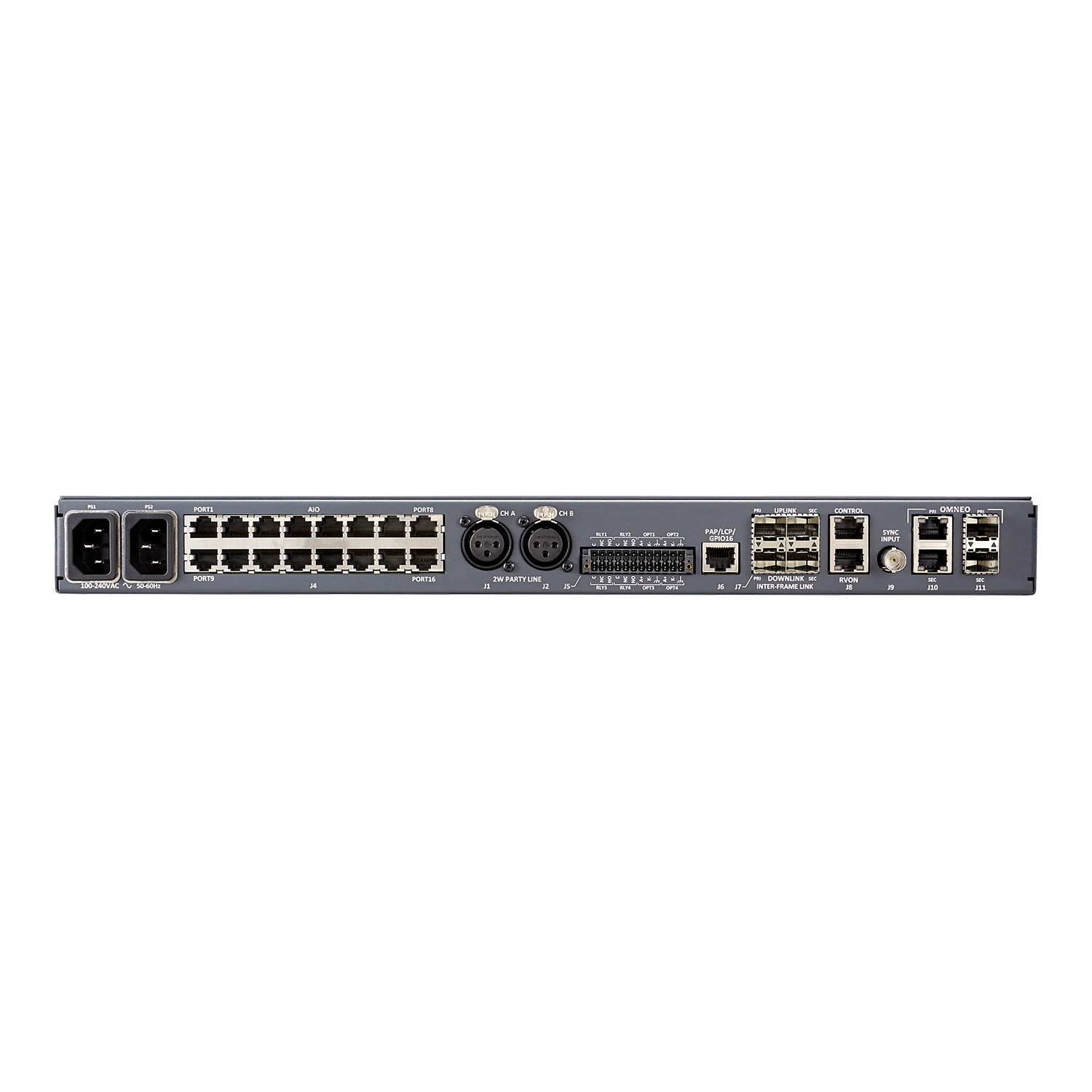

Power Supply

• Type: Locking IEC 320 C14 style connector (2 connectors, fully redundant load-sharing power supplies)
• AC Input: 100 VAC – 240 VAC, 60/50 Hz, 0.5 A / 0.35 A
• Maximum Power Consumption: 47 W (based on 120 VAC)

Note: Lighted power buttons on front panel control DC voltage feed to internal circuitry; they do not disconnect AC from the internal power supplies. Power cords must be fully removed from unit to safely disengage internal power.

Environmental

• Operating Temperature: 32° F – 113° F (0° C – 45° C)
• Storage Temperature: -4° F – 158° F (-20° C – 70° C)

Dimensions

• 19" w/ rack ears (17.3" w/o rack ears) W x 1.7" H x 14.3" D (including connectors)
• 482.6 mm w/ rack ears (439 mm w/o rack ears) W x 43.7 mm H x 363.5 mm D (including connectors)

Weight

• ODIN frame: 11.5 lbs (5.2 kg)
• Optional Mounting Bracket: 0.86 lbs (390 grams)

AIO 4-Wire Analog

• Connectors: 16 RJ-45 connectors
• Signal Format: Differential RX/TX audio with differential RS-485 control data
• Wiring Scheme: Both 568B & USOC supported
• A/D and D/A Resolution: 24 bits
• Max Input Level (balanced): +20 dBu w/o clipping
• Digital Input Gain: Programmable (-20 dB – +20 dB)
• Input Frequency Response: +1 dB/-3 dB from 100 Hz – +20 kHz
• THD+N (8dBu input, unity gain): 0.025% non-weighted@1 kHz <0.075% non-weighted, 100 Hz – +20 kHz
• Nominal Input Impedance: >22 kΩ
• Nominal Output Level: 8 dBu
• Digital Output Gain: Programmable (-20 dB – +20 dB)
• Maximum Output Level (balanced) @ 600 Ohms: 20 dBu w/o clipping
• Output Frequency Response: +1 dB / -3 dB from 100 Hz – +20 kHz
• Output Noise Floor: <-70 dBu
• Crosstalk Isolation: >80 dB

2-Wire Party Line Analog

• Connector: two 3-pin female XLR connectors
• Modes/Port supported: RTS CH1, RTS CH2 | Audiocom (1 channel) | Clear-Com (1 channel)
• 4W/2W Echo Return Loss: >45 dB

Unbalanced Operation (RTS/Clear-Com)

• Expected Termination Impedance: 200 Ω
• Noise Contribution: <-70 dBu
• THD+N (w/ nominal input): <0.5%, 200 Hz – 7.3 kHz
• Bridging Impedance: >10 kΩ
• CALL Signaling: 20 kHz (RTS mode) | 12 VDC (Clear-Com mode) | MIC KILL Signaling 24 kHz (RTS mode)

Balanced Operation (Audiocom)

• Expected Termination Impedance: 300 Ω
• Noise Contribution: <-70 dBu
• THD+N (with nominal input): <0.5%, 200 Hz – 7.3 kHz
• Bridging Impedance: >10 kΩ
• CALL Signaling: 20 kHz (Audiocom mode)
• MIC KILL Signaling: 24 kHz (Audiocom mode)

General Purpose Input/Output Ports

Relays (4 Relays)

• Type: SPDT
• Contacts: Common (C) | Normally Closed (NC) | Normally Open (NO)
• Contact Rating: 1A @ 30 VDC

Inputs (4 Inputs)

• Type: Optically Coupled
• Input Voltage: 5 VDC – 12 VDC on A+

Note: A+ is internally pulled to +5 VDC. Connect Kto chassis ground to activate.

PAP/LCP/GPIO Port

• Connector: RJ-45
• Format: RS-485 control data only (no audio)

Inter-Frame Link Port (2 UPLINK/2 DOWNLINK)

Note: Supports expansion and connection of up to eight ODIN frames.

• Fiber Connector Type: Small Form Factor Pluggable (SFP)
• Multimode: Finisar FTLF8519P3BNL | 500m / 2.125 Gbps
• Single Mode: Finisar FTLF1421P1BTL | 15km / 2.67 Gbps
• Speed: 2 Gbps
• LED Indicator: Optical Signal Present

Note: SFF-8472 fiber diagnostics supported

Control Port

• Connector: RJ-45
• Format: IEEE 802.3 compliant
• Speed: 10/100/1000 Mbps
• LEDs: Speed and Link/Activity

Sync Input Port

• Connector: BNC
• Termination Impedance: 75 Ω
• Input Frequency Range: 48 kHz ±25 ppm
• Input Level: 5V TTL Compatible

OMNEO Port (primary and secondary)

• Maximum Capacity: 128 Full-duplex ports
• Copper Connector Type: RJ-45
• Format: IEEE 802.3 compliant
• Copper Ethernet Speed: 100/1000 Mbps
• LEDs: Speed and Link/Activity
• Fiber Connector Type: Small Form Factor Pluggable (SFP)
• Multimode: Finisar FTLF8519P3BNL | 500m / 2.125Gbps
• Single Mode: Finisar FTLF1421P1BTL | 15km / 2.67Gbps
• Fiber Speed: 100/1000Mbps
• LEDs: Speed and Link/Activity
• LED Indicator: Optical Signal Present

Note: SFF-8472 fiber diagnostics supported

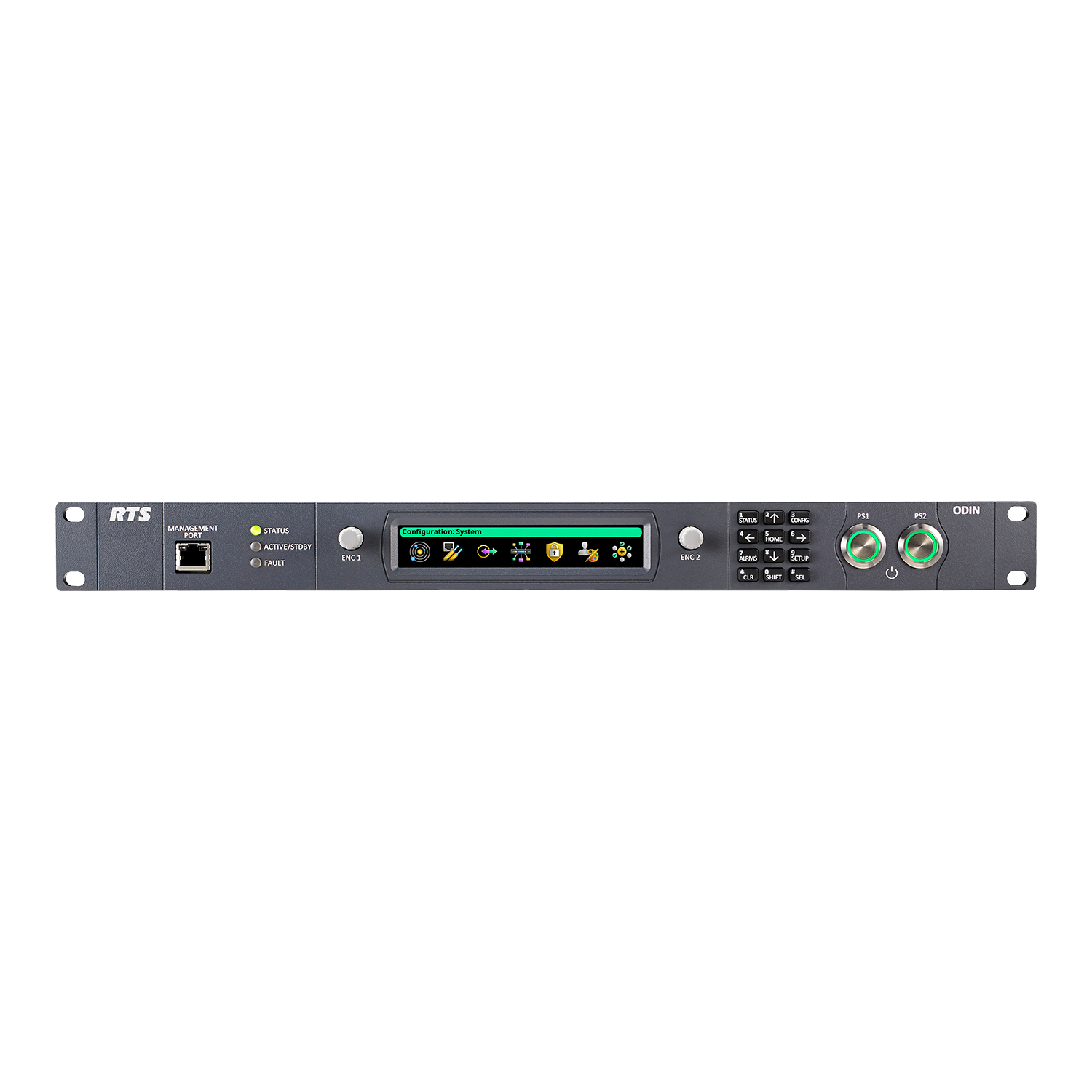

TFT Display

• Active Area: 120.10 mm (wide) x 18.77 mm (high)
• Dot Resolution: 576 x 90 pixels
• Color Resolution: 16-bit (64K) RGB color
• View Angle: 80° (typical, all directions)
• Protective Lens: Anti-Glare / Anti-Reflective

Front Panel Management Port

• Connector: RJ-45
• Format: IEEE 802.3 compliant
• Speed: 10/100/1000 Mbps
• LEDs: Speed and Link/Activity
