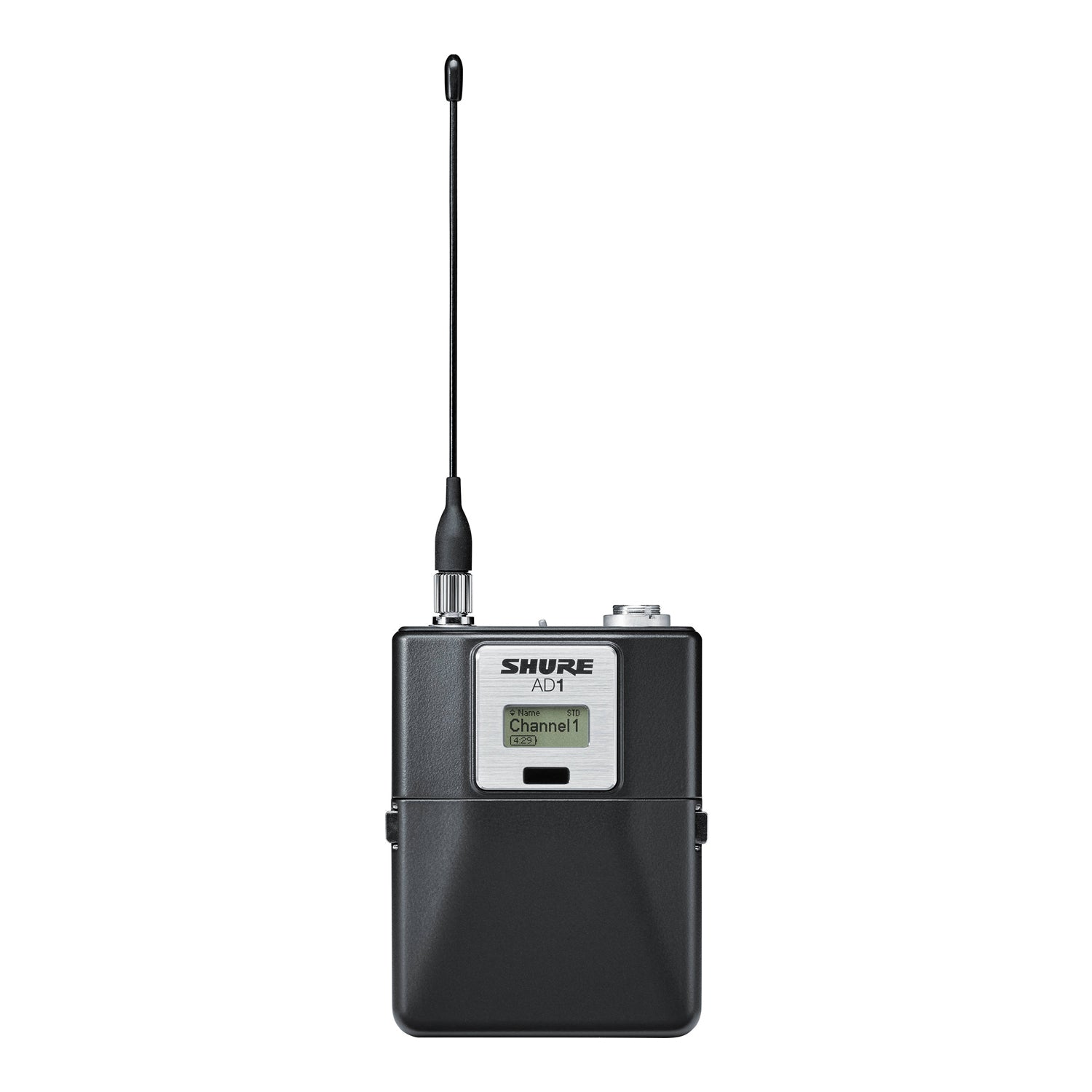

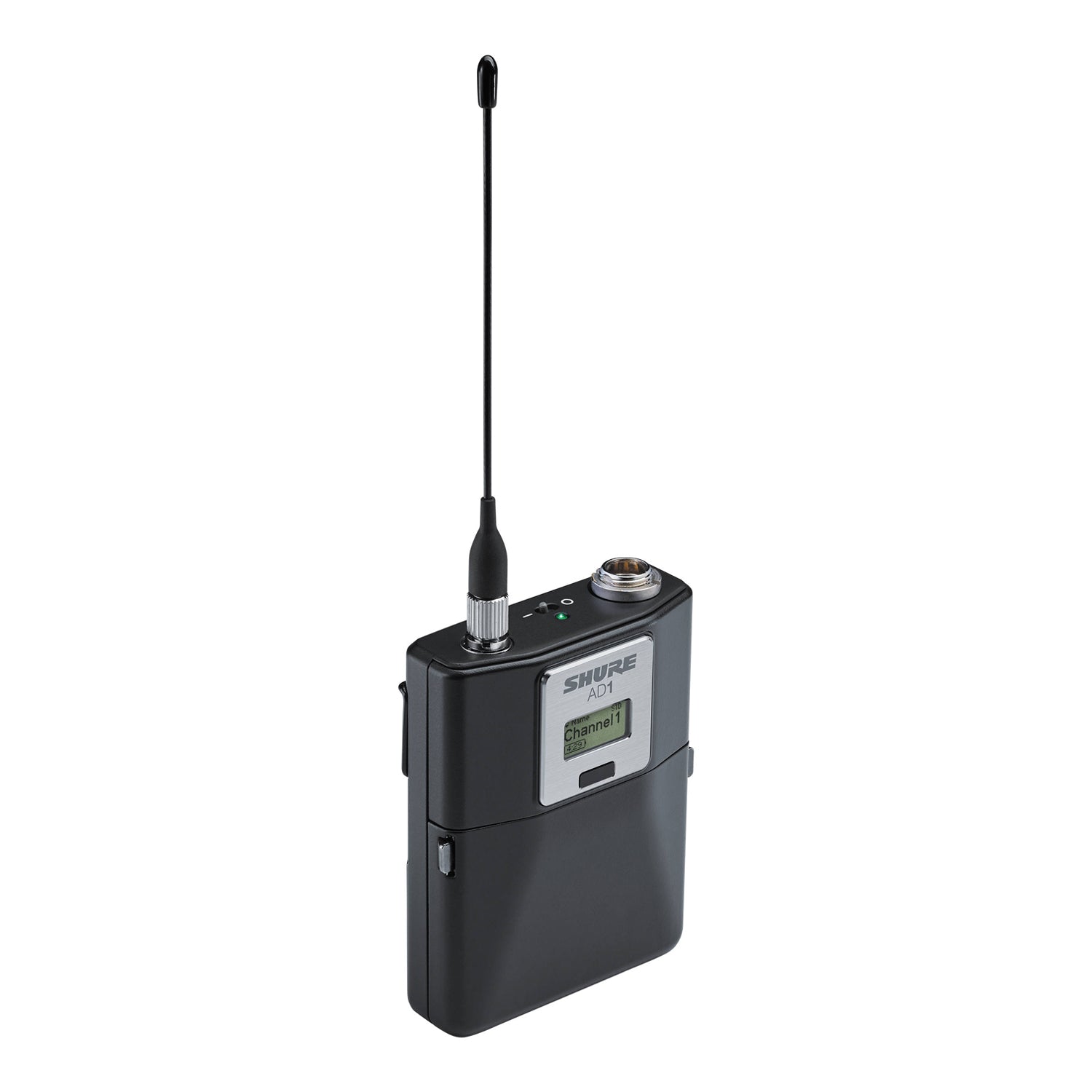

Shure Axient Digital AD1 Bodypack Transmitter
Features
- Compatible with Axient Digital Wireless Systems
- Two transmission modes: Standard for optimal coverage and new High Density for maximum system channel count and robust coverage
- Encryption-enabled, secure transmission

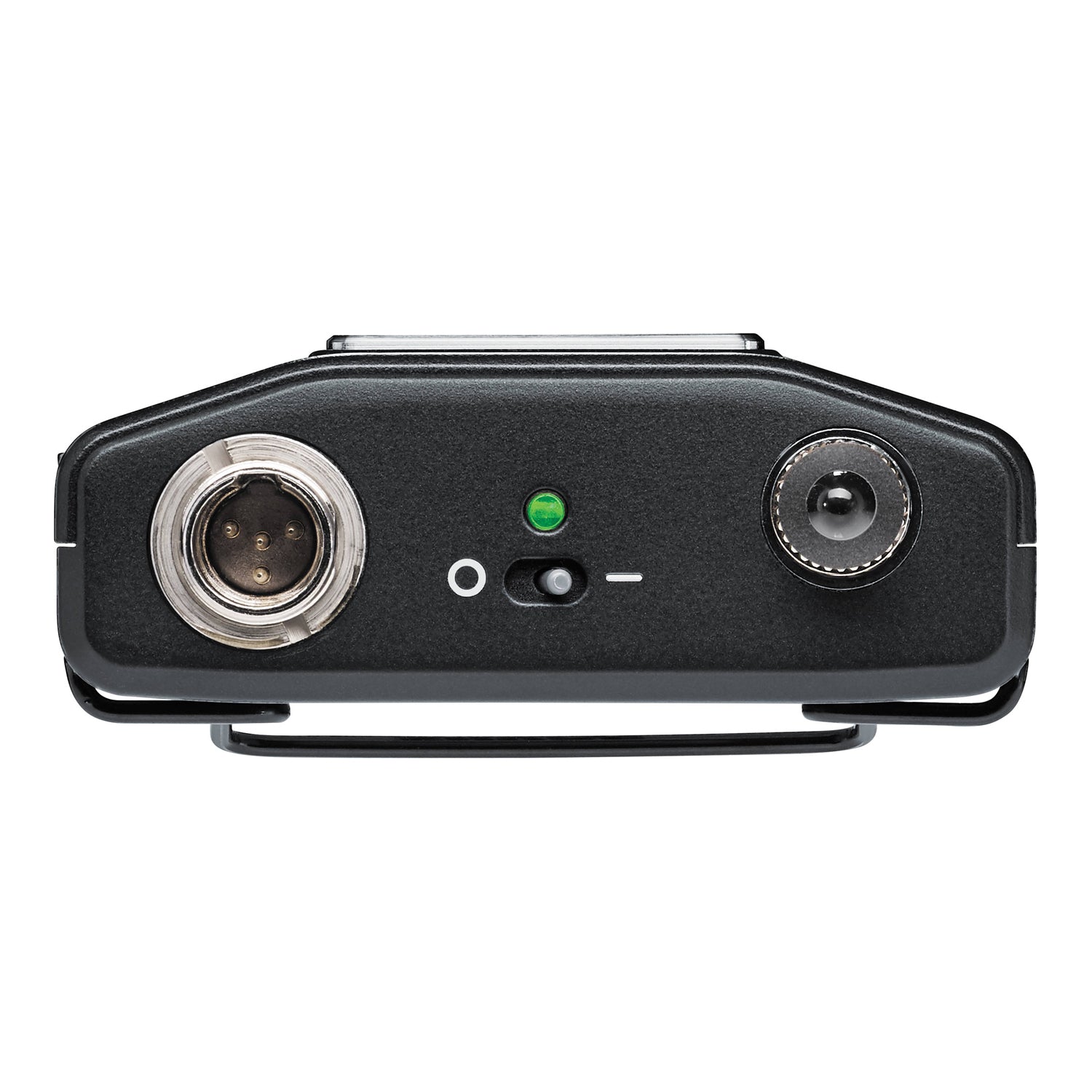

- Two connector options: TA4 and LEMO3
- Detachable ¼-wave antenna

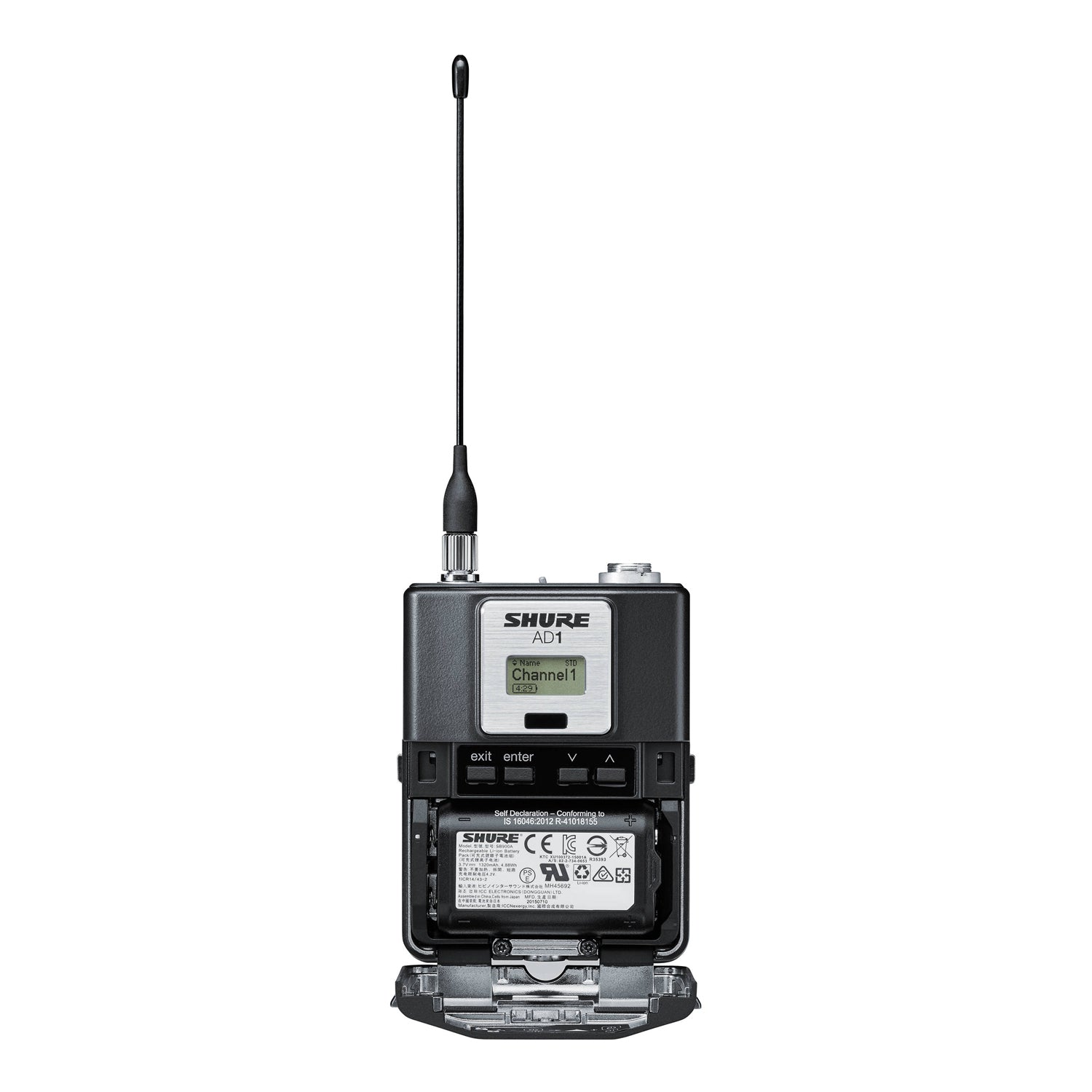

- AA or SB900B lithium-ion rechargeable batteries for convenient power options
- External contacts for docked charging
Shure Axient Digital AD1 Bodypack Transmitter
Overview
AD series bodypack transmitters deliver impeccable audio quality and RF performance with wide-tuning, High Density (HD) mode, and encryption. The transmitter features durable metal construction, AA or SB900-series rechargeable power (with dockable charging), and TA4 or LEMO3 connector options.
Performance
- 20 Hz to 20 kHz range with flat frequency response
- Automatic input staging optimizes gain setting
- AES 256-bit encryption-enabled for secure transmission
- >120 dB dynamic range
- 100 meter (300 feet) line-of-sight operating range
- Selectable modulation modes optimize performance for spectral efficiency
- Built-in tone generator and RF markers to facilitate walk-testing
- Switchable Power Levels = 2/10/35 mW (region dependent)
- Frequency Diversity selection using two bodypacks
Design
- TA4 or LEMO3 audio connector option
- Backlit LCD with easy to navigate menu and controls
- Rugged metal construction
- Flexible ¼ wave antenna
- Menu and power lockout
Power
- Over 8 hours continuous use with 2 x AA alkaline batteries
- Shure SB900-series lithium-ion rechargeable battery provides extended battery life, precision metering, and zero memory effect
- External charging contacts for docked charging
Specs
- Gain Offset Range: –12 to 21 dB (in 1 dB steps)
- Battery Type: SB900 Series Rechargeable Li-Ion
or LR6 AA batteries 1.5 V - Battery Run Time @ 10 mW: Shure SB900B: up to 8.5 hours | Alkaline: up to 8 hours
- Dimensions (H × W × D): 3.4 × 2.6 × 0.9 in (86 × 66 × 23 mm)
- Weight: 5.47 oz (155 g) without batteries
- Housing: Cast Metal
AUDIO INPUT
- Connector: 4-Pin male mini connector (TA4M)| LEMO3 Connector
- Configuration: Unbalanced
- Impedance: TA4M: 910 kΩ | LEMO3: 8.2 kΩ
- Maximum Input Level (1 kHz at 1% THD): Pad Off: 8.5 dBV (7.5 Vpp) | Pad Off: 20.5 dBV (30 Vpp)
- Preamplifier Equivalent Input Noise (EIN) System Gain Setting ≥20: –120 dBV | A-weighted, typical
RF OUTPUT
- Connector: SMA
- Antenna Type: 1/4 Wave
- Impedance: 50 Ω
- Occupied Bandwidth: <200 kHz
- Modulation Type: Shure Axient Digital Propietary
- Power: 2 mW, 10 mW, 35 mW | Varies by region.
- Specific Absorption Rate (SAR): <0.20 W/kg
