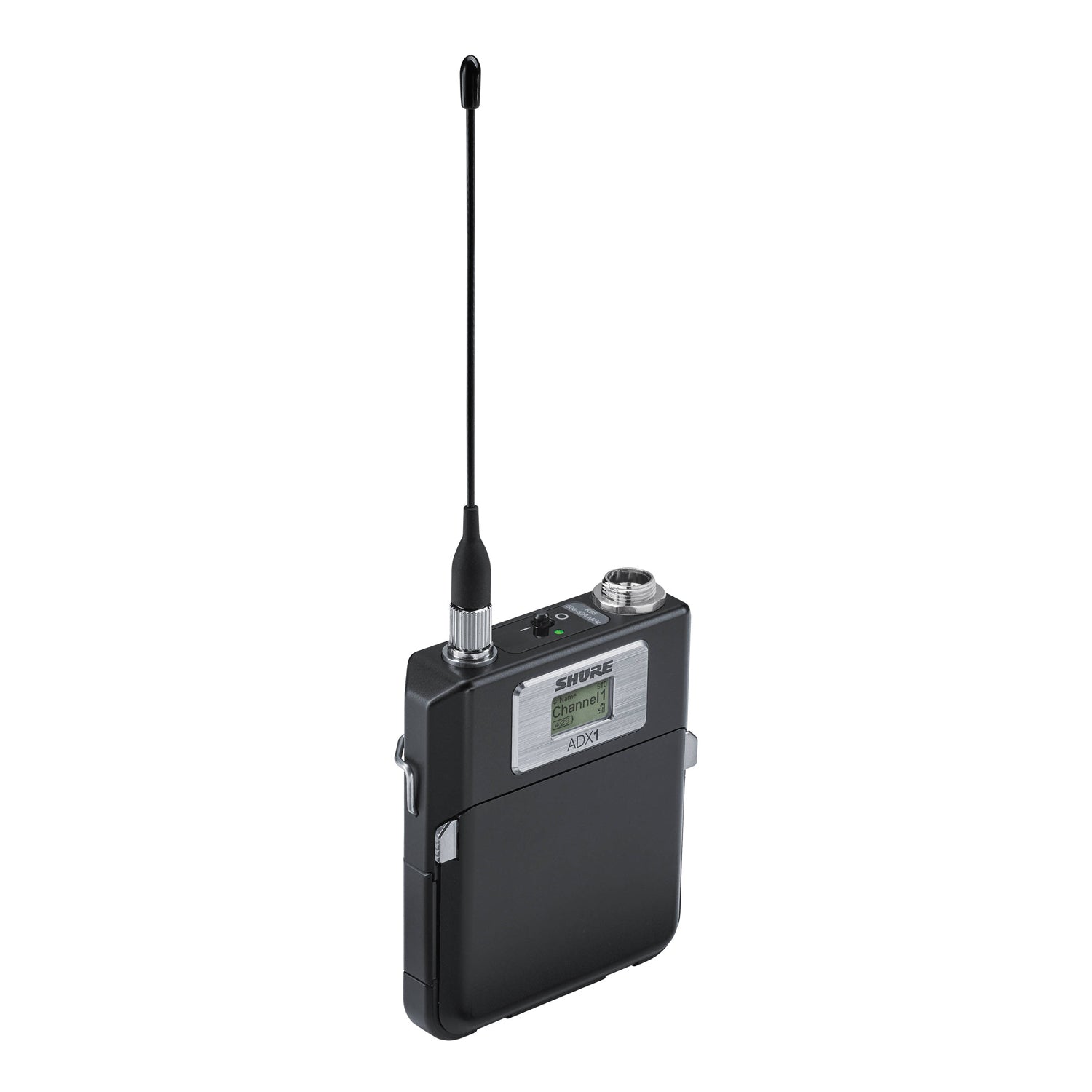

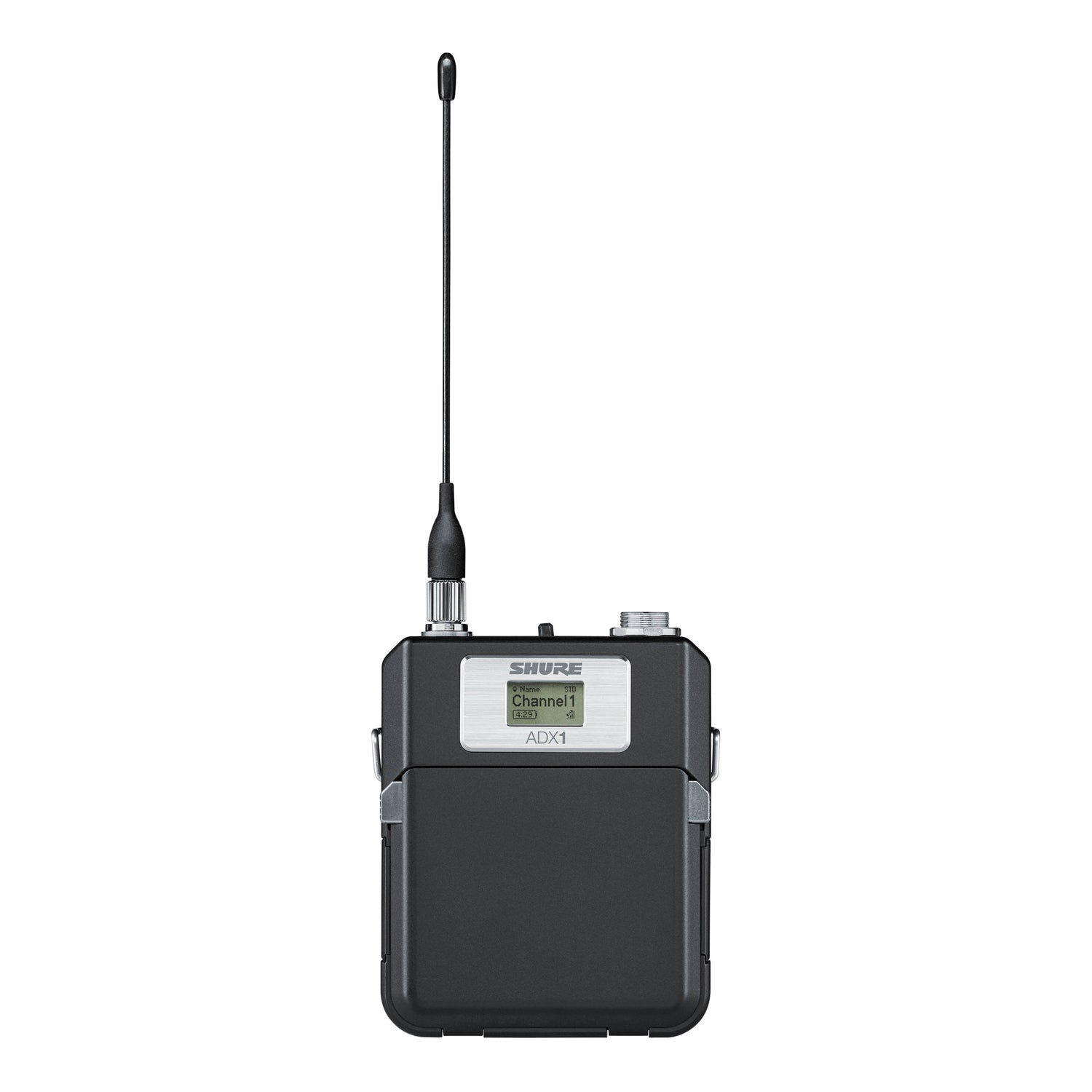

Shure Axient Digital ADX1 Bodypack Transmitter
Features
- Compatible with Axient Digital Wireless Systems
- Removable antenna and fully concealed buttons and switch
- Two connector options: TA4 and LEMO3
- Advanced control menu with powerful features
- Durable, moisture-resistant, lightweight metal case
- Up to 10 hours of runtime with SB910 rechargeable battery
- Diversity ShowLink enabled for remote transmitter control and automatic interference avoidance
- External contacts for docked charging
- Two transmission modes: Standard for optimal coverage and new High Density for maximum system channel count and robust coverage
- Encryption-enabled, secure transmission
Description
ADX series transmitters deliver impeccable audio quality and RF performance, and are equipped with ShowLink®remote control for real-time parameter adjustments and interference avoidance. This transmitter features wide tuning, High Density (HD) mode, encryption, and advanced rechargeability in a streamlined design. Light-weight aluminum construction, AAA or SB910 rechargeable power options (with lockable charging), and TA4 or LEMO3 connector options.
Performance
- 184 MHz tuning range
- 20 Hz to 20 kHz range with flat frequency response
- Automatic input staging optimizes gain setting
- Diversity ShowLink-enabled for remote transmitter control and automatic interference avoidance
- AES 256-bit encryption-enabled for secure transmission
- >120 dB, A-weighted, System Gain @ +10
- Digital output: >125dB, A-weighted (Dante, AES3, AES67)
- 100 meter (300 feet) line-of-sight operating range
- Selectable modulation modes optimize performance for spectral efficiency
- Built-in tone generator and RF markers to facilitate walk-testing
- Switchable Power Levels = 2/10/40 mW (region dependent)
- Frequency Diversity selection using two bodypacks
Design
- TA4 or LEMO3 audio connector option
- Backlit LCD with easy to navigate menu and controls
- Durable, moisture-resistant, lightweight metal case
- Flexible ¼ wave antenna
- Menu and power lockout
Power

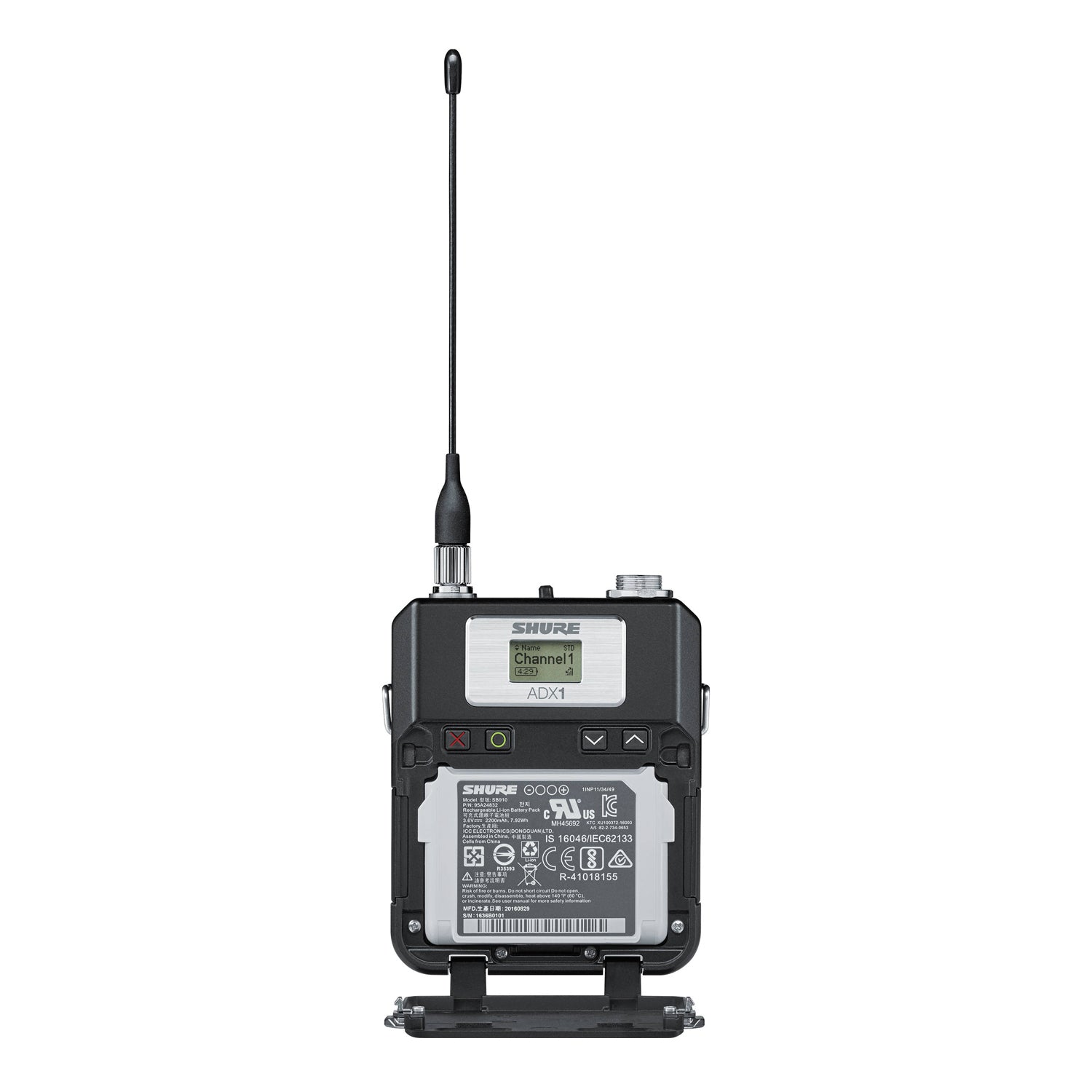

- Shure SB910 rechargeable batteries for up to 10 hours of runtime, precision metering, and zero memory effect
- AAA-compatible battery sled available
- External charging contacts for docked charging
Specifications
- Gain Offset Range: –12 to 21 dB (in 1 dB steps)
- Battery Type: SB910 Rechargeable Lithium-Ion
- Battery Run Time @10 mW: up to 10 hours
- Dimensions (H × W × D): 3.6 × 2.7 × 0.8 in
(91 × 68 × 19 mm) - Weight: 5.0 oz (142 g) without batteries
- Housing: Aluminum
AUDIO INPUT

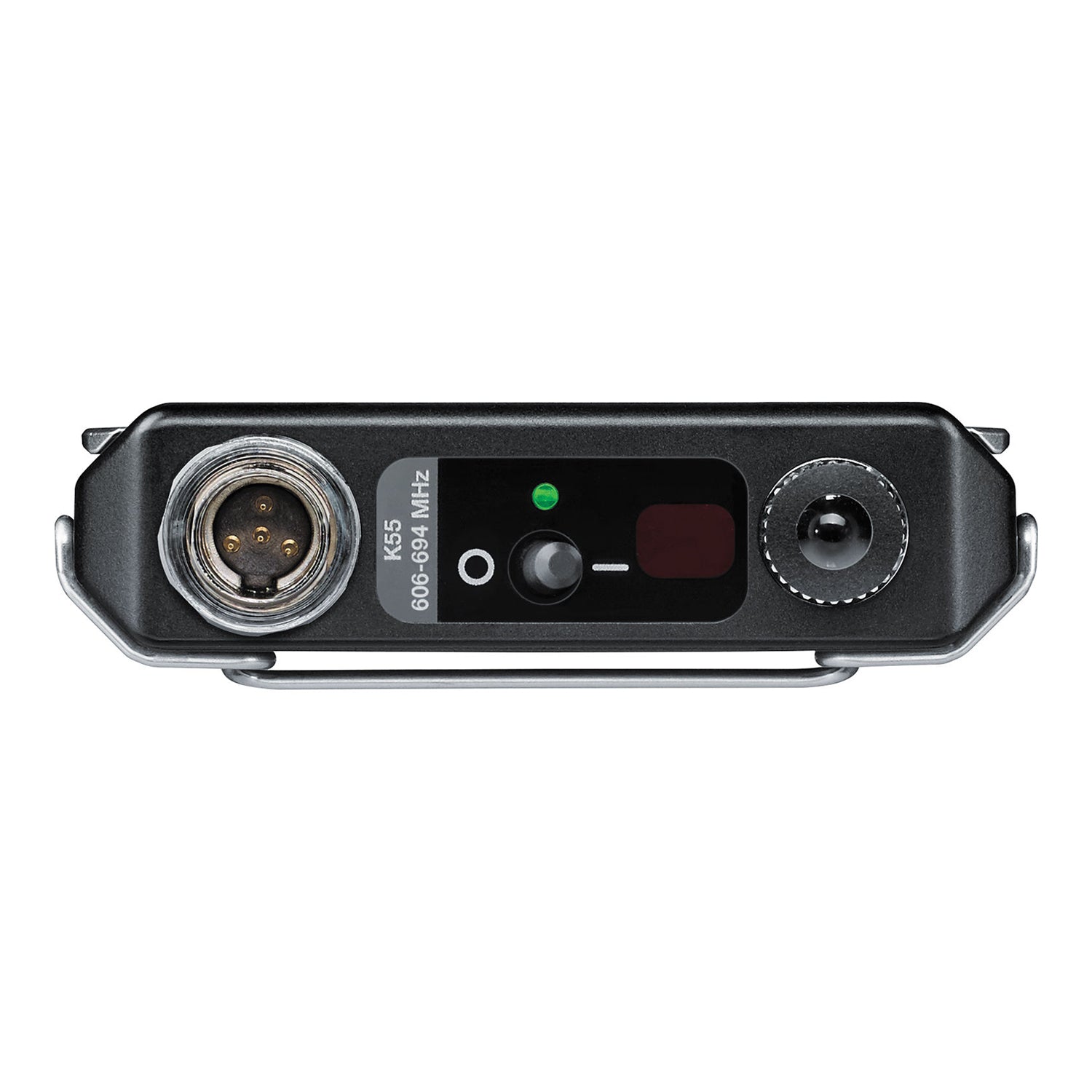

- Connector: 4-Pin male mini connector (TA4M) | LEMO3 Connector
- Configuration: Unbalanced
- Impedance: TA4M: 910 kΩ | LEMO3: 8.2 kΩ
- Maximum Input Level (1 kHz at 1% THD): Pad Off: 8.5 dBV (7.5 Vpp) | Pad On: 20.5 dBV (30 Vpp)
- Preamplifier Equivalent Input Noise (EIN) System Gain Setting ≥20: –120 dBV | A-weighted, typical
RF OUTPUT
- Connector: SMA
- Antenna Type: UHF 1/4 Wave
- Impedance: 50 Ω
- Occupied Bandwidth: <200 kHz
- Modulation Type: Shure Axient Digital Propietary
- Power: 2 mW, 10 mW, 20 mW, 40 mW | Varies by region.
- Specific Absorption Rate (SAR): <0.20 W/kg
SHOWLINK®
- Network Type: IEEE 802.15.4
- Antenna Type: ZigBee Dual Conformal
- Frequency Range: 2.40 to 2.4835 GHz (24 Channels)
- RF Output Power (Varies By Region):10 dBm (ERP)
