Shure Axient Digital ADX2 Handheld Wireless Microphone Transmitter

ADX transmitters set the stage for exceptional performance, with wide tuning up to 184 MHz, interference protection, advanced rechargeability, streamlined design, and ShowLink remote control for real-time parameter adjustments right from the booth.

Performance

• 184 MHz tuning range
• 20 Hz to 20 kHz range with flat frequency response
• Automatic input staging optimizes gain setting
• Diversity ShowLink-enabled for remote transmitter control and automatic interference avoidance
• AES 256-bit encryption-enabled for secure transmission
• >120 dB, A-weighted, System Gain @ +10
• Digital output: >125dB, A-weighted (Dante, AES3, AES67)
• 100 meter (300 feet) line-of-sight operating range
• Selectable modulation modes optimize performance for spectral efficiency or audio quality:
• Switchable Power Levels = 2/10/40 mW (region dependent)
• Built-in tone generator and RF markers to facilitate range-testing

Design

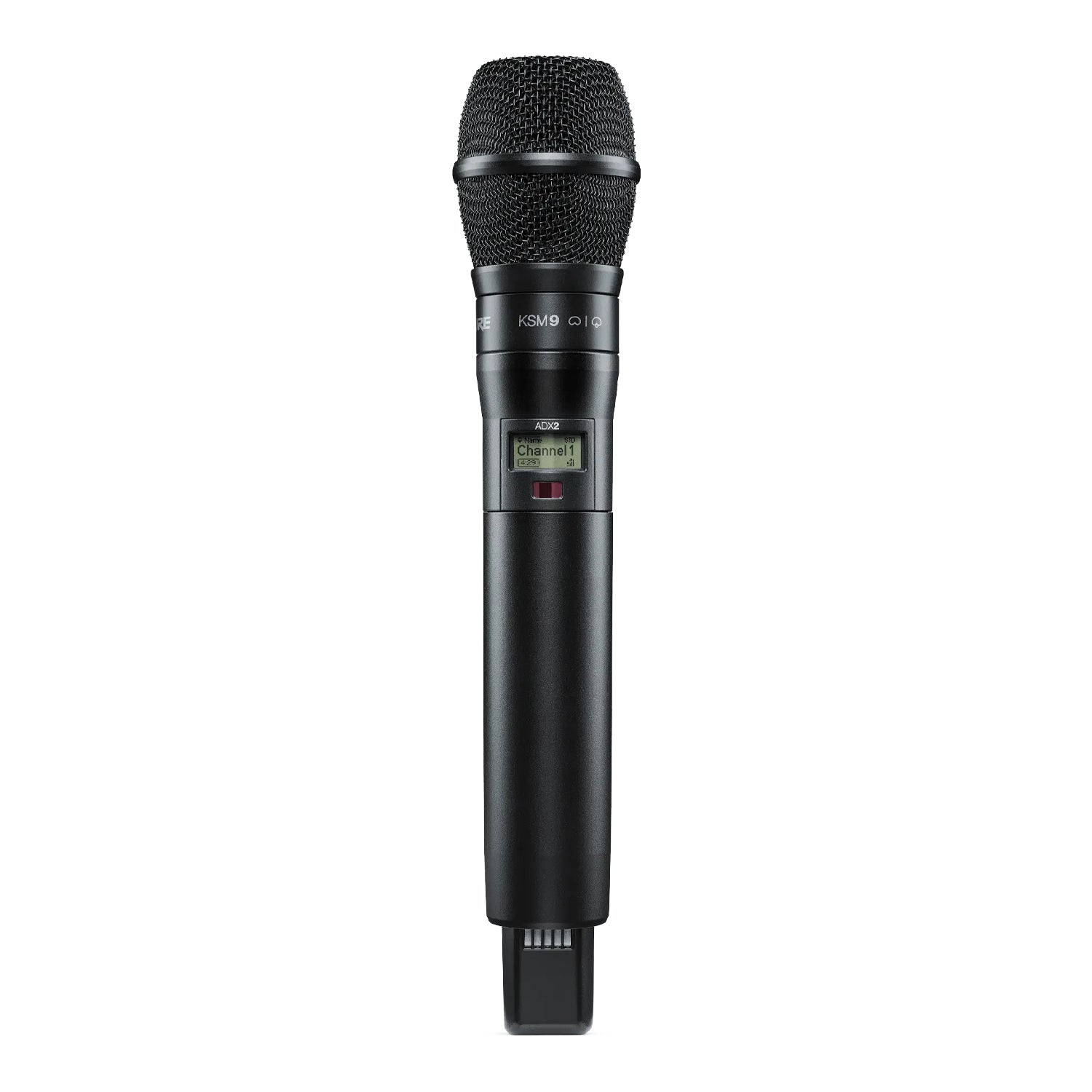

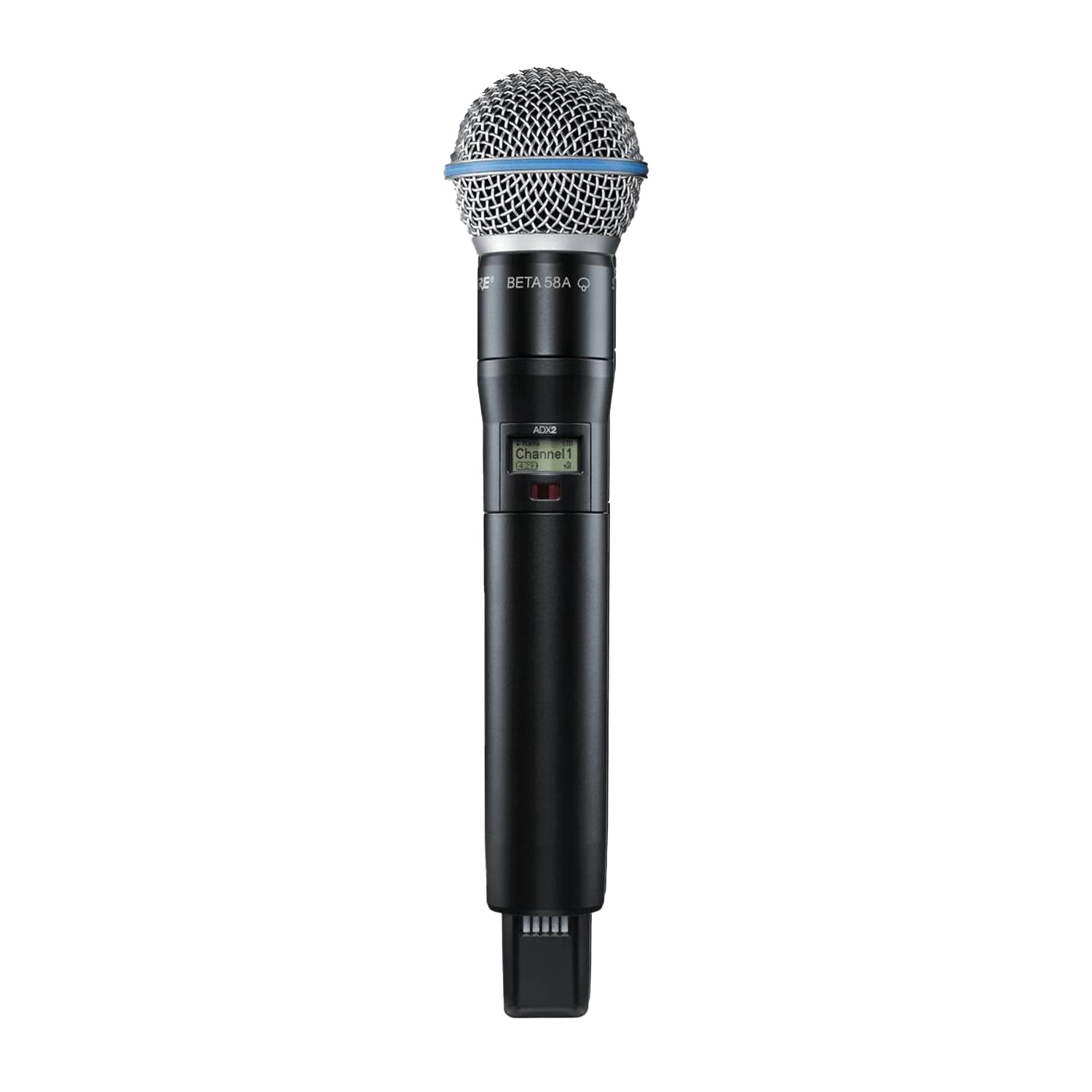

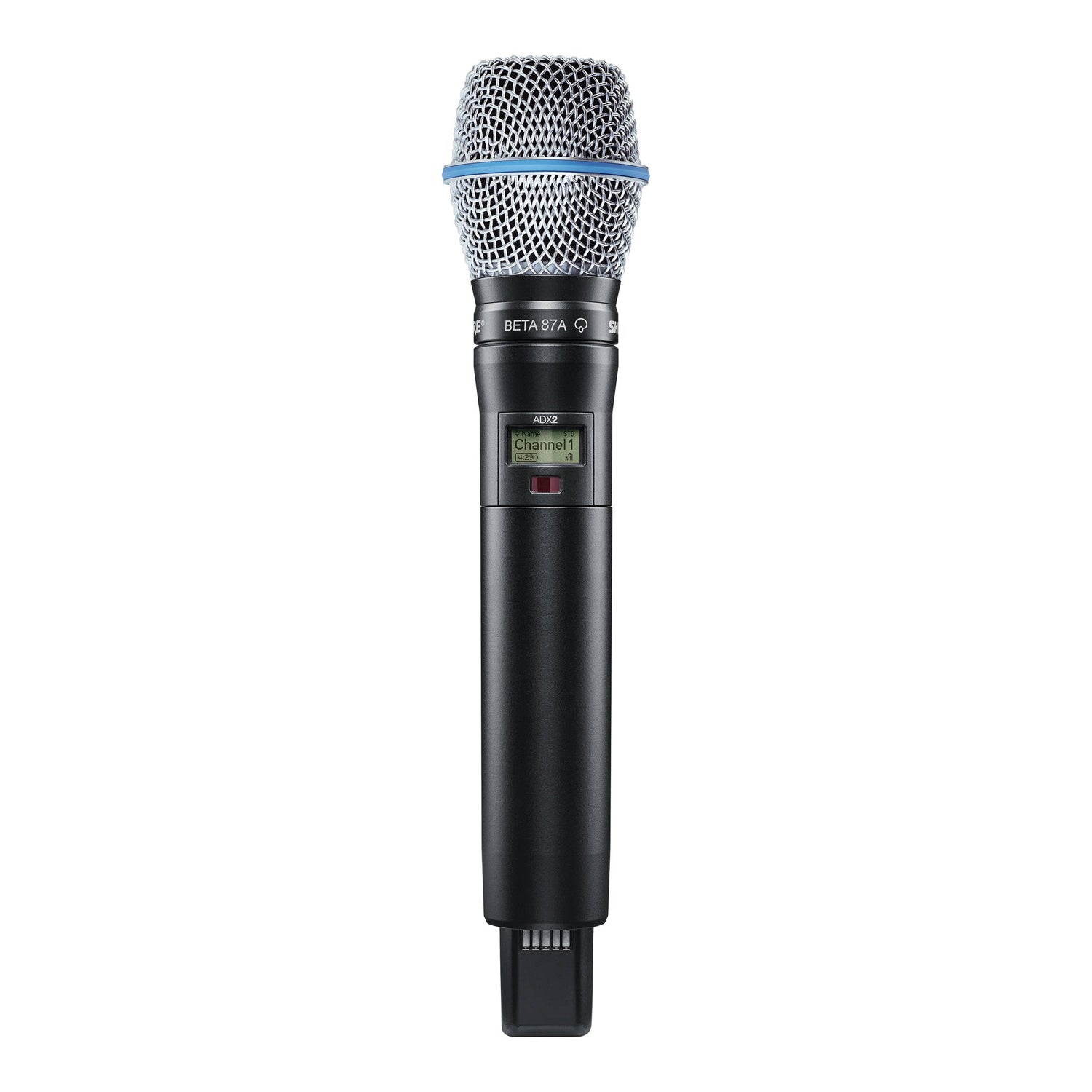

• Interchangeable Shure microphone cartridges
• Backlit LCD with easy to navigate menu and controls
• Rugged metal construction
• Menu and power lockout

Power

• Shure SB920A rechargeable batteries for up to 9 hours of runtime, precision metering, and zero memory effect
• External charging contacts for docked charging

• Gain Offset Range: –12 to 21 dB (in 1 dB steps)
• Battery Type: SB920A Rechargeable Lithium-Ion
• Battery Run Time (@10 mW): up to 9 hours
• Dimensions (L × Dia.): 10.0 × 2.0 in (254 × 51 mm)
• Weight (without battery): 11.9 oz (338 g)
• Housing: Cast Aluminum

AUDIO INPUT

• Configuration: Unbalanced
• Maximum Input Level (1 kHz at 1% THD): 145 dB SPL, typical (SM58) | Note: dependent on microphone type

RF OUTPUT

• Antenna Type: Integrated Single-Band Helical
• Occupied Bandwidth: <200 kHz
• Modulation Type: Shure Axient Digital Propietary
• Power: 2 mW, 10 mW, 20 mW, 40 mW | Varies by region. See Frequency Range and Output Power Table.
• Specific Absorption Rate (SAR): <0.19 W/kg

SHOWLINK®

• Network Type: IEEE 802.15.4
• Antenna Type: ZigBee Dual Conformal
• Frequency Range: 2.40 to 2.4835 GHz (24 Channels)
• RF Output Power (Varies By Region): 10 dBm (ERP)
